TC-880/1080A
Koten
TC-880/1080A
Negotiable
One set
T/T, L/C at sight.
50sets/month
By strong seaworthy wooden cases.
Within 30 days after get the deposit.
China
3263
| Quantity: | |
|---|---|

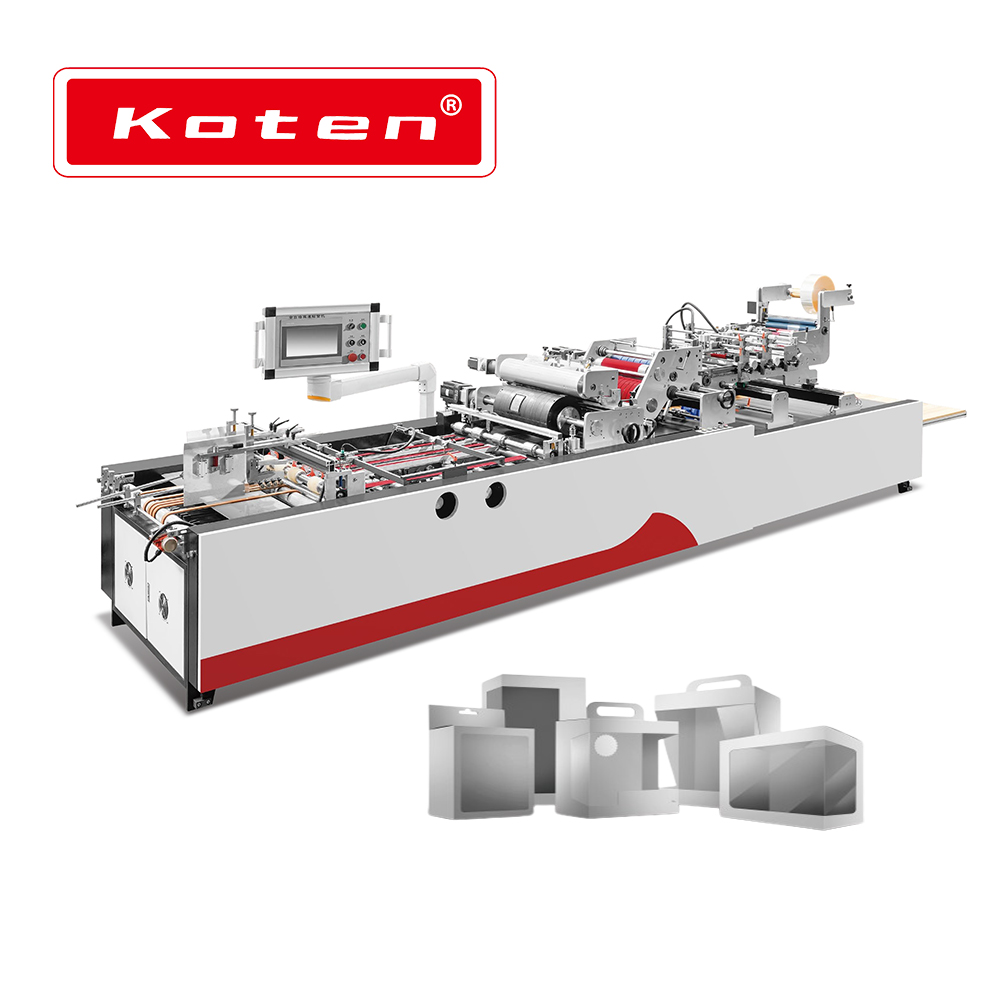

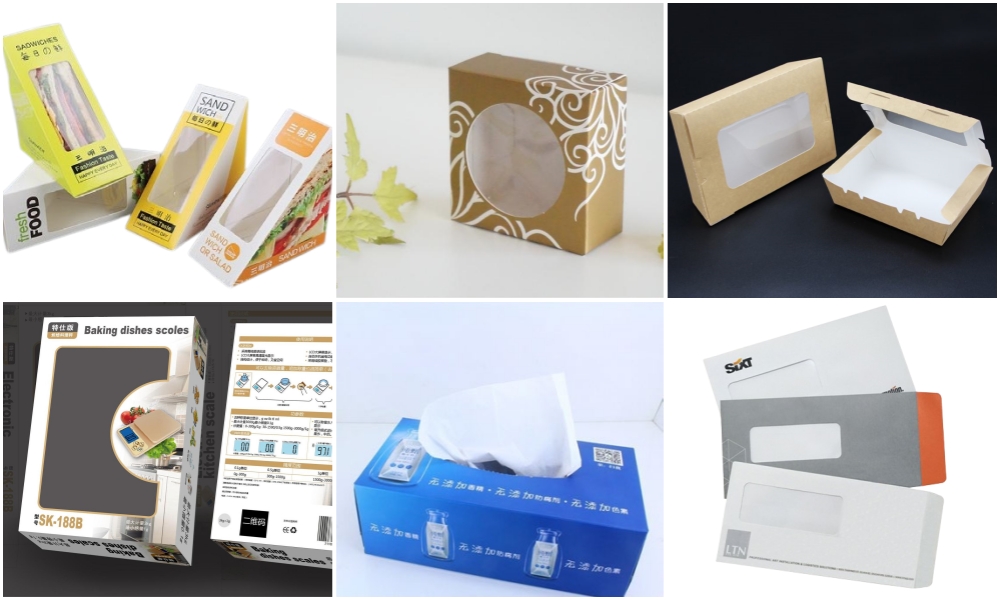

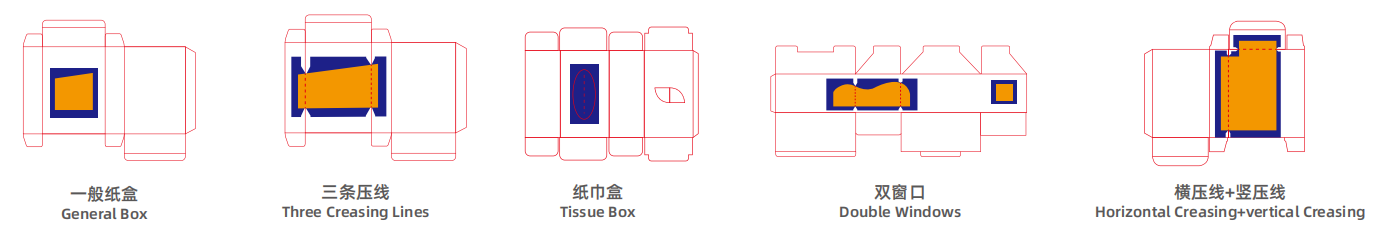

Punch & Crease Window Patching Machine is widely used for patching the window on the liquor box, gift box, cosmetic box, toy box and so on. It has punching and creasing function, special for corner window. It is the best machine for patching corner window.

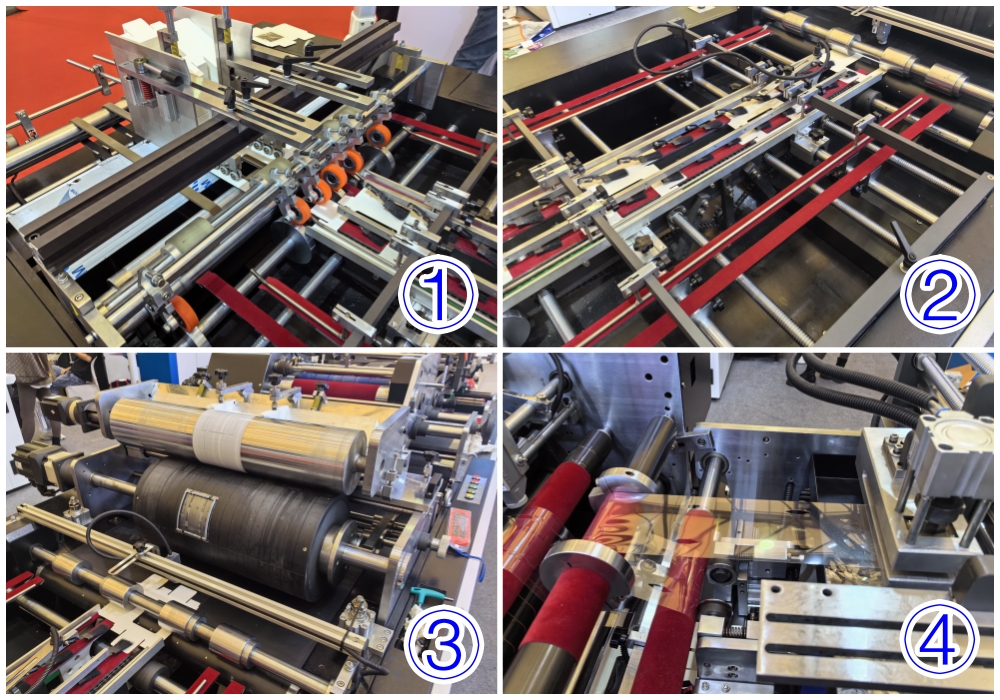

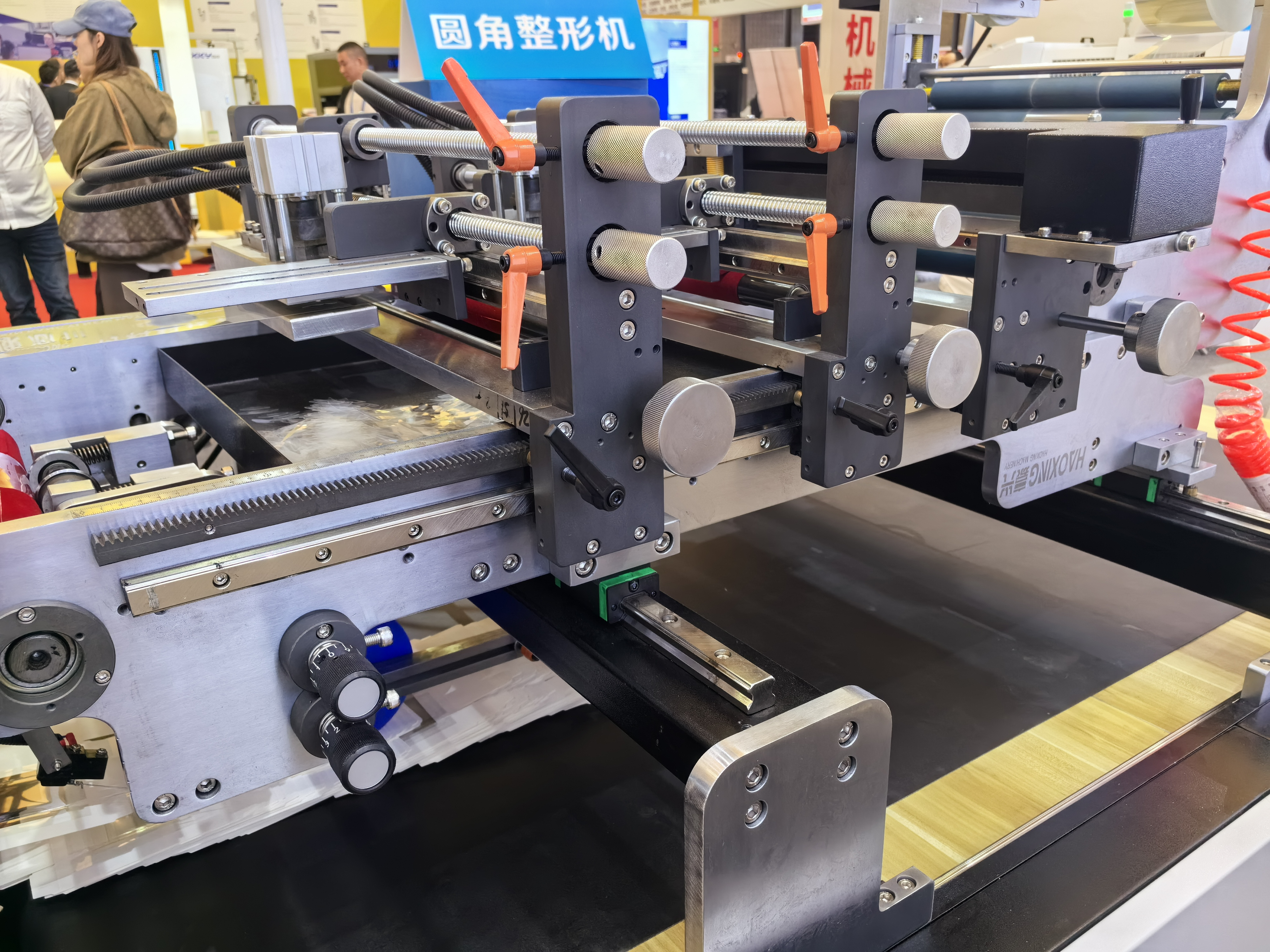

1) The paper feeder is controlled by servo motor, the belt is from Poland. No-stop feeding paper, no overlapping paper or missing paper.
2) The paper moving system adopt pushing chain and air sucking belt. They have positioning function, insure the paper comes same place in same time.
3) Glue part adopt flexo printing technology. We can adjust the place of glue on the paper without any stop. When missing paper, glue part will up in case of the glue leaves on the air sucking belt.

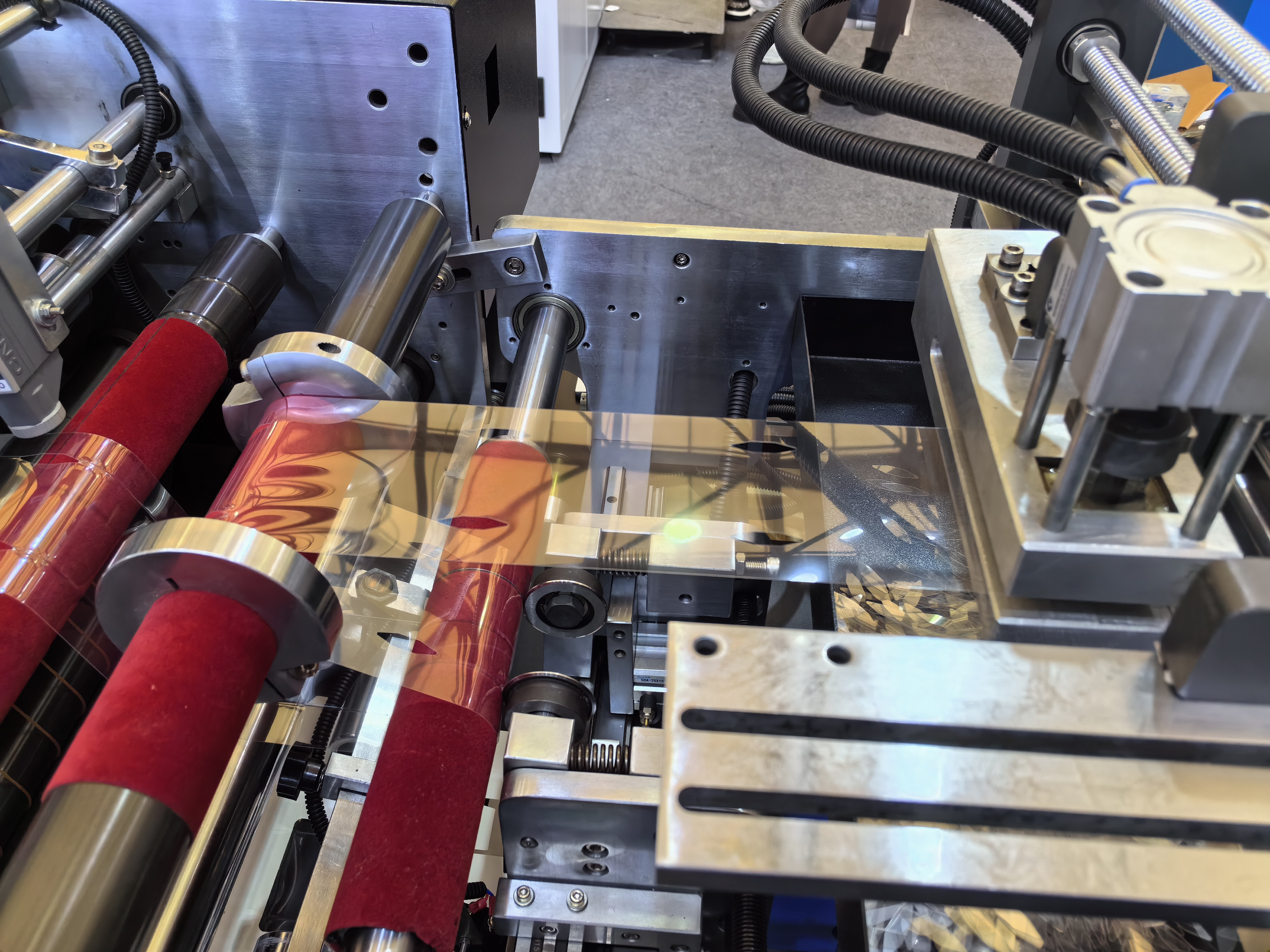

4) Film cutting part adopt our patented technology and design. The film length is controlled by servo motor in PLC. The place of paper is controlled by cylinder. Because of this set of design, the accuracy is ±0.5mm. There are letter embossing function, heating roller section function, print register camera sensor function for option.
Model | TC-880A+ | TC-1080A+ |
Cardboard Thickness | 200 gsm - 1000 gsm | 200 gsm - 1000 gsm |
Speed | 10000pcs/h--V cutter boxes 13000pcs/h---Normal boxes | |
Size of cardboard | Min.150mm(L) x 160mm(W) Max.780mm(L) x 880mm(W) | Min.150mm(L) x 220mm(W) Max.780mm(L) x 1080mm(W) |
Size of window | Min.30mm(L) x 50mm(W) Max.350mm(L) x 400mm(W) | Min.30mm(L) x 50mm(W) Max.350mm(L) x 450mm(W) |
Precision | ±0.5mm | |
Film thickness | 0.04mm - 0.25mm | |
Connected load | 12 kw | 14kw |
Weight | 2800kg | 3200kg |
Dimensions | 6700mm x 1700mm x 1600 mm | 6700mm x 2000mm x 1600 mm |
