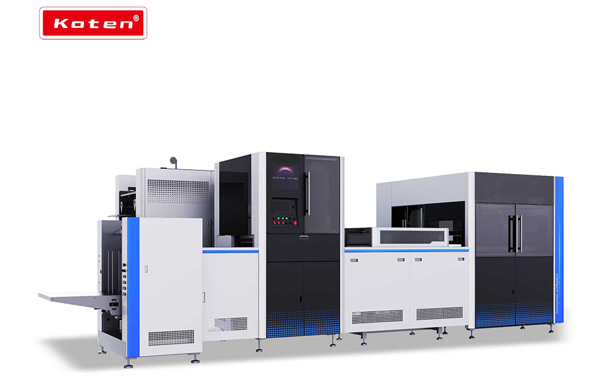

KOTEN
S6416YZ
Negotiable
1
T/T, L/C at sight.
10sets/month
By strong sea worthy package
after received 30% deposit.
China
1156
| Quantity: | |
|---|---|
1. The newly designed servo-controlled facial paper feeder adopts rear suction to push the paper forward, which effectively prevents double sheets of paper and runs stably.
2. The automatic glue viscosity control device can effectively control the viscosity of the glue and ensure the viscosity of the glue and the quality of the finished product.
3. The image positioning system cooperates with YAMAHA manipulator to achieve higher speed and more accurate positioning ( ±0.1mm).
4. The whole machine is controlled by the operation control system to realize faster debugging and smoother movements of the whole machine.
5. The equipment is equipped with the Internet of Things function, which can realize capacity monitoring, remote troubleshooting and system upgrades for customers
Model | S 6416YZ | S 6416YSZ |

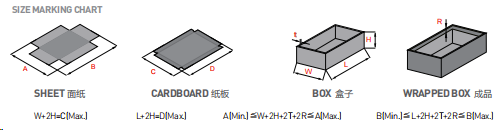

Paper Size(A×B) | Amin:100mm Amax:610mm Bmin:120mm Bmax:800mm | Amin:100mm Amax:610mm Bmin:120mm Bmax:800mm |
Paper thickness | 80-250 g/㎡ | 80-250 g/㎡ |
Carton size | Wmin:50mm Cmin:110mm Wmax:400mm Cmax:600mm Lmin:50mm Dmin:130mm Lmax:600mm Dmax:900mm Hmin:15mm Hmax:160mm | Wmin:50mm Cmin:110mm Wmax:400mm Cmax:600mm Lmin:50mm Dmin:130mm Lmax:600mm Dmax:900mm Hmin:15mm Hmax:160mm |
Cardboard thickness | 0.8-4mm | 0.8-4mm |
Folding size | Rmin:15mm Rmax:70mm | Rmin:15mm Rmax:70mm |
Folding ear size | 15mm-100mm | 15mm-100mm |
Manipulator model | YK600XG-200 | YK600XG-200 |
Position precision | ≤±0.1mm | ≤±0.1mm |
Production speed | 25~30 pcs/min | 25~40 pcs/min |
Stacking height of tissue paper | 480mm | 480mm |
Stacking height of cardboard | 1000mm | 1000mm |
Gas source requirements | 50L/min 0.8Mpa | 50L/min 0.8Mpa |
Total power of equipment | 33KW/AC380V | 33KW/AC380V |
Equipment size | 7200x5000x3300 mm | 7200x5900x3200 mm |
