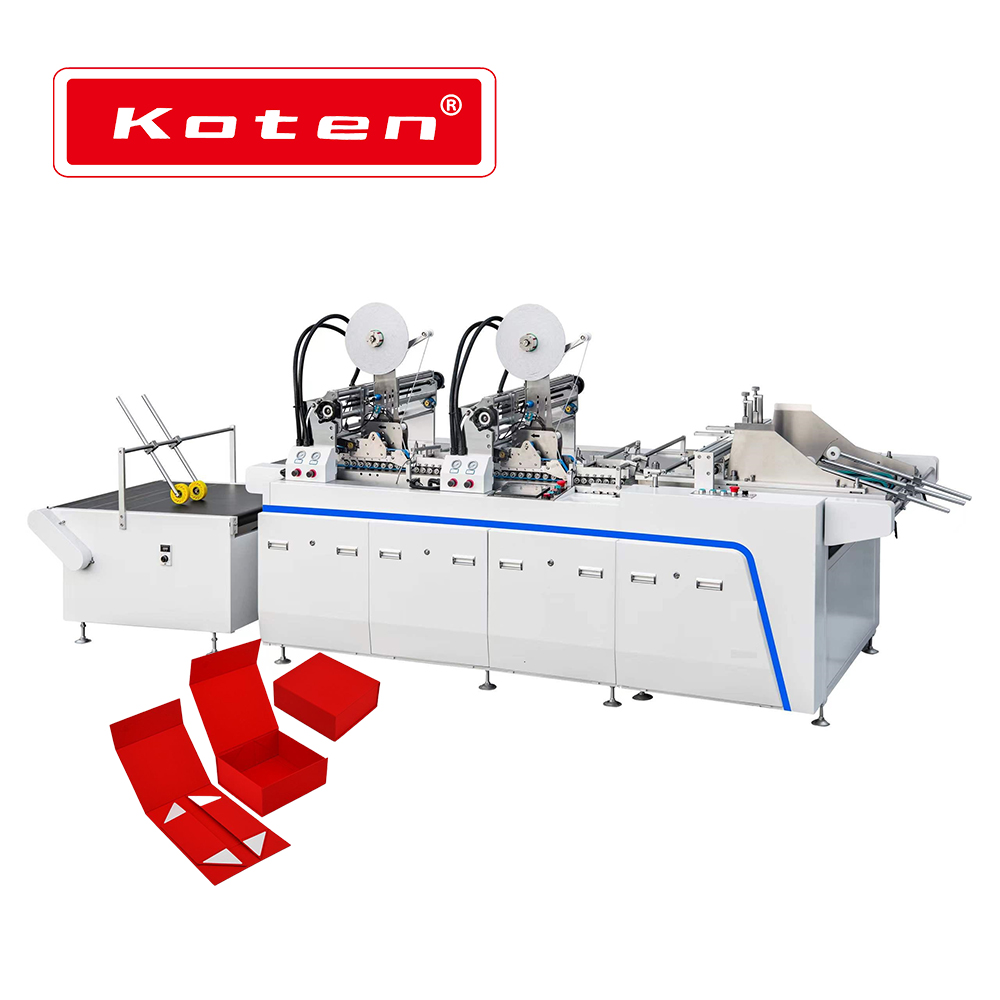

Automatic double-side adhesive tape pasting machine（SW-520）
Automatic feeding paper,bottom paper feeding system , high efficiency paper blade
It is equipped with SICK sensor and servo control to achieve the accurate position.
A new adhesive structure is built at the adhesive joint, which can enhance the adhesive performance.
With the introduction of the human-manchine interface,touch screen and PLC, the total process of parameter settings is much easier.The length of joint can be set randomly through the man-machine interaction.
| Model | SW-520 |
| product max size | 700*850mm |
| product mmin size | 100*100mm |
| product thickness | 157g-3mm |
| Width of Tape size | 6-38mm( 10-60mm） |
| pasting head | 2-4 pcs |
| Speed | 50-90 m/min |
| accuratly | ±1MM |
| Voltage | 1.5kw/AC220V |
| Machine Dimension | 4215* 1440* 1600 |
| Weight | 700 kg |
