CHJ-D
KOTEN
CHJ-D
Negotiate
1
T/T, L/C at sight
5sets/month
By strong seaworthy packaging
Within 30 days after get the deposit.
1598
| Quantity: | |
|---|---|

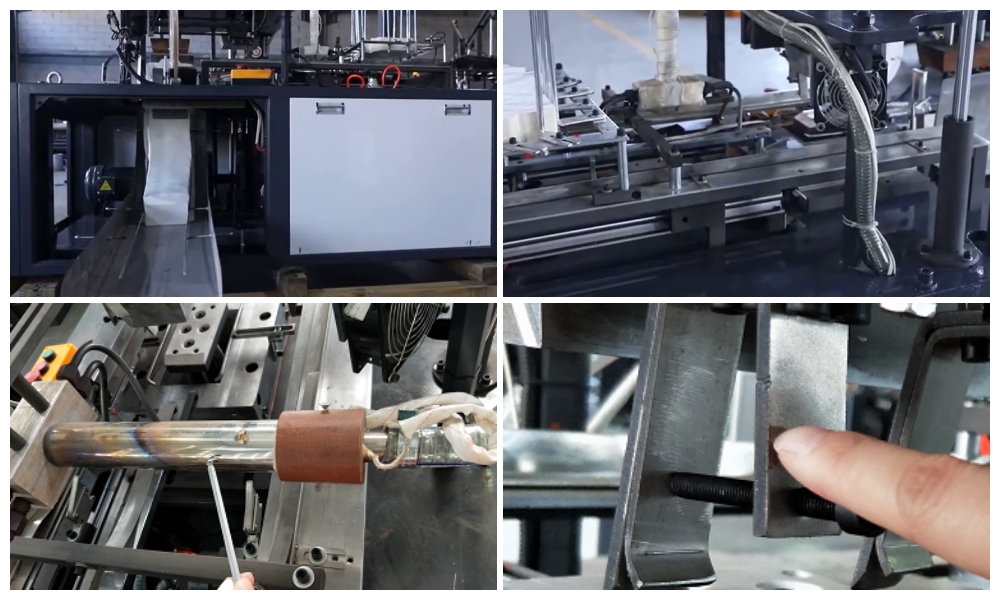

Automatic paper lunch box forming machine（CHJ-D 60/120）

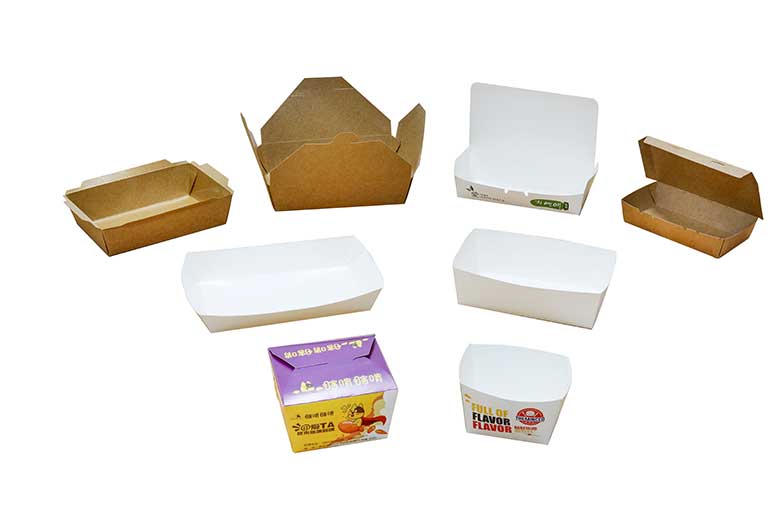

PAPER LUNCH BOX FORMING MACHINE is an ideal choice which adopts mechanical driving system to produce lunch box, take away noodle box, and food trays.
The main features of the new type:
1.The machine is controlled by mechanical system, no need air compressor. It saves our customer at least 6 KW power when machine is running.
2.The hot wind blow from the heating tube, it makes the PE coated papers stick together more tightly.
3.Besides the mechanical system, the machine on one line producing very fluently: paper feeding, heating, forming, pulling out and collecting heating. So the machine speed can be double.
| Model | CHJ-D 60 | CHJ-D 120 |
Production capacity | 25-40pcs/min | 25-40pcs/min |
Suitable Material | 200--400g/m2 single or double PE coated paper | |
Total Power | 5KW | 5KW |
Total Weight | 1250KGS | 1700KGS |
Overall Dimension | 2200 x1700 x 1500 mm | 2800 x2000 x 1900 mm |
power source | 380V 50HZ | 380V 50HZ |
