KL-450TB-S
KOTEN
KL-450TB-S
Negotiable
1
T/T, L/C at sight.
10sets/month
By strong sea worthy package
after received 30% deposit.
China
1556
| Machine size: | |
|---|---|
| Machine speed: | |
| Quantity: | |

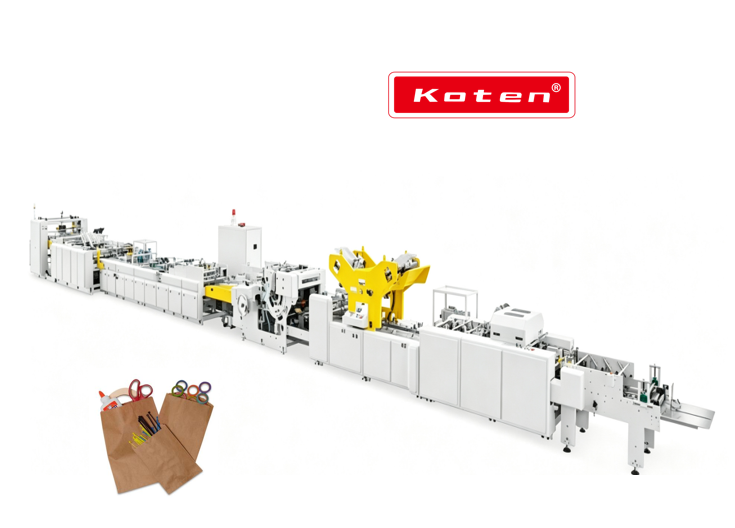

This machine forming the paper bag in one process from sheet paper, edge folding, tube forming, gluing, bottom folding, bottom gluing and finishing bag. Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and McDonald’s bags.
Model | KL-450TB-S |

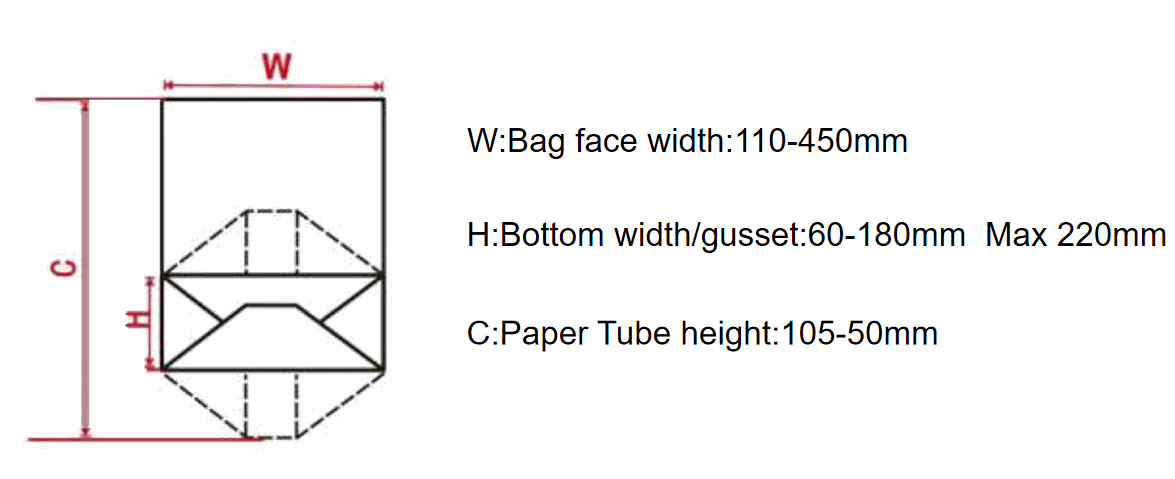

Paper bag width | 110-450mm（4.33-17.72inch） |
Bottom width | 60-180mm（2.36-7.08inch）Customized Max 220mm |
Paper sheet width | 340-1240mm（13.39-48.81inch） |
Paper sheet length | 210-600mm（8.27-23.62 inch） |
Paper weight | a.Kraft paper:120-200g/m² b.Art paper+PP laminating:140-230g/m² c.White cardboard+PP laminating:150-300g/m² d.Grey Paperboard+PP laminating:150-300g/m² Recommend that paper thickness above 200gsm die cutting before operation |
Top card thickness | 200-450g/m² |
Top card width | 90-430mm/3.54-16.92inch |
Top card length | 20-50mm/0.78-1.96inch |
Max. Bottom Card L×W | 170×440mm / 6.69x17.32 inch |
Min. Bottom Card L×W | 40×100mm / 1.57x7.48 inch |
Bottom Card Thickness | 180-450g/m² |
Punching hole distance | 60、100、140mm/2.36inch、 3.93inch 、5.51inch |
Hole diameter | Φ4，Φ5，Φ6 Punching hole distance can be customized according to actual needs,the above is the standard hole distance |
Working speed | 40-85pcs/min |
Glue type | Water glue(tube gluing with additional hot melt glue system) |
Total power | 36KW 380V 50HZwith 4 Wires 3 Phases |
Machine weight | 18T |
Machine dimension | 23000*2100*1920mm above is the standard hole distance |
NOTE:Working speed varies depending on paper quality,paper thickness,printing effect with or without laminate PP film,glue quality,paper size climate and work shop environment. | |
