DTCB-920
Koten
DTCB-680/920/1080
Negotiate
One set
TT,LC
50Sets/month
By Strong Seaworthy Wooden Cases.
One month
Wenzhou
351
| Quantity: | |
|---|---|
The High Speed Automatic 5 Ply Flute Laminating Machine is designed for high-efficiency lamination of printed paper, cardboard, and multi-layer corrugated boards. It supports various flute combinations such as 2+2+1 and 3+1+1 structures, helping packaging manufacturers produce stable and high-quality laminated corrugated sheets for cartons, boxes, and customized packaging applications.
With automatic feeding, precise alignment, and continuous laminating performance, this flute laminating machine improves production efficiency while reducing manual operation requirements. It is suitable for packaging factories that need reliable solutions for large-volume corrugated board production.
This equipment is engineered to solve the most common bottlenecks in post-press material handling, delivering measurable improvements in throughput and operational safety.
It replaces manual labor, and improves product quality and enterprise benefit. The automated rotary head design takes over the physically demanding task of waste stripping, doing the work of multiple experienced operators. This shift not only reduces overhead costs but also drastically accelerates outbound shipment speeds, establishing a remarkably short investment recovery cycle for commercial packaging plants.

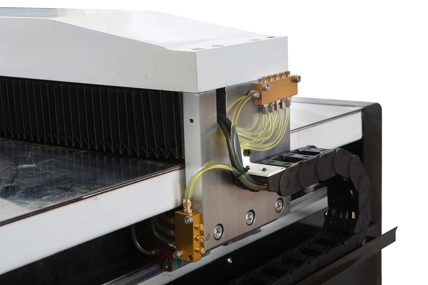

It adopts servo motor, Taiwan double guide rail and ball screw which makes accuracy less than 0.02mm. This exceptional tolerance ensures that the stripping pins engage exactly where needed. The resulting finished product features exceptionally smooth, unblemished edges that feel crisp to the touch, entirely free from the torn fibers or crushed corners often caused by inferior stripping methods.

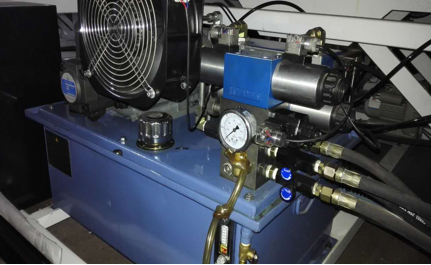

The latest hydraulic system with inserted motor and oil temperature cooling fan (power 3.75kw). So it has constant and big working pressure. Even during continuous, multi-shift operations, the cooling fan maintains optimal fluid temperatures, preventing pressure drops and ensuring that the force applied to the material stack remains uniform and reliable.

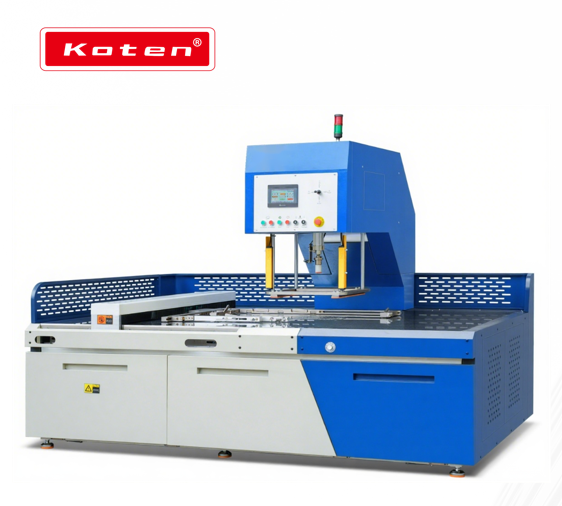

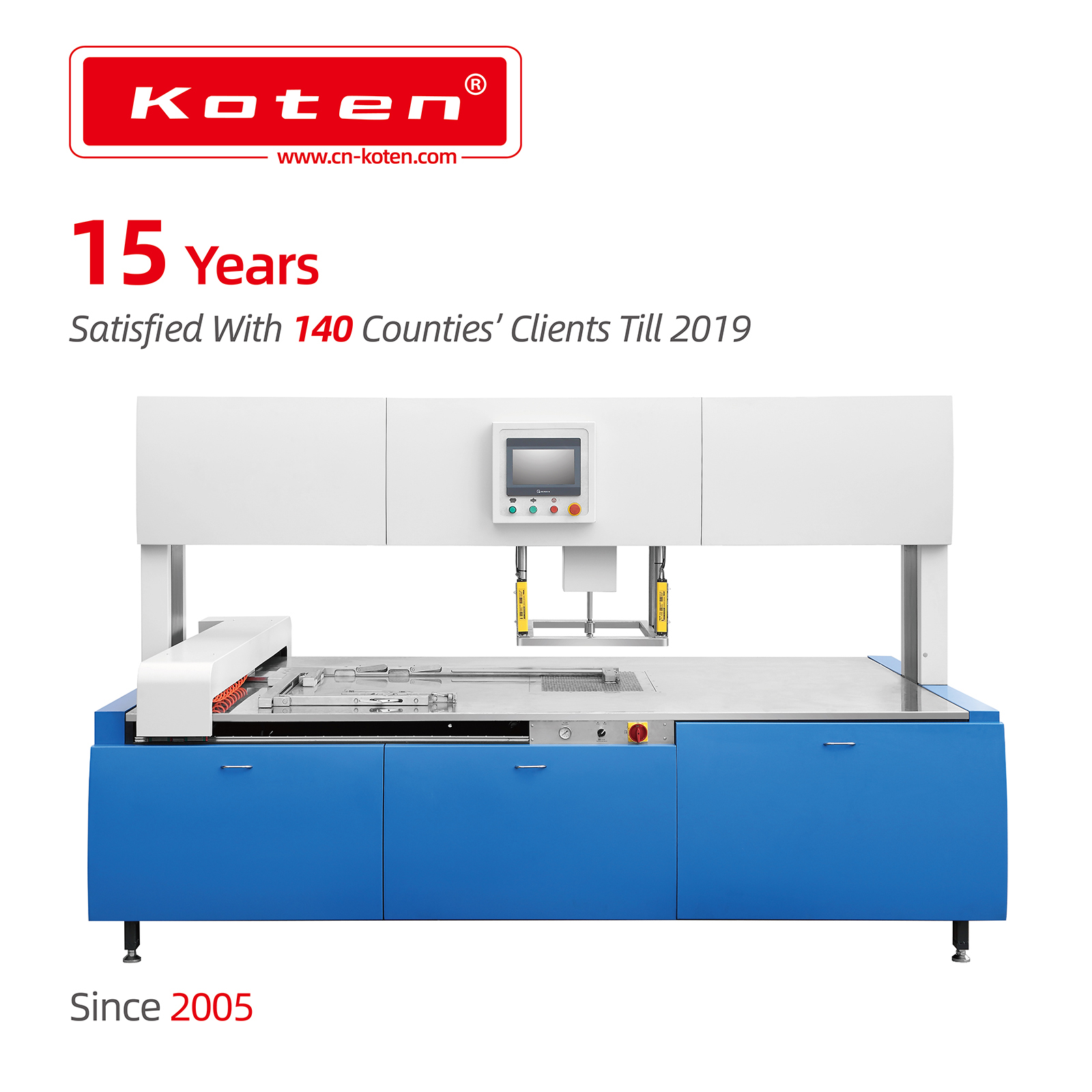

The complete machine is equipped with PLC, and with a touch screen interface in operation. The operation is safe and easy. The intuitive display allows operators to store and recall specific job parameters with a single tap, drastically reducing setup times for new production runs. Furthermore, comprehensive safety protocols, including responsive light curtains and overload prevention systems, align with stringent industrial safety standards to protect your workforce.

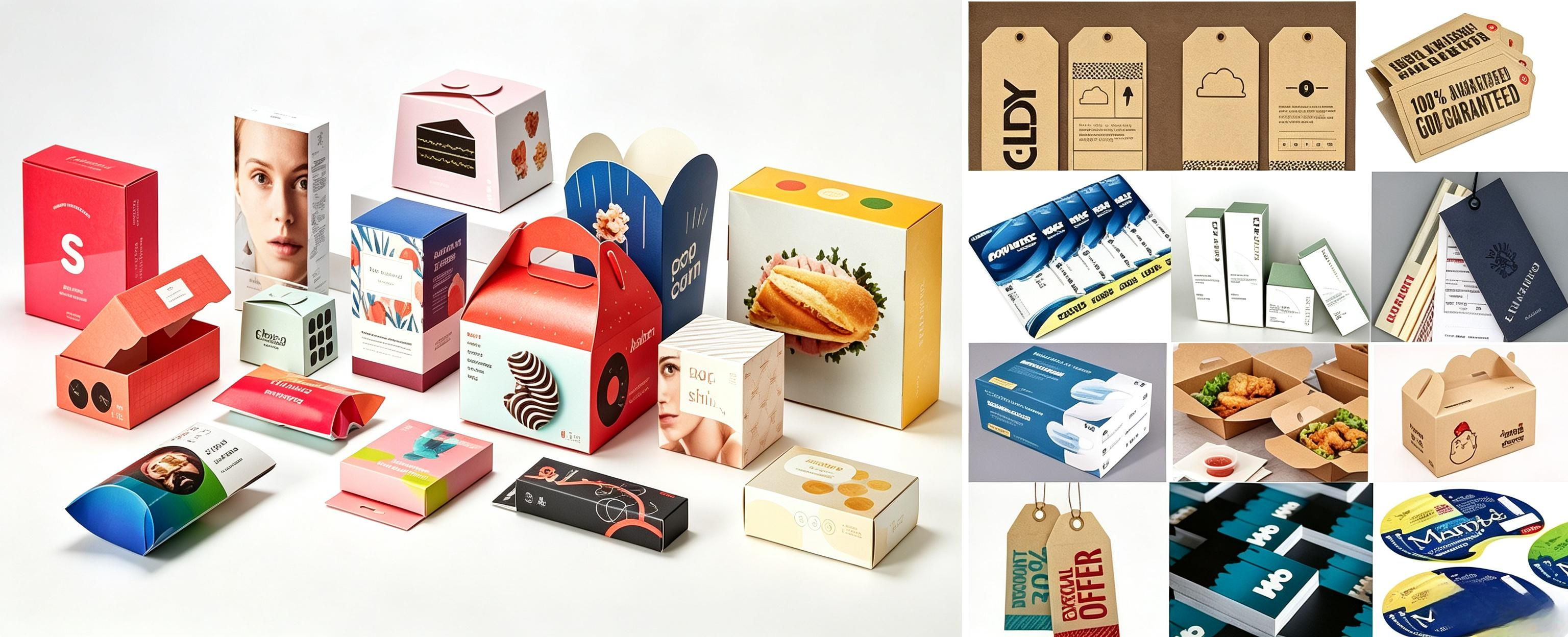

The versatility of this automated stripping system makes it an indispensable asset across various segments of the printing and packaging sector. It is engineered to process a wide spectrum of die-cut materials, ensuring clean waste removal without compromising the structural integrity of the final product.
Corrugated Packaging: Effortlessly removes internal and external waste from thick corrugated boards, leaving structural flutes intact and ready for automated folder-gluers.
Folding Cartons & Cardboard: Handles intricate cosmetic, pharmaceutical, and food packaging layouts, ensuring the delicate printed surfaces remain free from scratches or pressure marks.
Plastic Packaging Boxes: Delivers the precise force required to snap rigid plastic waste sections cleanly, avoiding the white stress fractures common in manual bending.
Hang Tags & Labels: Processes dense stacks of small-format items, maintaining perfect alignment and preventing the individual pieces from scattering or sticking together.
Understanding the precise capabilities of your equipment is crucial for optimizing production schedules. The following data details the exact dimensional capacities, power requirements, and operational speeds of the DTCB series. These metrics reflect the machine's ability to handle diverse batch sizes while maintaining absolute consistency. Procurement teams can rely on these exact figures to ensure compatibility with existing factory infrastructure and material workflows.
DTCB-68 Automatic stripping machine | |||
Max Stripping Area（mm） | 680*450 | 920*650 | 1080*780 |
Mini Stripping Area（mm） | 450*320 | 450*320 | 450*320 |
Max Stripping Finished Product Size（mm） | 220*220 | 310*280 | 450*420 |
Mini Stripping Finishes Product Size（mm） | 30*30 | 30*30 | 30*30 |
Stripping Height（mm） | 40-120 | 40-120 | 40-120 |
Stripping speed（time/min） | 15-20 | 15-20 | 15-20 |
Main Power（KW） | 2.5 | 4 | 4 |
Voltage（V） | 380V/50HZ | 380V/50HZ | 380V/50HZ |
Wire Specification（mm） | 1.5 | 2.5 | 2.5 |
Machine Weight（kg） | 1100 | 1600 | 1900 |

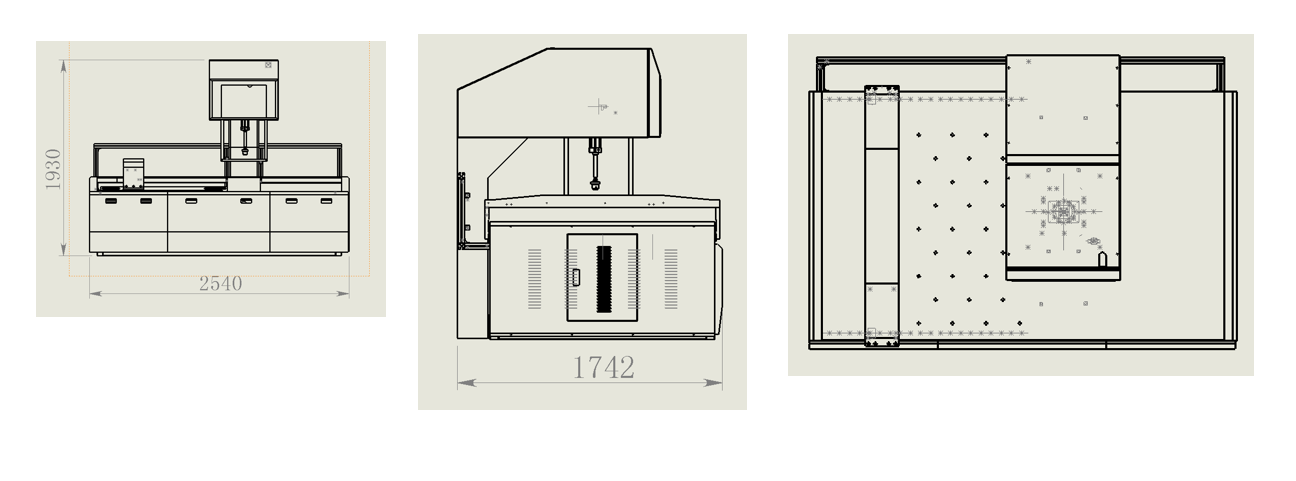

Overall Dimension (mm) | 1900*1200*1900 | 2450*1600*1900 | 2900*1800*1900 |
Packing Size（mm） | 1900*1200*2050 | 2750*1900*2050 | 3060*2000*2050 |
Investing in heavy industrial machinery requires confidence in both the product and the manufacturer behind it. Our production facilities are built on a foundation of rigorous engineering standards and meticulous quality control. Walking through our assembly floor, you will hear the precise calibration of servo motors and see the careful inspection of every hydraulic valve before it is cleared for shipment. We understand that equipment downtime translates directly to lost revenue, which is why our commitment extends far beyond the initial delivery.
We provide a comprehensive technical support ecosystem designed to eliminate operational anxieties. This includes detailed on-site installation guidance, thorough hands-on training for your floor operators, and a rapidly responsive global support network. With a robust inventory of critical spare parts always ready for dispatch, we ensure your production lines continue running smoothly year after year, maximizing the lifecycle value of your investment.
Choosing a suitable corrugated laminating machine directly affects production efficiency and product quality. This machine provides a practical solution for manufacturers who require:
Automatic operation reduces manual processes and supports continuous manufacturing.
Stable feeding and alignment systems help achieve consistent bonding quality.
Support for multiple five-ply structures allows manufacturers to handle different packaging requirements.
Designed for packaging factories requiring reliable operation and long-term production performance.
A flute laminating machine is used to bond printed paper sheets with corrugated boards to produce laminated packaging materials. It is commonly used in carton, color box, and packaging production.
This machine is designed for multi-layer corrugated board lamination and supports five-ply structures such as 2+2+1 and 3+1+1 combinations.
An automatic flute laminating machine improves production efficiency by reducing manual operation, increasing alignment accuracy, and maintaining consistent laminating quality during continuous production.
Lamination combines printed surfaces with corrugated boards, improving appearance, structural strength, and suitability for customized packaging applications.
Yes. The high-speed automatic design makes it suitable for packaging manufacturers requiring continuous production and stable output for large orders.
