SKJ-360
KOTEN
SKJ-360
Negotiable
1
T/T, L/C at sight.
30sets/month
By strong sea worthy package
after received 30% deposit.
China
1556
| Max. Size: | |
|---|---|
| Max.Work Speed : | |
| Quantity: | |

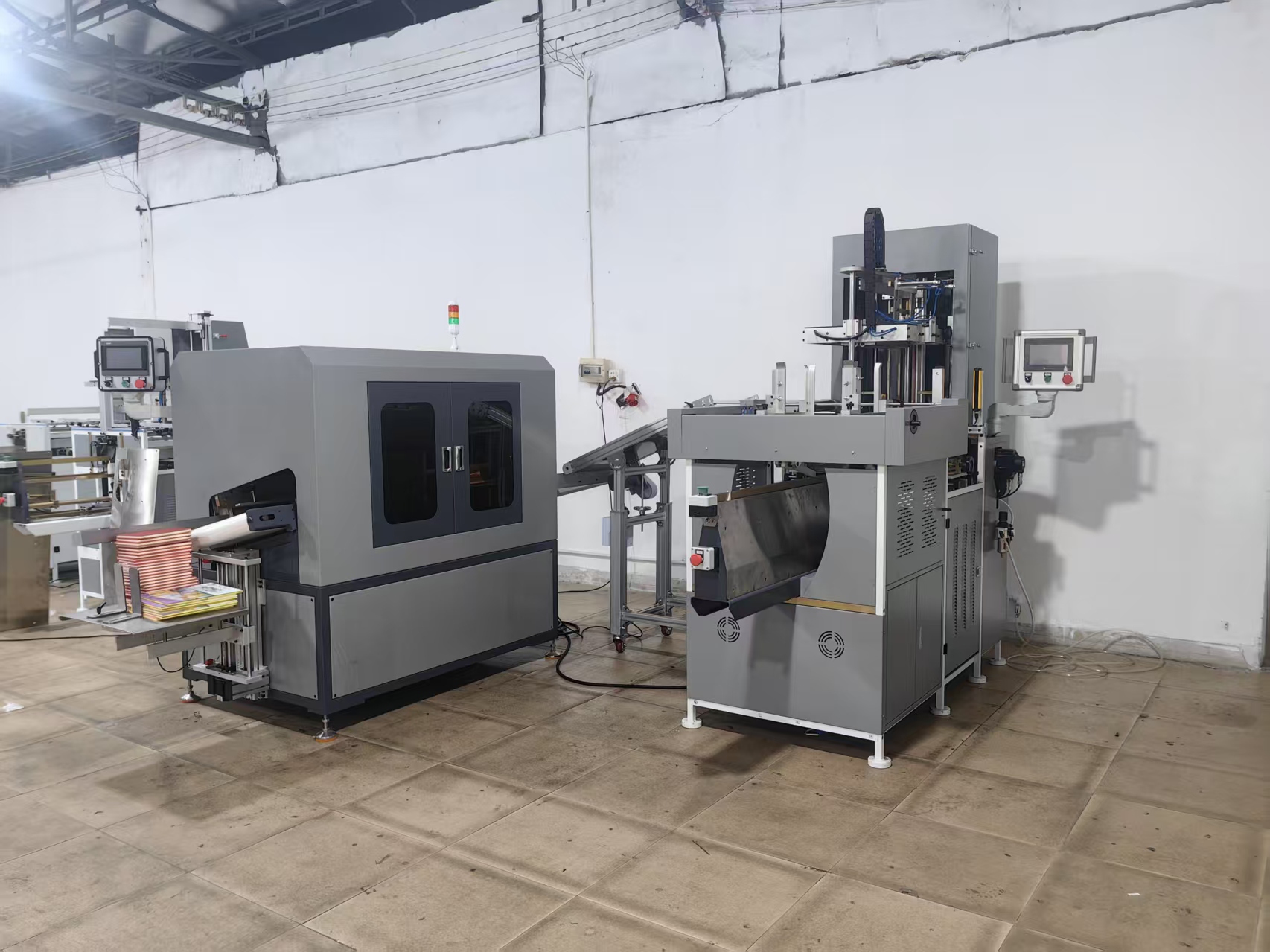

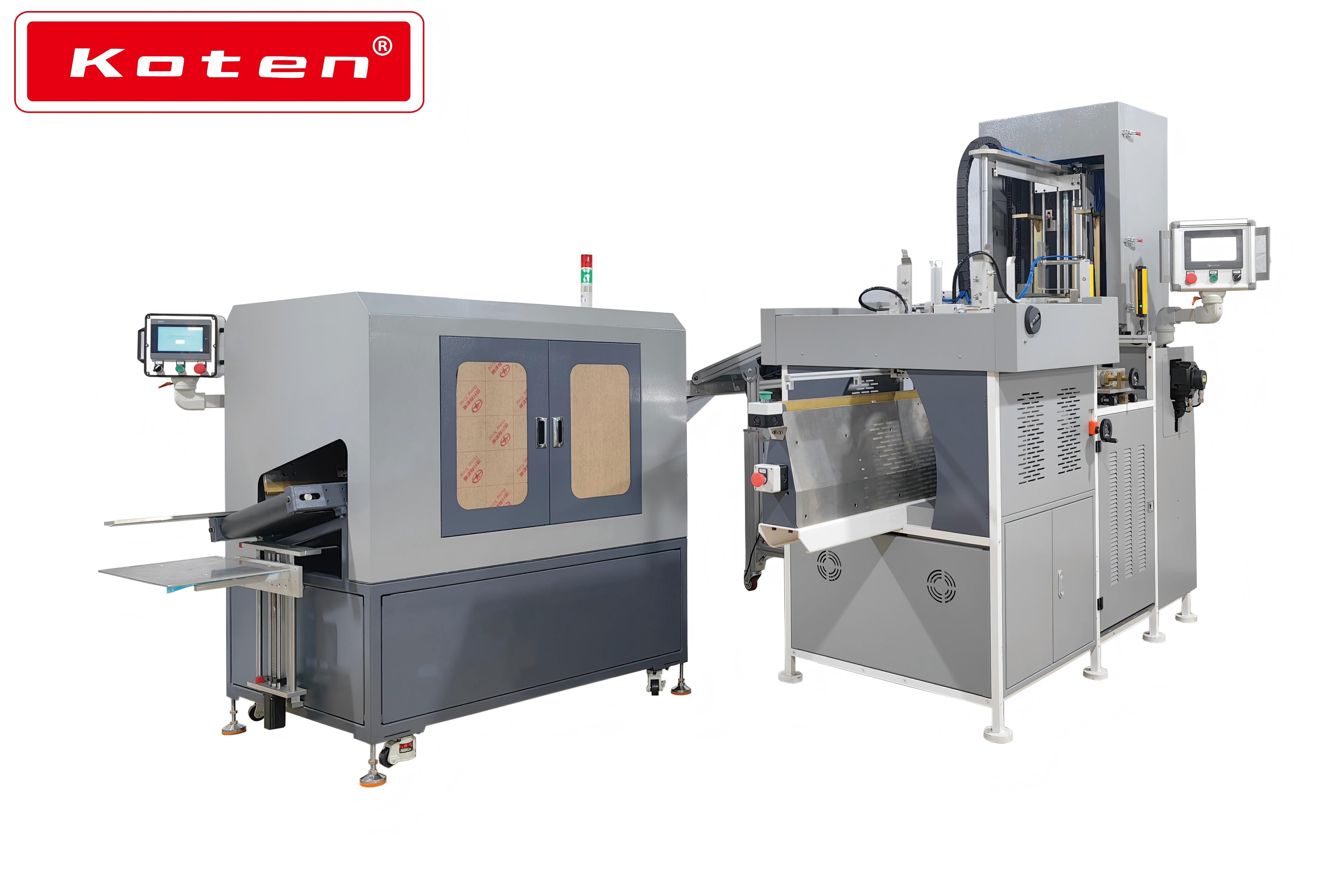

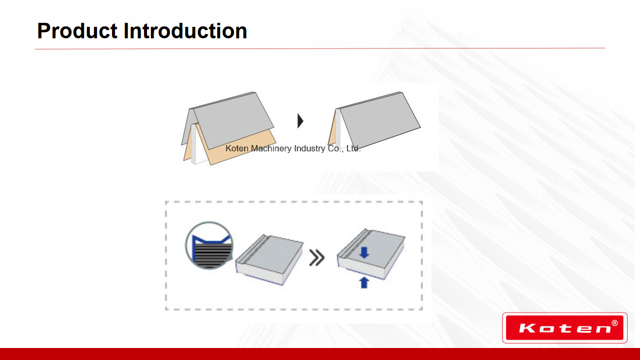

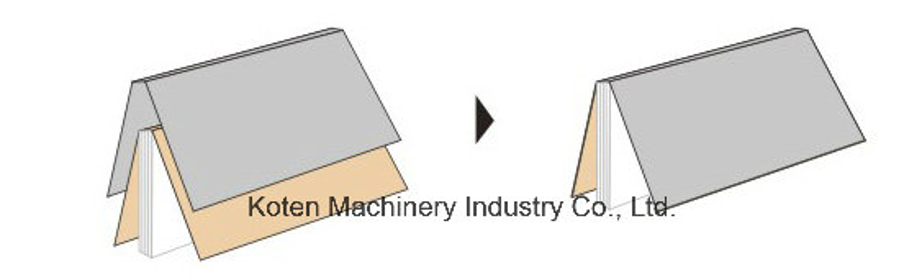

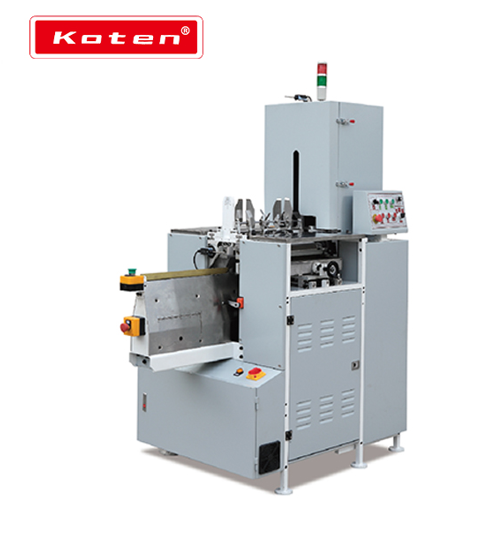

This casing in machine is very suitable to the use on the covers of deluxe books. One or two persons operate will do. Operators should first place books Cores and hulls before starting the machines. The pickup boards rise to drive book cores to automatically apply adhesive on both sides and
Cover them with hulls. Then operator can remove the books. The machines are reset to enter the next working state immediately. It is apply for Deluxe books, notebooks, universal folders and operating processes for other hardback book cores. It is characteristic of simplicity, Convenience and quickness in replacing specification of products. Both sides of book cores are applied with adhnsives, with reliable movement

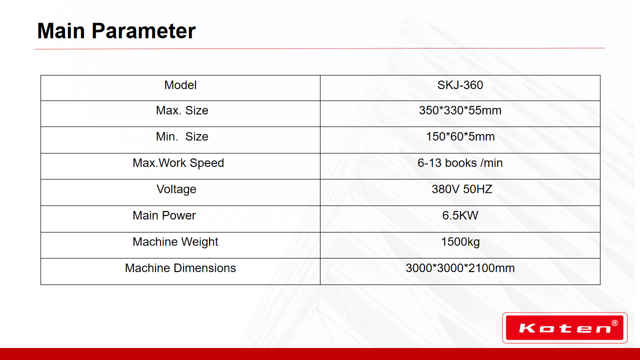

Model | SKJ-360 |
Max. Hard Case Size | 330X300mm |
Min. Hard Case Size | 150X60mm |
Work Speed | 6-12pcs/min |
The Book Block Thickness | 5-60mm |
Voltage | 3P 380V 50HZ |
Main Power | 1.5KW |
Machine Weight | 450kg |
Machine Size | 1800*1000*2100mm |
