ZK-320
Koten
ZK-320
USD30000-USD35000
One set
T/T, L/C at sight.
50sets/month
By strong seaworthy wooden cases.
Within 30 days after get the deposit.
China
2061
Availability: | |
---|---|
Quantity: | |

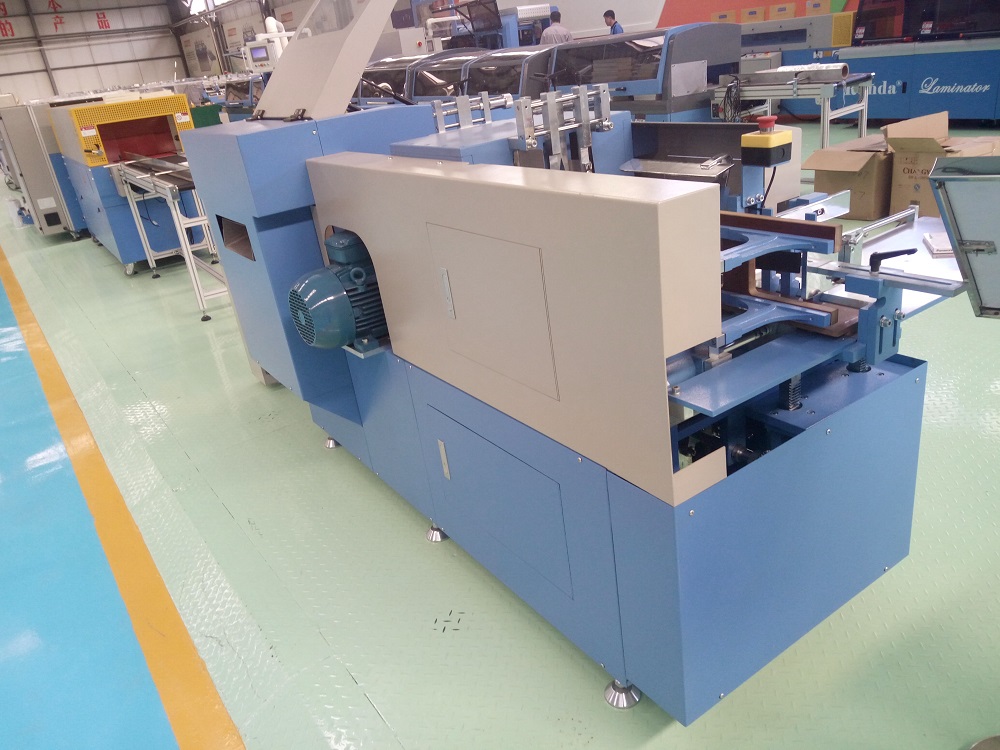

Introduction
ZK320 Book flapping machine is mainly designed for paperbook(of the book cover binding finished) ,to complete the procedure of bookblock front cutting, book cover creasing and folding.This machine simplify the binding process ,easy to operate and adjustment.
Features
Automatic book feedding and collecting conveyor.

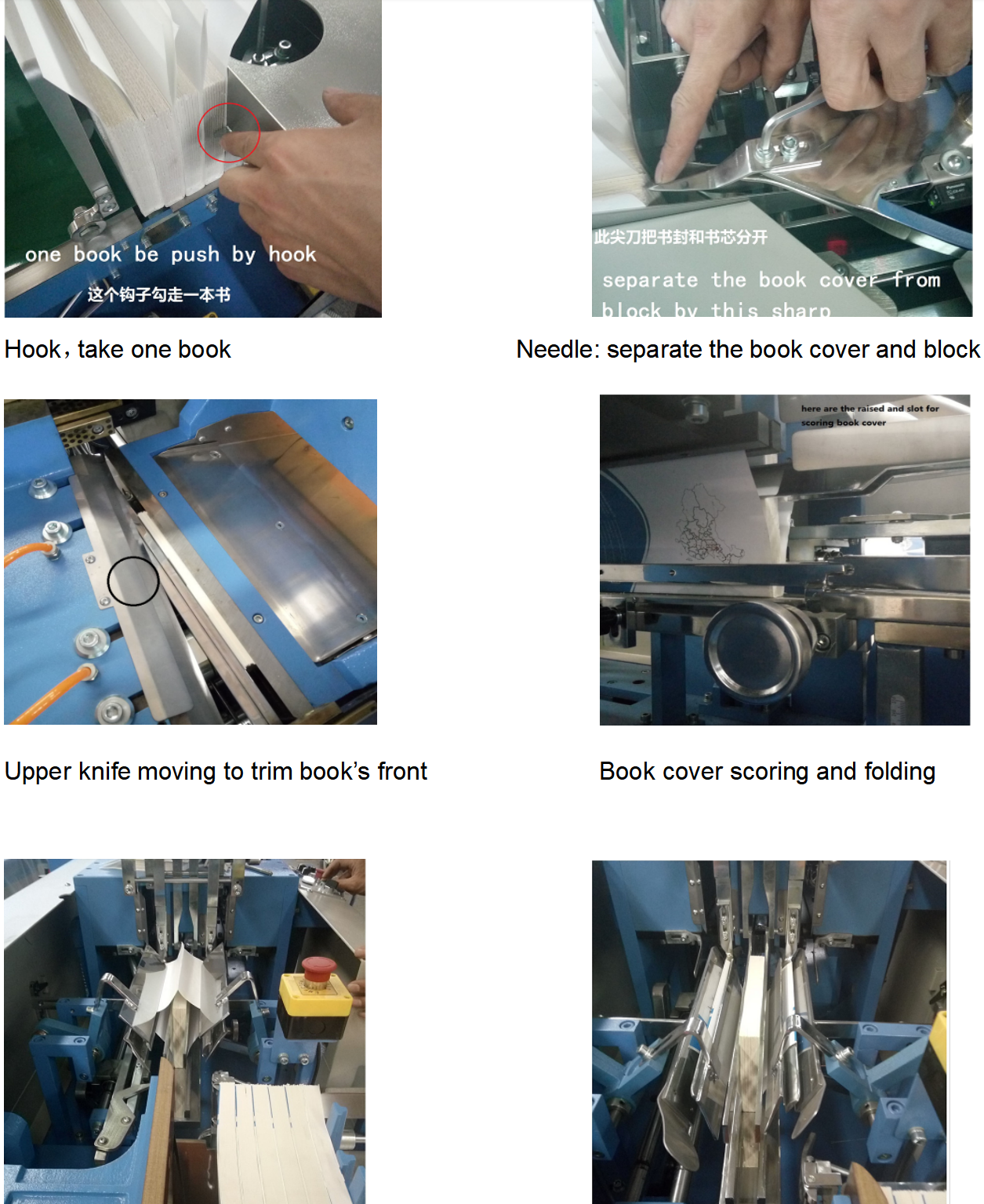

Bookblock front cutting, book cover creasing and folding completed by one-time.
High production efficiency and time saving.
Technical parameters
Max. Book size(mm) | 320*240 |
Min.book size(mm) | 150*105 |
Max.book thickness(mm) | 45 |
Min.book thickness(mm) | 6 |
Max.cover folding width(mm) | 160 |
Min.cover folding width(mm) | 40 |
Max.mechanical speed | 55books/min |
Power | 4KW |
Overall size(mm) | 3060*1450*1606 |
Main configuration of electrical equipment :
DESCRIPTION | Specifications | Brand | remarks |
General power switch | TDS25 | Tend | C E |
travel switch | TM1703 15A 250VAC | Omron | C E |
inching switch | CM1301 15A 250VAC | Omron | C E |
Circuit breaker | C65 ND16 3P | Schneider | C E |
Circuit breaker | C65 ND10 3P | Schneider | C E |
Circuit breaker | C65 ND4 3P | Schneider | C E |
Circuit breaker | C65 NC4 1P | Schneider | C E |
switching power | ABL2REM24020 | Schneider | C E |
AC contactor | LCI – 09M7C | Schneider | C E |
Thermal relay | LRD – 101C | Schneider | C E |
Frequency converter | ATV312HU40N4 | Schneider | C E |
intermediate relay | RXM4AB2BD | Schneider | C E |
Intermediate relay | RXZE2M114 | Schneider | C E |
Switch on and off | ZB2 – BE101C | Schneider | C E |
Emergency stop | ZB2 – BE102C | Schneider | CE |
Forward turn button | ZB2 – BE101C | Schneider | Greem |
Power indicator light | XB2BW34MIC | Schneider | red |
Reverse jog button | ZB2 BE101C | Schneider | white |
Main electric machine | 4KW | WEG | C E |
Introduction
ZK320 Book flapping machine is mainly designed for paperbook(of the book cover binding finished) ,to complete the procedure of bookblock front cutting, book cover creasing and folding.This machine simplify the binding process ,easy to operate and adjustment.
Features
Automatic book feedding and collecting conveyor.
Bookblock front cutting, book cover creasing and folding completed by one-time.
High production efficiency and time saving.
Technical parameters
Max. Book size(mm) | 320*240 |
Min.book size(mm) | 150*105 |
Max.book thickness(mm) | 45 |
Min.book thickness(mm) | 6 |
Max.cover folding width(mm) | 160 |
Min.cover folding width(mm) | 40 |
Max.mechanical speed | 55books/min |
Power | 4KW |
Overall size(mm) | 3060*1450*1606 |
Main configuration of electrical equipment :
DESCRIPTION | Specifications | Brand | remarks |
General power switch | TDS25 | Tend | C E |
travel switch | TM1703 15A 250VAC | Omron | C E |
inching switch | CM1301 15A 250VAC | Omron | C E |
Circuit breaker | C65 ND16 3P | Schneider | C E |
Circuit breaker | C65 ND10 3P | Schneider | C E |
Circuit breaker | C65 ND4 3P | Schneider | C E |
Circuit breaker | C65 NC4 1P | Schneider | C E |
switching power | ABL2REM24020 | Schneider | C E |
AC contactor | LCI – 09M7C | Schneider | C E |
Thermal relay | LRD – 101C | Schneider | C E |
Frequency converter | ATV312HU40N4 | Schneider | C E |
intermediate relay | RXM4AB2BD | Schneider | C E |
Intermediate relay | RXZE2M114 | Schneider | C E |
Switch on and off | ZB2 – BE101C | Schneider | C E |
Emergency stop | ZB2 – BE102C | Schneider | CE |
Forward turn button | ZB2 – BE101C | Schneider | Greem |
Power indicator light | XB2BW34MIC | Schneider | red |
Reverse jog button | ZB2 BE101C | Schneider | white |
Main electric machine | 4KW | WEG | C E |
