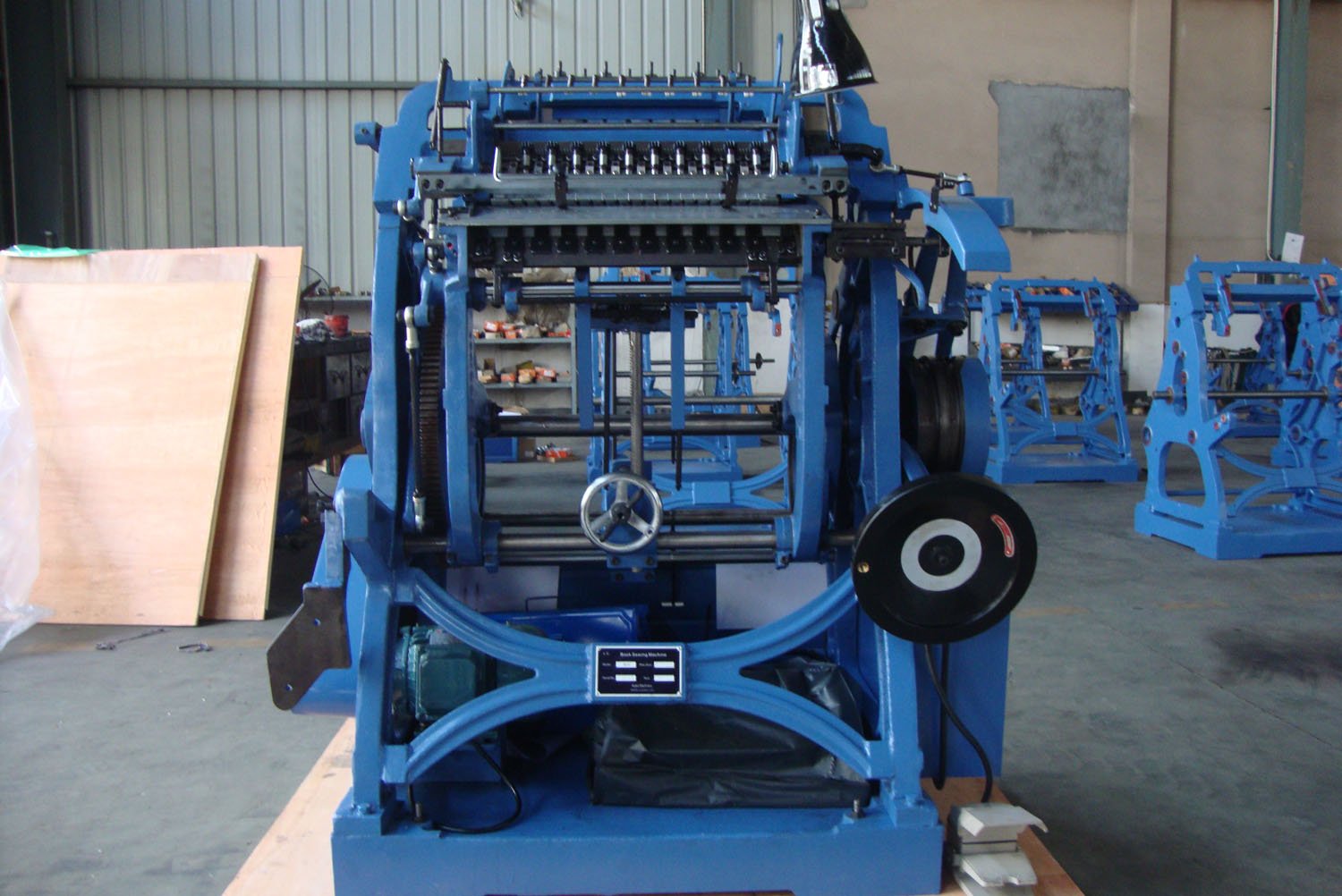

Book Sewing Machine Model SX-01

Model:
SX-01
FOB Price:
Negotiate
Min.Order Quantity:
One set
Payment Terms:
T/T
Supply Ability:
200 sets/month
Packaging:
By strong sea worthy wooden cases.
Delivery Time:
Within 10 days after receipt of the deposit.
Place Of Origin:
China
Views:
1222

Quantity:
Availability:





Inquire Add to Basket

Details

Introduction.

SX-01 sewing machine is used to sew the books which are gathered in collating machine. The machine has the features of stable running, low noise, convenient operation, safety and wide sewing range etc. It is widely used for paper-bound or hard-cover books. The machine has thin needle. Automatic belt output and chain clamp output function are equipped for book delivery section, so quality and stability are greatly enhanced. Infinite speed regulation, electromagnetic Clutch driving and electromagnetic brake are adopted. Sensor protection is set for operating side.

Finished Samples.

Model SX-460E

1. Imported PLC control with 5.7 inch touch screen, speed adjusted.

2. With high quality sewing, adopt famous brand needles, beautiful finished sewing.

Model SX-01 and Model SX-460B

1. Advanced clutch control, reliable working condition

2. With IR safety system control device.(SX-460B)

3. Suitable for large and high-class books sewing.(SX-460B)

4. Automatic lubrication system.(SX-460B)

Technical Parameter.

Model	SX-01	SX-460B	SX-460B(Large size)	SX-460E
Max.Sewing Size	400X300mm	460x460mm	630x460mm	460x310mm
Min.Sewing Size	150x100mm	150x100mm	150x100mm	150x100mm
Speed	43-53cycles/min	50 cycles/min	50 cycles/min	100 cycles/min
Needles	10groups	12groups	19groups	19groups
Power	0.55kw	0.75kw	0.75kw	1.6kw
Weight	650kgs	850kgs	1000kgs	1100kgs
Dimension	1.38x1.28x1.55m	1.5x1.3x1.45m	1.5x1.47x1.45m	2.3x1.4x1.4m

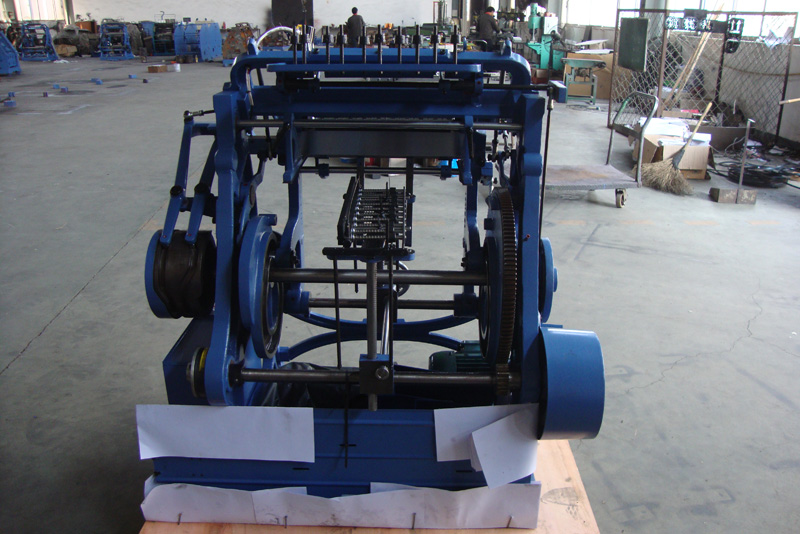

Koten Machines Container Loading.

140 Countries Clients Who Has Koten Brand Machines Till 2019.
Book Sewing Machine

FAQ.

1. Why choose us to cooperate?

Factory prices, flexible payment terms and professional quality inspection team which has the guarantee for machines, in time after sales service, and more than 15 years experience for exporting. Reputation and quality is what we are considering all the time.

2. Guarantee.

There is 12 month guarantee of each Koten brand Machines since customer got the machine. Within one year, the damaged spare parts can be changed for free, and we provide lifetime technology support on line.

3. Delivery Time.

Within 7-30 days after get the deposit. Depends on different machines.

4. What is your package?

What the package we use is strong seaworthy wooden cases. Each machine will be protected by anti-rusted oil before put into the case and there are desiccants will be packed into the machine together.

5. Do you have Installation and Training service if we bought the machines from your company?

The training service will be done by our agency dealer in some countries. If customers request us to dispatch our engineer to their country for installation and training, customers should take all necessary cost, like return flight tickets, hotel, food and salary USD100/day. If customer dispatch their engineer to our factory for training, it is free.

6. Have you sold any machines to our country?

We have to say that there are 140 countries' customers who have the "KOTEN" brand machines till 2019. Pls check with the sales manager to get more information if you need the machines' feedback.

7. What is your payment terms?

T/T. If the amount less than USD30,000.00, 30% paid in advance as a deposit, 70% balance paid before shipment.

L/C. If the sales amount above USD30,000.00, 30% paid by T/T as a deposit, 70% balance paid by irrevocable L/C at sight.

By Cash, by western union, credit cards are acceptable.

Special country like Bangladesh or Algeria can be available for 100% by irrevocable L/C at sight.

8. What your company can offer?

Exercise Books Making Solutions.
Soft Cover Books Making Solutions.
Hard Cover Books Making Solutions.
Spiral Books Making Solutions.
Postpress and Paper Converting Solutions.
Paper Box Making Solutions.
Rigid Box Making Solutions.

Paper Bag Making Solutions.

Exhibitions and Customers'Meeting.

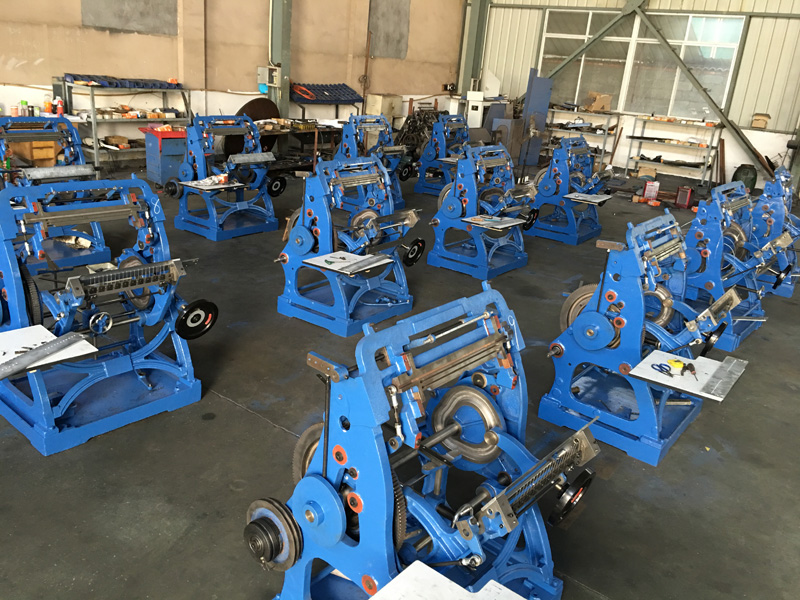

Factory Production.
