Koten
PSFM-35Z
Negotiable
One Set
T/T
50sets/month
By strong wooden cases.
10-30days
China
9006
| Quantity: | |
|---|---|

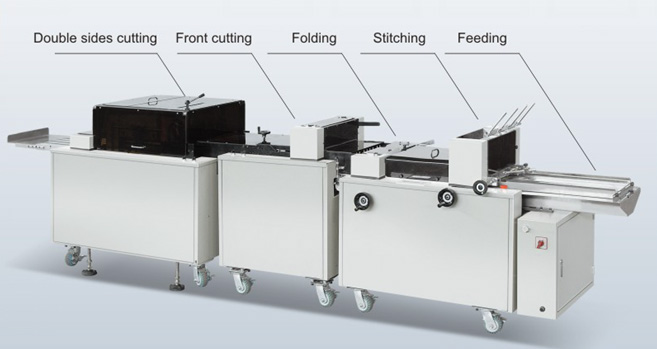

The physical presence of this Booklet Wire Binding Folding Machine commands attention on any production floor. Constructed from heavy-duty industrial steel with an anti-corrosion finish, the cool, galvanized metal chassis absorbs operational vibrations, ensuring absolute stability during continuous runs. It integrates three essential manual-processing stages into one cohesive sequence: dual-head wire stitching, precise center folding, and clean side trimming. When in motion, the rhythmic, synchronized sound of the mechanical components reflects its precision engineering. Operators will immediately notice the tightly bound, perfectly flat finish of every output, elevating the tactile feel and visual presentation of the final manuals.
Mainly used for the manual production of various products, it handles a wide material spectrum fluidly. The equipment processes paper thicknesses ranging from 60 to 200gsm without tearing delicate sheets or jamming on thicker covers. This makes it an indispensable asset for producing detailed pharmaceutical inserts, comprehensive mobile phone user guides, and complex electrical appliance manuals. By consolidating these steps, facilities can significantly reduce manual handling, eliminate bottlenecks, and accelerate their workflow.
The side-cutting mechanism is particularly notable. It removes uneven edges in a single, crisp motion, delivering a flat, commercial-grade finish that enhances the perceived value of your printed materials. The blade slices through the folded edge with a satisfying sound, leaving no burrs or frayed paper fibers. Simultaneously, the double-head binding mechanism draws the wire, cuts it, and forms the staple in a fraction of a second, ensuring the binding is always centered and secure.
Achieving a consistent output of 2200 to 2600 pieces per hour, this equipment is engineered for high-frequency, volume production cycles. Processing over 20,000 manuals in a standard 8-hour shift, it meets the rigorous demands of large-scale operations. The 1000W motor provides reliable, uninterrupted torque, preventing mechanical stuttering even when operating at maximum capacity with 4mm thick booklets. Every component within the positioning system and professional-grade folding rollers is calibrated to micro-millimeter tolerances. This ensures that the wire staples are driven exactly on the spine line without deviation, and the subsequent fold is sharp and decisive.
| Model | PSFM-35Z |
| Max. paper size | 340x460mm |
| Min. Paper size | 180x240mm |
| Thickness of material | 60-200gsm/4mm |
| Max. size of finish book | 230x340mm |
| Min. Size of finish book | 86x170mm |
| Speed | 2200-2600 pcs/h. |
| Power. | 1000w |
| Voltage. | 1P 220V 50HZ |
| Weight. | 500kgs |
| Size. | 2500x710x1210mm |
Reducing the learning curve for floor operators is a primary focus of this machine's design. The mechanical adjustments for different paper sizes—from the minimum 180x240mm up to the maximum 340x460mm—are straightforward, utilizing clear measurement gauges and ergonomic adjustment knobs. This intuitive human-machine interaction minimizes setup times between different production batches and reduces the reliance on highly specialized technicians. Furthermore, the 2500x710x1210mm footprint is compact enough to fit into existing assembly lines without requiring a complete floor redesign, yet massive enough to ground the unit securely.
Overload Power Disconnect: Instantly halts the motor if material thickness exceeds the 4mm threshold, preventing mechanical strain and preserving the lifespan of the folding rollers.
Anti-Short Circuit Architecture: Protects internal electrical pathways during continuous 220V operation, safeguarding both the equipment and the operator from unexpected power surges.
Vibration Dampening: The 500kg structural weight combined with specific geometric balancing keeps the unit grounded, minimizing ambient noise and physical wear on moving parts.
Behind every unit is a rigorous manufacturing and testing protocol. The assembly process involves strict metallurgical inspections of the steel framework and endurance testing of the dual-head binding mechanism. Before any unit leaves the facility, it undergoes a full-load simulation to verify that the folding alignment and side-cutting sharpness meet exact commercial standards. The distinct smell of fresh industrial lubricant during initial commissioning is a testament to the thorough factory preparation. The anti-rust surface treatments applied to the exterior panels ensure that the machine maintains its professional appearance and structural integrity even in humid or demanding factory environments. We focus on delivering equipment that provides long-term reliability and measurable improvements to your daily operational output.
The machine integrates two important finishing processes, reducing the need for separate equipment and improving workflow efficiency.
By combining folding and wire stitching, it helps printing companies shorten production procedures and improve productivity.
Stable paper handling and stitching performance help maintain uniform finished products.
The machine provides a practical operating process suitable for daily production environments.
For printing companies, efficient post-press processing directly affects delivery speed and production costs. The booklet folding and wire stitching machine provides an effective solution for improving booklet production efficiency.
It helps manufacturers:
Reduce manual finishing work
Improve production consistency
Simplify booklet manufacturing processes
Handle different printing orders efficiently
The machine is suitable for companies looking to optimize their booklet production workflow.
Selecting reliable finishing equipment helps maintain product quality and production efficiency. The booklet folding machine provides a practical choice for businesses requiring stable booklet finishing performance.
The integrated folding and stitching process reduces handling time and improves workflow efficiency.
Stable folding and stitching help create neat and durable booklets.
The machine can be used for various printed materials, including brochures, catalogs, and manuals.
Designed for commercial printing environments requiring efficient post-press solutions.
A booklet folding and wire stitching machine is used to fold printed sheets and bind them with wire stitching to produce finished booklets, brochures, manuals, and similar printed materials.
Wire stitching uses metal wire to secure folded sheets together, making it suitable for booklets, magazines, and brochures that require a compact and durable binding solution.
Yes. Wire stitching is commonly used for saddle-stitched booklet production, especially for brochures, catalogs, and magazines with fewer pages.
The machine can produce brochures, instruction manuals, product catalogs, advertising booklets, and other multi-page printed materials.
Combining folding and stitching reduces manual transfer between processes, improves production efficiency, and helps maintain consistent booklet quality.
Yes. It is designed for commercial printing and post-press environments that require efficient booklet finishing solutions.
