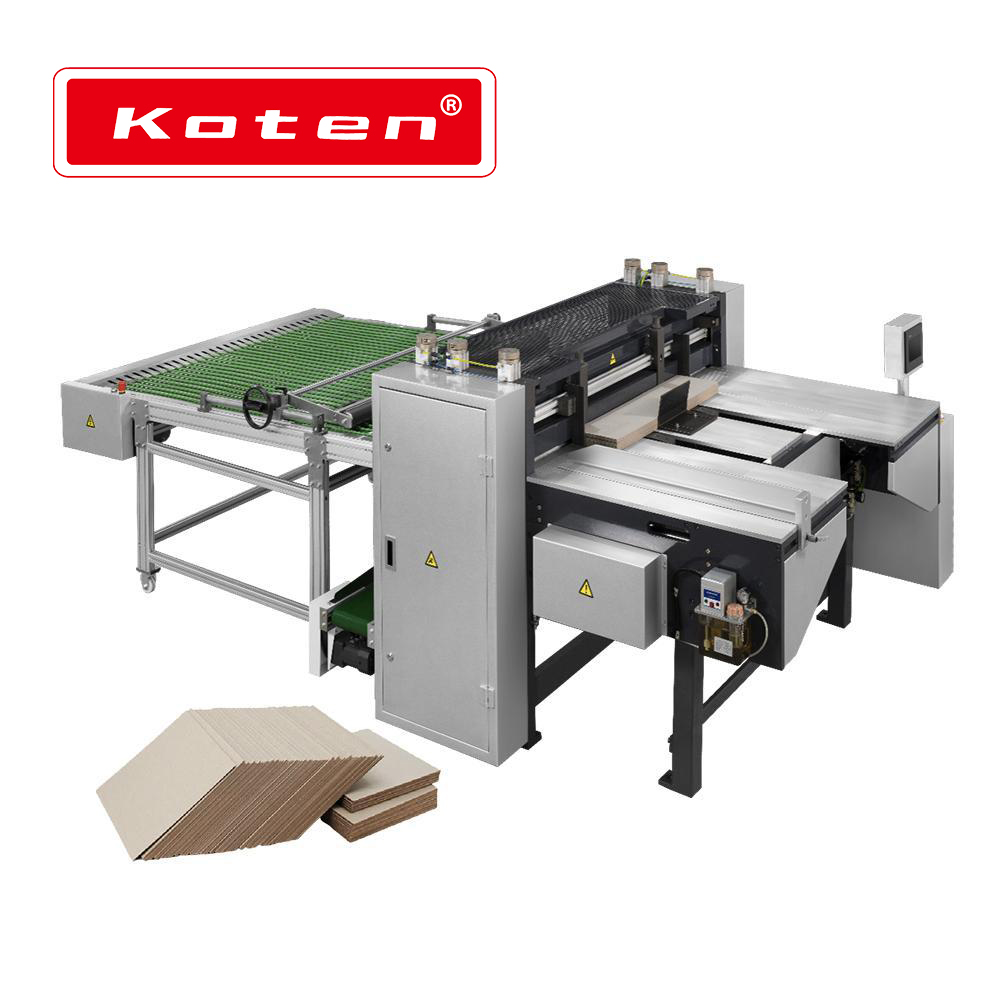

Board Slitting Machine K18 (With Trash cleaning)

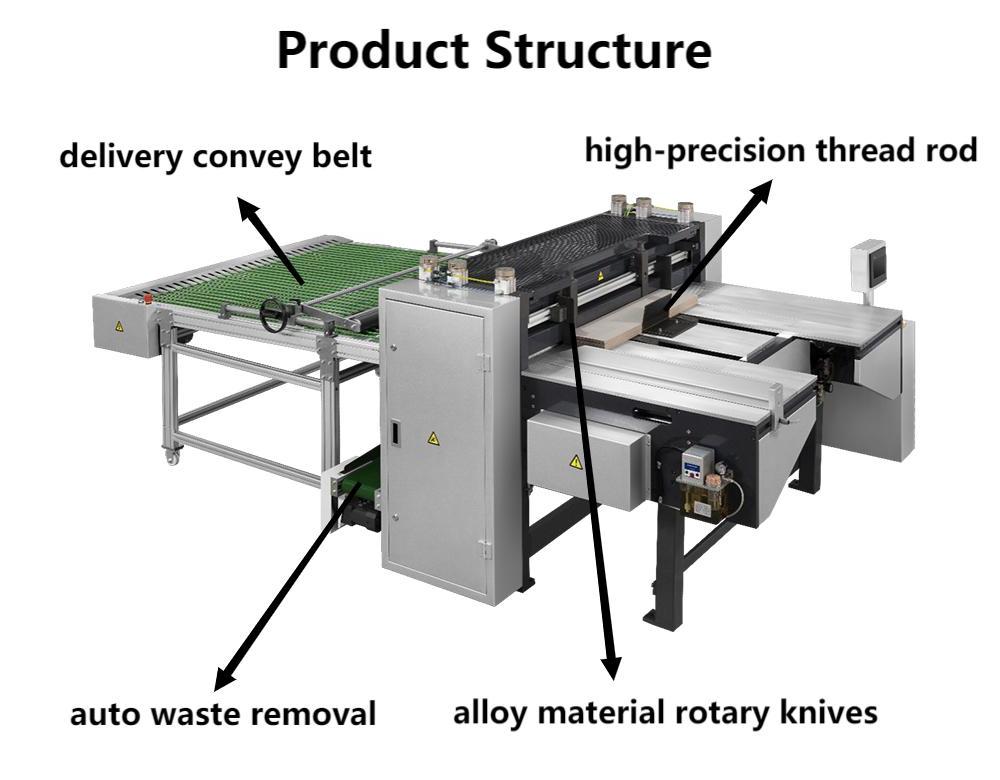

The machine equipped with the rotary knives can accurately finish cutting the board with higher precision and can also smash the waste edges into pieces.
• The rotary knives are made of high-quality alloy, which makes it durable and can cut various boards.
• The large-sized boards are fed manually and can be cut into long-bar-type boards.
• The small-sized boards are propelled with a high-precision thread rod to finish slitting.
• The cut edges on the left and right ends are smashed with a spiral cutter and can be automatically discharged.
• The finished product delivery conveyer belt can stack the products in a good order.
• The automatic centralized oil supply device is used to timely and quantitatively lubricate every part.
• It adopted the PLC and HMI controller, which makes it more vivid and friendly in its operation.
Machine Workflow
Machine Advantage
product parameters
Model | K18Lite | K18 | K21 |
Original Cardboard Size | ≦1380×1380mm | ≦1380×1380mm | ≦1380×1380mm |
Product Size | W=85-600mm | W=85-600mm | W=85-600mm |
L=150-450mm | L=150-550mm | L=150-550mm | |
Cardboard Thickness | 1-4mm | 1-4mm | 1-4mm |
Slitting Speed | 30-120m/min | 30-120m/min | 30-120m/min |
Machine Size | 3600×2200×1600mm | 3600×2200×1600mm | 3600×2200×1600mm |
Trash-cleaning | × | √ | √ |
Digital Ruler | × | × | √ |
Touch Screen | × | √ | √ |
Application
