ZYHD780B/ZYHD670B
ZYHD780B/ZYHD670B
Negotiate
One set
T/T, L/C At Sight.
20 sets/Month.
By strong sea worthy wooden cases.
Within one month after receipt of the deposit.
China.
1824
| Quantity: | |
|---|---|

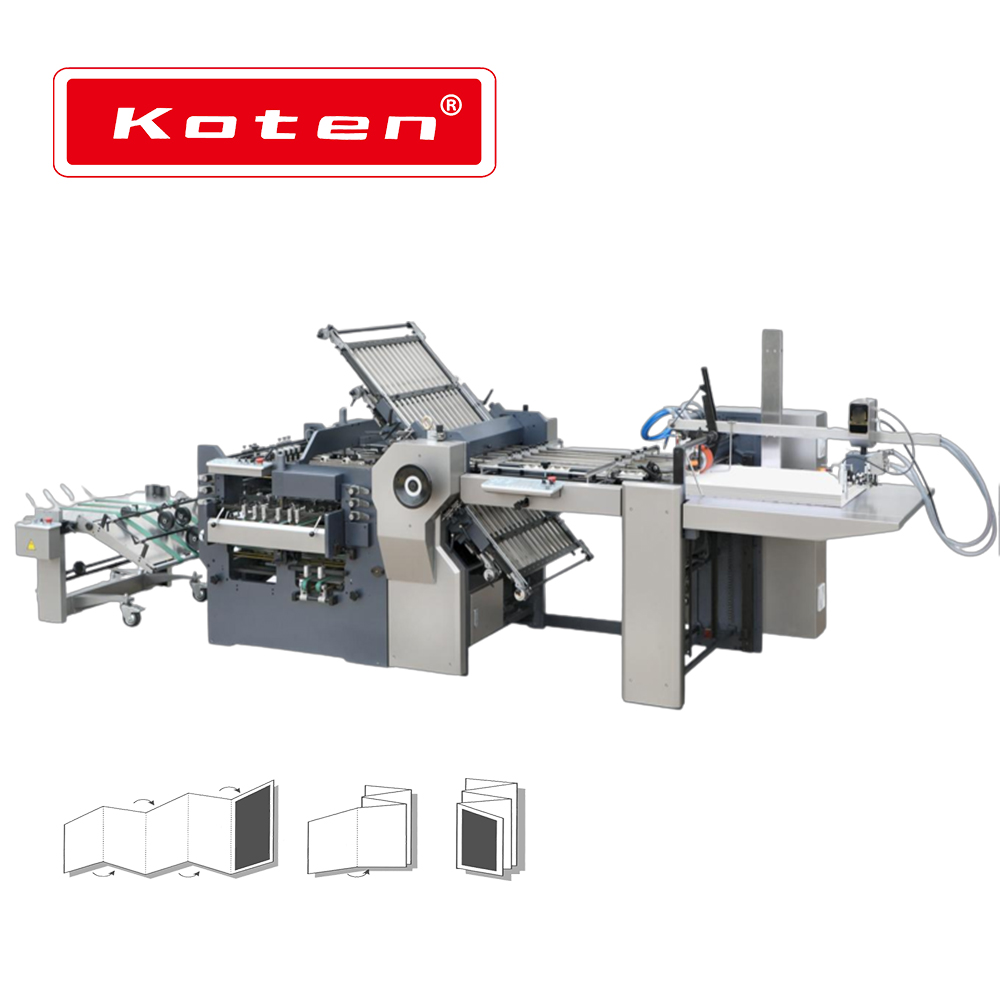

1. Four buckle plates and three electrically-controlled knives can carry out parallel folds and cross folds, optional inward/outward folders of 32-mo, and twofold inward folders of 32-mo (24-mo).
2.Electrically controlled knife with servomechanism for each folding realizes high speed, superior reliability, and minor paper wastage.
3.Folding roller with new technique guarantees strong suction capacity, perfect antirust capability, and low printing ink viscidity.
4.Sensitive automatic control device of double sheet and jammed sheet.
5.Special paper pressing system ensures precise paper conveying and convenient operation.
6.Stepless frequency conversion speed regulation with overload protecting function.
Model | ZYHD670B | ZYHD780B |
Max. Sheet Size | 670*1040mm | 780*1160mm |
Min. Sheet Size | 150*200mm | 150*200mm |
Voltage | 380V,50Hz | 380V,50Hz |
Min. Sheet Width Of Parallel Folding | 55mm | 55mm |
Max. Folding Speed | 210 m/min | 210 m/min |
Max. Folding Knife Cycle Rate | 300 stroke/min | 300 stroke/min |
Sheet Range | 40-200 g/m² | 40-200 g/m² |
Machine Power | 6.24kw | 7.04kw |
Overall Dimensions | 4634*1500*1630mm | 5107*1620*1630mm |
Machine Net Weight | 2250kg | 2400kg |
1. Four buckle plates and three electrically-controlled knives can carry out parallel folds and cross folds, optional inward/outward folders of 32-mo, and twofold inward folders of 32-mo (24-mo).
2.Electrically controlled knife with servomechanism for each folding realizes high speed, superior reliability, and minor paper wastage.
3.Folding roller with new technique guarantees strong suction capacity, perfect antirust capability, and low printing ink viscidity.
4.Sensitive automatic control device of double sheet and jammed sheet.
5.Special paper pressing system ensures precise paper conveying and convenient operation.
6.Stepless frequency conversion speed regulation with overload protecting function.
Model | ZYHD670B | ZYHD780B |
Max. Sheet Size | 670*1040mm | 780*1160mm |
Min. Sheet Size | 150*200mm | 150*200mm |
Voltage | 380V,50Hz | 380V,50Hz |
Min. Sheet Width Of Parallel Folding | 55mm | 55mm |
Max. Folding Speed | 210 m/min | 210 m/min |
Max. Folding Knife Cycle Rate | 300 stroke/min | 300 stroke/min |
Sheet Range | 40-200 g/m² | 40-200 g/m² |
Machine Power | 6.24kw | 7.04kw |
Overall Dimensions | 4634*1500*1630mm | 5107*1620*1630mm |
Machine Net Weight | 2250kg | 2400kg |
