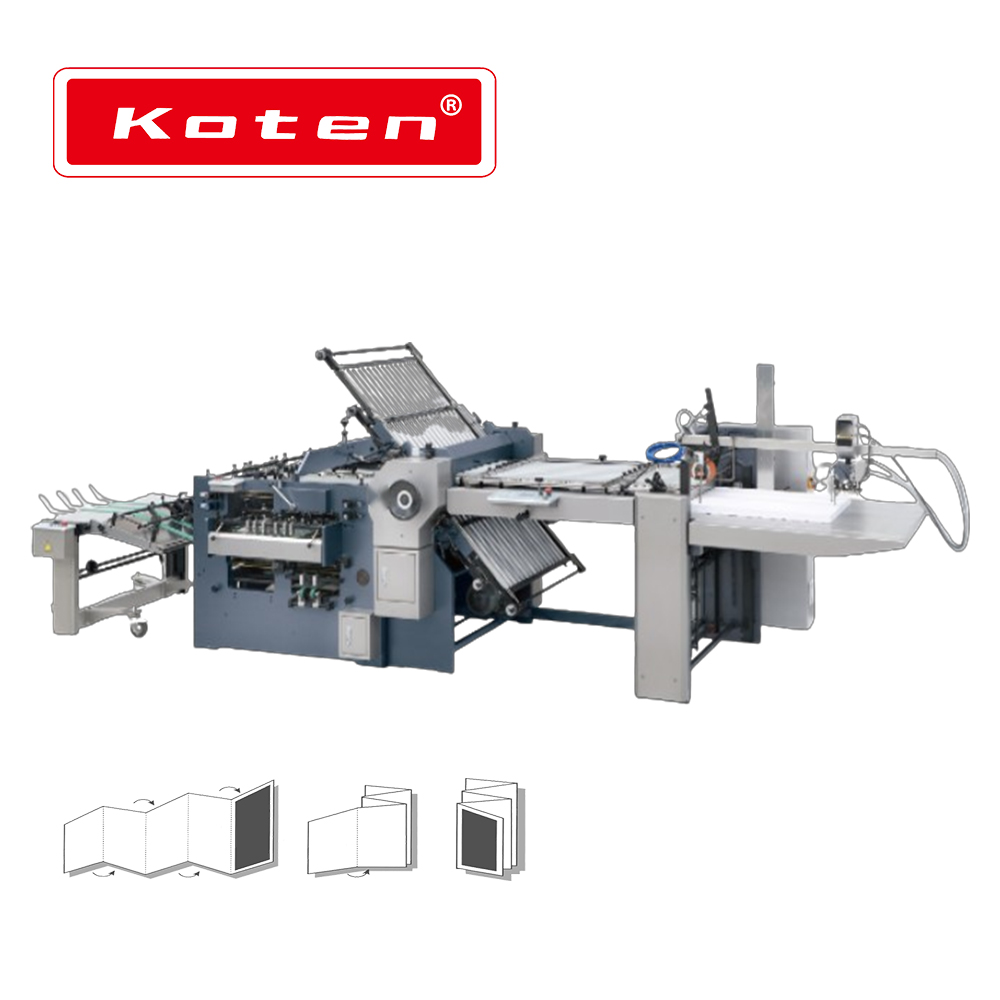

ZYH670A/ZYH780A
ZYH670A/ZYH780A
Negotiate
One set
T/T, L/C At Sight.
20 sets/Month.
By strong sea worthy wooden cases.
Within one month after receipt of the deposit.
China.
1824
Availability: | |
---|---|
Quantity: | |
1. Four buckle plates and three mechanically-controlled knives can carry out parallel folds and cross folds, optional inward/outward folders of 32-mo,and twofold inward folders of 32-mo (24-mo).
2. Proper machine height makes comfortable operation.
3.Folding roller with precise cross-linked coupling and gear driving.
4.Folding roller with new technique guarantees strong suction capacity,perfect antirust capability, and low printing ink viscidity.
5.Proper buckle plates ensure superior reliabiity of paper feed and precisefolding result.
6.Sensitive automatic control device of double sheet and jammed sheet.
7.Scoring, perforating at request.
8.Special paper pressing system ensures precise paper conveying andconvenient operation.
9.Automatic control device of pile height.High performance and automatic monitoring sheet-separating feeder.
10.Electrical system controlled by microcomputer realizes fast data processing, reliable and convenient operation and longer life. CPU communicateseach other Modbus protocol realizes machine communicate with com-puter;Man-machine interface facilitates parameter input.
11.Device for blowing dust can clear the dust of outside surface of machineand effectively for maintenance of machine expediently.
Model | ZYH670A | ZYH780A |
Max. Sheet Size | 670*1040mm | 780*1160mm |
Min. Sheet Size | 150*200mm | 150*200mm |
Sheet range | 40-200g/m² | 40-200g/m² |
Max. folding roller speed | 170m/min | 180m/min |
Machine power | 5.04kw | 5.84kw |
Machine net weight | 2250kg | 2400kg |
Overall dimensions(LXWXH) | 4700*1500*1630mm | 5176*1620*1630mm |
1. Four buckle plates and three mechanically-controlled knives can carry out parallel folds and cross folds, optional inward/outward folders of 32-mo,and twofold inward folders of 32-mo (24-mo).
2. Proper machine height makes comfortable operation.
3.Folding roller with precise cross-linked coupling and gear driving.
4.Folding roller with new technique guarantees strong suction capacity,perfect antirust capability, and low printing ink viscidity.
5.Proper buckle plates ensure superior reliabiity of paper feed and precisefolding result.
6.Sensitive automatic control device of double sheet and jammed sheet.
7.Scoring, perforating at request.
8.Special paper pressing system ensures precise paper conveying andconvenient operation.
9.Automatic control device of pile height.High performance and automatic monitoring sheet-separating feeder.
10.Electrical system controlled by microcomputer realizes fast data processing, reliable and convenient operation and longer life. CPU communicateseach other Modbus protocol realizes machine communicate with com-puter;Man-machine interface facilitates parameter input.
11.Device for blowing dust can clear the dust of outside surface of machineand effectively for maintenance of machine expediently.
Model | ZYH670A | ZYH780A |
Max. Sheet Size | 670*1040mm | 780*1160mm |
Min. Sheet Size | 150*200mm | 150*200mm |
Sheet range | 40-200g/m² | 40-200g/m² |
Max. folding roller speed | 170m/min | 180m/min |
Machine power | 5.04kw | 5.84kw |
Machine net weight | 2250kg | 2400kg |
Overall dimensions(LXWXH) | 4700*1500*1630mm | 5176*1620*1630mm |
