Desktop      Paper   Counting      Machine   Model   SZJ-800D

Products Description

1. Adopt the international most advanced module sports computer system technology ,intuitive and simple user-machine interface .

2.Any kind and any thickness of paper can be precise and high-speed counting.Different kinds of paper can be mixed counting simultaneously.It has a paper label fast changing structure.

3.Auto-diagnostic function.The operator can know from a clear error message displays on the platform which shows whether the machine fault is caused by their own operating mistakes, or the machine itself abnormal operating conditions.

4.The paper counting machine is rich in features to meet the needs of different users, in addition to the standard paper counting mode, there is the random paper label insert function,which can nark for different quantity of paper.

5.The paper quantity detection function is for the check whether the predetermined number and actual number matches or not.

6.The specified number counting function is for sorting out the required number of paper from the paper-pile.

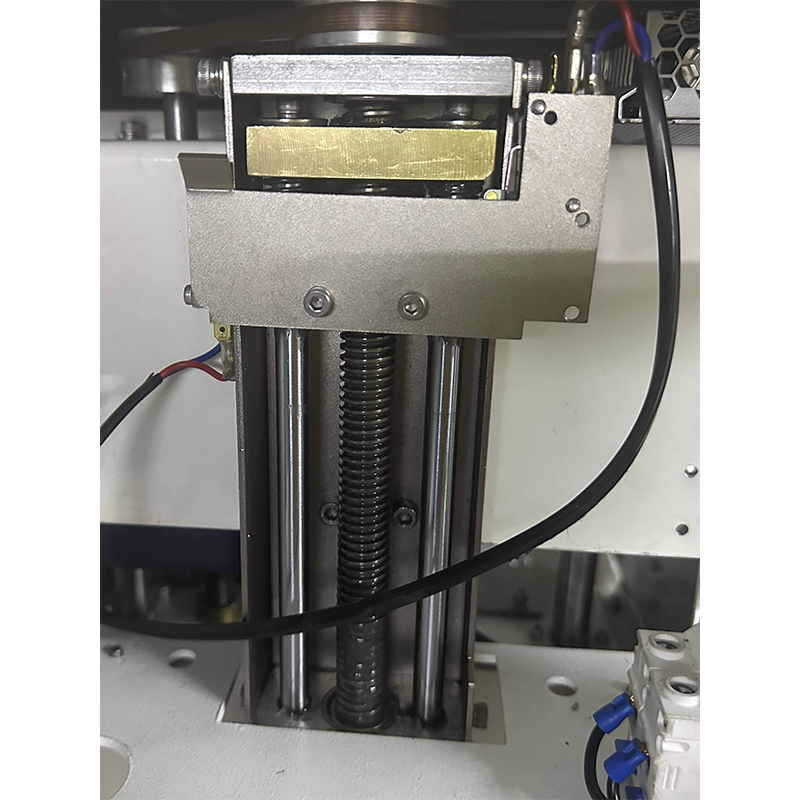

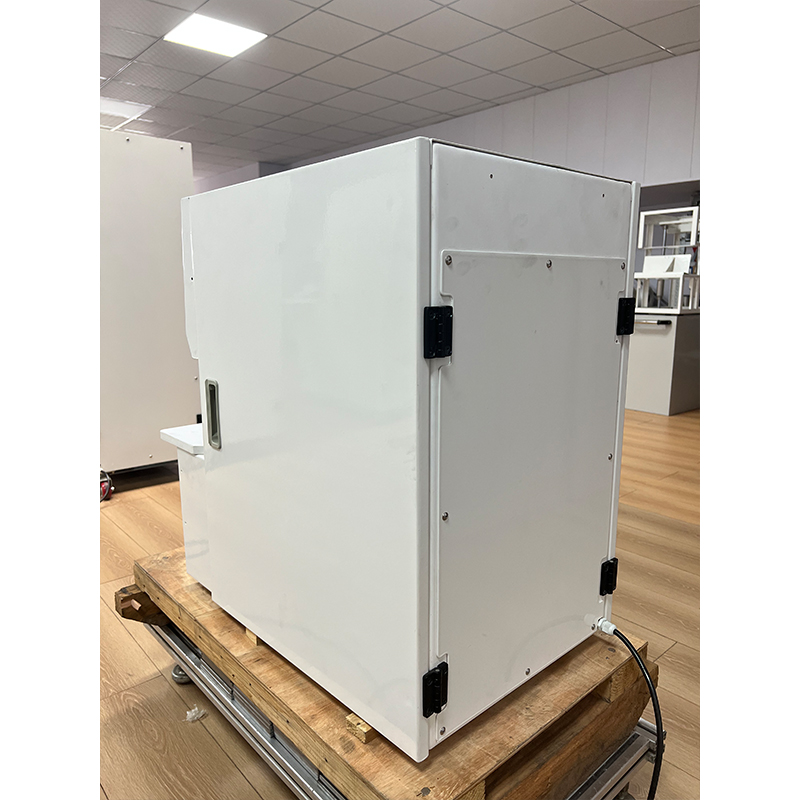

Details Images

photobank (2)photobank (4)photobankphotobank (1)

Application

企业微信截图_17852047442126

Parameters

Paper Thickness Range

22~186gsm(Carbon paper,offset printing paper, coated paper,etc.)

Paper Size

Min.55*90mm, Max.350*660mm

Paper Stacking Height

120 mm

Power Supply/ Voltage

AC220±10V、50Hz

Motor

0.4KW

Collecting Table Width

510*600mm

Collecting Table Width Height

285mm

Label For Paper In Pile

Width 5mm、6mm Length 70m、100m

Total Power

0.6KW

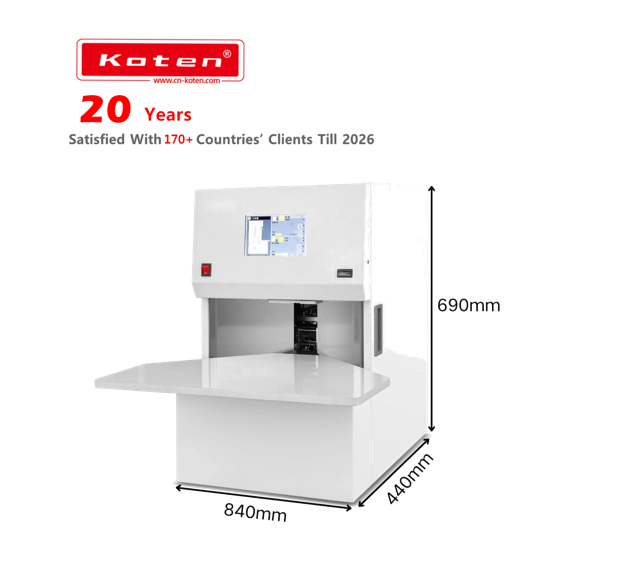

Dimensions

840*440*690mm

Weight

75KG

  Details Images



          企业微信截图_17852042829041    企业微信截图_17852042875277    企业微信截图_178520433124
