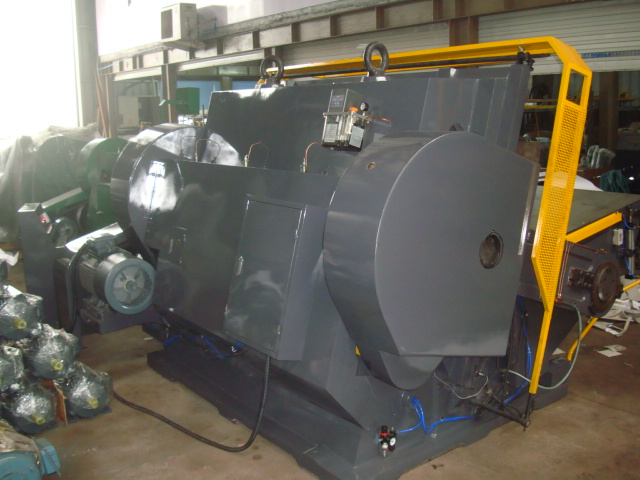

Die Cutting Machine With Big Size Model ML-1800/2000/2200

Quantity:
  • ML-1800/2000/2200
  • Koten
  • ML-1800/2000/2200
  • Negotiable
  • One Set
  • T/T
  • 100 sets/month
  • By strong wooden cases.
  • Within 30 days after get the deposit.
  • China
  • 898

downLoadImg (1)

Introduction

The die cutting machine is an equipment especially designed for cutting the ordinary cardboard, corrugated board, plastic and leather products. It is widely used in the printing, packing decorating and plastic industries. The machine has features such as compact structure, fine workmanship, big pressure, high precision and easy and reliable operation etc.

Die Cutting Plate.

20140427_210745_副本
Feature
1. High strength due to one piece casting by using top quality materials for the machine body.
2. Smooth running, big pressure and low noise are obviously remarked as herringbone gear input and helical gear output mechanism is adopted.
3. Single plate electromagnetic clutch is sensitive and reliable.
4. Operational altitude is reasonably arranged, moveable platen opens to its optimum.
5. The electrical system is designed with IEC standard.
6. With functions as single, continuous operation and opening well, and the dwell time is adjustable.
7. The safely system is reliable.
8. With concentrated lubricating system.


Main Specifications.

ModeI

Inner Chase size

Speed

Max.pule length

Motor Power

Machine Weight

Overall Dimensions

ML-750

750x520mm

25±2(sprokes/min)

<14m

2.2kw

2000kg

1360x1400x1300mm

ML-930

930x660mm

23±2(sprokes/min)

<25m

4kw

3000kg

1680x1680x1640mm

ML-1100

1100x800mm

20±2(sprokes/min)

<26.5m

4kw

4500kg

1900x1780x1700mm

ML-1300

1300x920mm

18±2(sprokes/min)

<38m

5.5kw

5600kg

1920x2140x1800mm

ML-1400

1400x1000mm

17±2(sprokes/min)

<38m

5.5kw

6500kg

2010x2400x1930mm

ML-1500

1500x1050mm

17±2(sprokes/min)

<40m

7.5kw

7000kg

20100x2480x1960mm

ML-1600

1600x1250mm

13±2(sprokes/min)

<50m

11kw

11500kg

2500x2200x2000mm

ML-1800

1800x1250mm

13±2(sprokes/min)

<60m

11.5kw

14000kg

2510x2300x2000m

ML2000

2000x1400mm

13±2(sprokes/min)

<60m

15kw

16500kg

2270x3100x2150mm

ML2500

2500x1500mm

13±2(sprokes/min)

<75m

18.5kw

19000kg

2300x3600x2150mm

Koten Machines Container Loading.

光影魔术手拼图
140 Countries Clients Who Has Koten Brand Machines Till 2019.

1

FAQ.

1. Why choose us to cooperate?
Factory prices, flexible payment terms and professional quality inspection team which has the guarantee for machines, in time after sales service, and more than 15 years experience for exporting. Reputation and quality is what we are considering all the time.


2. Guarantee.

There is 12 month guarantee of each Koten brand Machines since customer got the machine. Within one year, the damaged spare parts can be changed for free, and we provide lifetime technology support on line.


3. Delivery Time.

Within 7-30 days after get the deposit. Depends on different machines.


4. What is your package?

What the package we use is strong seaworthy wooden cases. Each machine will be protected by anti-rusted oil before put into the case and there are desiccants will be packed into the machine together.


5. Do you have Installation and Training service if we bought the machines from your company?

The training service will be done by our agency dealer in some countries. If customers request us to dispatch our engineer to their country for installation and training, customers should take all necessary cost, like return flight tickets, hotel, food and salary USD100/day. If customer dispatch their engineer to our factory for training, it is free.


6. Have you sold any machines to our country?

We have to say that there are 140 countries' customers who have the "KOTEN" brand machines till 2019. Pls check with the sales manager to get more information if you need the machines' feedback.


7. What is your payment terms?

T/T. If the amount less than USD30,000.00, 30% paid in advance as a deposit, 70% balance paid before shipment.
L/C. If the sales amount above USD30,000.00, 30% paid by T/T as a deposit, 70% balance paid by irrevocable L/C at sight.
By Cash, by western union, credit cards are acceptable.
Special country like Bangladesh or Algeria can be available for 100% by irrevocable L/C at sight.


8. What your company can offer?

Exercise Books Making Solutions.
Soft Cover Books Making Solutions.
Hard Cover Books Making Solutions.
Spiral Books Making Solutions.
Postpress and Paper Converting Solutions.
Paper Box Making Solutions.
Rigid Box Making Solutions.

Paper Bag Making Solutions.


Exhibitions and Customers'Meeting.
光影魔术手拼图

     Factory Production.
1-2
