ML-750/930/1100/1300/1400/1500/1600/1800/2000/2500
Koten
ML Series
Negotiate
One Set
T/T, L/C at sight.
100sets/month
By strong seaworthy wooden cases
Within 15 days after get the deposit.
China
5376
| Quantity: | |
|---|---|

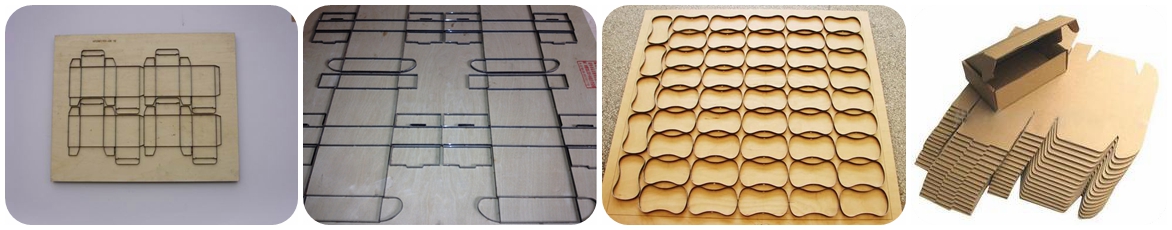

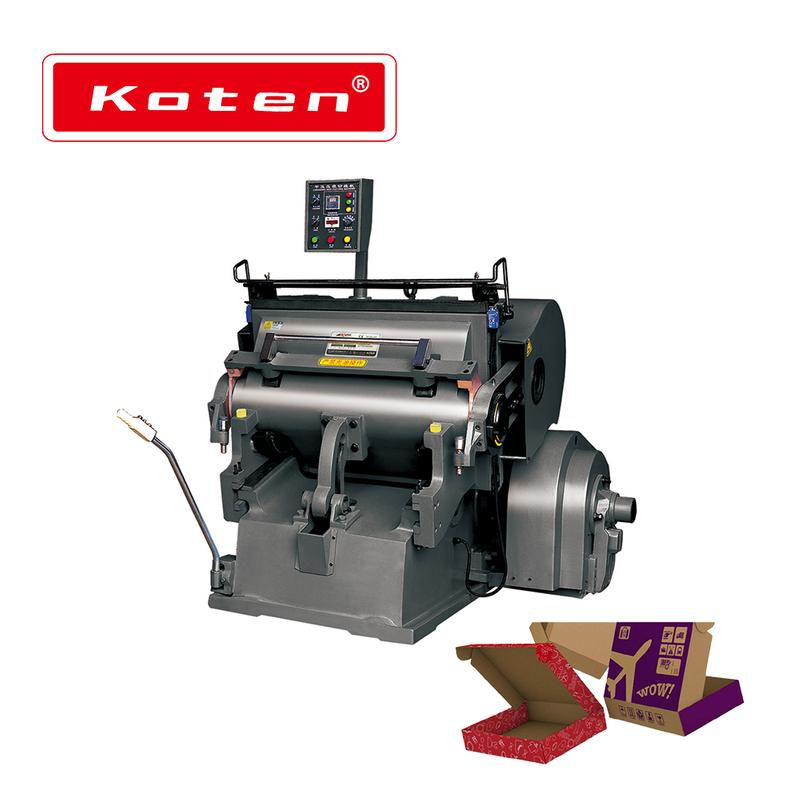

The die cutting machine is an equipment especially designed for cutting the ordinary cardboard, corrugated board, plastic and leather products. It is widely used in the printing, packing decorating and plastic industries. The machine has features such as compact structure, fine workmanship, big pressure, high precision and easy and reliable operation etc.
Feature

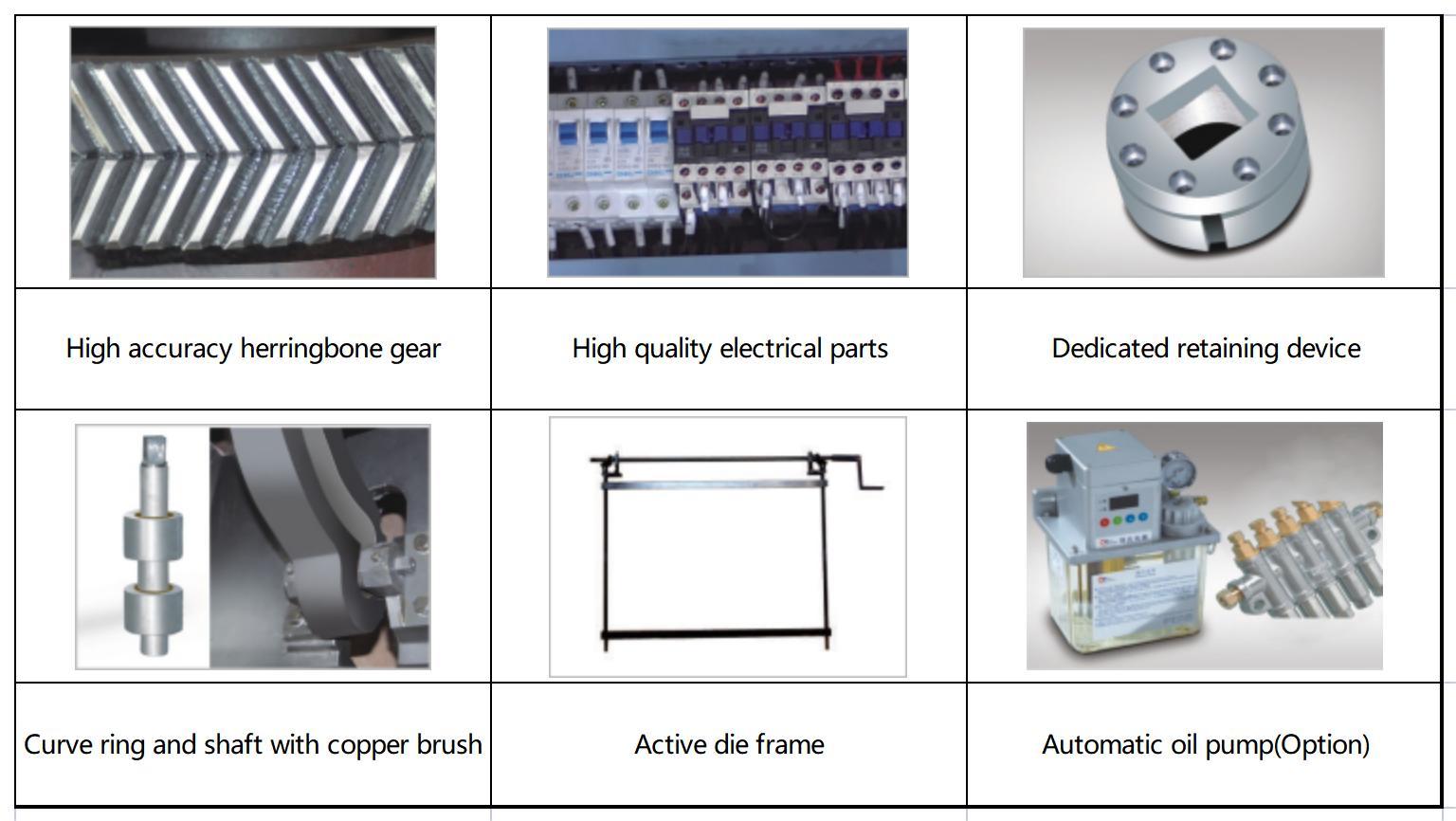

8. With concentrated lubricating system(Option)
ModeI | Inner Chase size | Speed | Max.pule length | Motor Power | Machine Weight | Overall Dimensions |
ML-750 | 750x520mm | 25±2(sprokes/min) | <14m | 2.2kw | 2000kg | 1360x1400x1300mm |
ML-930 | 930x660mm | 23±2(sprokes/min) | <25m | 4kw | 3000kg | 1680x1680x1640mm |
ML-1100 | 1100x800mm | 20±2(sprokes/min) | <26.5m | 4kw | 4500kg | 1900x1780x1700mm |
ML-1300 | 1300x920mm | 18±2(sprokes/min) | <38m | 5.5kw | 5600kg | 1920x2140x1800mm |
ML-1400 | 1400x1000mm | 17±2(sprokes/min) | <38m | 5.5kw | 6500kg | 2010x2400x1930mm |
ML-1500 | 1500x1050mm | 17±2(sprokes/min) | <40m | 7.5kw | 7000kg | 20100x2480x1960mm |
ML-1600 | 1600x1250mm | 13±2(sprokes/min) | <50m | 11kw | 11500kg | 2500x2200x2000mm |
ML-1800 | 1800x1250mm | 13±2(sprokes/min) | ＜60m | 11.5kw | 14000kg | 2510x2300x2000m |
ML2000 | 2000x1400mm | 13±2(sprokes/min) | ＜60m | 15kw | 16500kg | 2270x3100x2150mm |
ML2500 | 2500x1500mm | 13±2(sprokes/min) | ＜75m | 18.5kw | 19000kg | 2300x3600x2150mm |
