Die Punching Machine Model ML-1500

Name: Die Punching Machine Model ML-1500
Brand: Koten
Rating: 5.0 (85 reviews)

https://www.youtube.com/embed/dqZ5wCWGeE0

Model:
ML-1500
Brand:
Koten
Model:
ML-1500
FOB Price:
Negotiate
Min.Order Quantity:
One Set
Payment Terms:
T/T
Supply Ability:
100 sets/month
Packaging:
By strong wooden cases.
Delivery Time:
Within 30 days after get the deposit.
Place Of Origin:
China
Views:
898

Quantity:
Availability:





Inquire Add to Basket

Details

Introduction

The die cutting machine is an equipment especially designed for cutting the ordinary cardboard, corrugated board, plastic and leather products. It is widely used in the printing, packing decorating and plastic industries. The machine has features such as compact structure, fine workmanship, big pressure, high precision and easy and reliable operation etc.

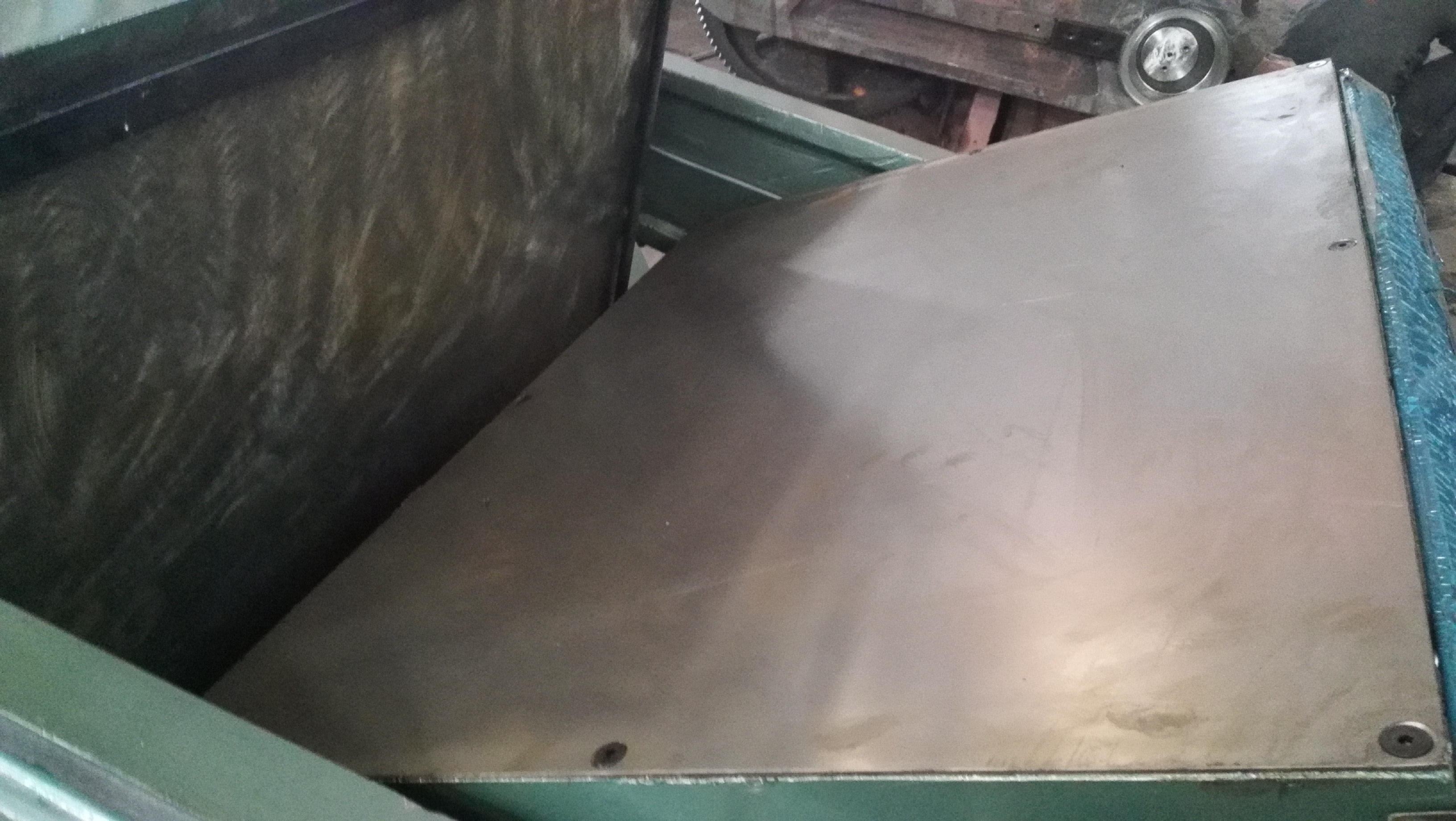

Die Cutting Plate.

Feature

1. High strength due to one piece casting by using top quality materials for the machine body.

2. Smooth running, big pressure and low noise are obviously remarked as herringbone gear input and helical gear output mechanism is adopted.

3. Single plate electromagnetic clutch is sensitive and reliable.

4. Operational altitude is reasonably arranged, moveable platen opens to its optimum.

5. The electrical system is designed with IEC standard.

6. With functions as single, continuous operation and opening well, and the dwell time is adjustable.

7. The safely system is reliable.

8. With concentrated lubricating system.

Main Specifications.

ModeI	Inner Chase size	Speed	Max.pule length	Motor Power	Machine Weight	Overall Dimensions
ML-750	750x520mm	25±2(sprokes/min)	<14m	2.2kw	2000kg	1360x1400x1300mm
ML-930	930x660mm	23±2(sprokes/min)	<25m	4kw	3000kg	1680x1680x1640mm
ML-1100	1100x800mm	20±2(sprokes/min)	<26.5m	4kw	4500kg	1900x1780x1700mm
ML-1300	1300x920mm	18±2(sprokes/min)	<38m	5.5kw	5600kg	1920x2140x1800mm
ML-1400	1400x1000mm	17±2(sprokes/min)	<38m	5.5kw	6500kg	2010x2400x1930mm
ML-1500	1500x1050mm	17±2(sprokes/min)	<40m	7.5kw	7000kg	20100x2480x1960mm
ML-1600	1600x1250mm	13±2(sprokes/min)	<50m	11kw	11500kg	2500x2200x2000mm
ML-1800	1800x1250mm	13±2(sprokes/min)	＜60m	11.5kw	14000kg	2510x2300x2000m
ML2000	2000x1400mm	13±2(sprokes/min)	＜60m	15kw	16500kg	2270x3100x2150mm
ML2500	2500x1500mm	13±2(sprokes/min)	＜75m	18.5kw	19000kg	2300x3600x2150mm

Koten Machines Container Loading.

140 Countries Clients Who Has Koten Brand Machines Till 2019.

FAQ.

1. Why choose us to cooperate?

Factory prices, flexible payment terms and professional quality inspection team which has the guarantee for machines, in time after sales service, and more than 15 years experience for exporting. Reputation and quality is what we are considering all the time.

2. Guarantee.

There is 12 month guarantee of each Koten brand Machines since customer got the machine. Within one year, the damaged spare parts can be changed for free, and we provide lifetime technology support on line.

3. Delivery Time.

Within 7-30 days after get the deposit. Depends on different machines.

4. What is your package?

What the package we use is strong seaworthy wooden cases. Each machine will be protected by anti-rusted oil before put into the case and there are desiccants will be packed into the machine together.

5. Do you have Installation and Training service if we bought the machines from your company?

The training service will be done by our agency dealer in some countries. If customers request us to dispatch our engineer to their country for installation and training, customers should take all necessary cost, like return flight tickets, hotel, food and salary USD100/day. If customer dispatch their engineer to our factory for training, it is free.

6. Have you sold any machines to our country?

We have to say that there are 140 countries' customers who have the "KOTEN" brand machines till 2019. Pls check with the sales manager to get more information if you need the machines' feedback.

7. What is your payment terms?

T/T. If the amount less than USD30,000.00, 30% paid in advance as a deposit, 70% balance paid before shipment.

L/C. If the sales amount above USD30,000.00, 30% paid by T/T as a deposit, 70% balance paid by irrevocable L/C at sight.

By Cash, by western union, credit cards are acceptable.

Special country like Bangladesh or Algeria can be available for 100% by irrevocable L/C at sight.

8. What your company can offer?

Exercise Books Making Solutions.
Soft Cover Books Making Solutions.
Hard Cover Books Making Solutions.
Spiral Books Making Solutions.
Postpress and Paper Converting Solutions.
Paper Box Making Solutions.
Rigid Box Making Solutions.

Paper Bag Making Solutions.

Exhibitions and Customers'Meeting.

Factory Production.
