STCB-1080
KOTEN
DTCB-1080
negotiate
1
T/T, L/C at sight.
5sets/month
By strong seaworthy packaging.
Within 30 days after get the deposit.
China
1750
Availability: | |
---|---|
Quantity: | |

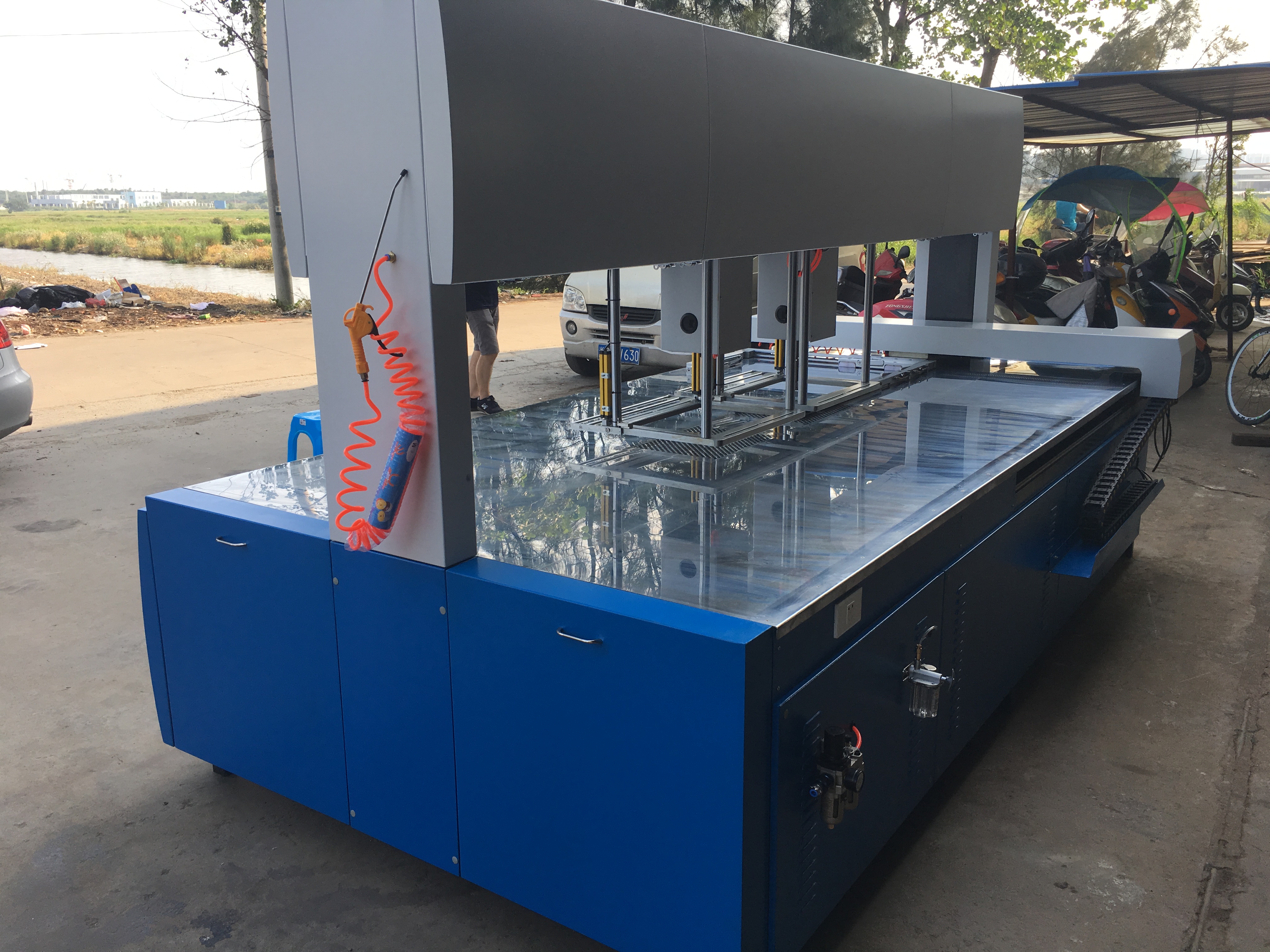

Automatic Stripping Machine(STCB-1080)
Automatic stripping machine is a professional equipment for automatically stripping the waste from die cut paper sheet. It replaces manual labor and greatly upgrades working efficiency of die-cutting products in paper or plastic materials. It applies to print& pack industrial, post-press, after paper creasing anddie cutting.
This stripper machine make your scrap removal efficient after the die-cutting process. The die-cut strip machine applies to the production lines of hang tags, paper box, paper cup, food box, plastic box,and so on.
Features:
1、It is suitable for automatic talking out the products like cloths label ,card,medicine boxes , cigarette boxes ,small toy boxes ,etc .
2、Use the computerized PLC touch screen to adjust the date which is more convenient for users ,the main movement is combined by the hydraulic system and ball screw driven by servo motor which has low failure rate and more agile.
3、After die cutting ,use the machine to strip automatically which is more convenient for workers to take out the finished products ,high production ,less cost and high efficient for customers.
Model | 680 | 920 | 1080 |
Max. Sheet Size | 680*450mm | 920*650mm | 1080*780mm |
Min. Sheet Size | 450*320mm | 450*320mm | 450*320mm |
Max. Pile Height | 120mm | 120mm | 110mm |
Min.Pile Height | 40mm | 40mm | 40mm |
Bench Height | 850mm | 850mm | 850mm |
Max. Stripping Size | 220*220mm | 310*280mm | 420*280mm |
Min. Stripping Size | 30*30mm | 30*30mm | 30*30mm |
Stripping Speed | 15-20times/min | 15-20times/min | 15-20times/min |
Max. Pressure | 70bar | 70bar | 90bar |
Voltage/Frequency | 380V/50,60HZ | 380V/50,60HZ | 380V/50,60HZ |
Air compression | 4-7 | 4-7 | 4-7 |
Air comsuption | 2L/min | 2L/min | 2L/min |
Max. comsuption power | 2kw | 2kw | 2kw |
Insurance electric current | 10A | 10A | 10A |
Machine Weight | 2300*1200*1900MM | 2950*1600*1900MM | 3500*1800*1900MM |
Machine Dimensions | 1600kg | 2100kg | 3200kg |
Configuration | Brand Model | Origin |
PLC | Delta | Taiwan |
Touch screen | Delta | Taiwan |
Servo Motor | Delta | Taiwan |
Switching Power | Mean Well(MW) | Taiwan |
Switch Button | Schneider | France |
Proximity switch | OMRON | Japan |
Ball screw | TPI | Taiwan |
Automatic Stripping Machine(STCB-1080)
Automatic stripping machine is a professional equipment for automatically stripping the waste from die cut paper sheet. It replaces manual labor and greatly upgrades working efficiency of die-cutting products in paper or plastic materials. It applies to print& pack industrial, post-press, after paper creasing anddie cutting.
This stripper machine make your scrap removal efficient after the die-cutting process. The die-cut strip machine applies to the production lines of hang tags, paper box, paper cup, food box, plastic box,and so on.
Features:
1、It is suitable for automatic talking out the products like cloths label ,card,medicine boxes , cigarette boxes ,small toy boxes ,etc .
2、Use the computerized PLC touch screen to adjust the date which is more convenient for users ,the main movement is combined by the hydraulic system and ball screw driven by servo motor which has low failure rate and more agile.
3、After die cutting ,use the machine to strip automatically which is more convenient for workers to take out the finished products ,high production ,less cost and high efficient for customers.
Model | 680 | 920 | 1080 |
Max. Sheet Size | 680*450mm | 920*650mm | 1080*780mm |
Min. Sheet Size | 450*320mm | 450*320mm | 450*320mm |
Max. Pile Height | 120mm | 120mm | 110mm |
Min.Pile Height | 40mm | 40mm | 40mm |
Bench Height | 850mm | 850mm | 850mm |
Max. Stripping Size | 220*220mm | 310*280mm | 420*280mm |
Min. Stripping Size | 30*30mm | 30*30mm | 30*30mm |
Stripping Speed | 15-20times/min | 15-20times/min | 15-20times/min |
Max. Pressure | 70bar | 70bar | 90bar |
Voltage/Frequency | 380V/50,60HZ | 380V/50,60HZ | 380V/50,60HZ |
Air compression | 4-7 | 4-7 | 4-7 |
Air comsuption | 2L/min | 2L/min | 2L/min |
Max. comsuption power | 2kw | 2kw | 2kw |
Insurance electric current | 10A | 10A | 10A |
Machine Weight | 2300*1200*1900MM | 2950*1600*1900MM | 3500*1800*1900MM |
Machine Dimensions | 1600kg | 2100kg | 3200kg |
Configuration | Brand Model | Origin |
PLC | Delta | Taiwan |
Touch screen | Delta | Taiwan |
Servo Motor | Delta | Taiwan |
Switching Power | Mean Well(MW) | Taiwan |
Switch Button | Schneider | France |
Proximity switch | OMRON | Japan |
Ball screw | TPI | Taiwan |
