Double Station Paper Lunch Box Forming Machine for Noodles,rice

Double Station Paper Lunch Box Forming Machine for Noodles,rice

lt has the advantages of fast speed, simple operation, high efficiency and environmental protection automatic feeding. Hot, pressing, automatic counting and collection, mechanical action Program control and fault monitoring.This type of machine equips with hot air generating device, suitable for single PE coated paper, kraft paper, etc, for the production of single-piece disposable paper lunch boxes covered with lid, paper boxes, kraft paper boxes and other food paper packing box.

Model:
CHJ-A
Brand:
KOTEN
Model:
CHJ-A
Min.Order Quantity:
1 set
Payment Terms:
30% deposit and 70% final payment TT
Supply Ability:
100 sets/month
Packaging:
wooden packaging
Delivery Time:
30 working days
Place Of Origin:
China

Quantity:
Availability:





Inquire Add to Basket

Product Description

Products Description

CHJ-A

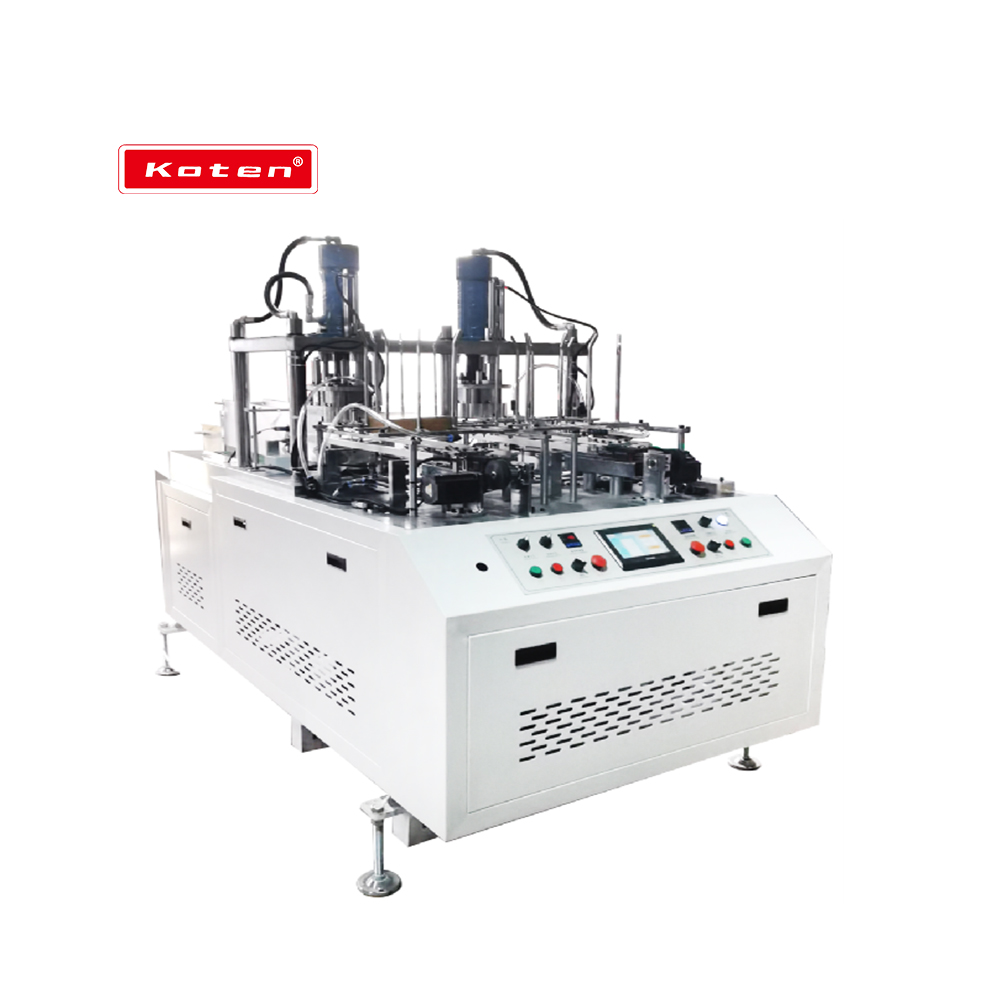

Double-Head Heavy Lunch Box Forming Machine

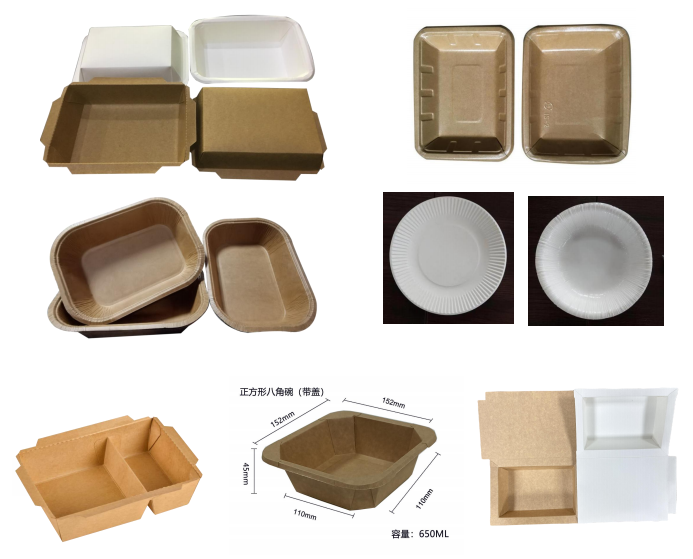

lt has the advantages of fast speed, simple operation, high efficiency and environmental protection automatic feeding. Hot, pressing, automatic counting and collection, mechanical action Program control and fault monitoring.This type of machine equips with hot air generating device, suitable for single PE coated paper, kraft paper, etc, for the production of single-piece disposable paper lunch boxes covered with lid, paper boxes, kraft paper boxes and other food paper packing box.

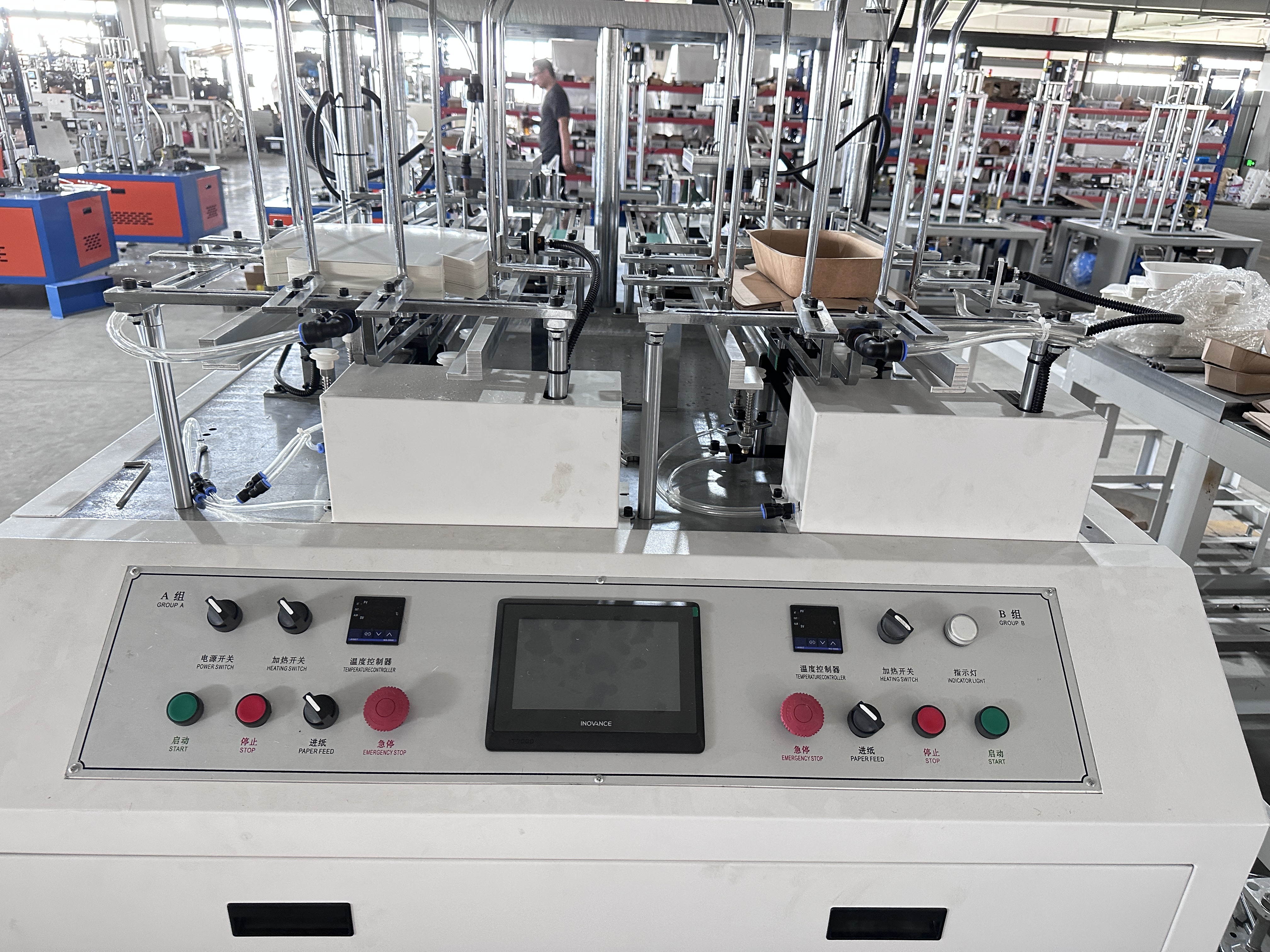

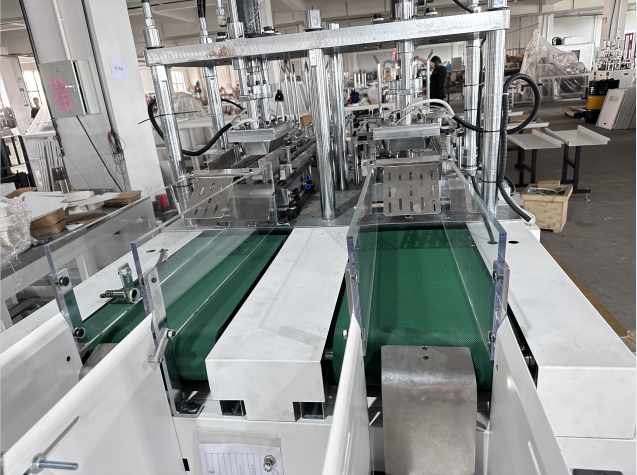

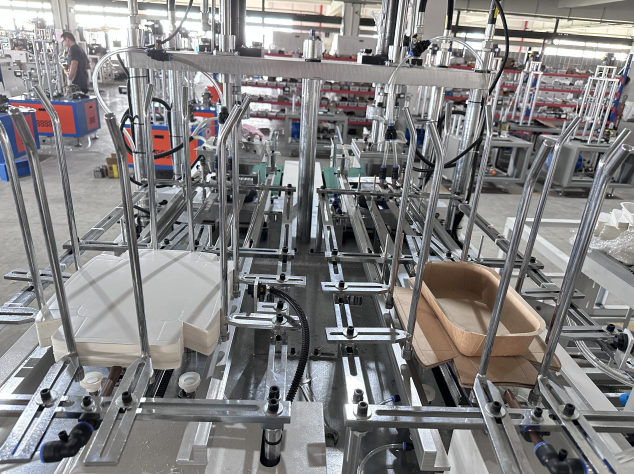

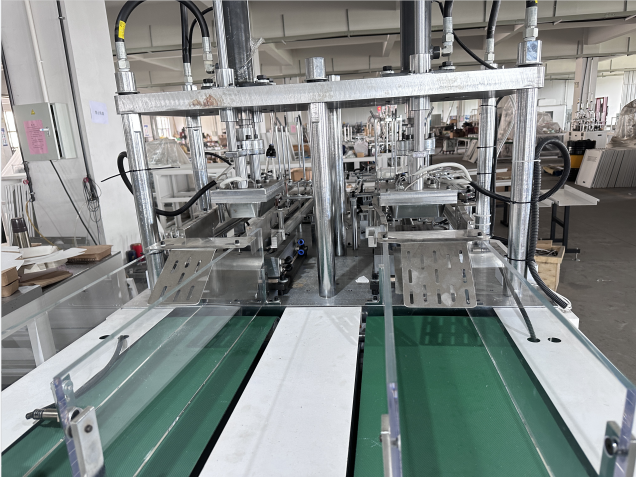

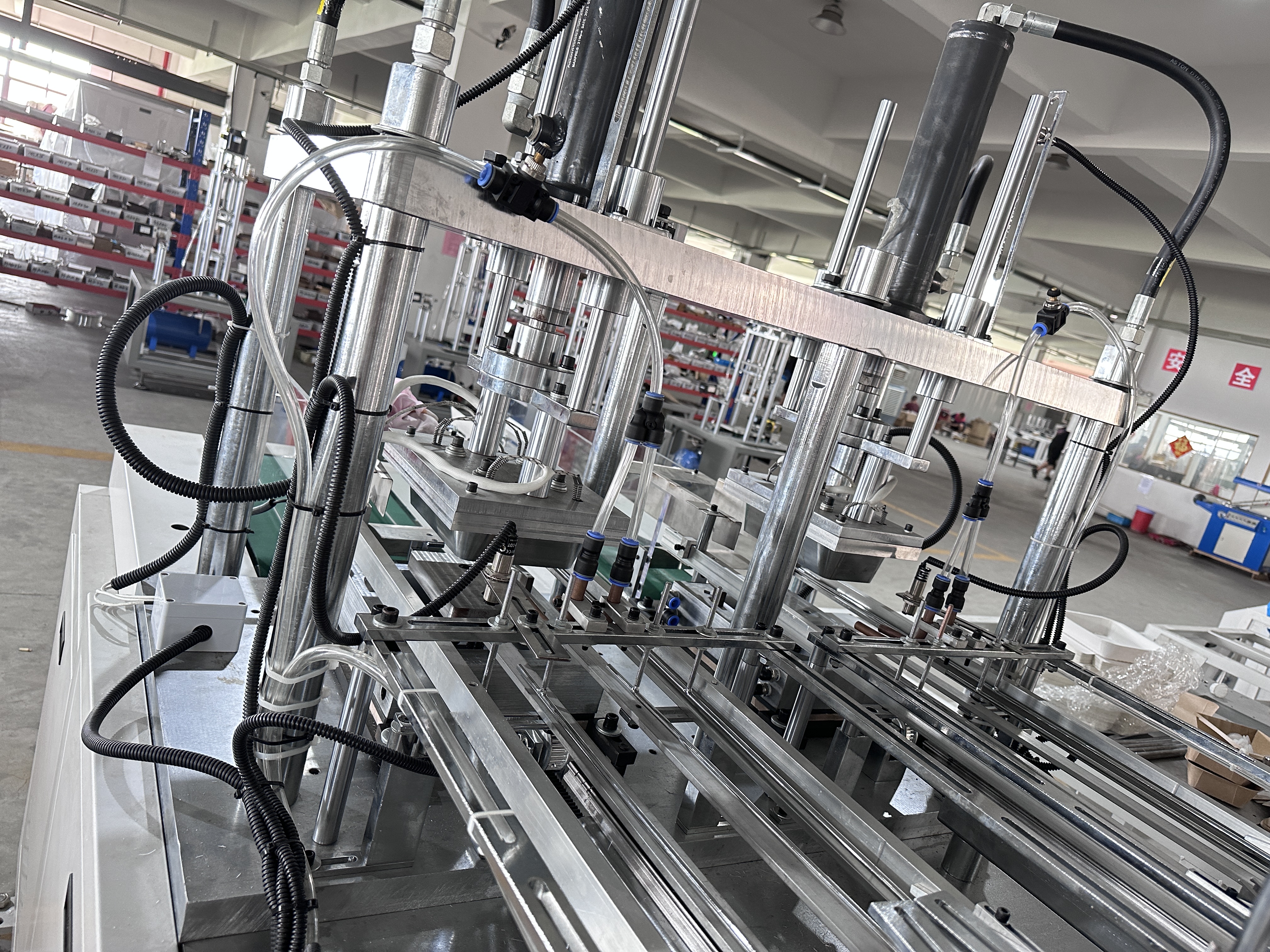

Details Images

Parameters

Type	CHJ-A
Production Capacity	30-40 pcs/min
Max Paper Convey Size	250*300mm
Max Paper Convey width	400mm
Suitable Material	200-400g/m² (PE Coated paper)
Total Power	15KW
Total Weight	1.3T
Overall Dimension	2320(L)1430(W)1500(H)mm
Working Air Source	Air pressure 0.4-0.5Mpa (Need to buy compressor)
Source Pressure	8T

Configuration

Item	Brand	Origin
Servo motor	Riding	China
PLC	Inovance	China
Frequency converter	Inovance	China
Photoelectric switch	Autonics	Korea
Contactor	Schneider	French
Relay	Schneider	French
Photoelectric switch	Autonics	Korea
Start switch	Autonics	Korea
Tem control	Aiset	China
Main cylinder	Airtac	Taiwan
Other pneumatic components	China famous brand	China
Other bearings	HBR	China
	Aston 7.5 kw	China
