DT-850S/1200S
koten
DT-850S/1200S
Negotiate
1set
T/T,L/C.
30sets/month
By strong seaworthy wooden cases.
Within 60 days after get the deposit.
China
6454
| Quantity: | |
|---|---|

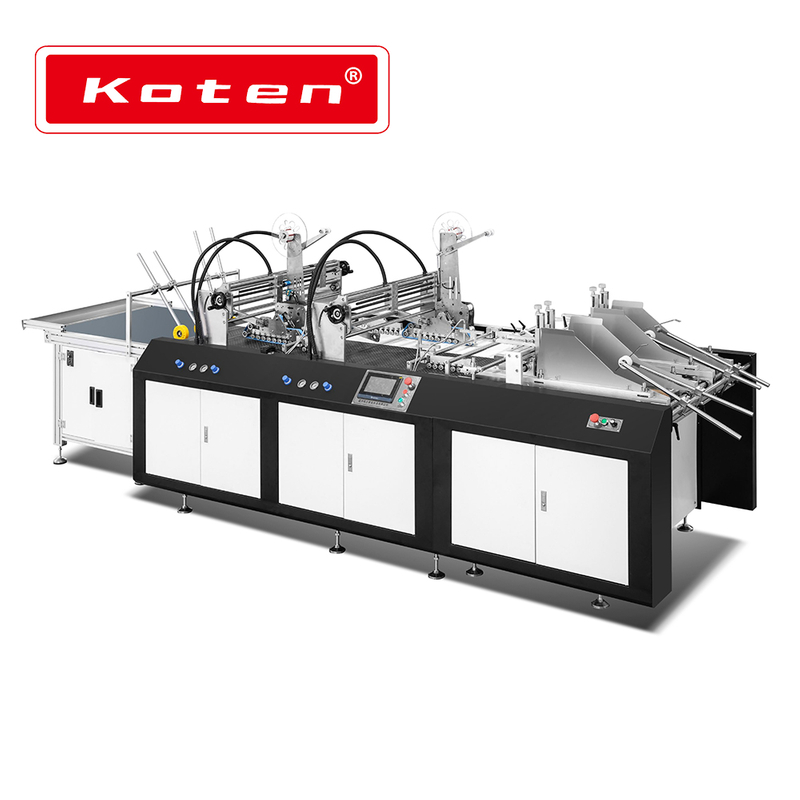

FULLY AUTOMATIC MULTI-FUNCTION DOUBLE-SIDED TAPE MACHINE
(WITH REWINDING)
1. The automatic feeding mechanism adopts the friction feeding method of the folder
gluer to ensure smooth feeding.
2. Optical fiber sensor and servo positioning, accurate positioning.
3. The bonding part adopts a new type of bonding mechanism, which has efficient
bonding performance.
4. PLC control, man-machine interface, parameter touch screen setting, fitting length
adopts man-machine dialogue, and the length can be set arbitrarily.
5. The delivery section adopts the continuous accumulation box method.
Model | DT-850S | DT-1200S |
Material | Over 200g/m² cardboard/ corrugated board/E-B-C-wave | Over 200g/m² cardboard/ corrugated board/E-B-C-wave |
Min open blank | 140x100 mm | 140×100mm |
Max open blank | 850x850 mm | 1200×850mm |
Working width | 850 mm | 1050mm |
Conveyor Speed | 80m/min | 90m/min |
Tape roll width | 5-35mm, 10-60mm | 5-35mm, 10-60mm |
Precision | ±1.5mm | ±1.5mm |
Needed air supply | Min. 6 bar | Min. 6 bar |
Power required | 4KW (220V AC 3φ 50HZ) | 4KW (220V AC 3φ 50HZ) |
Weight | 1700KG | 1900KG |
Machine size | 4500×1400×1400mm | 4500×1800×1400mm |
FULLY AUTOMATIC MULTI-FUNCTION DOUBLE-SIDED TAPE MACHINE
(WITH REWINDING)
1. The automatic feeding mechanism adopts the friction feeding method of the folder
gluer to ensure smooth feeding.
2. Optical fiber sensor and servo positioning, accurate positioning.
3. The bonding part adopts a new type of bonding mechanism, which has efficient
bonding performance.
4. PLC control, man-machine interface, parameter touch screen setting, fitting length
adopts man-machine dialogue, and the length can be set arbitrarily.
5. The delivery section adopts the continuous accumulation box method.
Model | DT-850S | DT-1200S |
Material | Over 200g/m² cardboard/ corrugated board/E-B-C-wave | Over 200g/m² cardboard/ corrugated board/E-B-C-wave |
Min open blank | 140x100 mm | 140×100mm |
Max open blank | 850x850 mm | 1200×850mm |
Working width | 850 mm | 1050mm |
Conveyor Speed | 80m/min | 90m/min |
Tape roll width | 5-35mm, 10-60mm | 5-35mm, 10-60mm |
Precision | ±1.5mm | ±1.5mm |
Needed air supply | Min. 6 bar | Min. 6 bar |
Power required | 4KW (220V AC 3φ 50HZ) | 4KW (220V AC 3φ 50HZ) |
Weight | 1700KG | 1900KG |
Machine size | 4500×1400×1400mm | 4500×1800×1400mm |
