Flexo Ruling Machine With Cutting

Flexo Ruling Machine With Cutting from China manufacturer - Koten Machinery
  • CY-650

  • CY-650

  • Negotiable

  • One set

  • T/T,L/C

  • 10 lines per month

  • By stong wooden cases.

  • Within 30 days after get the deposit.

  • China

  • 2696

Availability:
Quantity:
sharethis sharing button

Products Description

CY6501

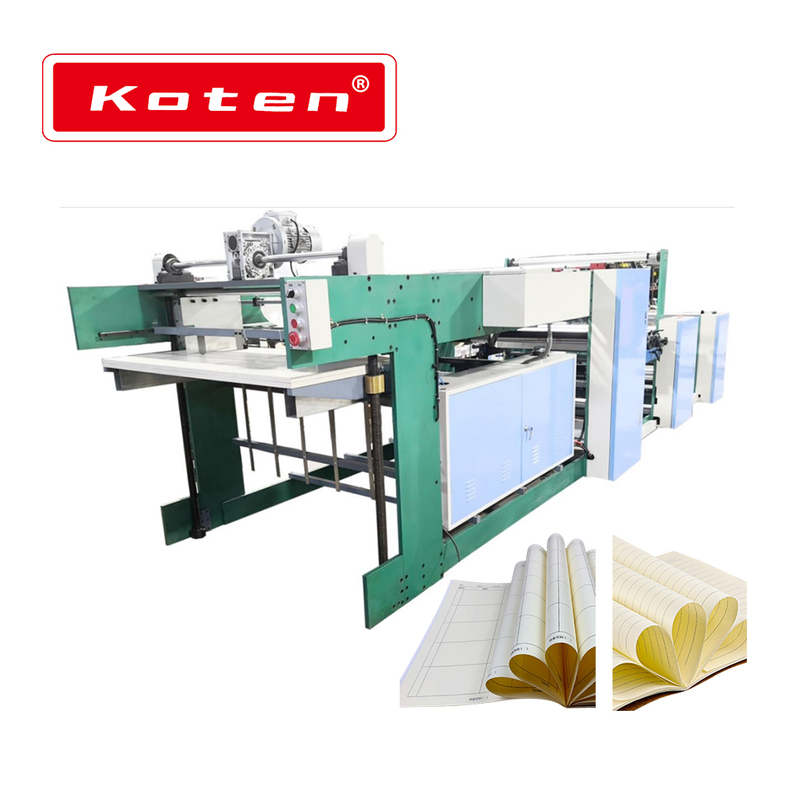

Flexo Ruling Machine With Cutting(CY-650)

The rotary machine adopts flexible resin plate and ink printing, which is low-carbon and environmentally friendly, saves paper, and reduces production costs. The production speed is about 4 times that of the single-sheet printing machine, greatly improving production efficiency. Automatic roll up, automatic tension control, automatic deviation correction, inflatable shaft positioning roll, two-color or double-sided combination printing, high-speed flying shear slitting, automatic paper take-up of stream type, automatic lowering of paper take-up table; PLC intelligent control, photoelectric synchronous sensing, large touch screen man-machine interface.

Parameters

Model

CY-650

The widest printing format&cutting format

650mm

Printing&slitting speed

80-100m/min

Printing color deck

1 to 4 color double-sided/single-sided

Feed roll diameter

1100mm

Paper receiving height

1000mm

Paper

28-200gsm

Perimeter of replaceable cylinder

270-540mm

Cutting length: replaceable according to printing size

Replaceable according to printing size

Printing speed

5-100 m/min (stepless speed regulation)

Power Distribution Box

Standard

touch screen

≥ 10 inches   resolution: ≥ 1024 × 600

Paper feeding department (loading paper roll)

Adopt the structure of motor+mechanical gear to automatically lift and load the paper roll.

Master roll

350 mesh ceramic anilox roll

Power Supply

380v-400V

Application

CY650应用
