NB-1300B/1600B
Koten
NB-1300B/1600B
Negotiate
One set
T/T, L/C
30sets/month
By strong seaworthy wooden cases.
Within 30 days after get the deposit.
China.
4486
| Quantity: | |
|---|---|

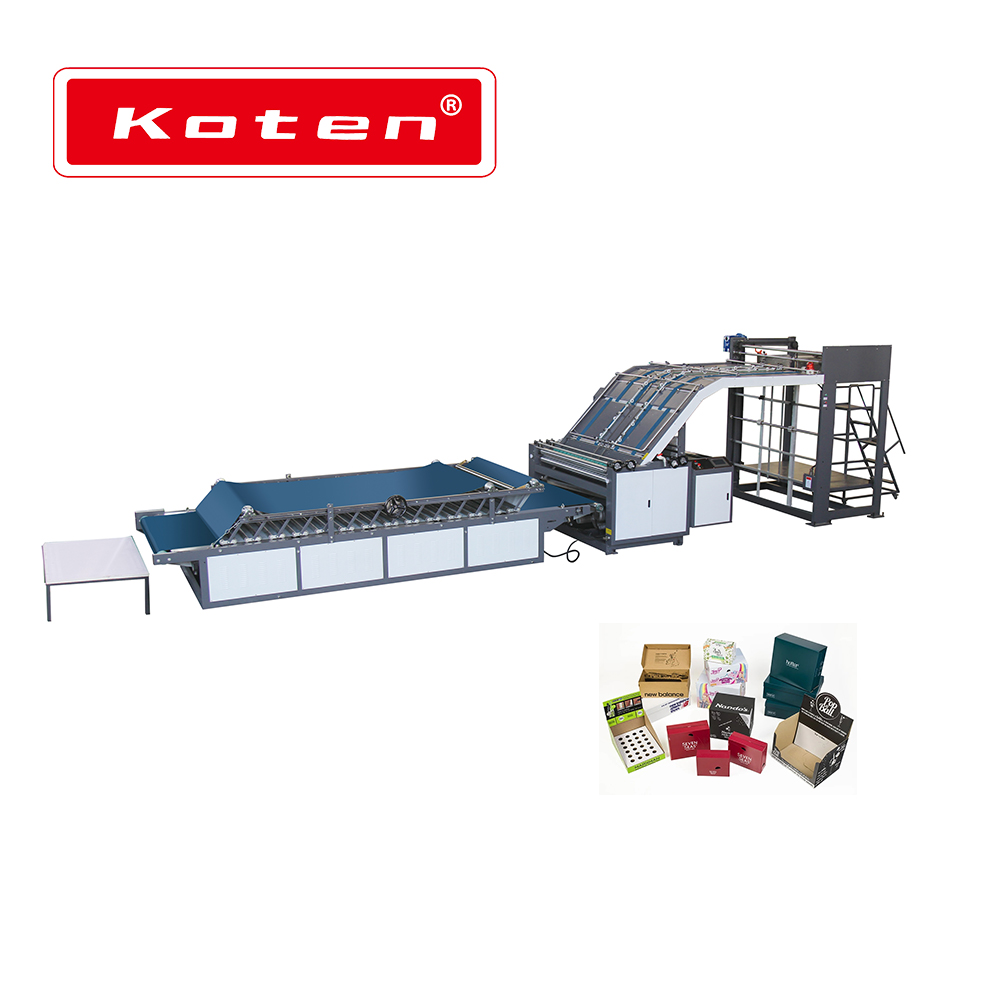

The fully automatic flute laminating machine is mainly used to laminate linerboards to the flutes of corrugated board or laminate one cardboard to another cardboard with adhesive. The suitable corrugated flute patterns include A, B, C, E and F flute. This automatic flute laminator is designed with auto suction feeding system for both top linerboards and bottom corrugated boards. It is really an ideal choice for producing high end packaging boxes.

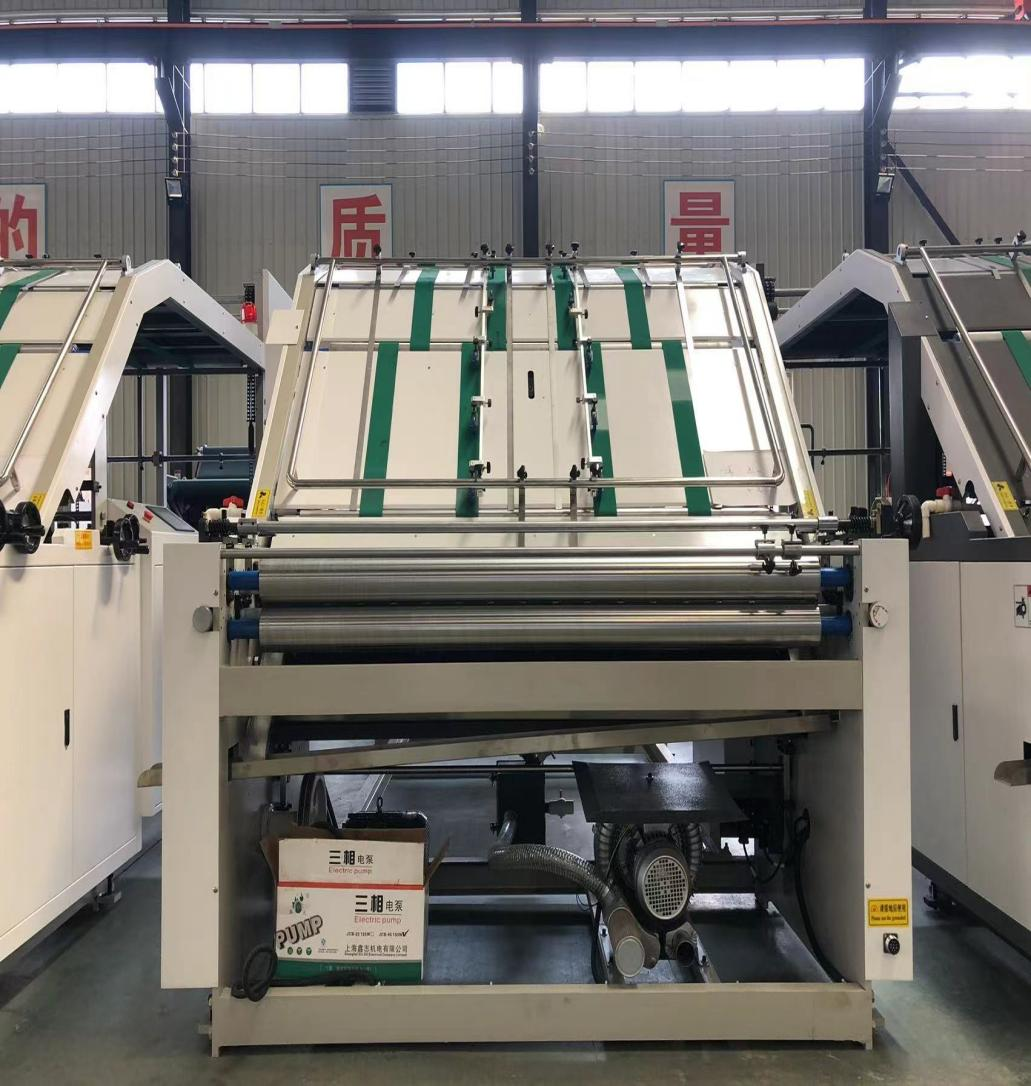

★ Bottom corrugated sheet auto feeding by vacuum transport. Top paper maximum pile more than 1 meter, top paper table auto up/down.

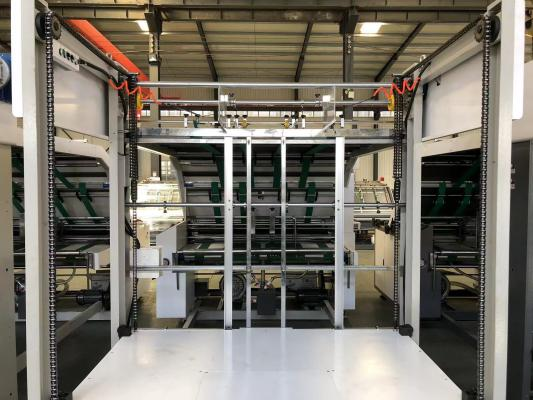

★ The top paper can pile up the height of 1m once time ,it makes delivery more easier and efficient.
★ Bottom corrugated sheet auto feeding by vacuum transport, continuous automatic tracking according top paper feeding speed.
★ Entire new concept,front gauge registration, position high accuracy, 1mm precision
1,The top paper can pile up the height of 1.5m once time,it makes delivery more easier and efficient.
2,The bottom sheet adopts automatic suction feeding system which can automatic synchronous tracking according to the main machine operating speed.
3,With front gauge registration,the high positioning accuracy make sure top sheet and bottom can joint accurately.

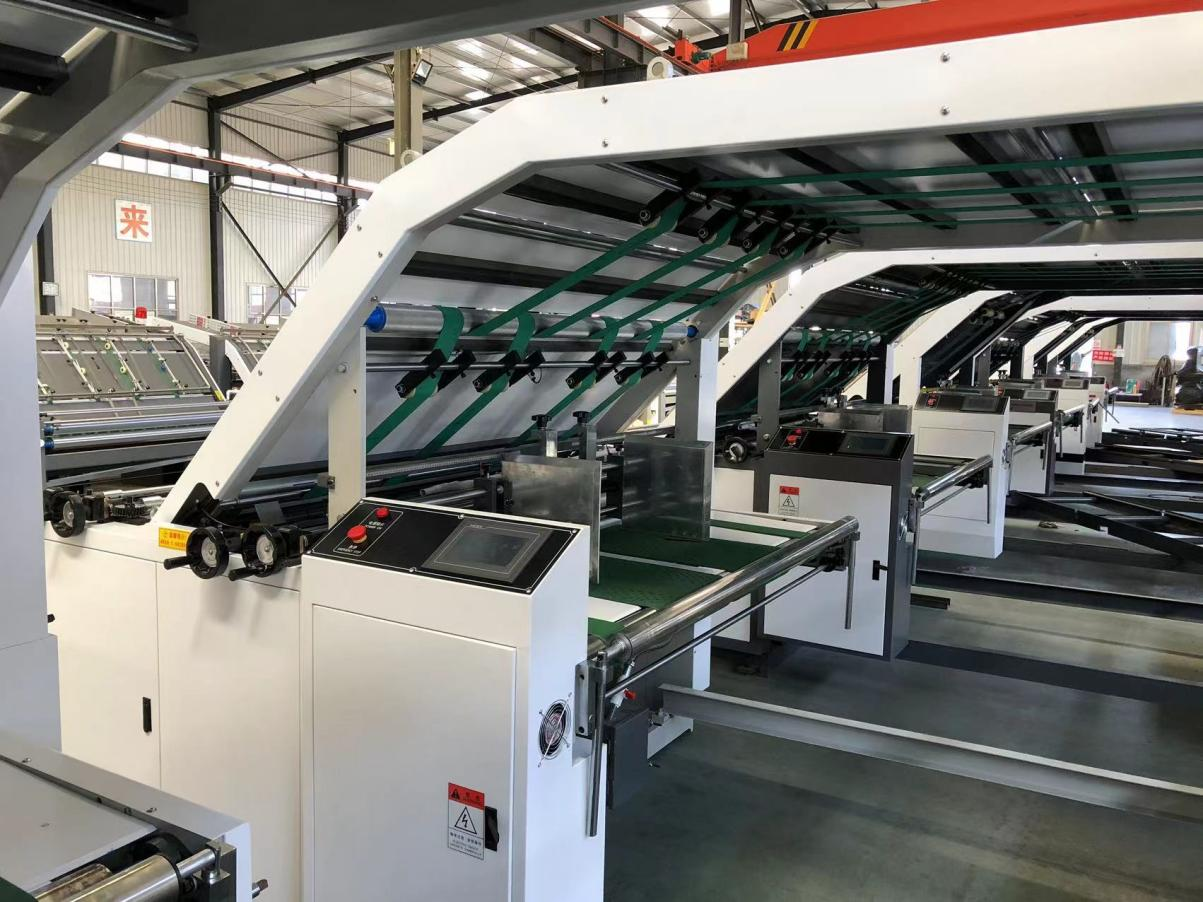

4,The whole machine adopts touch-screen /PLC/servo motor control system, stable circuit system ,automatic display of fault alarm.
5,Automatic glue replenishing system which can automatically replenishing the lost amount of glue.Equipped with the glue recycling can avoid glue loss and waste.
6,Roller design ensures no overflow at high speed and the amount of glue is even at the same time.
7,Pressure rollers adopt unilateral adjustment which is convenient and fast.
8,The rocker controls wash roller’s fluctuation which can wash rollers easily and fast.
9,With humanized design counter, it can record your daily workload conveniently.
Model | NB-1300B | NB-1600B |
Max.size of sheet size | 1300X1250mm | 1600X1250mm |
Min.size of sheet size | 360mmx360mm | 360mmx360mm |
Top paper thickness | 140-800gsm | 140-800gsm |
Bottom paper thickness | 2/4 ply A/B/C/E/F Flute | 2/4 ply A/B/C/E/F Flute |
Machine speed | 0-2400pcs/h | 0-2400pcs/h |
Laminating accuracy | ±1mm | ±1mm |
Main power | 9.5 kw | 9.5 kw |
Dimensions | 12000 x1950 x2430mm | 12000 x2550 x2430mm |
Machine weight | About 4000kg | About 4500kg |
NO. | ITEM | BRAND | ORIGIN |
1 | relay | Siemens | Germany |
2 | contactor | Siemens | Germany |
3 | relay base | Omron | Japan |
4 | INVETER | Nidec | Japan |
5 | Servo | Invt | China |
6 | PLC | Xinjie | China |
7 | Screen | MCGS | China |
8 | AC support | Delta | Taiwan，China |
