ZR462II
Koten
ZR462II
Negotiate
One set
TT,LC
30 Sets/month
By Strong Seaworthy Wooden Cases.
Within 10-30 days after get the deposit.
Wenzhou
7379
| Quantity: | |
|---|---|

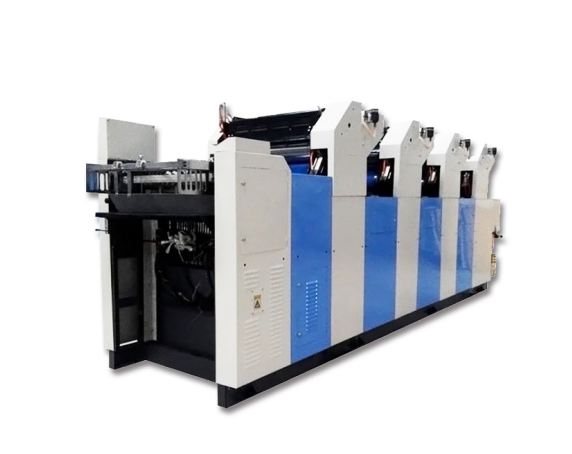

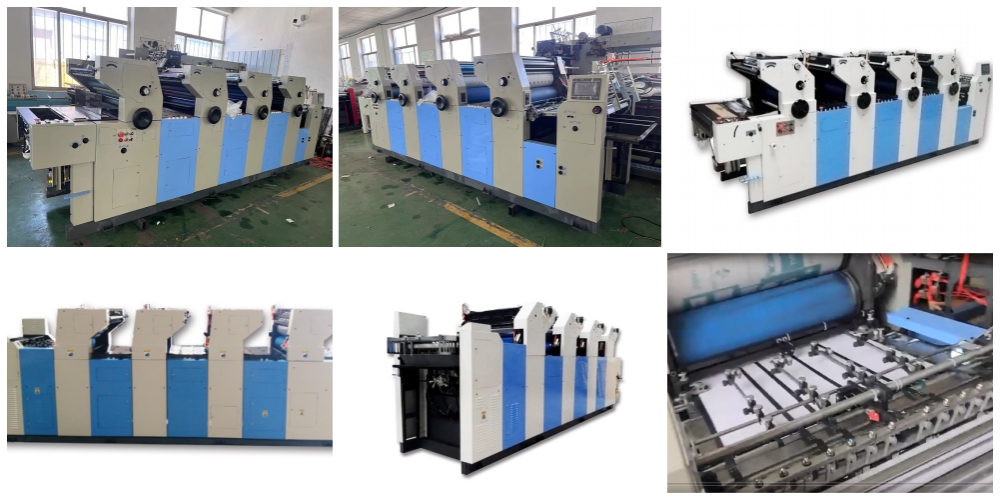

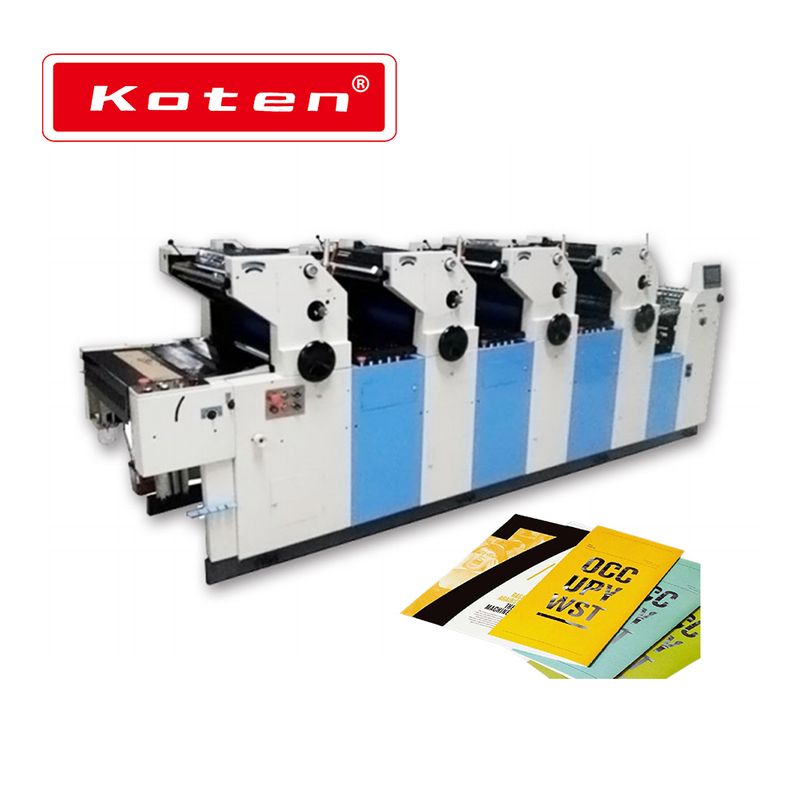

Four Colors Offset Printing Machine（ZR462II）
Offset press are made with fine workmanship on the basis of high quality ,in addition to all the functions ,they have improved inking system,more form rollers and vibrating rollers,uniform ink distribution can ensure high printing quality needed for full printing, make short run color printing simple,easy and smooth,the printed products are more beautiful.So they are economical and practical printing machines.
1.The Rubber roller using three point suspension technology, pneumatic clutch pressure, the pressure will be adjusted well for the accuracy and reliability, and the roller adjust will not affect each other, this protect the roller bearings properly.
2.External high-precision helical gear driver and walk-way iron cylinder to ensure a stable pressure of the printing and delivery of a smooth rotating, to ensure the large printing and very clear mseh work print or copy well, including the small text printing.
3.The whole machine use the way of self-lubricating to ensure that all gears and bearings both in the boot of lubrication at the same time when you operating it.
Max. sheet size | 620 × 450mm |
Min. sheet size | 260 x 180mm |
Max. print format | 605 × 440mm |
Plate size | 620 × 485 × 0.15mm |
Blanket size | 616 × 505 × 1.95mm |
Paper size | 200-300gsm（or 28-250gsm） |
Max. speed | 2000-9000 sheets/hour |
Speed adjustment | Frequency converter |
Gripper margin | 8-10mm |
Inking rollers | 14pcs per unit(3 forme) |
Dampening rollers | 4pcs per unit(1 forme) |
Machine dimension | 4350(L) × 1040(W) × 1460(H)mm |
| Power supply | 380v/50Hz |
| Main motor | 4kw |
Four Colors Offset Printing Machine（ZR462II）
Offset press are made with fine workmanship on the basis of high quality ,in addition to all the functions ,they have improved inking system,more form rollers and vibrating rollers,uniform ink distribution can ensure high printing quality needed for full printing, make short run color printing simple,easy and smooth,the printed products are more beautiful.So they are economical and practical printing machines.
1.The Rubber roller using three point suspension technology, pneumatic clutch pressure, the pressure will be adjusted well for the accuracy and reliability, and the roller adjust will not affect each other, this protect the roller bearings properly.
2.External high-precision helical gear driver and walk-way iron cylinder to ensure a stable pressure of the printing and delivery of a smooth rotating, to ensure the large printing and very clear mseh work print or copy well, including the small text printing.
3.The whole machine use the way of self-lubricating to ensure that all gears and bearings both in the boot of lubrication at the same time when you operating it.
Max. sheet size | 620 × 450mm |
Min. sheet size | 260 x 180mm |
Max. print format | 605 × 440mm |
Plate size | 620 × 485 × 0.15mm |
Blanket size | 616 × 505 × 1.95mm |
Paper size | 200-300gsm（or 28-250gsm） |
Max. speed | 2000-9000 sheets/hour |
Speed adjustment | Frequency converter |
Gripper margin | 8-10mm |
Inking rollers | 14pcs per unit(3 forme) |
Dampening rollers | 4pcs per unit(1 forme) |
Machine dimension | 4350(L) × 1040(W) × 1460(H)mm |
| Power supply | 380v/50Hz |
| Main motor | 4kw |
