CS-1350/1650
koten
CS-1350/1650
Negotiate
1set
T/T,L/C.
30sets/month
By strong seaworthy wooden cases.
Within 60 days after get the deposit.
China
2535
| Quantity: | |
|---|---|

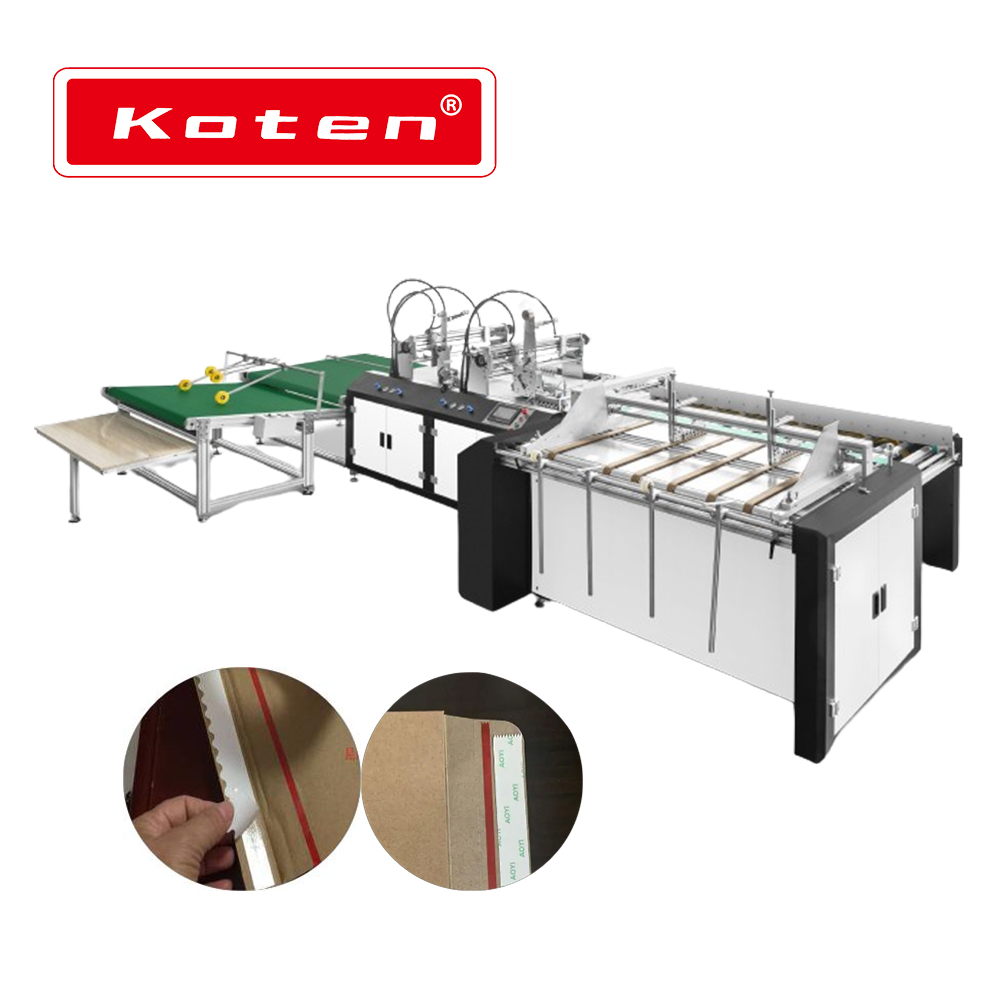

FULLY AUTOMATIC MULTI-FUNCTION DOUBLE-SIDED TAPE MACHINE
1. The automatic feeding mechanism adopts the friction feeding method of the folder gluer to ensure smooth feeding.
2. Optical fiber sensor and servo positioning, accurate positioning.
3. The bonding part adopts a new type of bonding mechanism, which has efficient bonding performance.
4. PLC control, man-machine interface, parameter touch screen setting, fitting length adopts man-machine dialogue, and the length can be set arbitrarily.
5. The delivery section adopts the continuous accumulation box method.
Model | CS-1350 | CS-1650 |
Material | Over 250g/m² cardboard/ corrugated board/E-B-C-wave | Over 250g/m² cardboard/ corrugated board/E-B-C-wave |
Min open blank | 250×250mm | 250×250mm |
Max open blank | 1350×850mm | 1650×850mm |
Working width | 600mm | 600mm |
Conveyor Speed | 90m/min | 90m/min |
Tape roll width | 5-35mm 10-60mm | 5-35mm 10-60mm |
Precision | Vertical sticking | Vertical sticking |
Needed air supply | Min. 6 bar | Min. 6 bar |
Power required | 3.5kw (220V AC 3φ 50HZ) | 3.5kw (220V AC 3φ 50HZ) |
Weight | 1500KG | 1500KG |
Machine size | 4500×2450×1200mm | 4500×2750×1400mm |
