FBJ-D
KOTEN
FBJ-D
Negotiable
One set
T/T, L/C at sight.
30sets/month

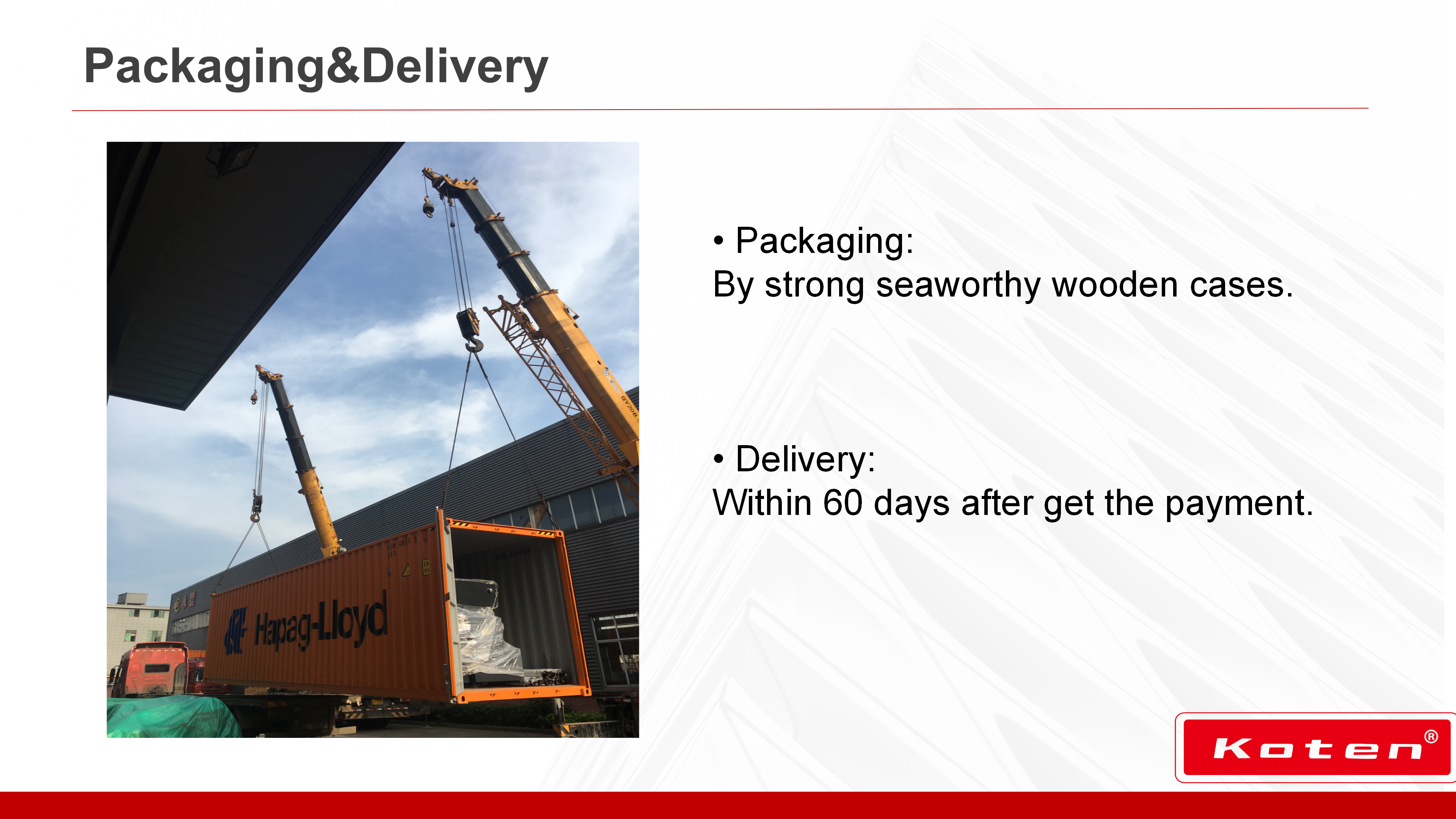

By strong sea worthy package
after received 30% deposit.
China
2061
| Mix Size: | |
|---|---|
| Speed: | |
| Quantity: | |

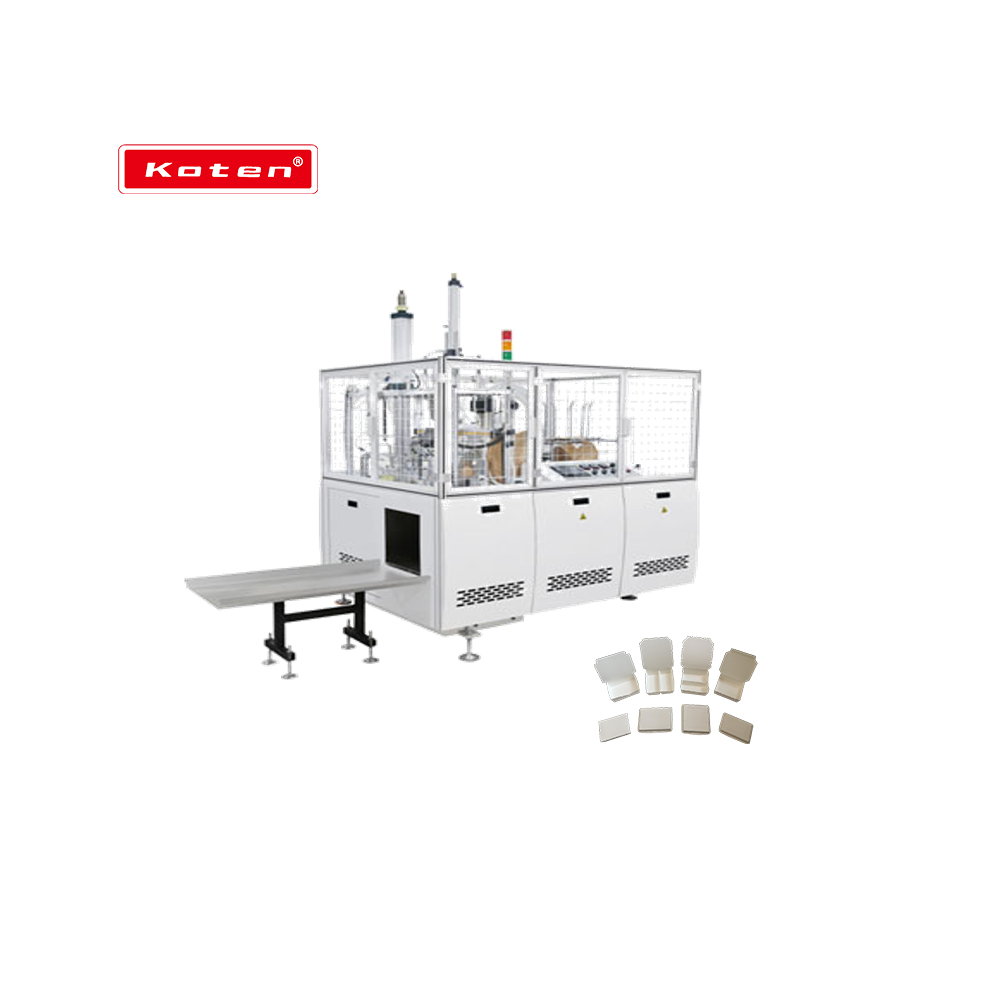

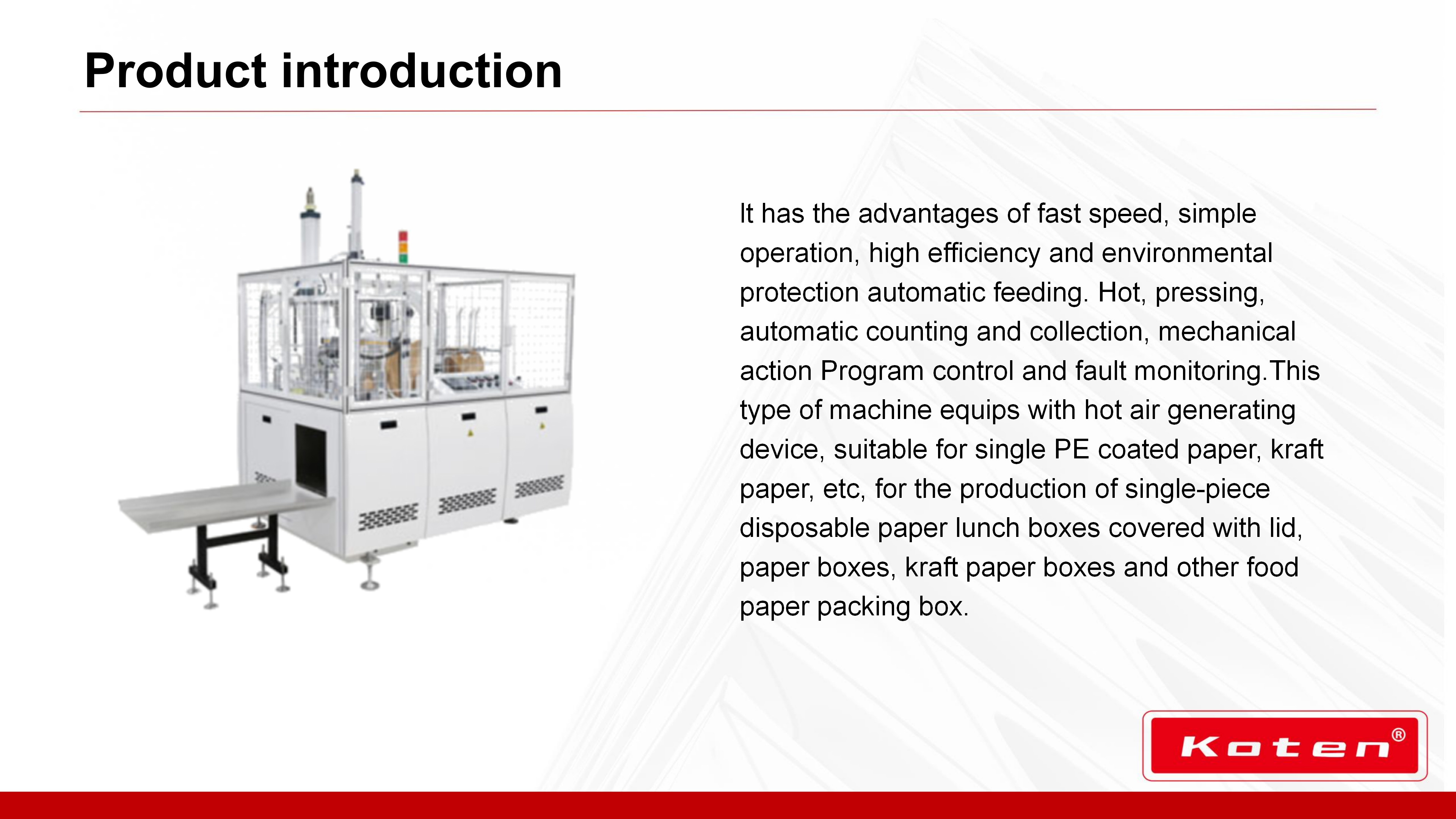

FBJ-D has the advantages of fast speed, simple operation, high efficiency and environmental protection automatic feeding. Hot pressing, automatic counting and collection, mechanical action Program control and fault monitoring.

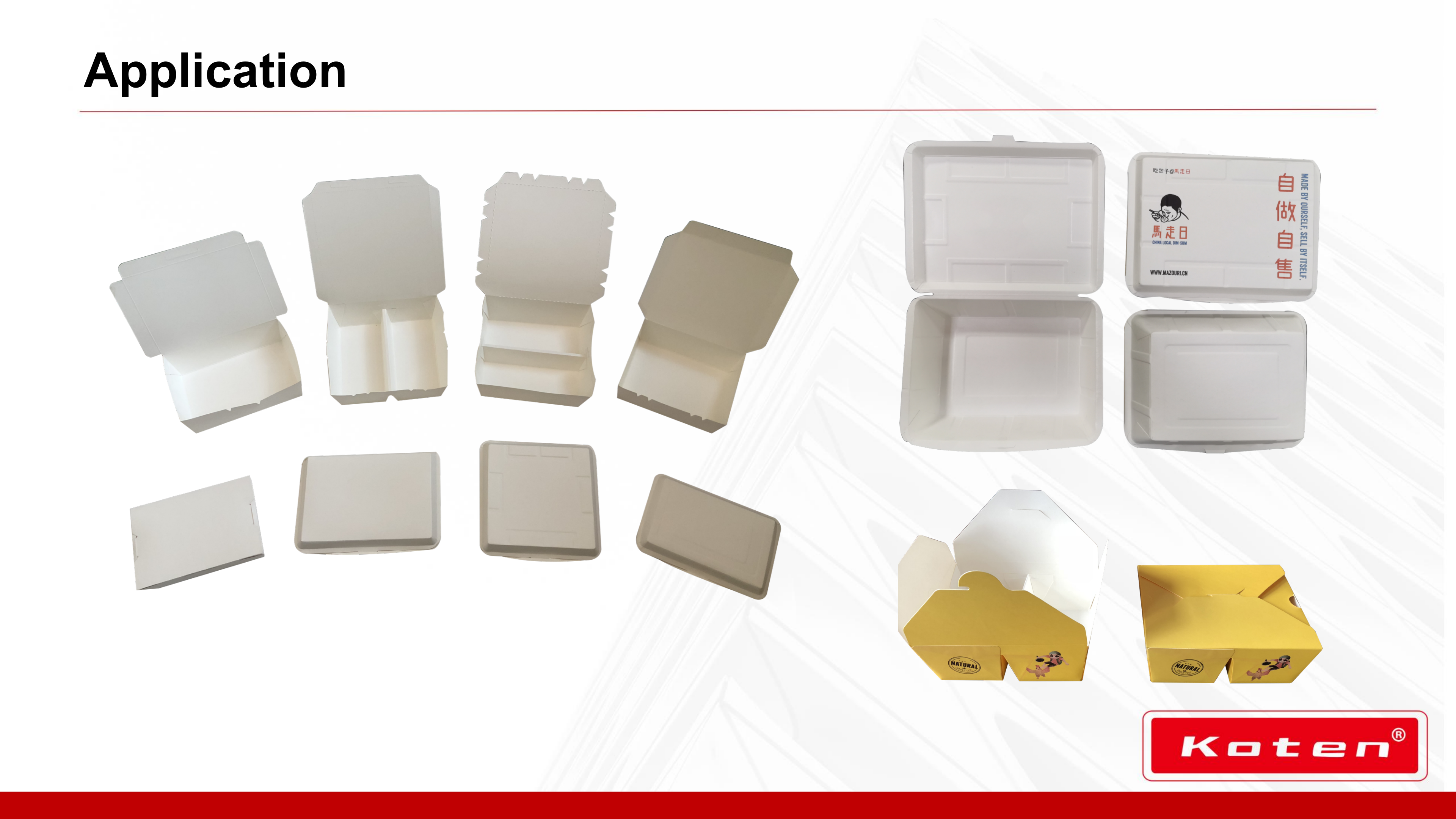

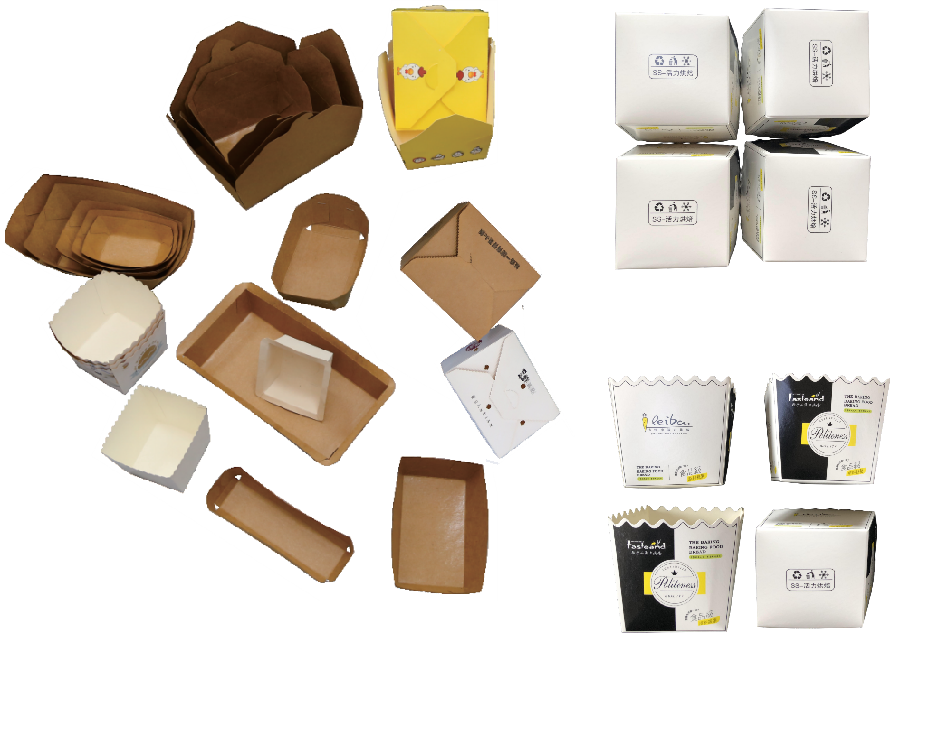

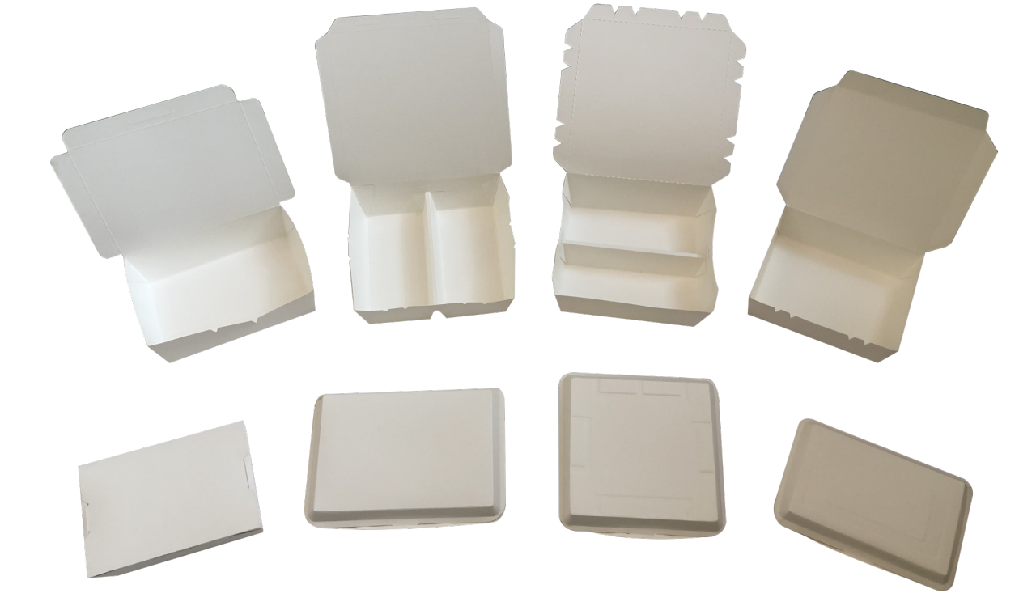

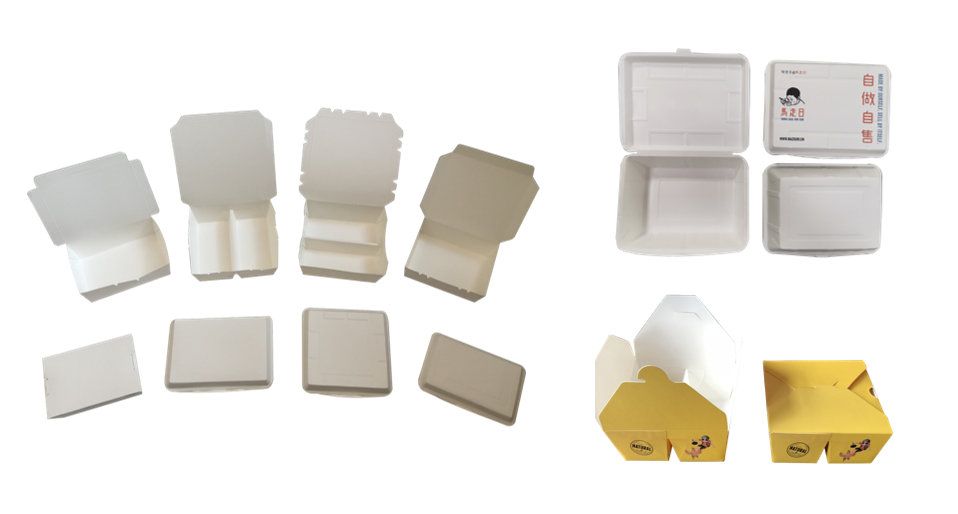

This type of machine equips with hot air generating device, suitable for single PE coated paper, kraft paper, etc, for the production of single-piece disposable paper lunch boxes covered with lid, paper boxes, kraft paper boxes and other food paper packing box.

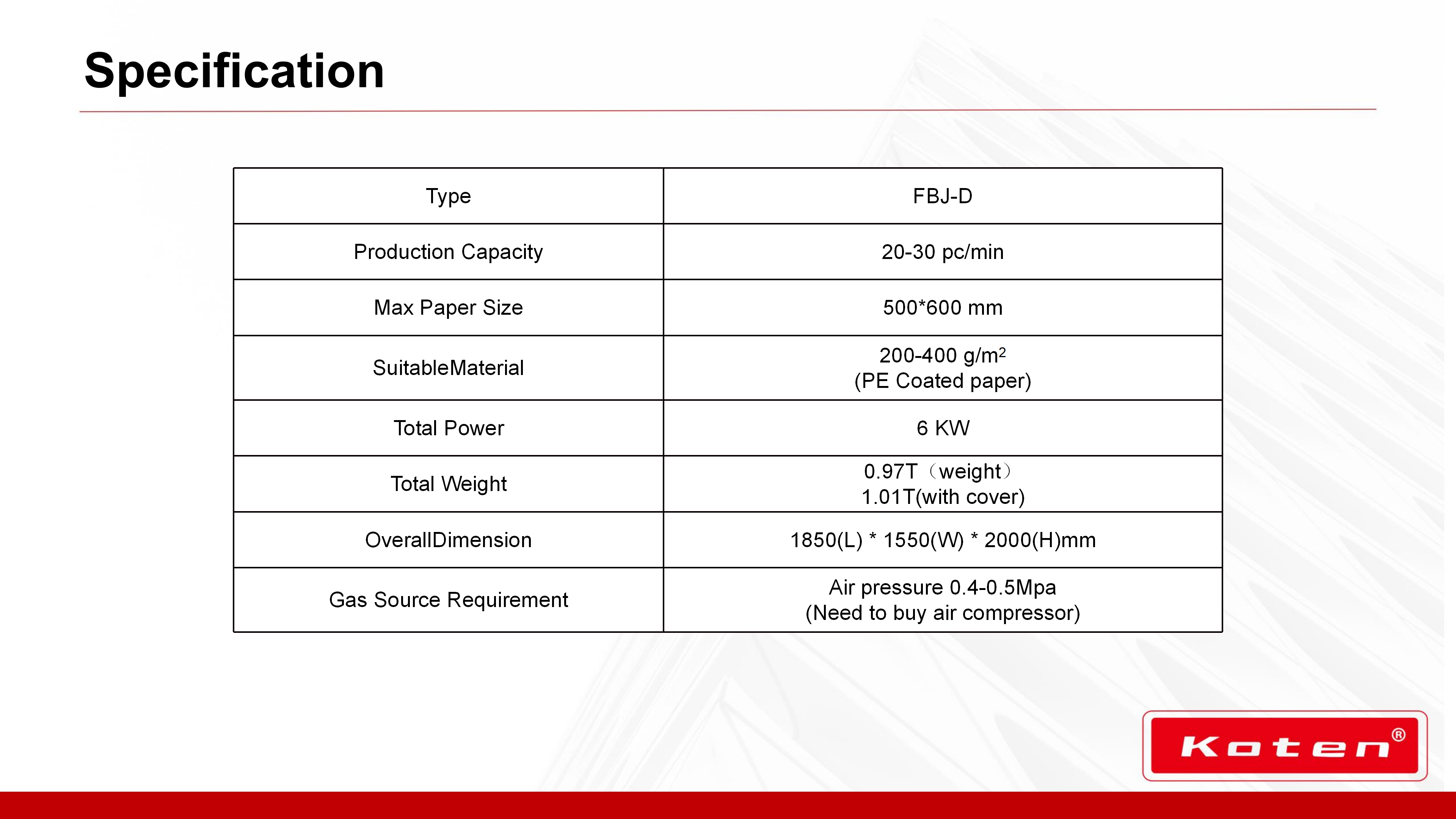

Type | FBJ-D |
Production Capacity | 20-30 pcs/min |
Max Paper Size | 500*600 mm |
SuitableMaterial | 200-400 g/m2 (PE Coated paper) |
Total Power | 6 KW |
Total Weight | 0.97T（weight） 1.01T(with cover) |
OverallDimension | 1850(L) * 1550(W) * 2000(H)mm |
Gas Source Requirement | Air pressure 0.4-0.5Mpa (Need to buy air compressor) |

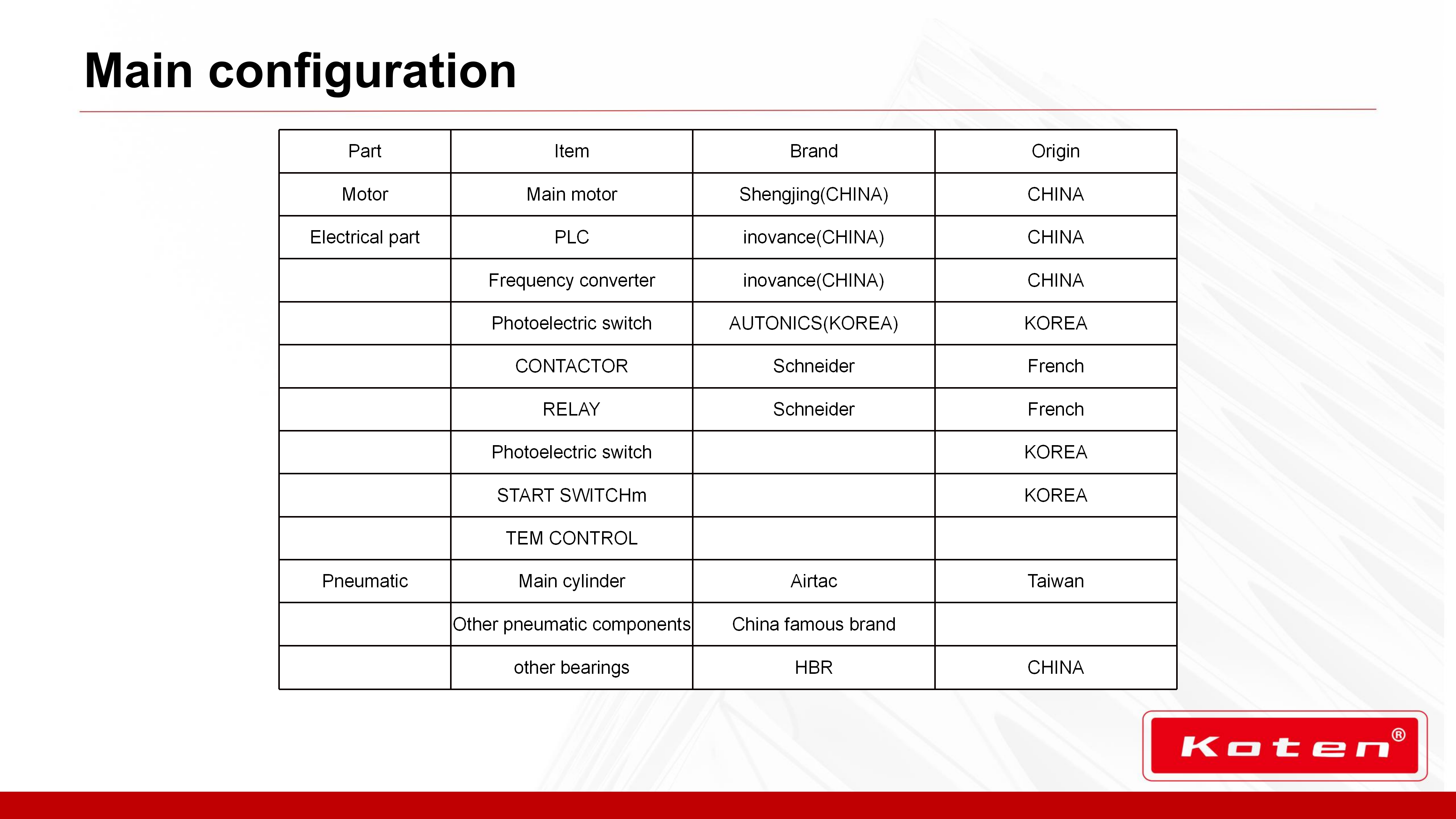

No | Item | Brand | Origin |
1 | Main motor | Shengjing | CHINA |
2 | PLC | Inovance | CHINA |
3 | Frequency converter | Inovance | CHINA |
4 | Photoelectric switch | AUTONICS | KOREA |
5 | CONTACTOR | Schneider | French |
6 | RELAY | Schneider | French |
7 | Photoelectric switch | KOREA | |
8 | START SWITCHm | KOREA | |
9 | TEM CONTROL | ||
10 | Main cylinder | Airtac | Taiwan |
11 | Other pneumatic components | China famous brand | |
12 | other bearings | HBR | CHINA |
