HT-2510
Koten
HT-2510
Negotiate
1
T/T, L/C At Sight
30 sets/month
By strong sea worthy package
Within 45 days after receipt of the deposit.
China
2431
| Quantity: | |
|---|---|

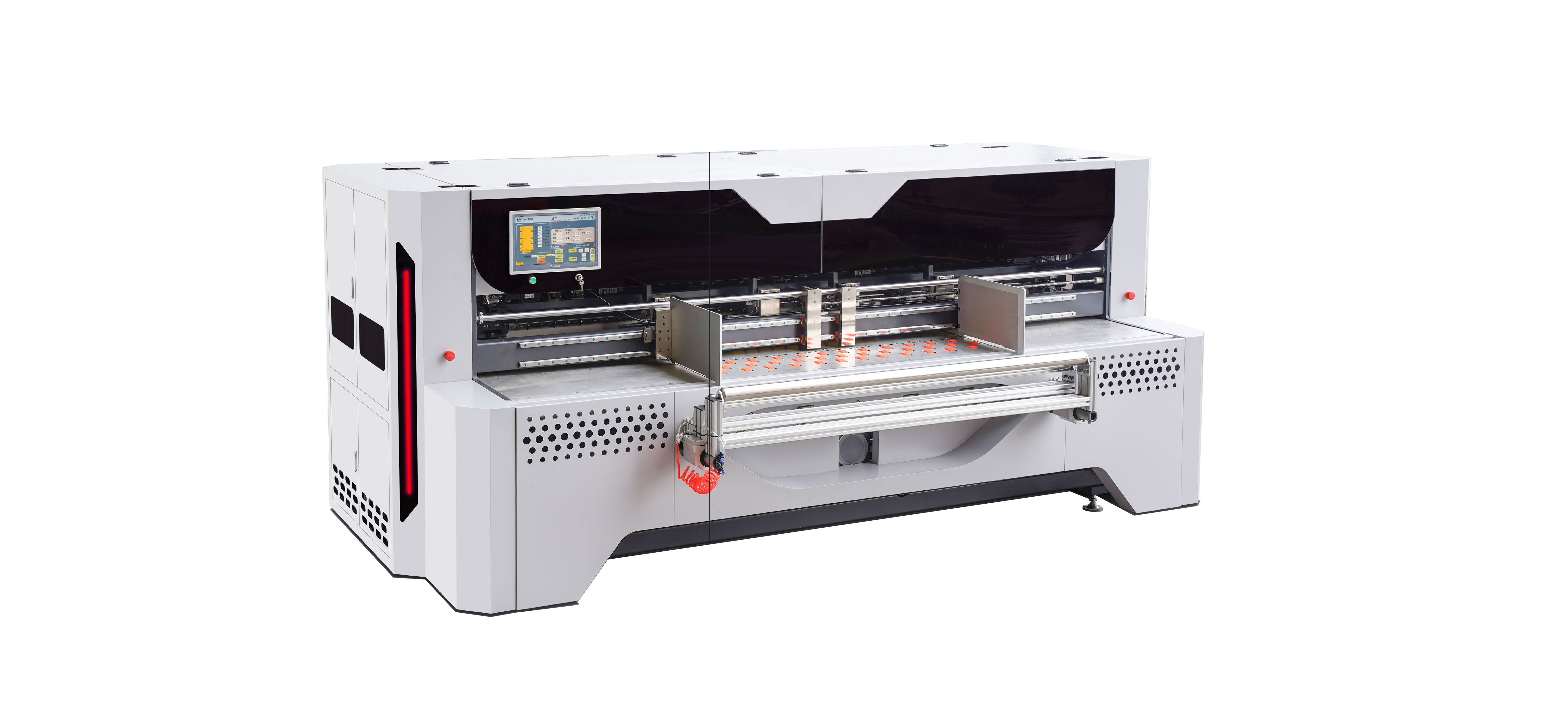

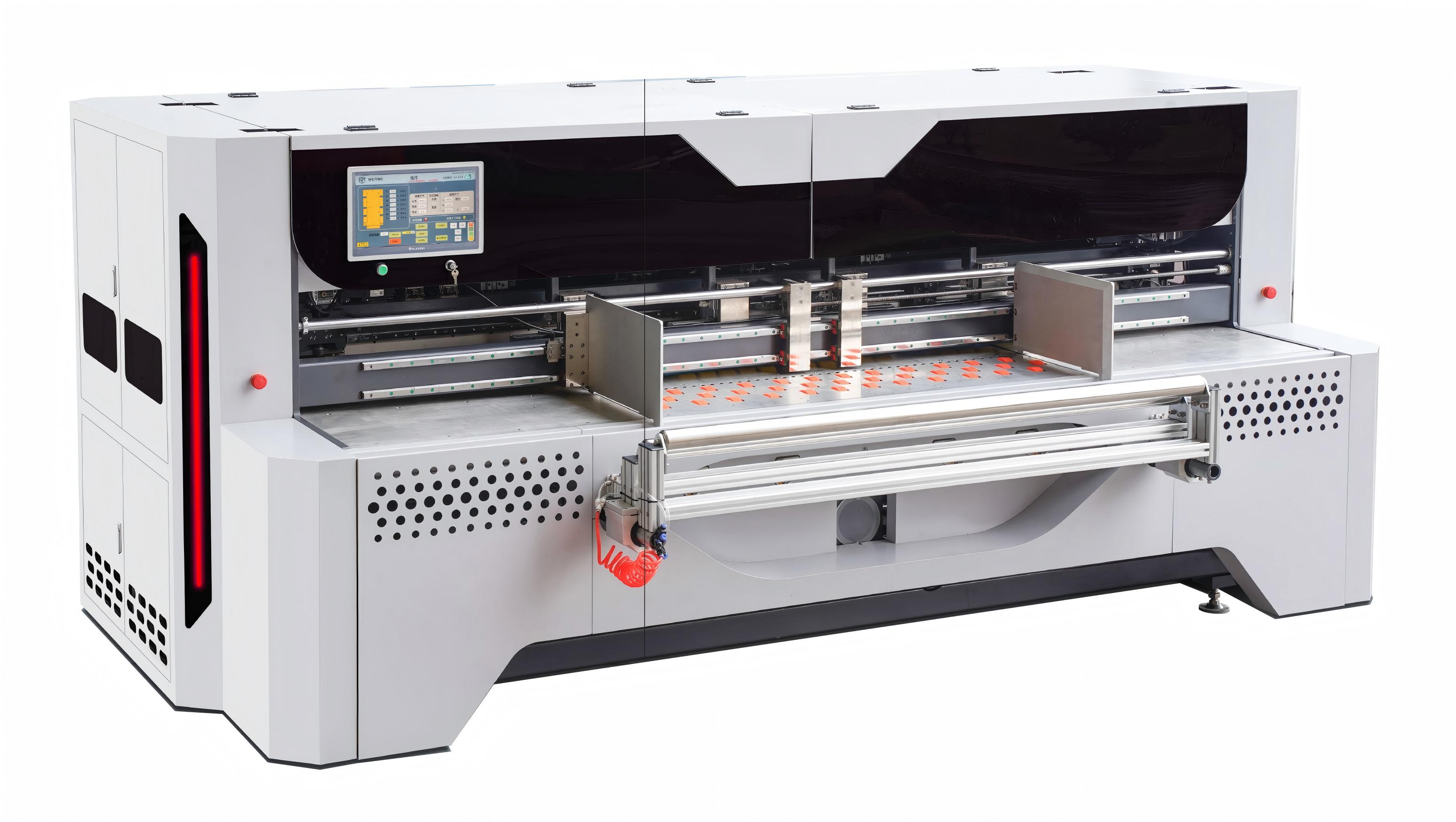

Full Intelligent Digital Box-Making Machine
This machine is capable of feeding, slotting, scoring, creasing, trimming, and handle die-cutting all in one.
| Model:HT-2510 Automatic Box-Making Machine | |
| Maximum width | 2510mm |
| Minimum size | 200×650mm |
| Corrugated Board Type | Single&Double Wall |
| Thickness | 2-12mm |
| Production speed | 500-800pcs/h |
| Slotting knives | 2×500mm |
| Vertcal cutting knife | 4 PCS |
| Creasing Wheel | 4 PCS |
| Horizontal cutting knife | 1 PCS |
| Overall dimensions | 3800×2100×1700mm |
| Weight | 3600kg |
No | Name | Quantities | Brand | Origin | |
1 | Motion Controller | 1 | Zmotion | China | 20 shafts |
2 | Precision-aligned servo motors and servo drives | 16 | FLEXEM | China | |
3 | Pushbuttons, Switches | 2 | Moeller | German | |
4 | Intermediate relays, Circuit breakers | 3 | Schneider | French | |
5 | Touchscreens | 1 | FLEXEM | China | |
6 | Pneumatic Components | 20 | AirTac | Taiwan | |
7 | Solenoids | 16 | AirTac | Taiwan | |
8 | Planetary reducer | 12 | Zhuolan | China | |
9 | Bear | 6 | NSK | Japan | |
10 | Linear guides | 9 | HIWIN | Taiwan | |
11 | Ventilator | 1 | OuGuan | China | |
12 | Synchronous belt | 1 | FULO | China |
