FPCB-1080
Koten
FPCB-1080
Negotiate
1
T/T, L/C At Sight
30 sets/month
By strong sea worthy package
Within 30 days after receipt of the deposit.
China
9437
| Quantity: | |
|---|---|

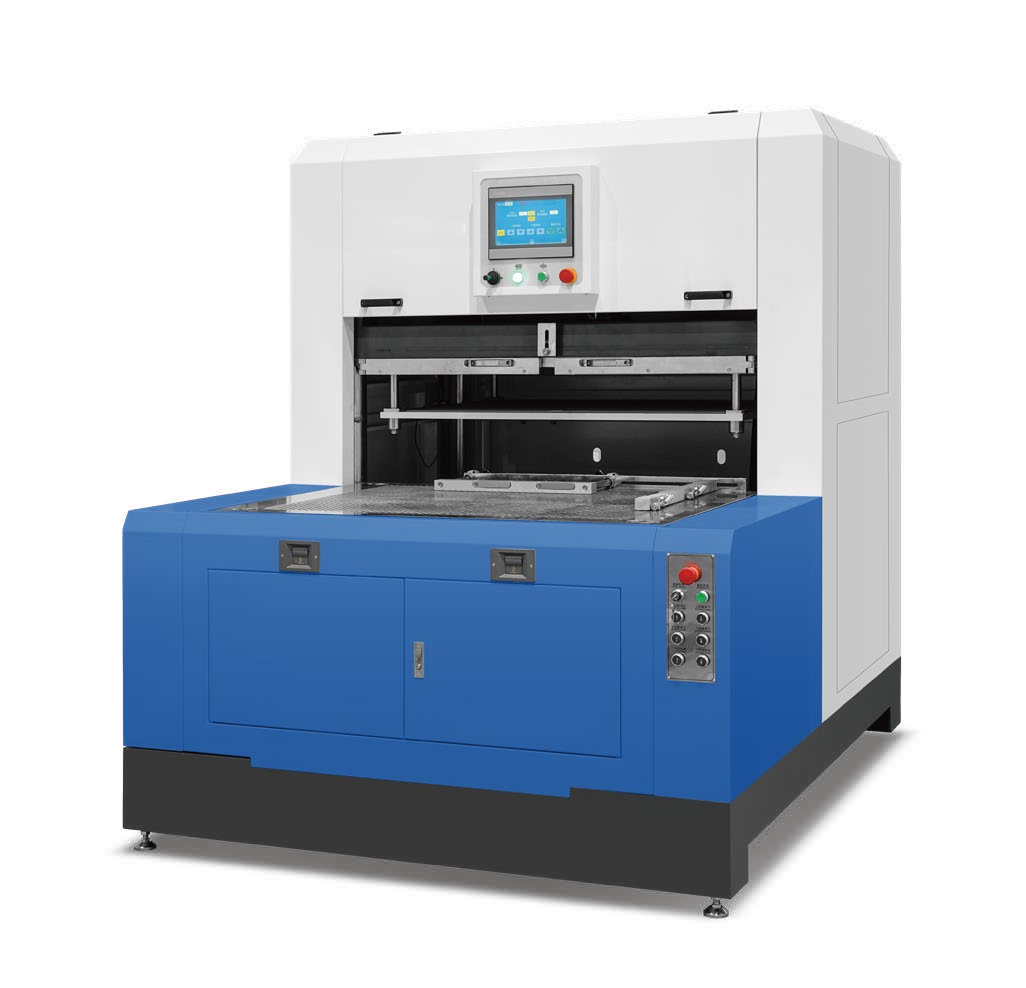

Automatic Full-page Stripping Machine
1.Different for other models in our factory, a professional equipment which can realize full-page blanking work of any carton packaging products of different sizes and shapes on a single sheet in one time. The machine features upper and lower pin base, which makes jobs easy, fast for both blanking and jobs shifting, effectively improving productivity. 2.Heavy-duty, quality-built single support base.
3.Equipped with high-precision linear bearing rails and servo motors for smooth and precise movement.
4.Operator friendly touch screen for quick and simple programing.
5.Can be customized according to customers’ job demand.
6.Servo motor, double guide rail and ball screw ensure accuracy.
7.Hydraulic system with inserted motor and oil temperature cooling fan ensures constant and big working pressure. 8.The complete machine takes much less space and is equipped with PLC, touch screen interface in operation.
9.Used to replace manual labor, improving product quality and enterprise profit.
| FPCB-1080 Automatic Full-page Stripping Machine | |
| Max. paper size | 1080*780mm |
| Min. paper size | 400*200mm |
| Max. blanking size | 1030x730mm |
| Min.blanking size | 40x40mm |
| Stripping height | 40-100mm |
| Weight | 2.1kg |
| Voltage | 380 |
| Power | 7.5kw |
| Blanking speed | 1/min |
| Net weight | 4300 kgs |
| Machine netdimension | 2400*1750*1950mm |
| Machine packing dimension | 2600*1900*2100mm |
| Item | Brand | Origin |
| Micro-computerized controller | Omron | Taiwan |
| Touch screen | Weinview | Taiwan |
| Servo motor | Evta | Taiwan |
| Thermal overload relay | Omron | China |
| Button | Schneider | France |
| Circuit breaker | LS | Japan |
| switch power supply | Mingwei | Taiwan |
