HCSG-1200Y
Koten
HCSG-1200Y
Negotiate
One set
T/T, L/C at sight.
10sets/month
By strong seaworthy wooden cases.
Within 30 days after get the deposit.
China
6696
| Quantity: | |
|---|---|

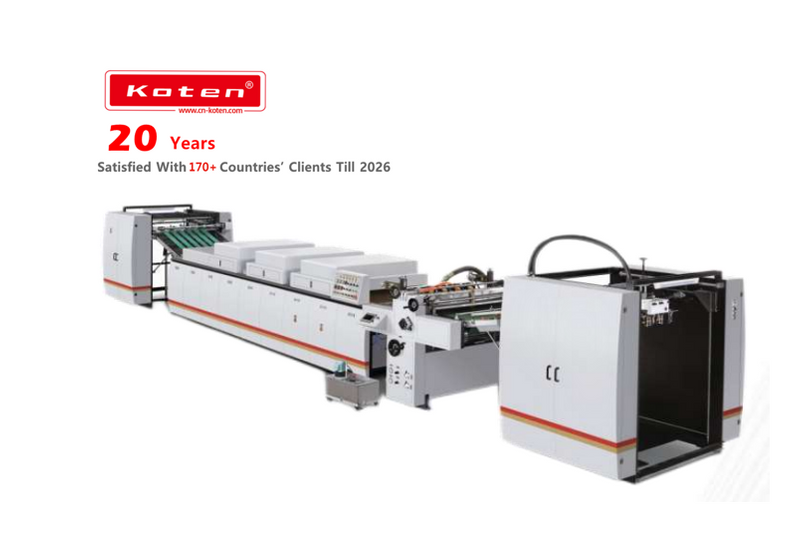

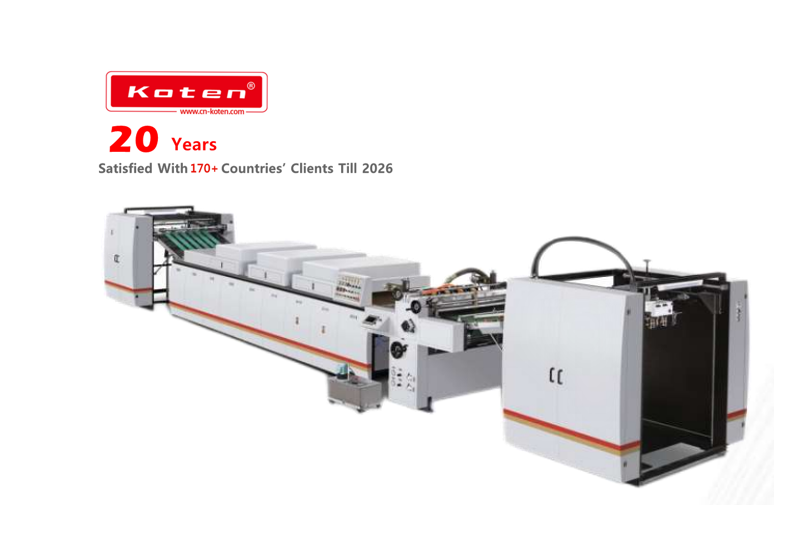

This machine is a kind of high-and new-tedi product integrating light, machinery and electricity with pneumatic which can be used for both thick and thin paper, realizes whole-course automation and adopts belt conveying with high speed and high efficiency. The mechanical speed adopts variable frequency step less speed regulation and max. Speed is 100m/min. This machine has independent space for every working station and it can be assemble bases the client request, so it is suitable for being used in large printing enterprise. The surface gloss of various paper prints treated by this machine is greatly improved, and the prints feel fine after polishing and oil. UV oil plays the role of moisture-proof and wear-resistant It is widely used in the surface treatment of various papers. It is an ideal equipment to improve the quality of prints.
| MODEL | SG-1200 |
| Max. Sheet Size | 1100*1100mm |
| Min. Sheet Size | 360*406mm |
| Paper Thickness | 80-600gsm(with Air-knife) |
| Max. Feeder Speed | Thick paper(100m/min)，Thin paper(60m/min) |
| Overall Dimensions | 11000*2200*1900mm |
| Total Weight | 4800kg |
| Total Power | 43kw |
