Full UV Coating Machine With Feeder Coating, Sheet Cleaning Unit, UV dryer and Auto Stacker.

  • KT-1200C

  • Koten

  • KT-1200C

  • Negotiate

  • One set

  • T/T, L/C at sight.

  • 10sets/month

  • By strong seaworthy wooden cases.

  • Within 30 days after get the deposit.

  • China

  • 263

sharethis sharing button

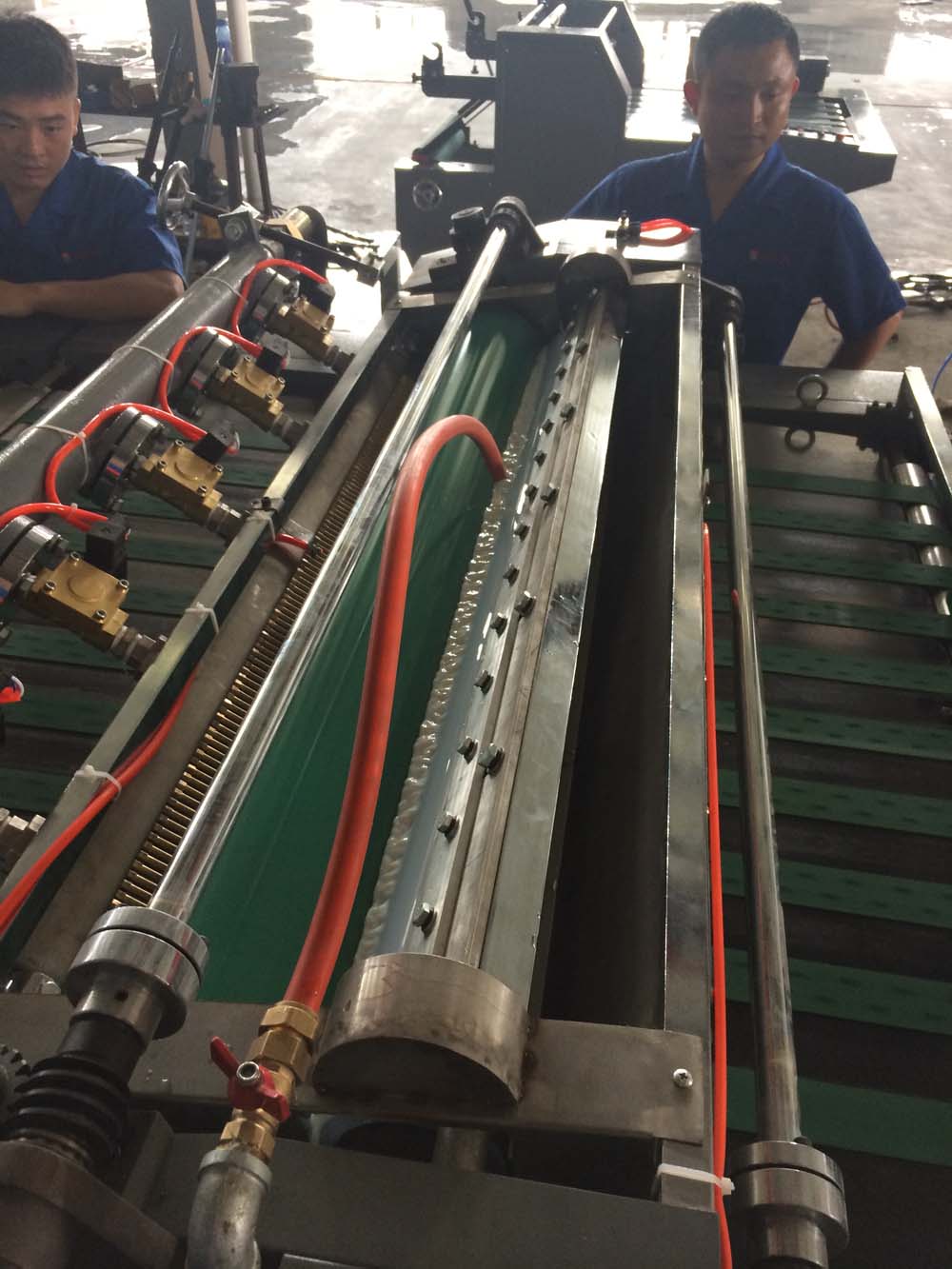

UV Coating Machine


The machine adopts the international advanced coating technology , and combines the features of the national industry. It is a kind of UV oil-passing and glazing equipment for paper surface. After being treated by the machine, printed surface will have a higher glossiness with function of antifouling, damp-proof, fade-proof and wear-proof. Especially, the machine adopts the PLC air-knife system,and it could make the paper which over 80g/m2 coating easily. It is therefore the ideal equipment for the processor to promote the glazing quality of printed matter and create higher profit.

UV Coating Machine

UV Coating Machine

Finished Samples.

UV Coating Machine

Main Technical Parameters:

Model KT-1200C
Max.sheet size 1000x1200mm
Min.sheet size 340x406mm
Max.coating width 1150mmx790mm
Paper thickness
80-600gsm(equipped with wind-kinfe)  200-600gsm

Max.feeder speed
6000 sheets/hour  3000 sheets / hour for thin paper
Conveyor speed 25-80m/min
Dimension 18500x2500x1940mm
Total weight 10500kg
Total power 89kw

Koten Machines Container Loading.

UV Coating Machine packaging
140 Countries Clients Who Has Koten Brand Machines Till 2019.

UV Coating Machine customers


1. Why choose us to cooperate?
Factory prices, flexible payment terms and professional quality inspection team which has the guarantee for machines, in time after sales service, and more than 15 years experience for exporting. Reputation and quality is what we are considering all the time.

2. Guarantee.

There is 12 month guarantee of each Koten brand Machines since customer got the machine. Within one year, the damaged spare parts can be changed for free, and we provide lifetime technology support on line.

3. Delivery Time.

Within 7-30 days after get the deposit. Depends on different machines.

4. What is your package?

What the package we use is strong seaworthy wooden cases. Each machine will be protected by anti-rusted oil before put into the case and there are desiccants will be packed into the machine together.

5. Do you have Installation and Training service if we bought the machines from your company?

The training service will be done by our agency dealer in some countries. If customers request us to dispatch our engineer to their country for installation and training, customers should take all necessary cost, like return flight tickets, hotel, food and salary USD100/day. If customer dispatch their engineer to our factory for training, it is free.

6. Have you sold any machines to our country?

We have to say that there are 140 countries' customers who have the "KOTEN" brand machines till 2019. Pls check with the sales manager to get more information if you need the machines' feedback.

7. What is your payment terms?

T/T. If the amount less than USD30,000.00, 30% paid in advance as a deposit, 70% balance paid before shipment.
L/C. If the sales amount above USD30,000.00, 30% paid by T/T as a deposit, 70% balance paid by irrevocable L/C at sight.
By Cash, by western union, credit cards are acceptable.
Special country like Bangladesh or Algeria can be available for 100% by irrevocable L/C at sight.

8. What your company can offer?

Exercise Books Making Solutions.
Soft Cover Books Making Solutions.
Hard Cover Books Making Solutions.
Spiral Books Making Solutions.
Postpress and Paper Converting Solutions.
Paper Box Making Solutions.
Rigid Box Making Solutions.

Paper Bag Making Solutions.

Exhibitions and Customers'Meeting.
UV Coating Machine exhibition

        Factory Production.
UV Coating Machine factory
