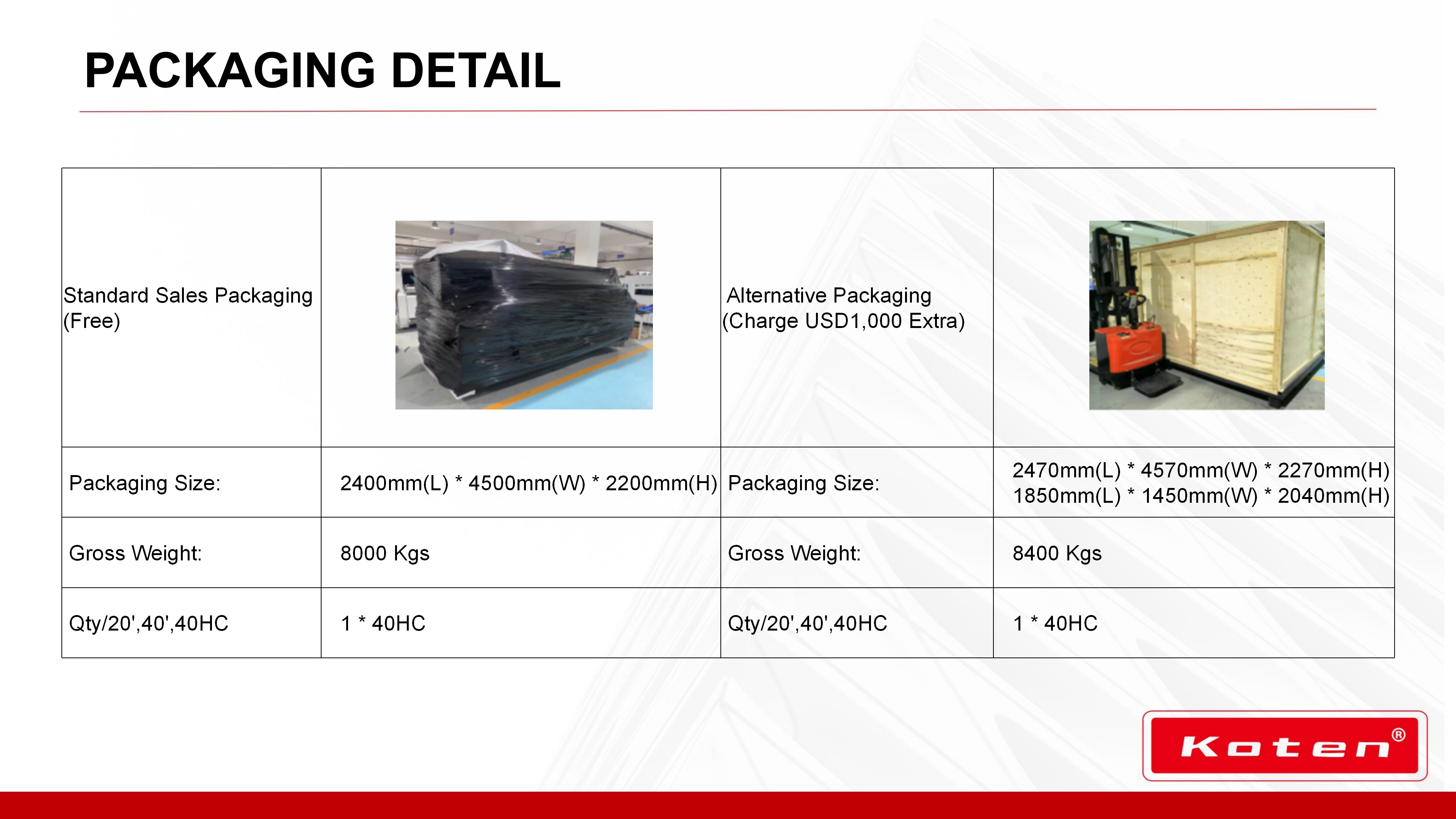

By strong sea worthy package
after received 30% deposit.
China.
3724
| Production Rate: | |
|---|---|
| Weight: | |
| Quantity: | |

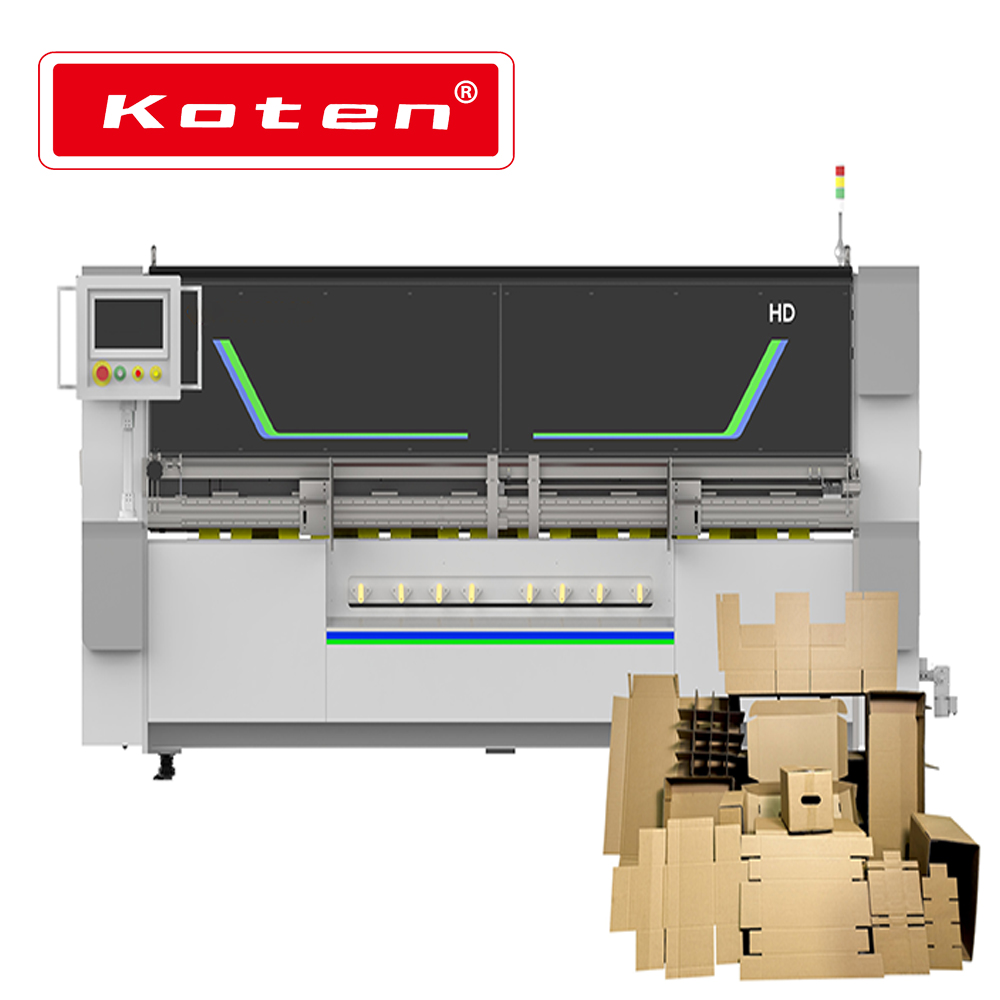

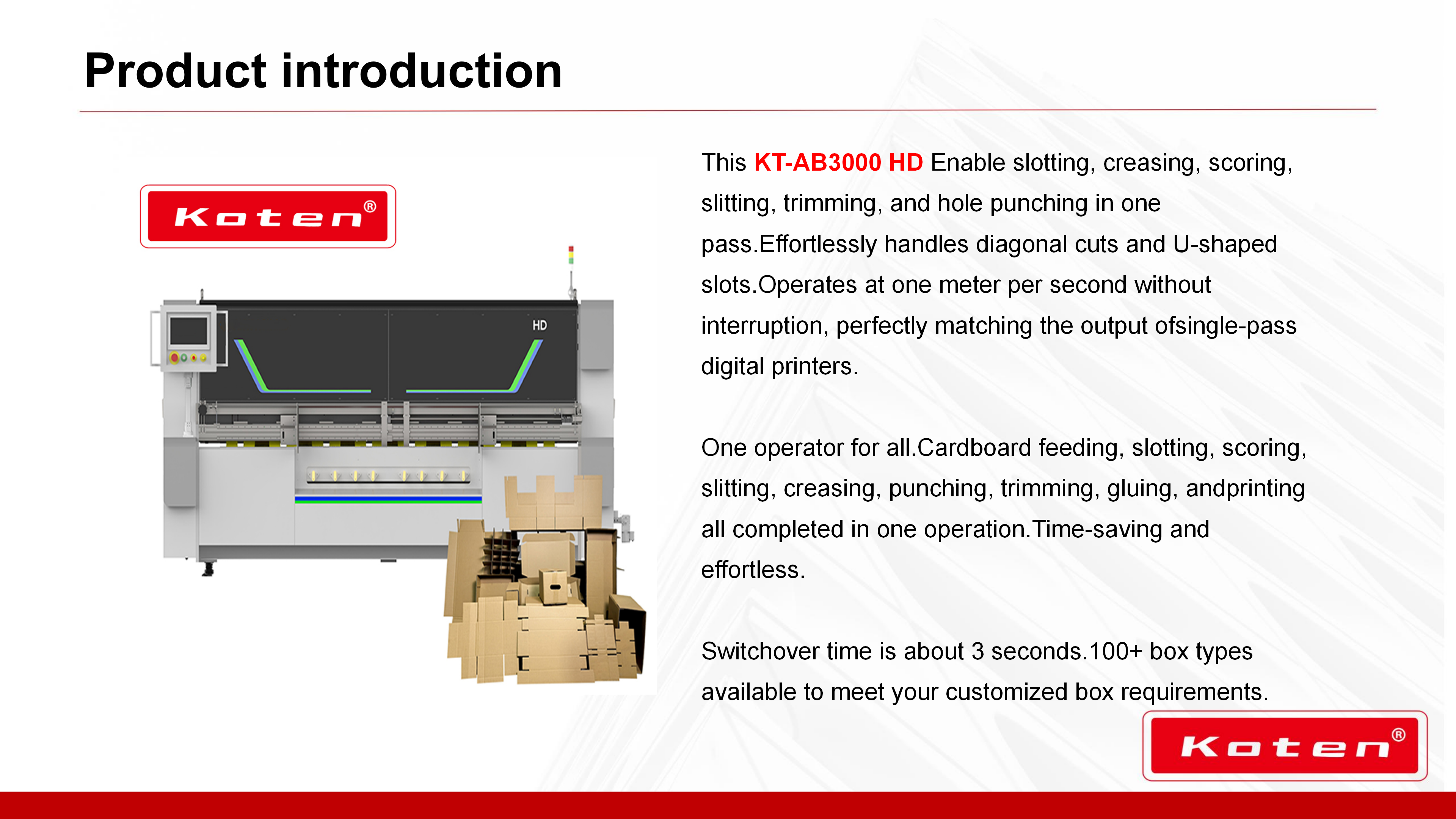

Fully Automatic Corrugated Box Slotting Machine
This KT-AB3000 HD Enable slotting, creasing, scoring, slitting, trimming, and hole punching in one pass.Effortlessly handles diagonal cuts and U-shaped slots.Operates at one meter per second without interruption, perfectly matching the output ofsingle-pass digital printers.

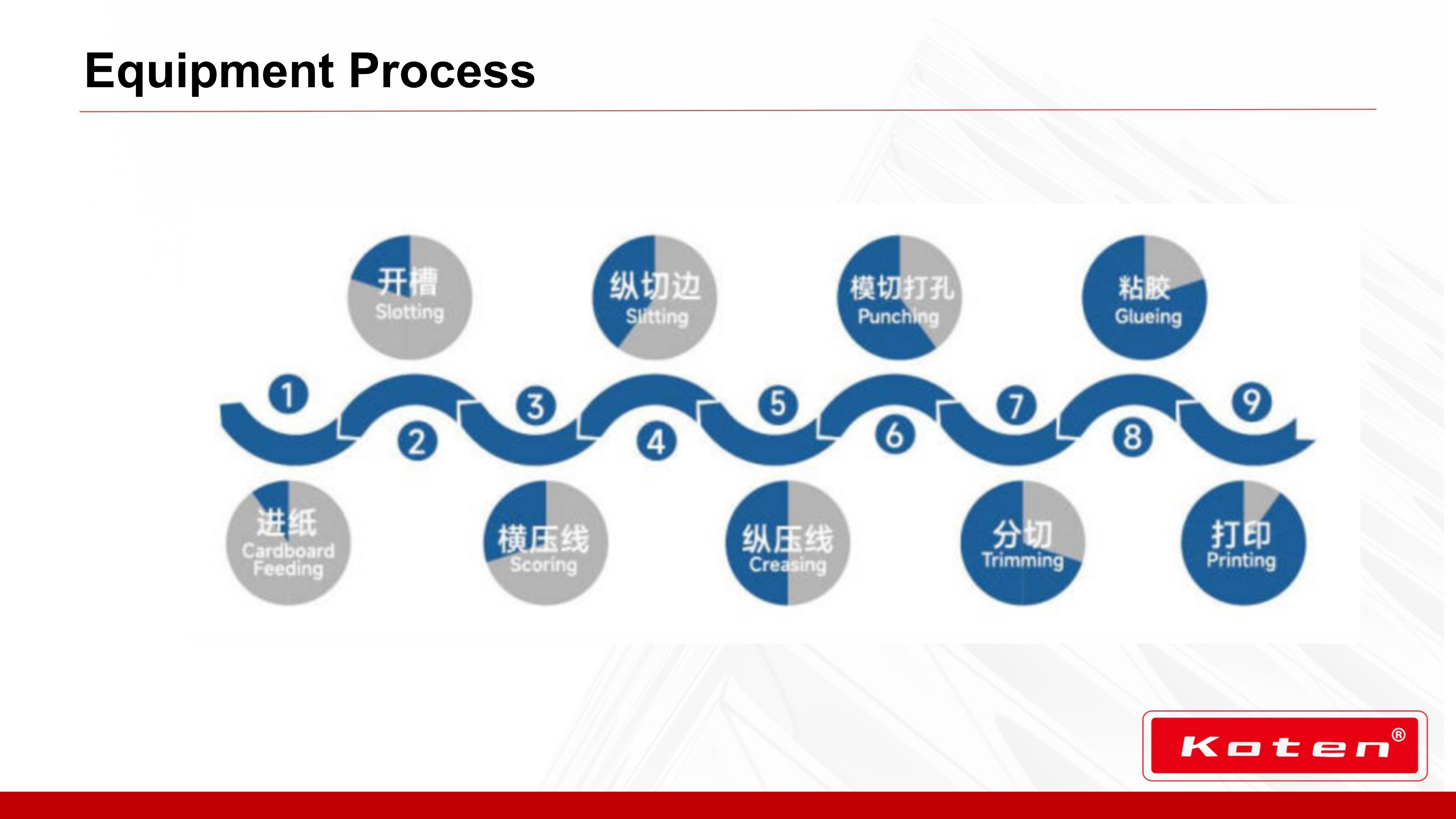

One operator for all.Cardboard feeding, slotting, scoring, slitting, creasing, punching, trimming, gluing, andprinting all completed in one operation.Time-saving and effortless.
Switchover time is about 3 seconds.100+ box types available to meet your customized box requirements.

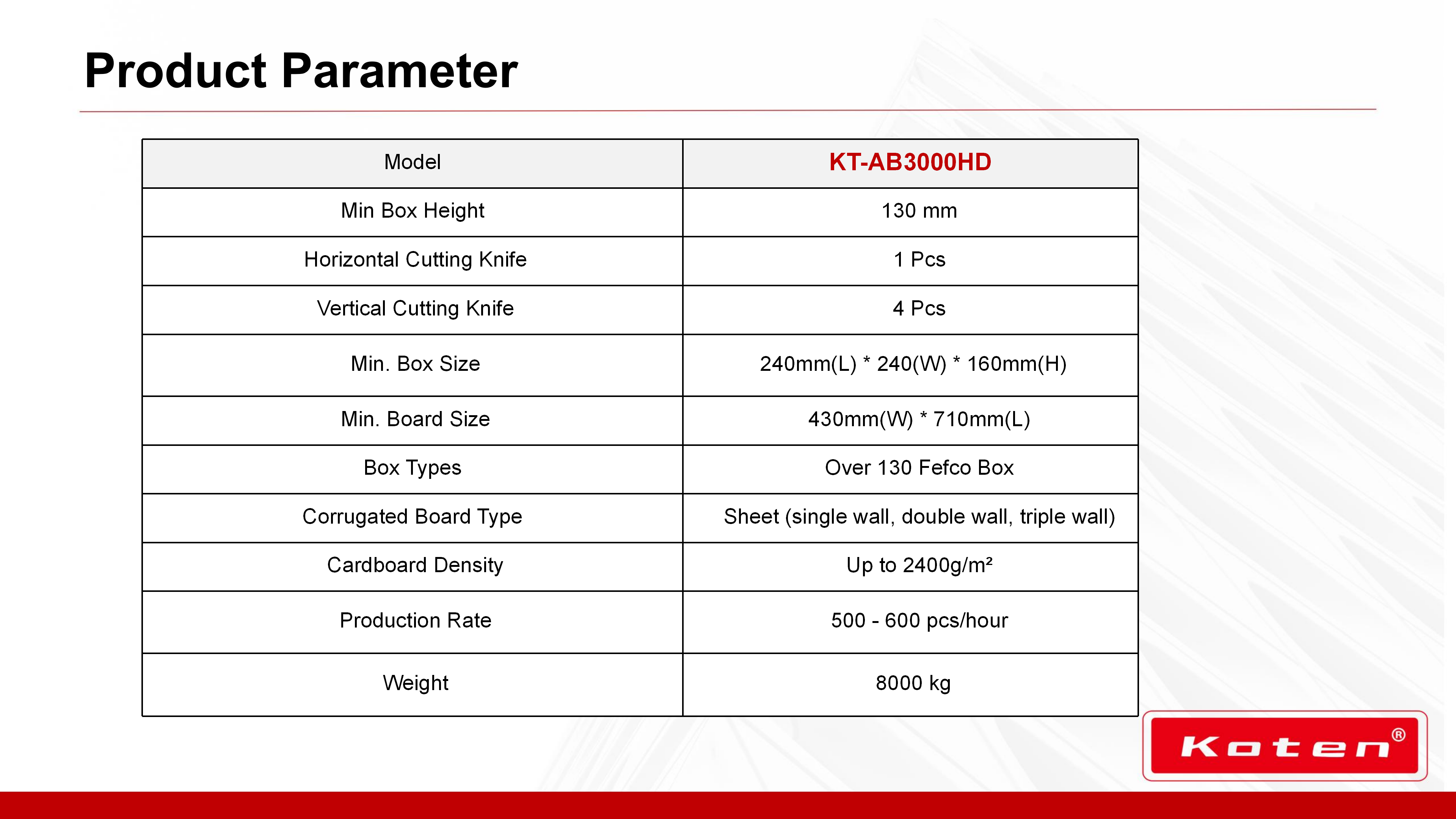

Model | KT-AB3000HD |
Min Box Height | 130 mm |
Horizontal Cutting Knife | 1 Pcs |
Vertical Cutting Knife | 4 Pcs |
Min. Box Size | 240mm(L) * 240(W) * 160mm(H) |
Min. Board Size | 430mm(W) * 710mm(L) |
Box Types | Over 130 Fefco Box |
Corrugated Board Type | Sheet (single wall, double wall, triple wall) |
Cardboard Density | Up to 2400g/m² |
Production Rate | 500 - 600 pcs/hour |
Weight | Weight |

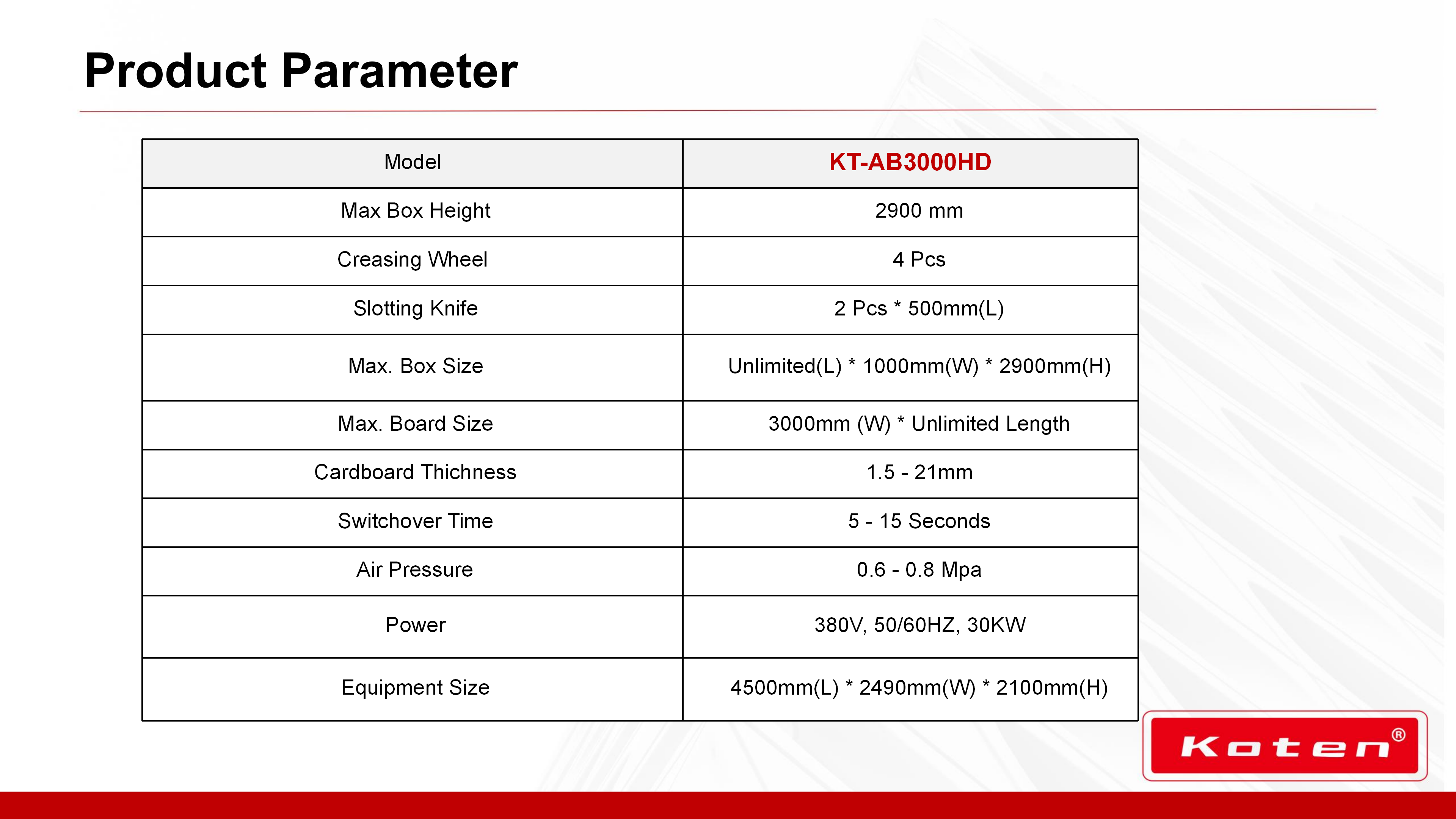

Model | KT-AB3000HD |
Max Box Height | 2900 mm |

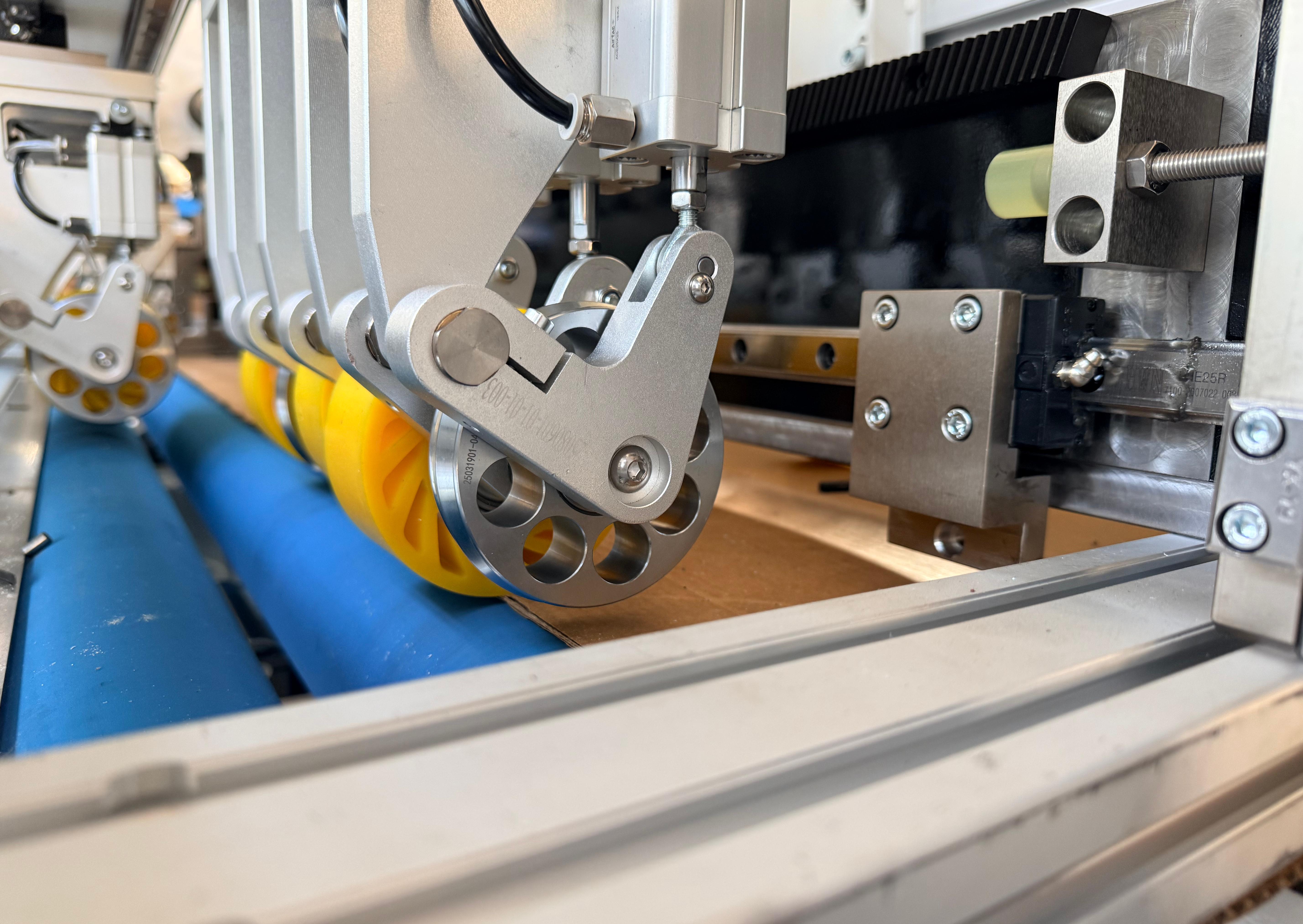

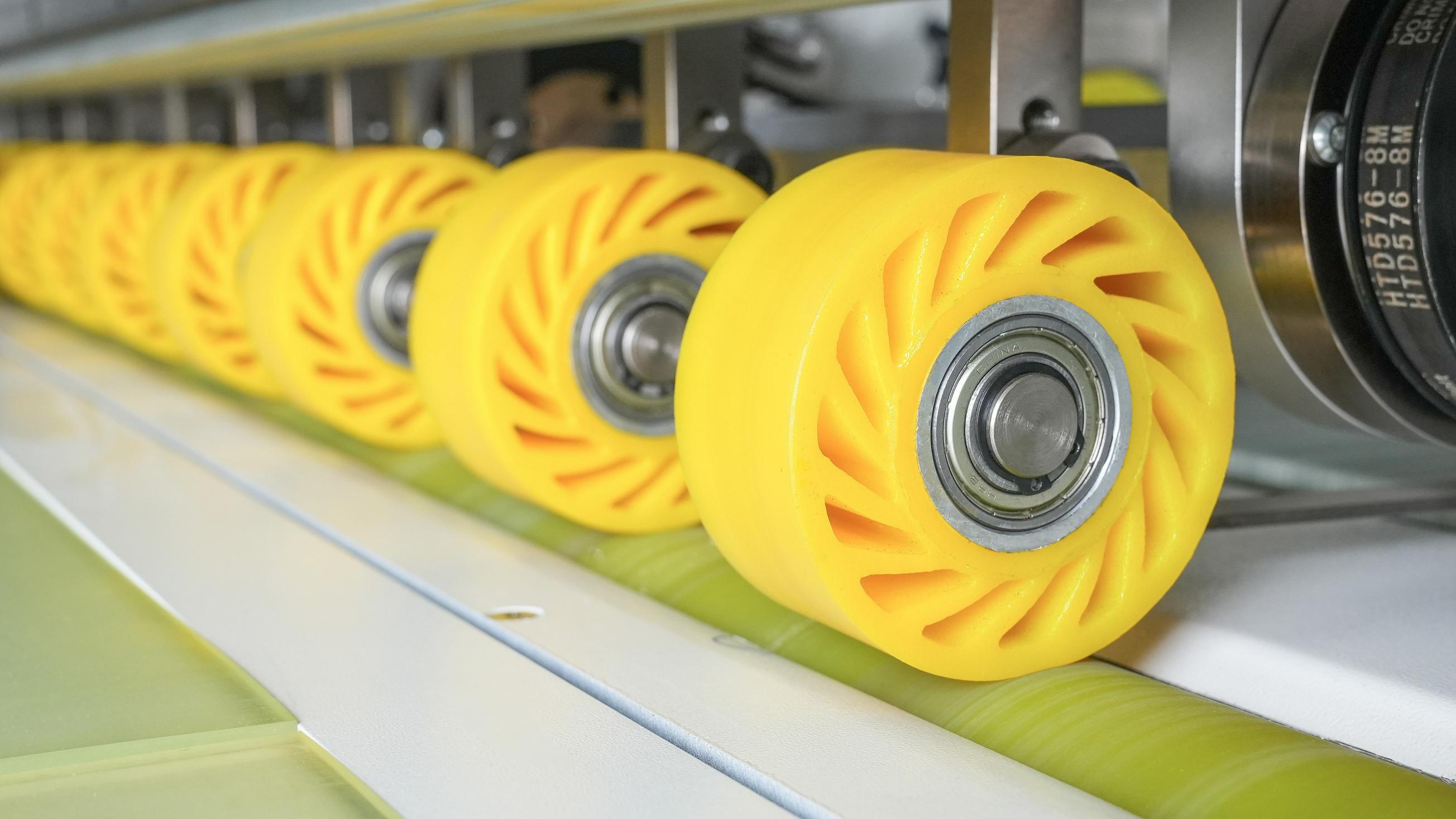

Creasing Wheel | 4 Pcs |
Slotting Knife | 2 Pcs * 500mm(L) |
Max. Box Size | Unlimited(L) * 1000mm(W) * 2900mm(H) |
Max. Board Size | 3000mm (W) * Unlimited Length |
Cardboard Thichness | 1.5 - 21mm |
Switchover Time | 5 - 15 Seconds |
Air Pressure | 0.6 - 0.8 Mpa |
Power | 380V, 50/60HZ, 30KW |
Equipment Size | 4500mm(L) * 2490mm(W) * 2100mm(H) |
