KT-AB2500X
KOTEN
KT-AB2500X
Negotiable
1
T/T,L/C
10sets/month

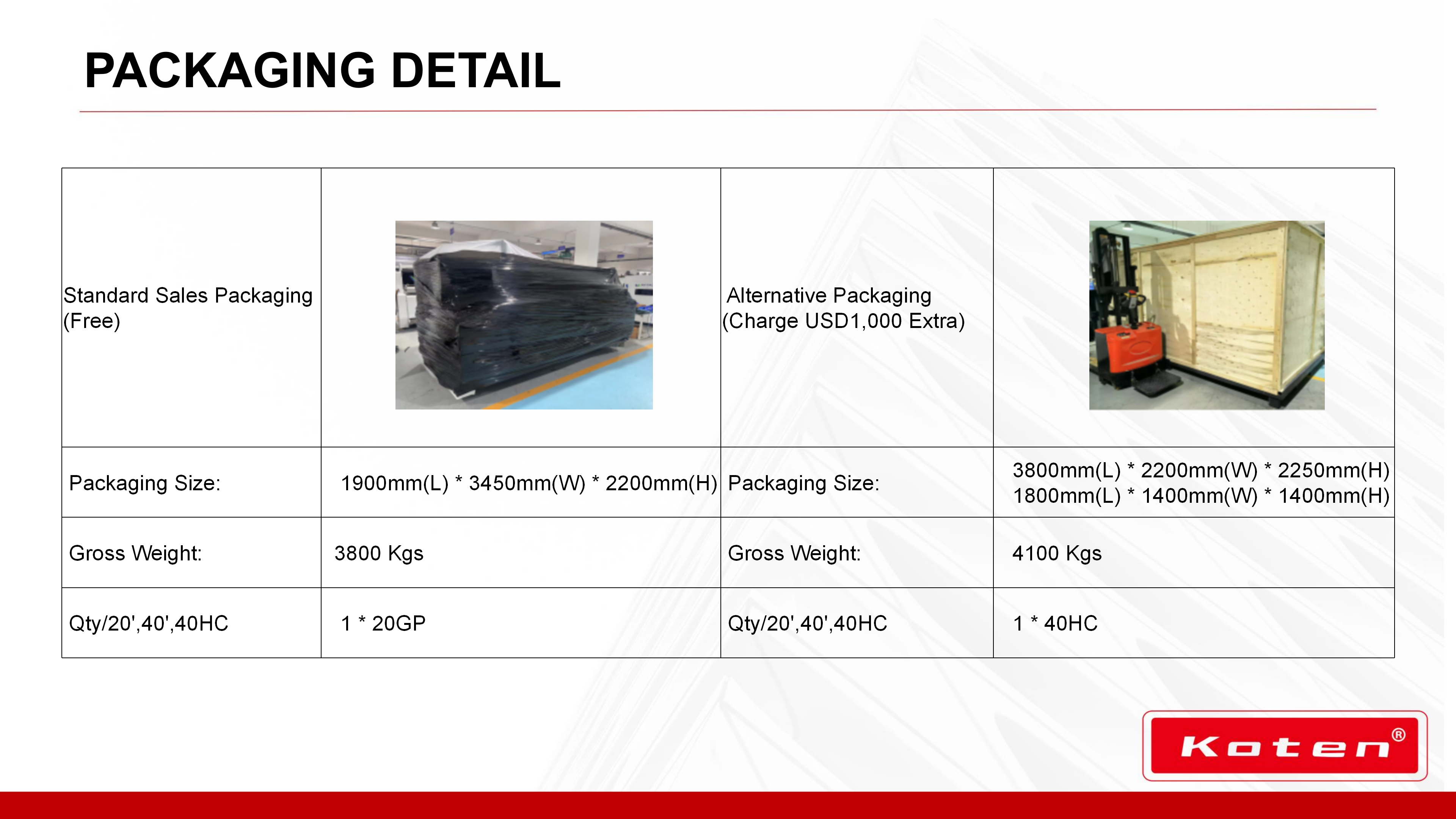

By strong sea worthy package
after received 30% deposit.
China
2061
| Production Rate: | |
|---|---|
| Box Types: | |
| Quantity: | |

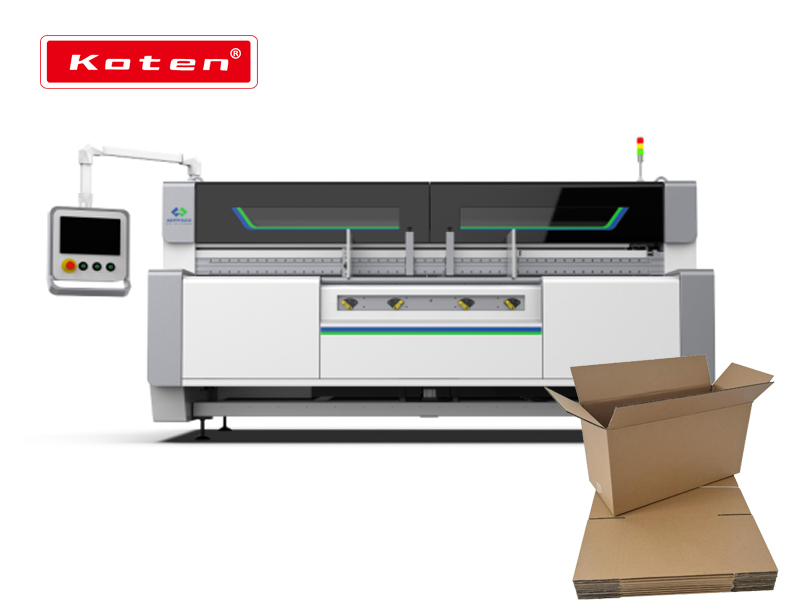

Fully Automatic Corrugated Box Slotting Machine

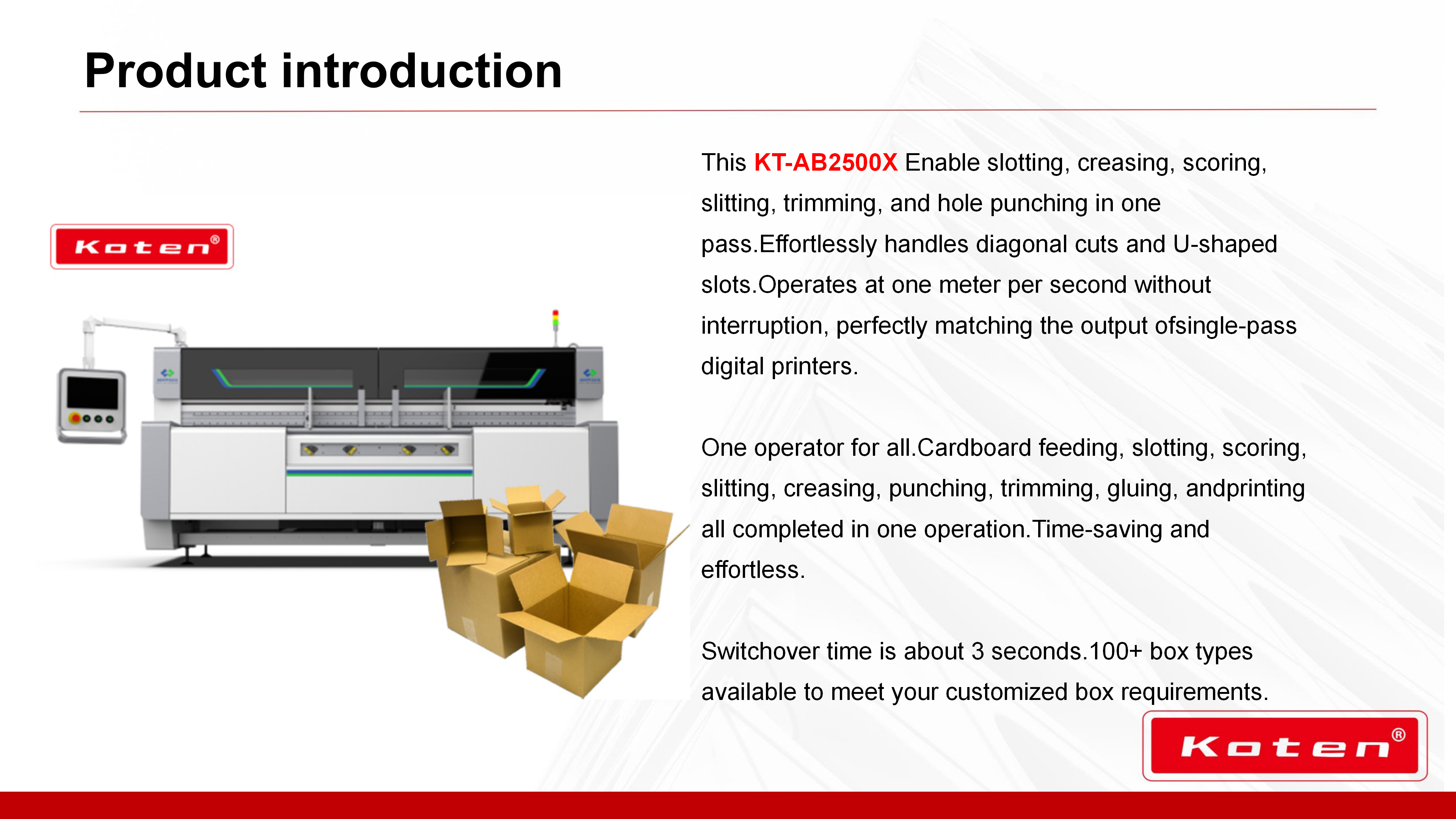

This KT-AB2500X Enable slotting, creasing, scoring, slitting, trimming, and hole punching in one pass.Effortlessly handles diagonal cuts and U-shaped slots.Operates at one meter per second without interruption, perfectly matching the output ofsingle-pass digital printers.

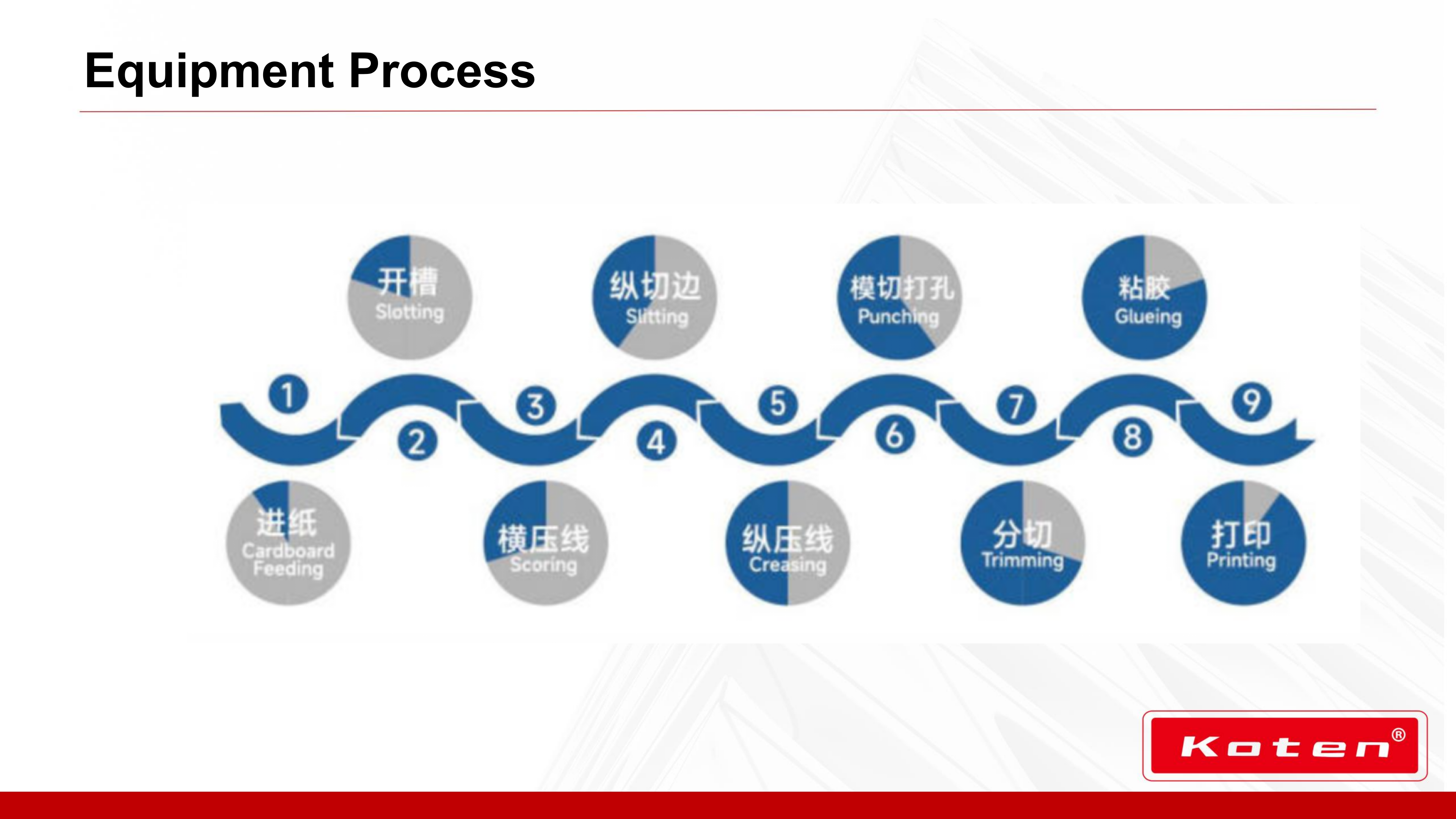

One operator for all.Cardboard feeding, slotting, scoring, slitting, creasing, punching, trimming, gluing, andprinting all completed in one operation.Time-saving and effortless.
Switchover time is about 3 seconds.100+ box types available to meet your customized box requirements.
Model | KT-AB2500X |
Min Box Height | 75 mm |
Horizontal Cutting Knife | 1 Pcs |
Vertical Cutting Knife | 4 Pcs |
Min. Box Size | 150mm(L) * 150(W) * 75mm(H) |
Min. Board Size | 200mm(W) * 650mm(L) |
Box Types | Over 100 Fefco Box |
Corrugated Board Type | Sheet (single wall, double wall) |
Cardboard Density | Up to 1200g/m² |
Production Rate | 500 - 600 pcs/hour |
Weight | 4000kg |
Model | KT-AB2500X |
Max Box Height | 2400 mm |
Creasing Wheel | 4 Pcs |
Slotting Knife | 2 Pcs * 500mm(L) |
Max. Box Size | Unlimited(L) * 1000mm(W) * 1500mm(H) |
Max. Board Size | 2500mm (W) * Unlimited Length |
Cardboard Thichness | 1-12mm |
Switchover Time | 3 Seconds |
Air Pressure | 0.6 - 0.8 Mpa |
Power | 380V, 50/60HZ, 15KW |
Equipment Size | 2900mm(L) * 3500mm(W) * 2200mm(H) |
