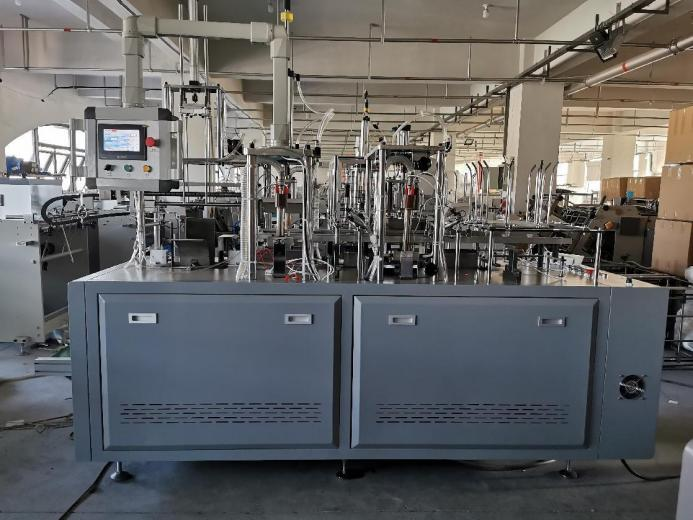

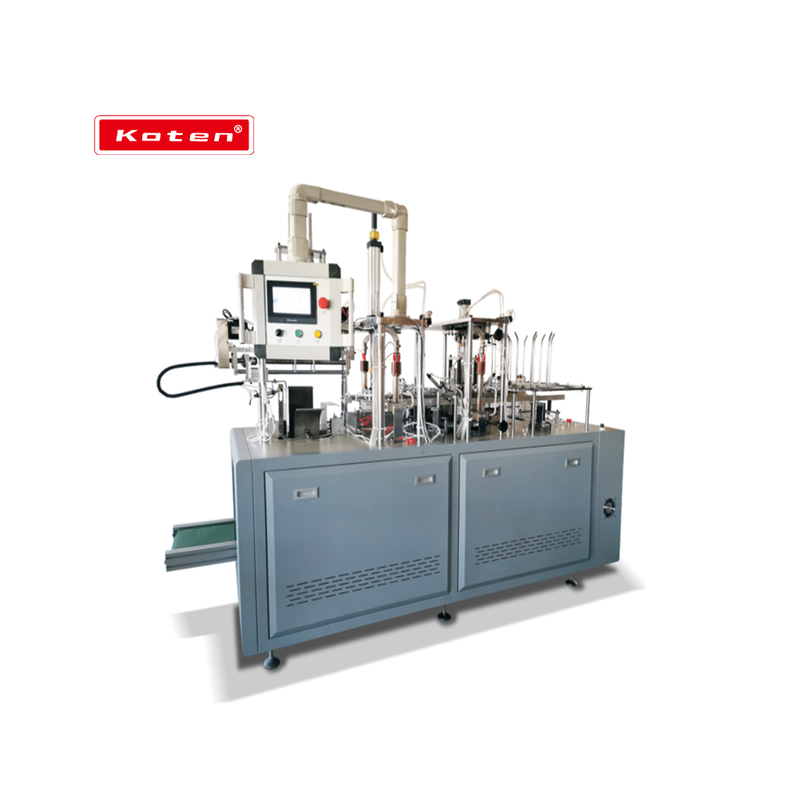

Fully Automatic Hexagonal Paper Box Forming Machine KT-C

Fully Automatic Hexagonal Paper Box Forming Machine KT-C

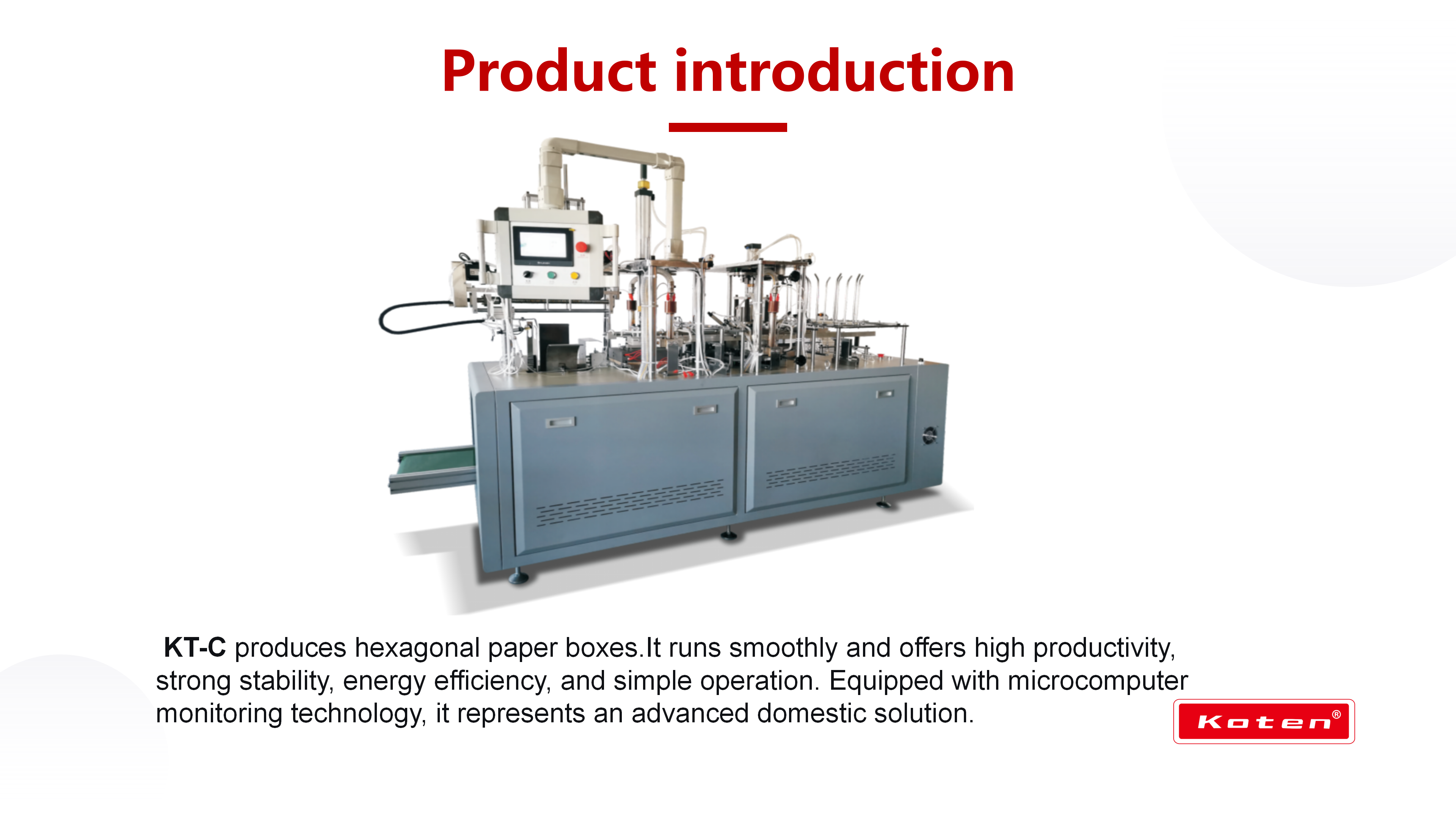

KT-C produces hexagonal paper boxes.It runs smoothly and offers high productivity, strong stability, energy efficiency, and simple operation. Equipped with microcomputer monitoring technology, it represents an advanced domestic solution.

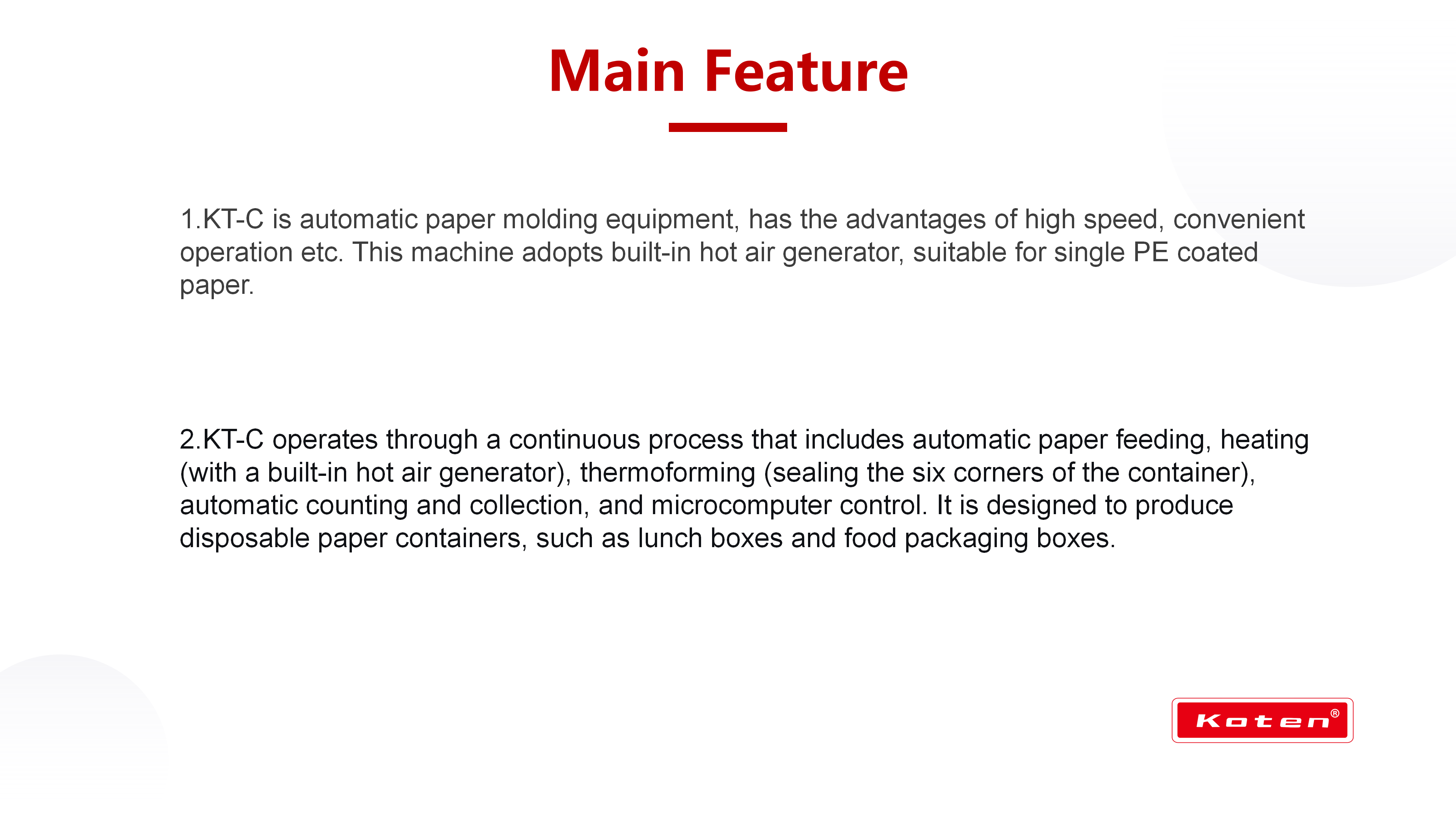

KT-C is automatic paper molding equipment, has the advantages of high speed, convenient operation etc. This machine adopts built-in hot air generator, suitable for single PE coated paper.

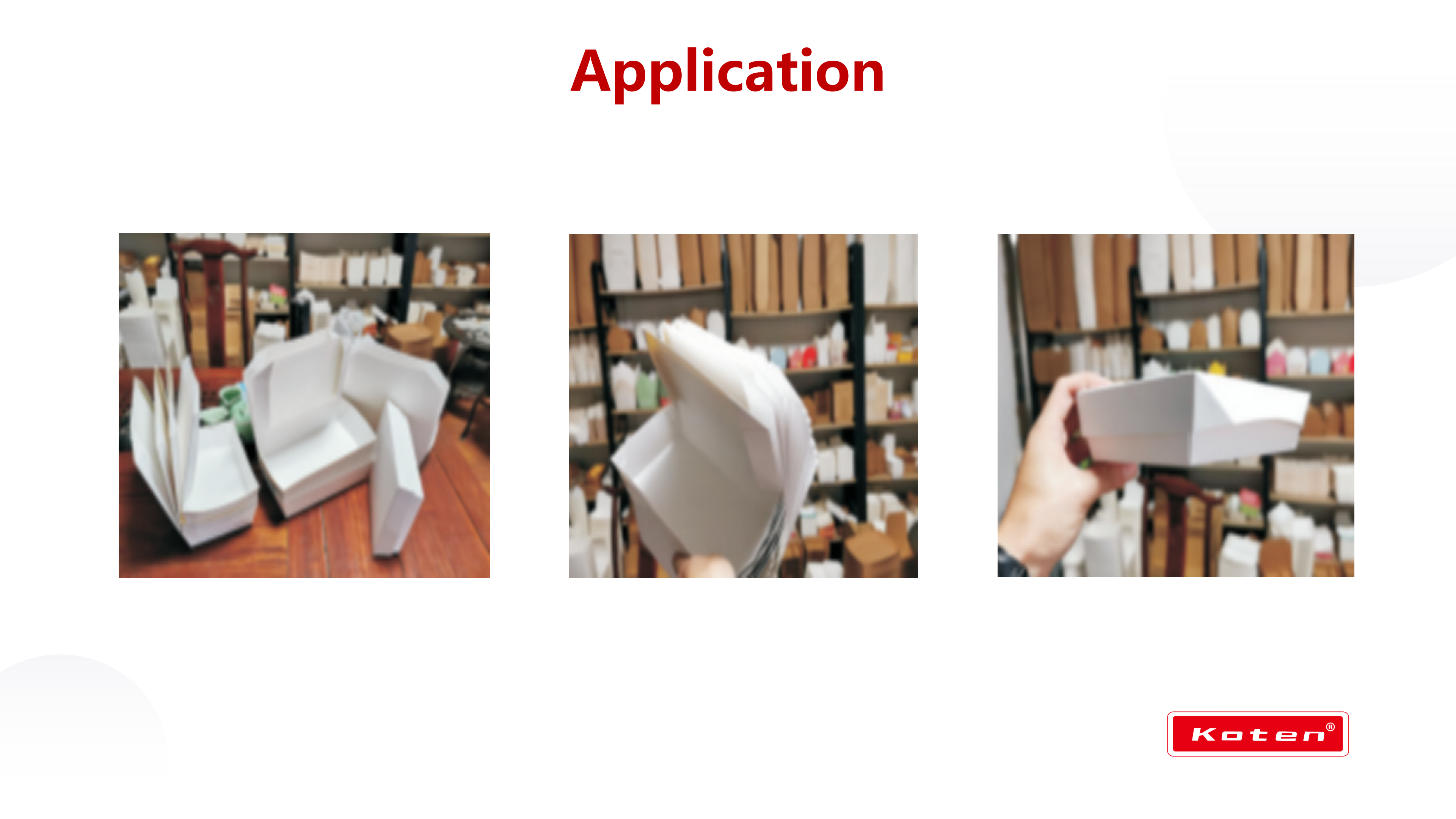

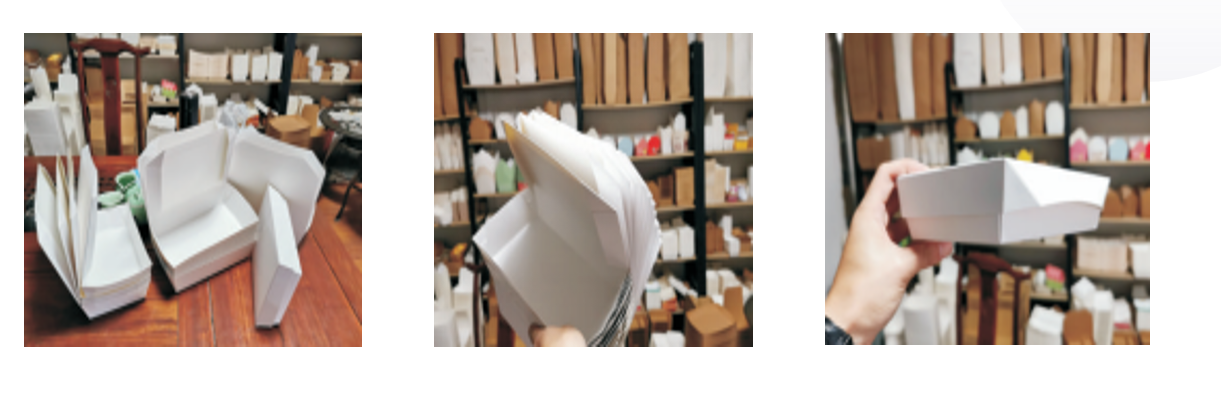

KT-C operates through a continuous process that includes automatic paper feeding, heating (with a built-in hot air generator), thermoforming (sealing the six corners of the container), automatic counting and collection, and microcomputer control. It is designed to produce disposable paper containers, such as lunch boxes and food packaging boxes.

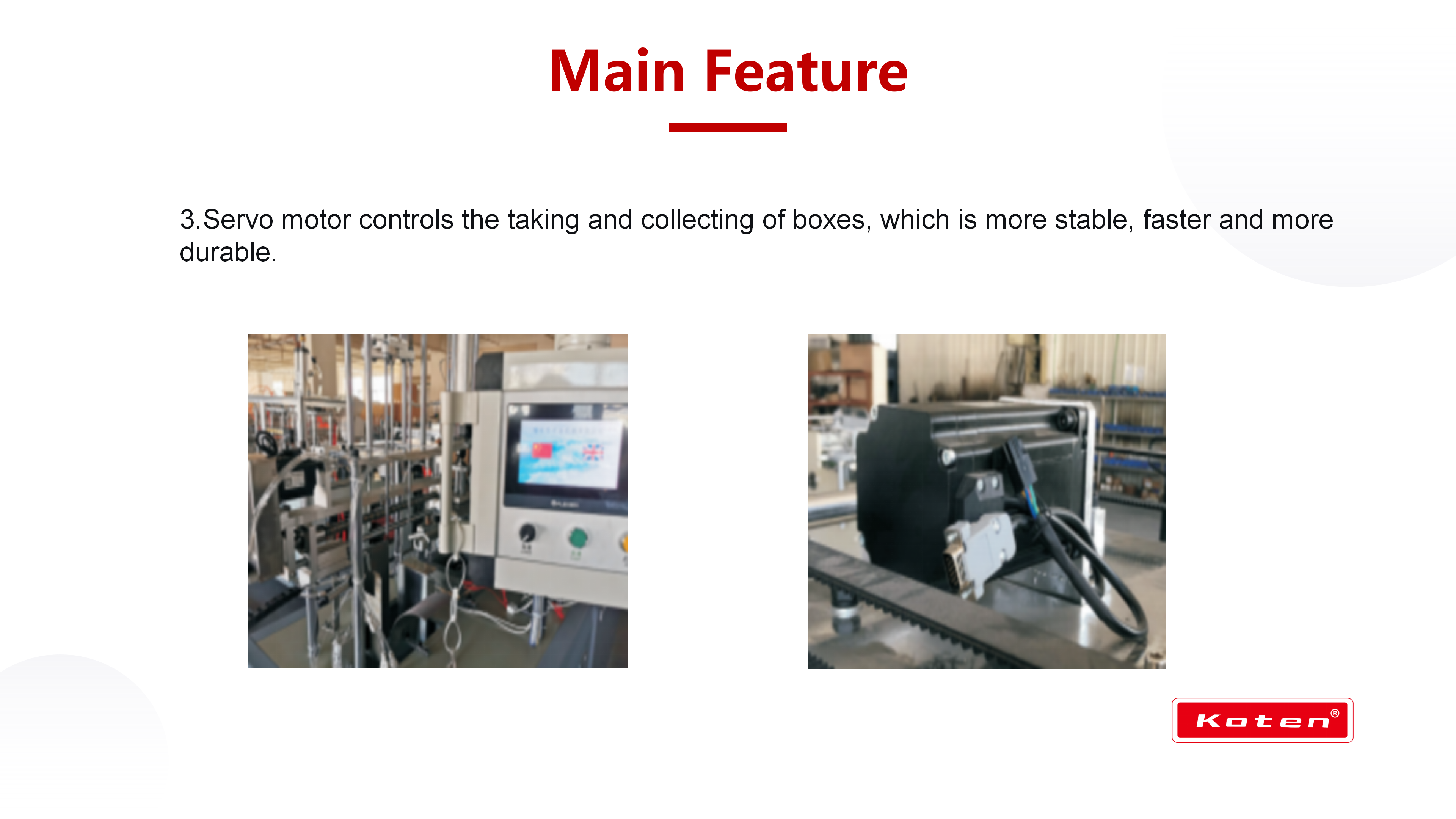

Servo motor controls the taking and collecting of boxes, which is more stable, faster and more durable.

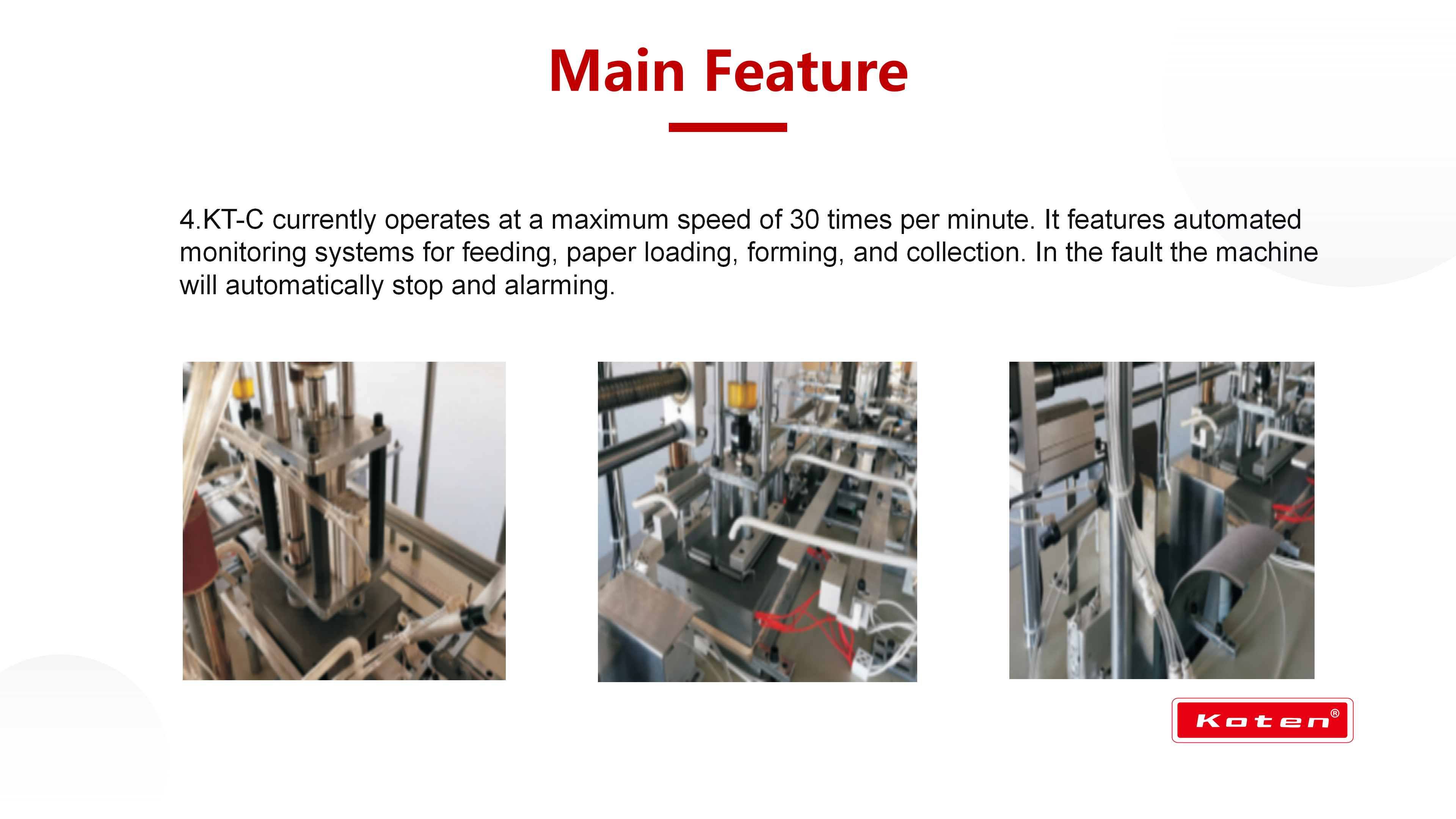

KT-C currently operates at a maximum speed of 30 times per minute. It features automated monitoring systems for feeding, paper loading, forming, and collection. In the fault the machine will automatically stop and alarming.

Model:
KT-C
Brand:
KOTEN
FOB Price:
Negotiate
Min.Order Quantity:
One set
Payment Terms:
T/T, L/C At Sight.
Supply Ability:
10sets/month
Packaging:
By strong seaworthy wooden cases.
Delivery Time:
after received 30% deposit.
Place Of Origin:
China
Views:
3724

Quantity:
Production capacity:	25-30times/min (depend on the box size)
Suitable Material:	200-400g/m2 PE (PE Coated paper)
Availability:





Inquire Add to Basket

Product Description

Fully Automatic Hexagonal Paper Box Forming Machine KT-C

Products Description

KT-C produces hexagonal paper boxes.It runs smoothly and offers high productivity, strong stability, energy efficiency, and simple operation. Equipped with microcomputer monitoring technology, it represents an advanced domestic solution.

KT-C is automatic paper molding equipment, has the advantages of high speed, convenient operation etc. This machine adopts built-in hot air generator, suitable for single PE coated paper.

2.KT-C operates through a continuous process that includes automatic paper feeding, heating (with a built-in hot air generator), thermoforming (sealing the six corners of the container), automatic counting and collection, and microcomputer control. It is designed to produce disposable paper containers, such as lunch boxes and food packaging boxes.

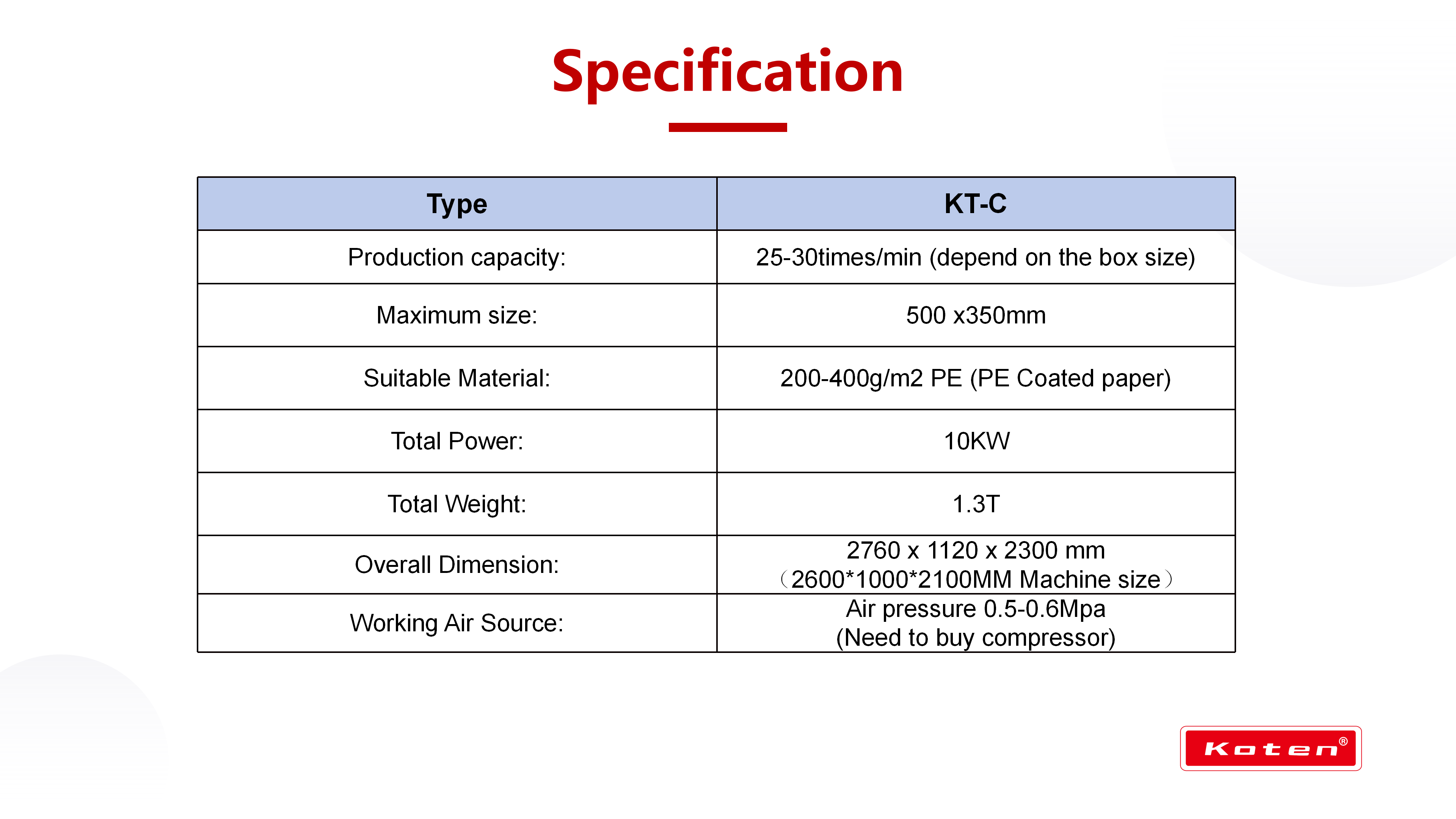

Parameters

Type	KT-C
Production capacity:	25-30times/min (depend on the box size)
Maximum size:	500 x350mm
Suitable Material:	200-400g/m2 PE (PE Coated paper)
Total Power:	10KW
Total Weight:	1.3T
Overall Dimension:	2760 x 1120 x 2300 mm （260010002100MM Machine size）
Working Air Source:	Air pressure 0.5-0.6Mpa (Need to buy compressor)
