Fully Automatic High-speed 4 & 6-corner Long-format Folder-Gluer

Automatic High Speed Lock Bottom Corrugated Folder Gluer

Fully Automatic High-speed 4 & 6-corner Long-format Folder-Gluer

This machine is specially used for paperboard shaping and adhesive processing after cutting horizontally. Its universality is strong and suitable scope is wide, which can fold and paste various straight seaming box.
It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons.perfectly combing the requirements of auto packaging together.

Model:
SHH-FS
Brand:
KOTEN
Model:
SHH-FS
FOB Price:
Negotiate
Min.Order Quantity:
1
Payment Terms:
T/T, L/C at sight.
Supply Ability:
10sets/month
Packaging:
By strong sea worthy package
Delivery Time:
after received 30% deposit.
Place Of Origin:
China
Views:
7381

Quantity:
Max. Liner speed:	300 meter/minute
Availability:





Inquire Add to Basket

Product Description

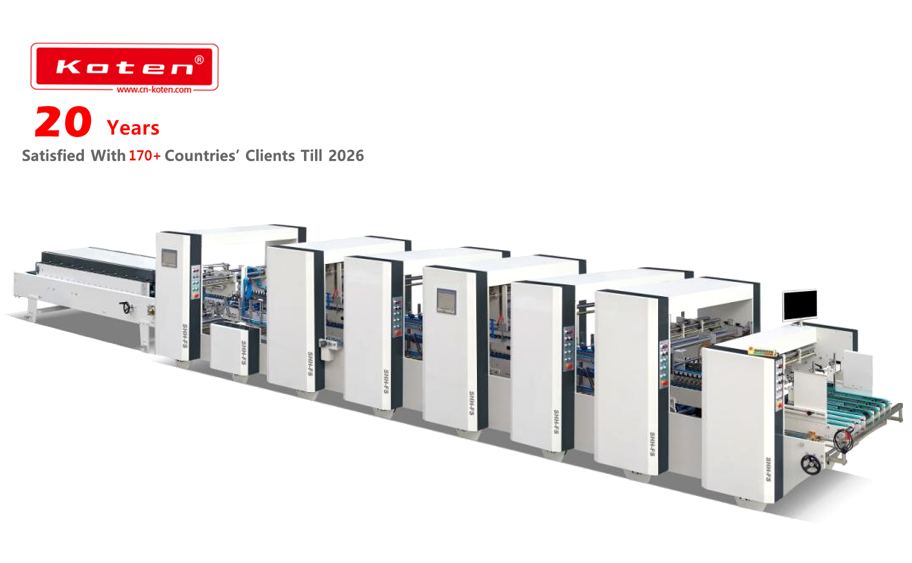

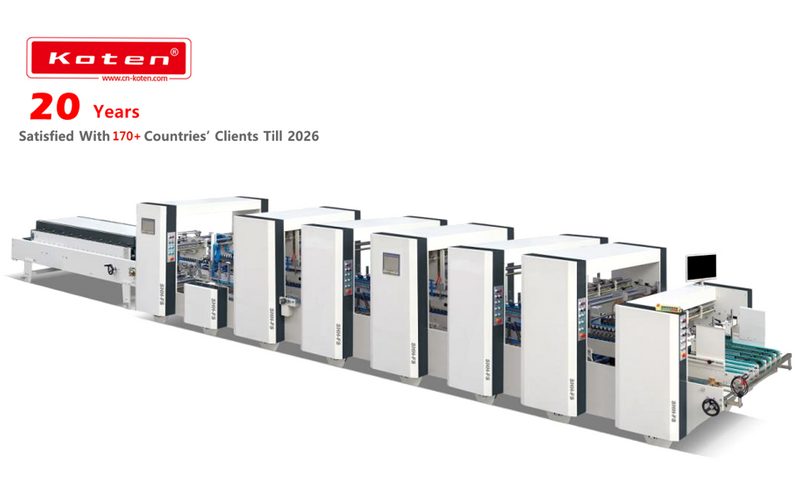

Fully Automatic High-speed 4 & 6-corner Long-format Folder-Gluer

Products Description

企业微信截图_178753622544

SHH-FS adapt electrical plate adjustment,PLC and imported electronic components,feeding section adopts independent electrical control,operation on rail with stable performance and easy to control and operate.This machine is major for cardboard and corrugated cartons,its calibration function make corrugated cartons perfectly meeting the requirements of packing industry.(We can customize for other sizes.)

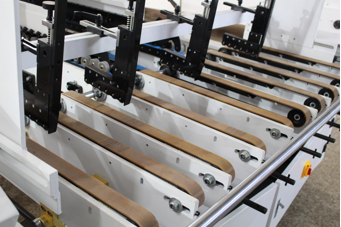

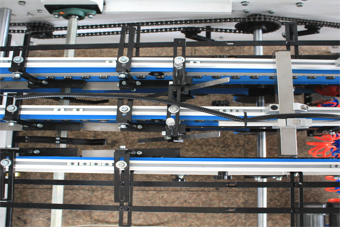

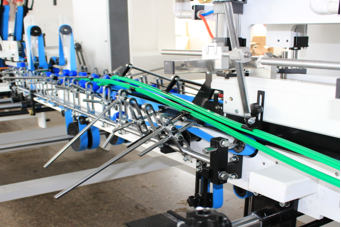

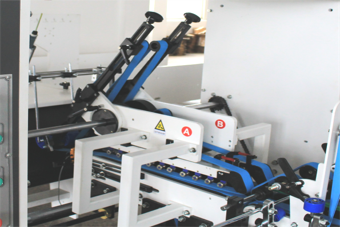

Details Images

企业微信截图_17875362478631 企业微信截图_17875362553173

企业微信截图_17875362659578 企业微信截图_17875362517235

Application

企业微信截图_17872953451452 企业微信截图_17872953491067

Parameters

Name	Fully Automatic High-speed 4 & 6-corner Long-format Folder-Gluer
Model	1050FS	1250FS	1650FS	2050FS
Paper Material	Cardboard:200-800gsm E-flute/F-flute	Cardboard:200-800gsm A/B/E/F瓦,5PLY五层
Max. Liner speed	Max. 260m/min	Max. 300m/min	Max. 300m/min	Max. 300m/min
Size	150-1000mm	220-1200mm	220-1600mm	420-2000mm
Electricpower	26KW 380V 50HZ 3P	33KW 380V 50HZ 3P	33KW 380V 50HZ 3P	35KW 380V 50HZ 3P
Weight	7500KG	9000KG	10000KG	11000KG
Over dimension	16500x1700x1700mm	18500x2000x1700mm	18500x2400x1700mm	18500x2800x1700mm
