KR-1050
KOTEN
| Speed: | |
|---|---|
| Accuracy: | |
| Quantity: | |

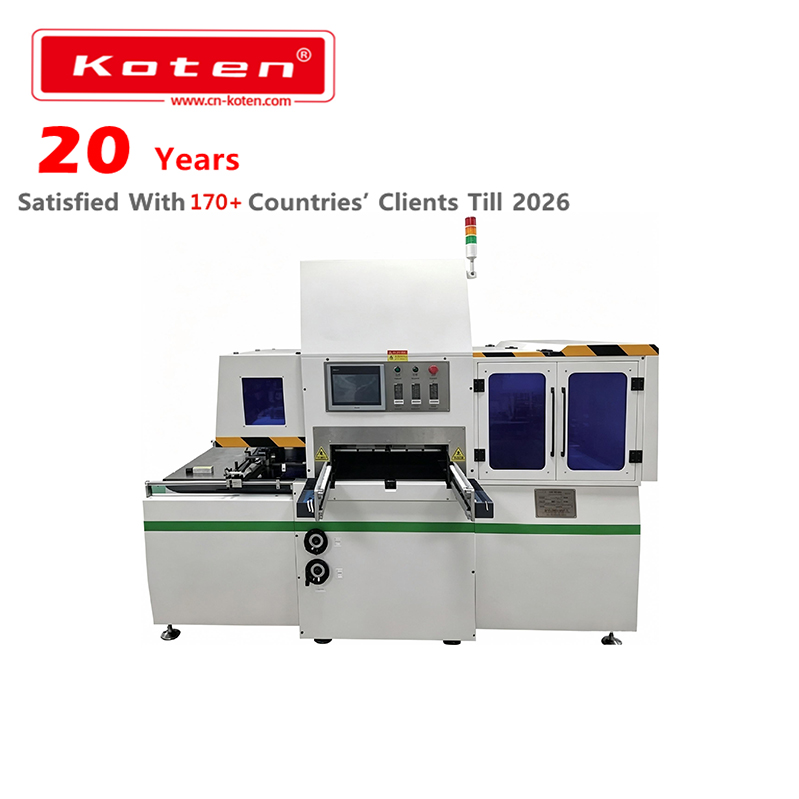

The KR-1050 fully automatic mechanical flat-bed hot stamping machine is easy to operate and quick to change over between jobs. It features mechanical pressure and mechanical pull guides. The machine has an integrated structure, can be easily moved with a forklift, and offers simple operation and high flexibility.
Model | KR930 | KR1050 | KR1350 |
Max.feeding paper size | 930x630mm | 1050x750mm | 1300x900mm |
Min.feeding paper size | 100x100mm | 100x100mm | 200x200mm |
Max.stamping size | 570x780mm | 1000x750mm | 1100x850mm |
Max.stamping speed | 2500s/h | 2500s/h | 2500s/h |
Max.stamping accuracy | ±0.075mm | ±0.075mm | ±0.075mm |
Full load power | 7kw | 30kw | 40kw |
Overall weight | 3000kg | 6500kg | 10000kg |
Overall dimension | 2400x1200x2000mm | 2460x1480x1960mm | 3500x1850x2000mm |
