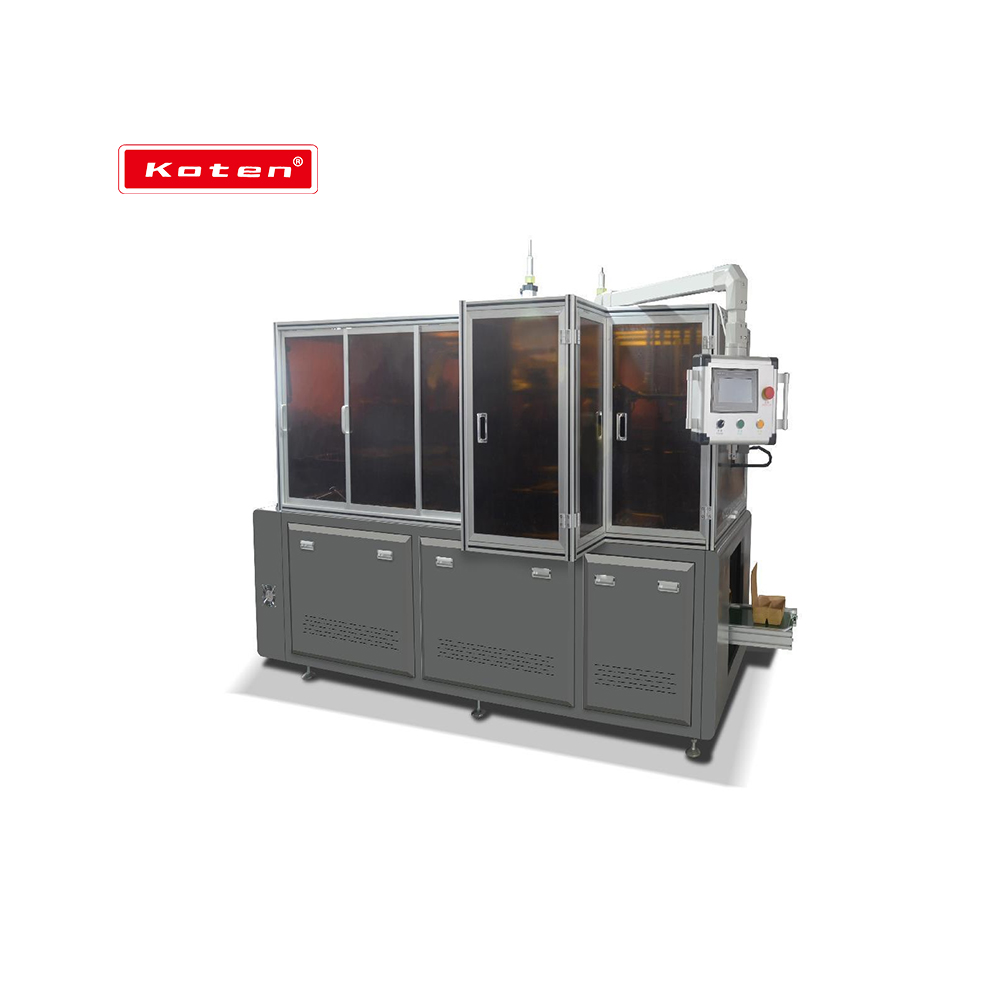

Fully Automatic Multi-compartment Paper Box Forming Machine KT-DG

KT-DG produces multi-compartment food boxs。It runs smoothly and offers high productivity, strong stability, energy efficiency, and simple operation. Equipped with microcomputer monitoring technology, it represents an advanced domestic solution.
KT-DG is automatic paper molding equipment, has the advantages of high speed, convenient operation etc. This machine adopts built-in hot air generator, suitable for single PE coated paper.
KT-DG operates through a continuous process that includes automatic paper feeding, heating (with a built-in hot air generator), thermoforming (sealing the several corners of the container), automatic counting and collection, and microcomputer control. It is designed to produce single-compartment disposable paper containers, such as lunch boxes and food packaging boxes.

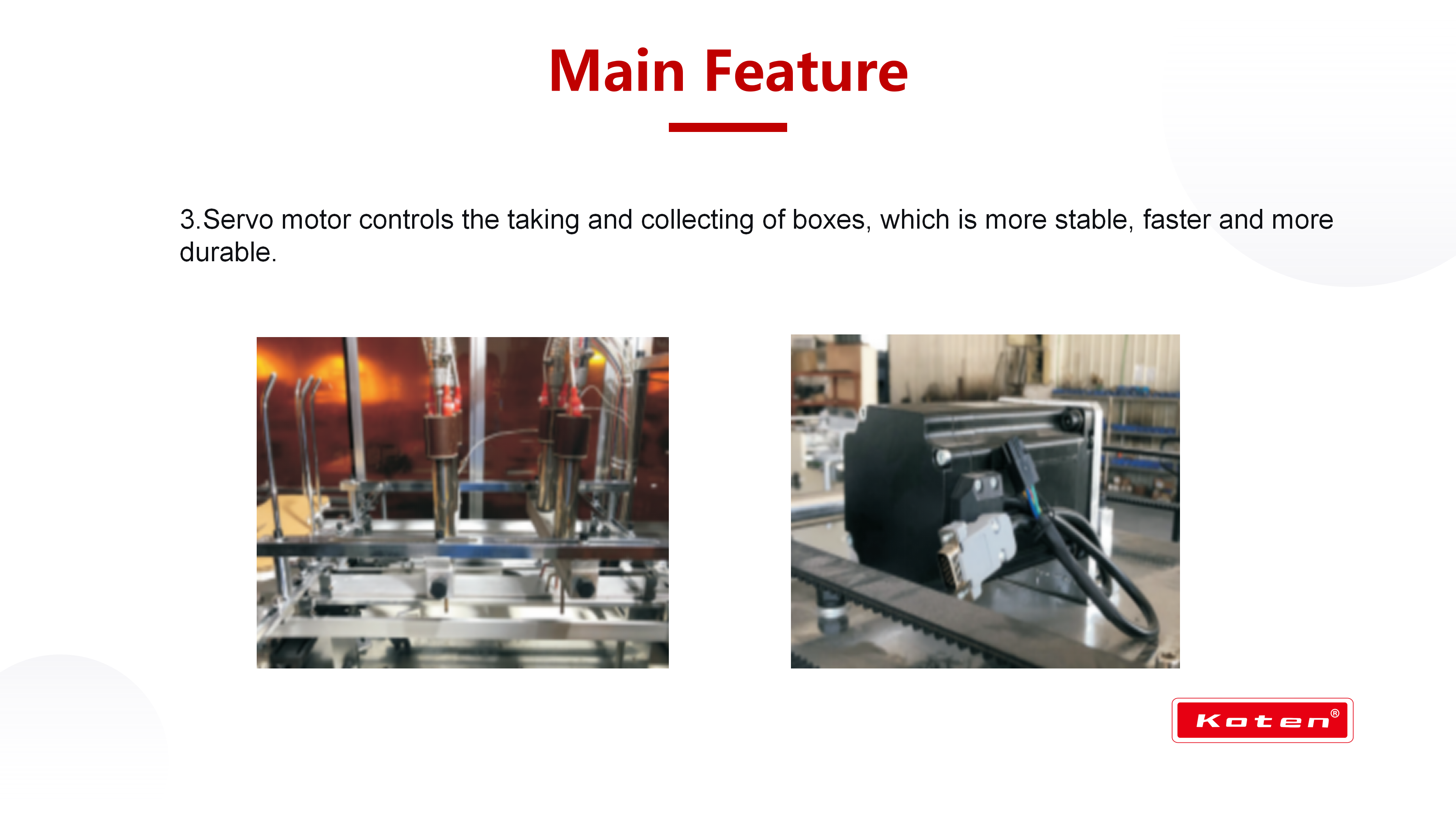

Servo motor controls the taking and collecting of boxes, which is more stable, faster and more durable.

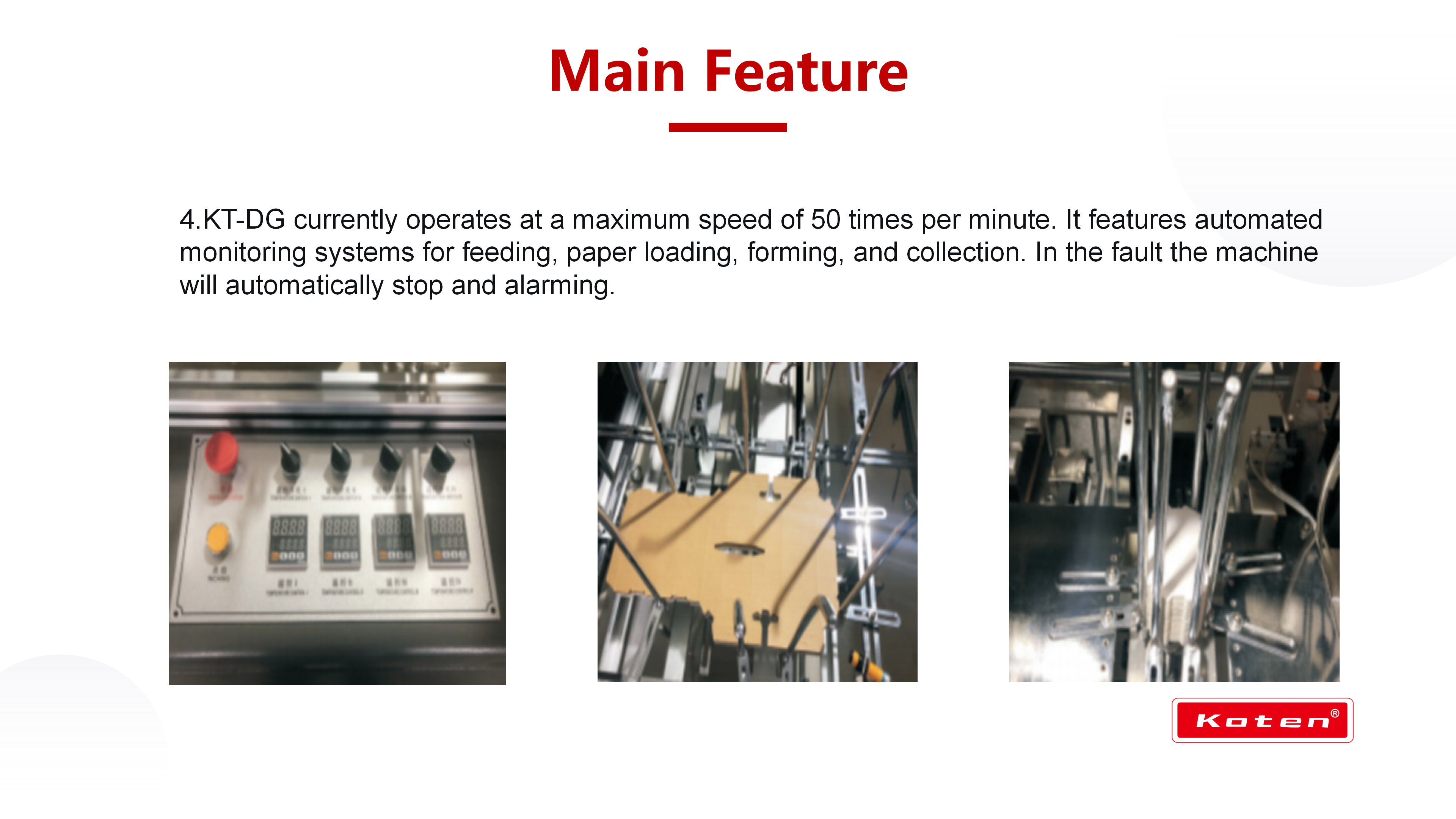

KT-DG currently operates at a maximum speed of 50 times per minute. It features automated monitoring systems for feeding, paper loading, forming, and collection. In the fault the machine will automatically stop and alarming.
  • KT-DG

  • KOTEN

  • Negotiable

  • One set

  • T/T, L/C at sight.

  • 10sets/month

  • By strong sea worthy package

  • after received 30% deposit.

  • CHINA

  • 698

Production capacity:
Suitable Material:
Availability:
Quantity:
sharethis sharing button

Fully Automatic Multi-compartment Paper Box Forming Machine KT-DG


Products Description

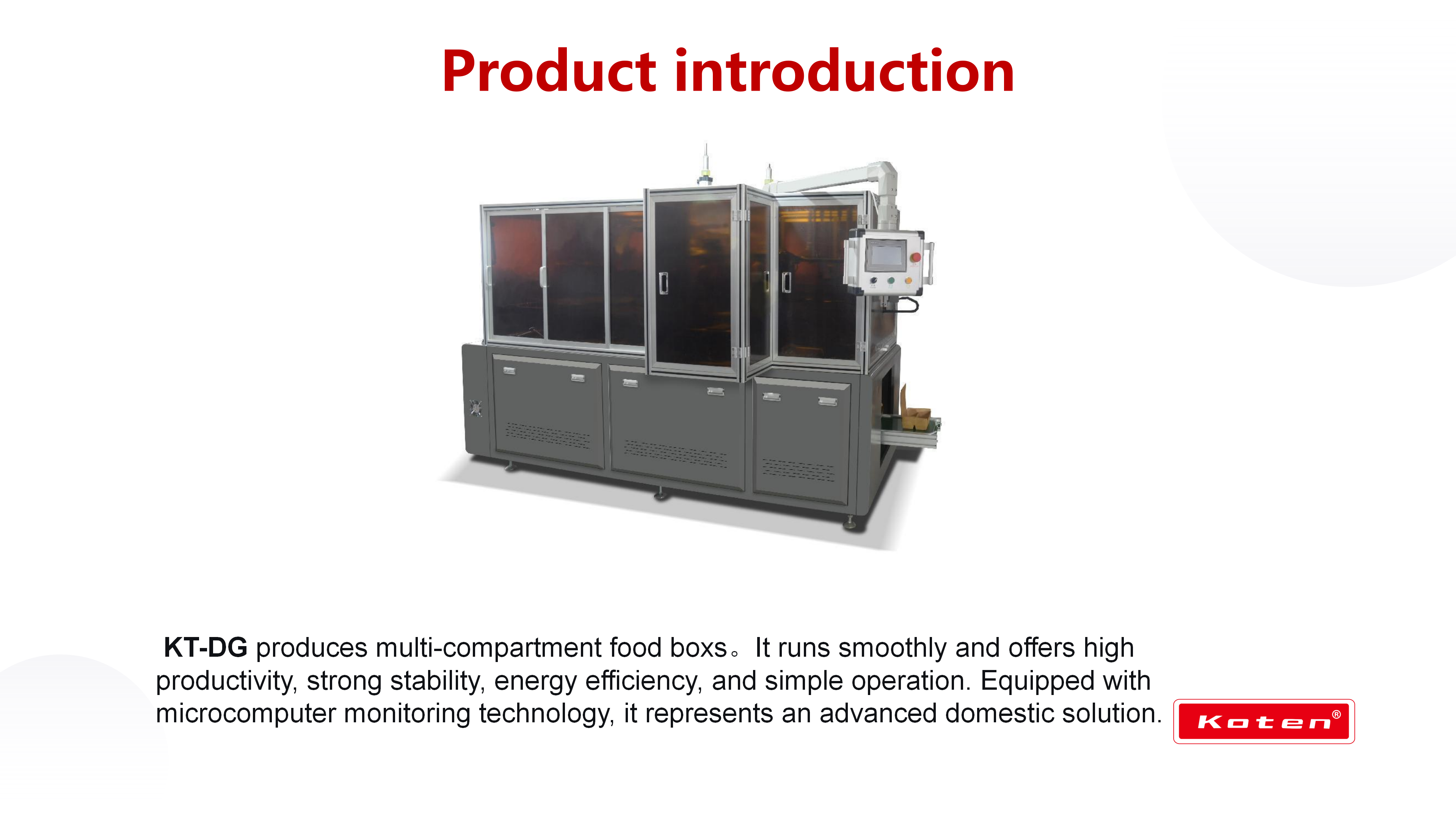

KT-DG produces multi-compartment food boxs。It runs smoothly and offers high productivity, strong stability, energy efficiency, and simple operation. Equipped with microcomputer monitoring technology, it represents an advanced domestic solution.

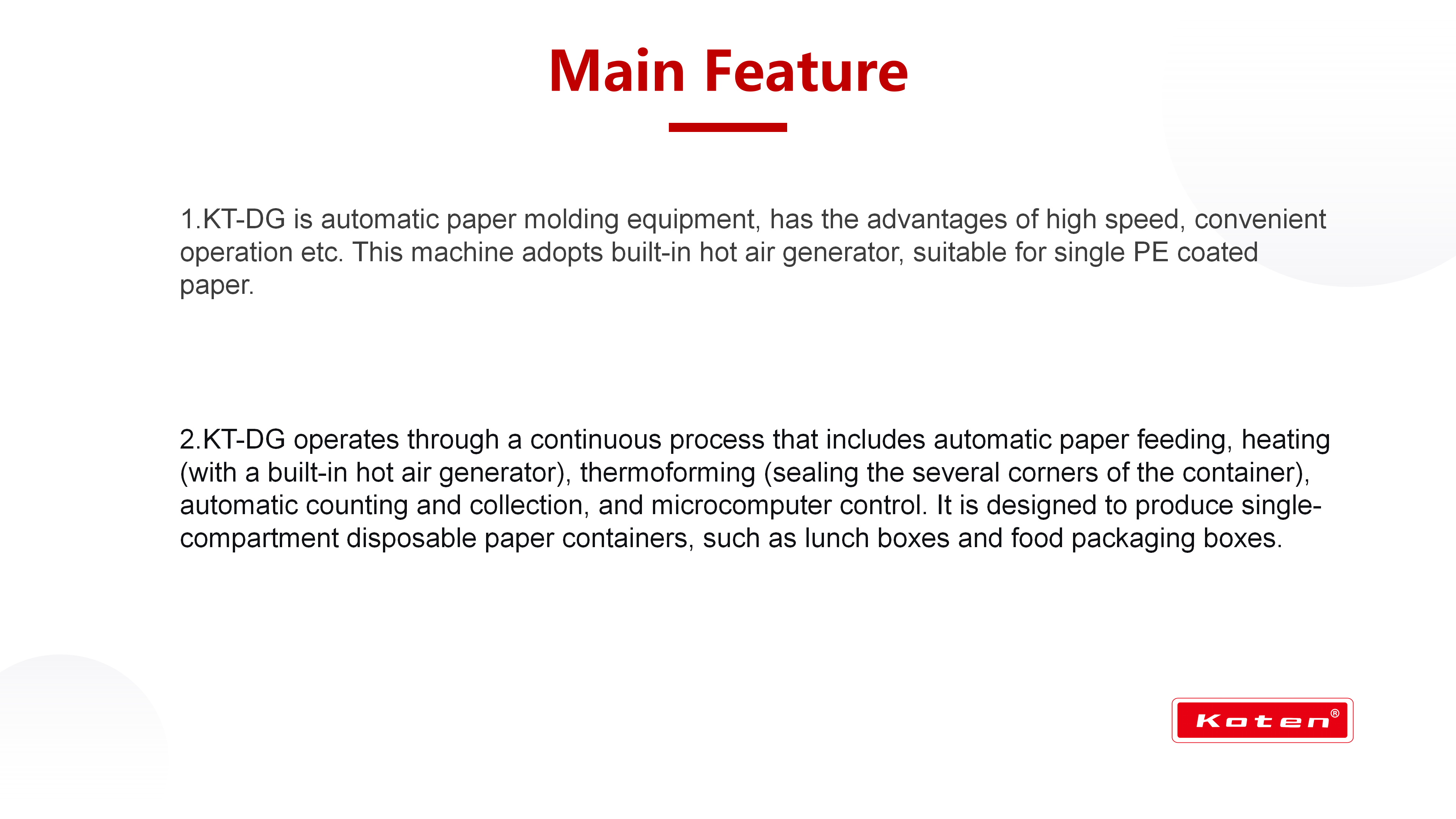

1.KT-DG is automatic paper molding equipment, has the advantages of high speed, convenient operation etc. This machine adopts built-in hot air generator, suitable for single PE coated paper.

2.KT-DG operates through a continuous process that includes automatic paper feeding, heating (with a built-in hot air generator), thermoforming (sealing the several corners of the container), automatic counting and collection, and microcomputer control. It is designed to produce single-compartment disposable paper containers, such as lunch boxes and food packaging boxes.

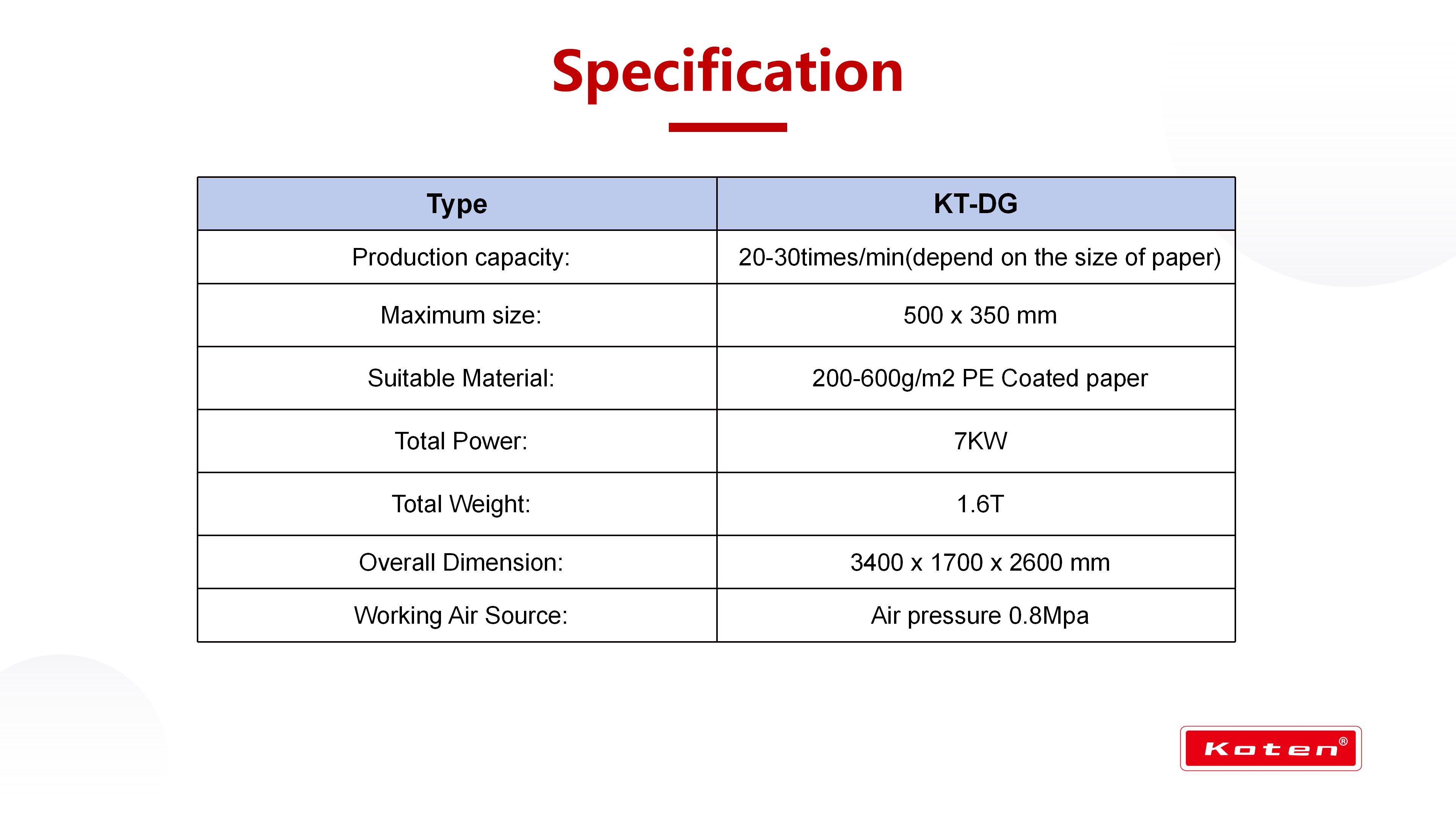

Parameters

Type

KT-DG

Production capacity:

20-30times/min(depend on the size of paper)

Maximum size:

500 x 350 mm

Suitable Material:

200-600g/m2 PE Coated paper

Total Power:

7KW

Total Weight:

1.6T

Overall Dimension:

3400 x 1700 x 2600 mm

Working Air Source:

Air pressure 0.8Mpa

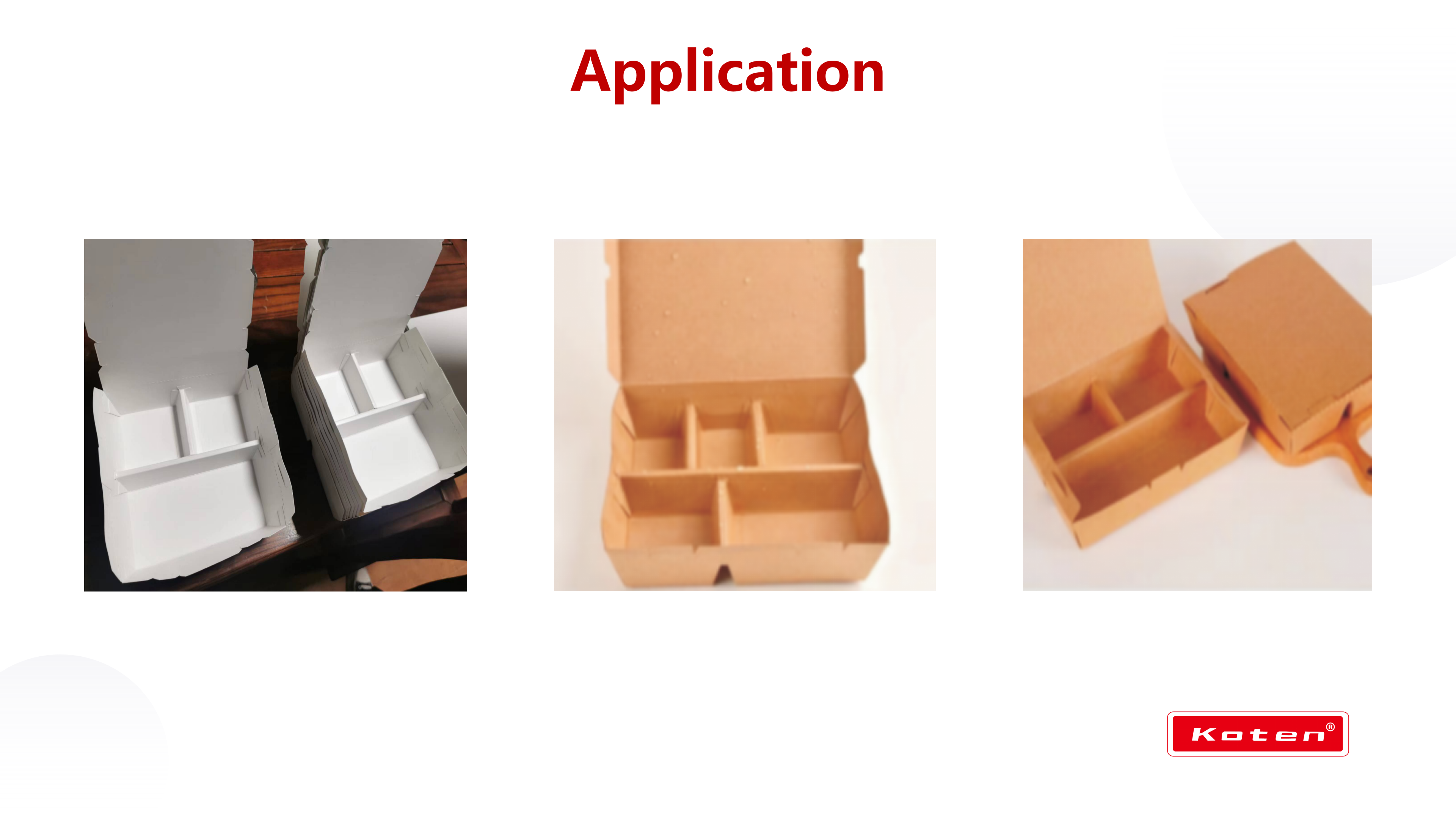

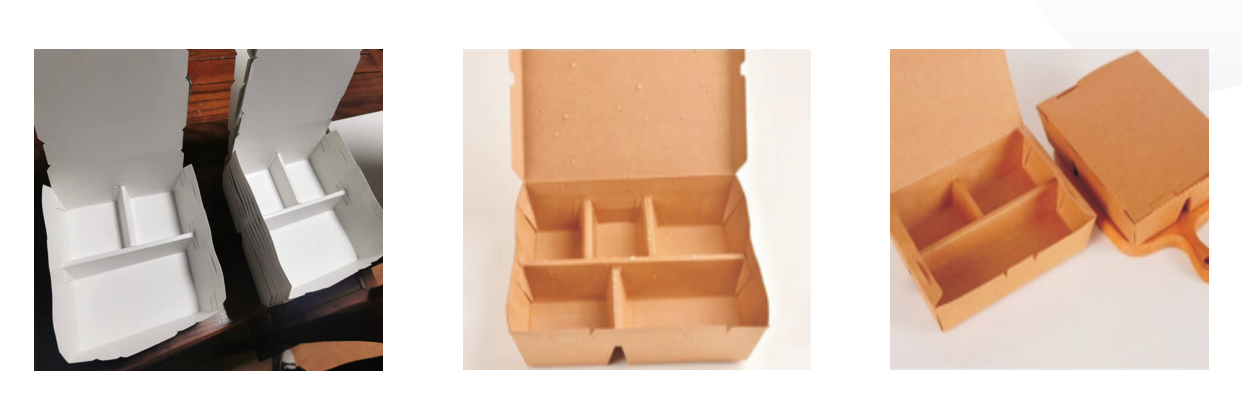

Application

企业微信截图_17835777805721
