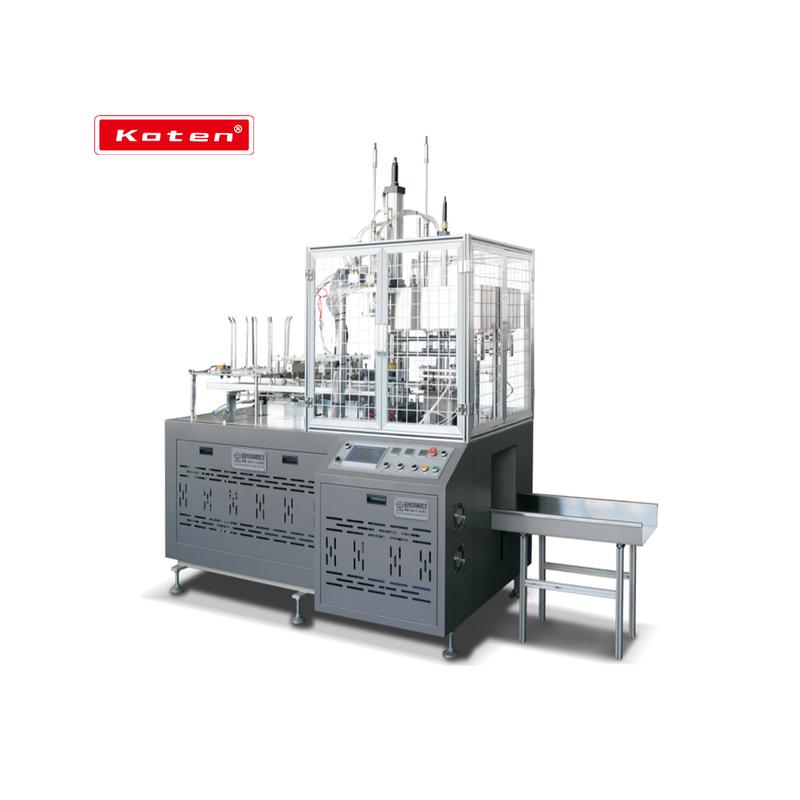

Fully Automatic Paper Box Forming Machine KT-B

KT-B runs smoothly and reliably. It offers high productivity, strong stability, energy efficiency, and simple operation. Equipped with microcomputer monitoring technology, it represents an advanced domestic solution.
KT-B is automatic paper molding equipment, has the advantages of high speed, convenient operation etc. This machine adopts built-in hot air generator, suitable for single PE coated paper.
KT-B operates through a continuous process that includes automatic paper feeding, heating (with a built-in hot air generator), thermoforming (sealing the four corners of the container), automatic counting and collection, and microcomputer control. It is designed to produce single-compartment disposable paper containers, such as lunch boxes and food packaging boxes.

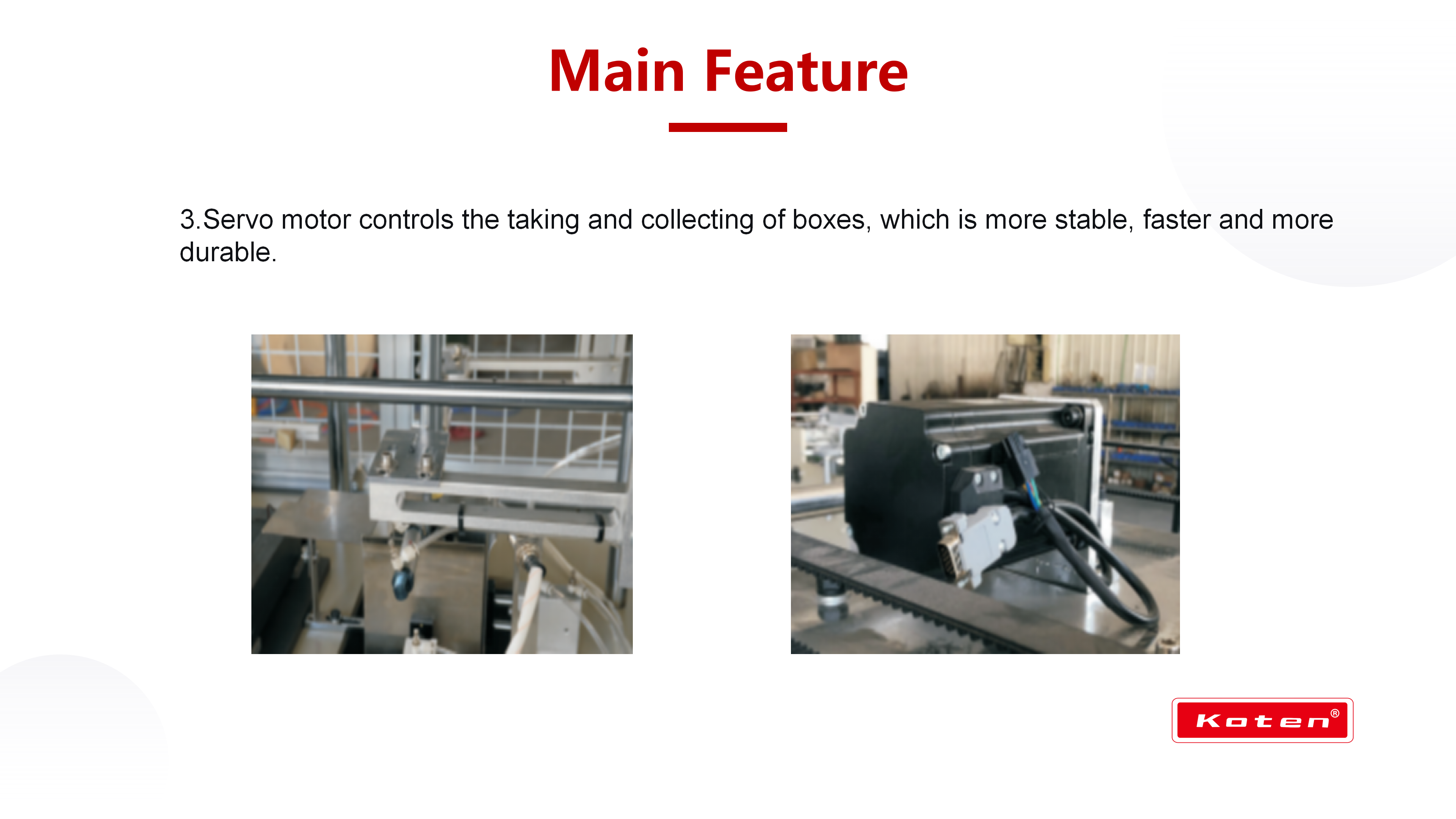

Servo motor controls the taking and collecting of boxes, which is more stable, faster and more durable.

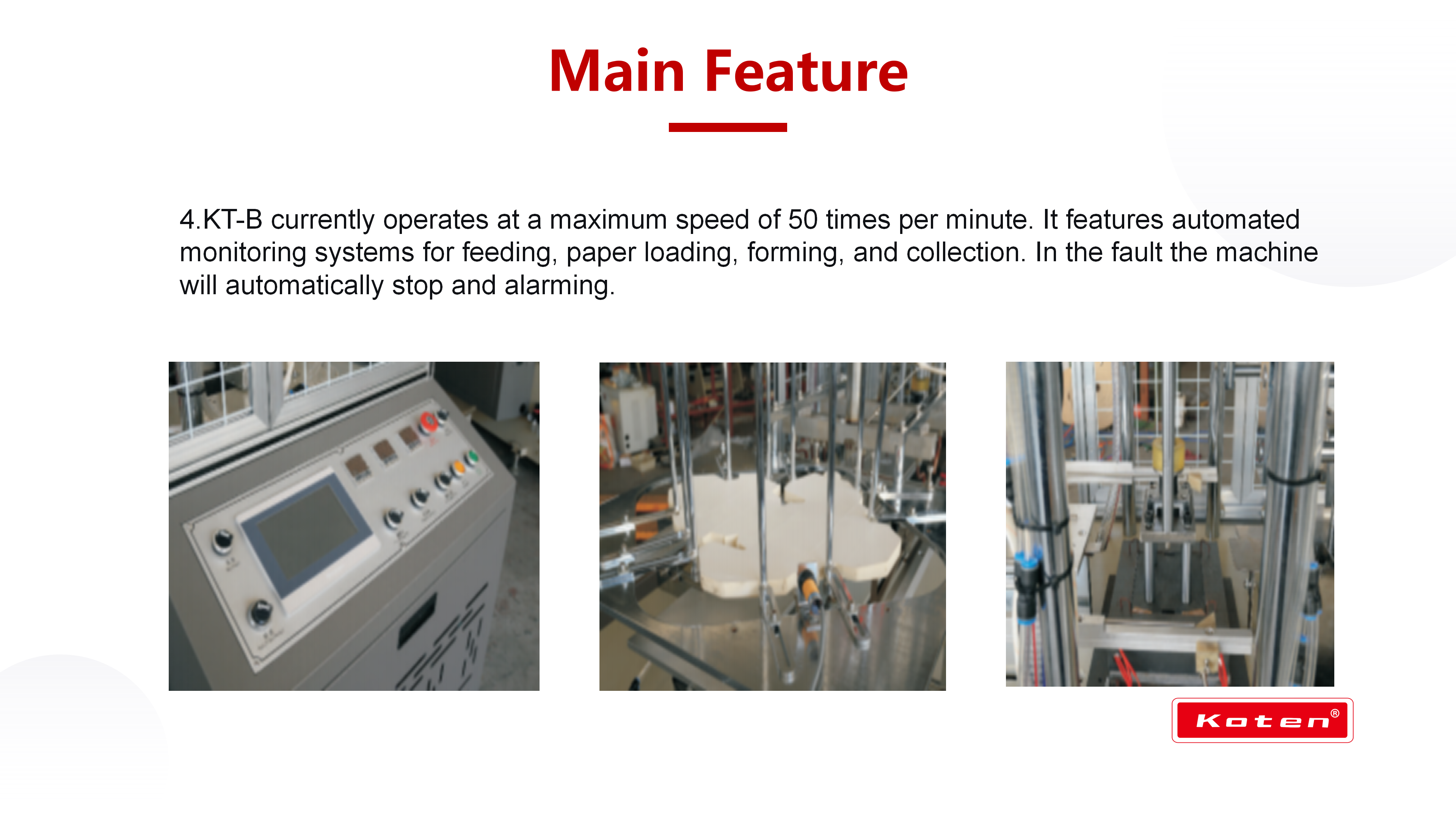

currently operates at a maximum speed of 50 times per minute. It features automated monitoring systems for feeding, paper loading, forming, and collection. In the fault the machine will automatically stop and alarming.
  • KT-B

  • KOTEN

  • Negotiable

  • One set

  • T/T, L/C at sight.

  • 10sets/month

  • By strong sea worthy wooden cases.

  • after received 30% deposit.

  • China

  • 2061

Production capacity:
Suitable Material:
Availability:
Quantity:
sharethis sharing button

Fully Automatic Paper Box Forming Machine KT-B


Products Description

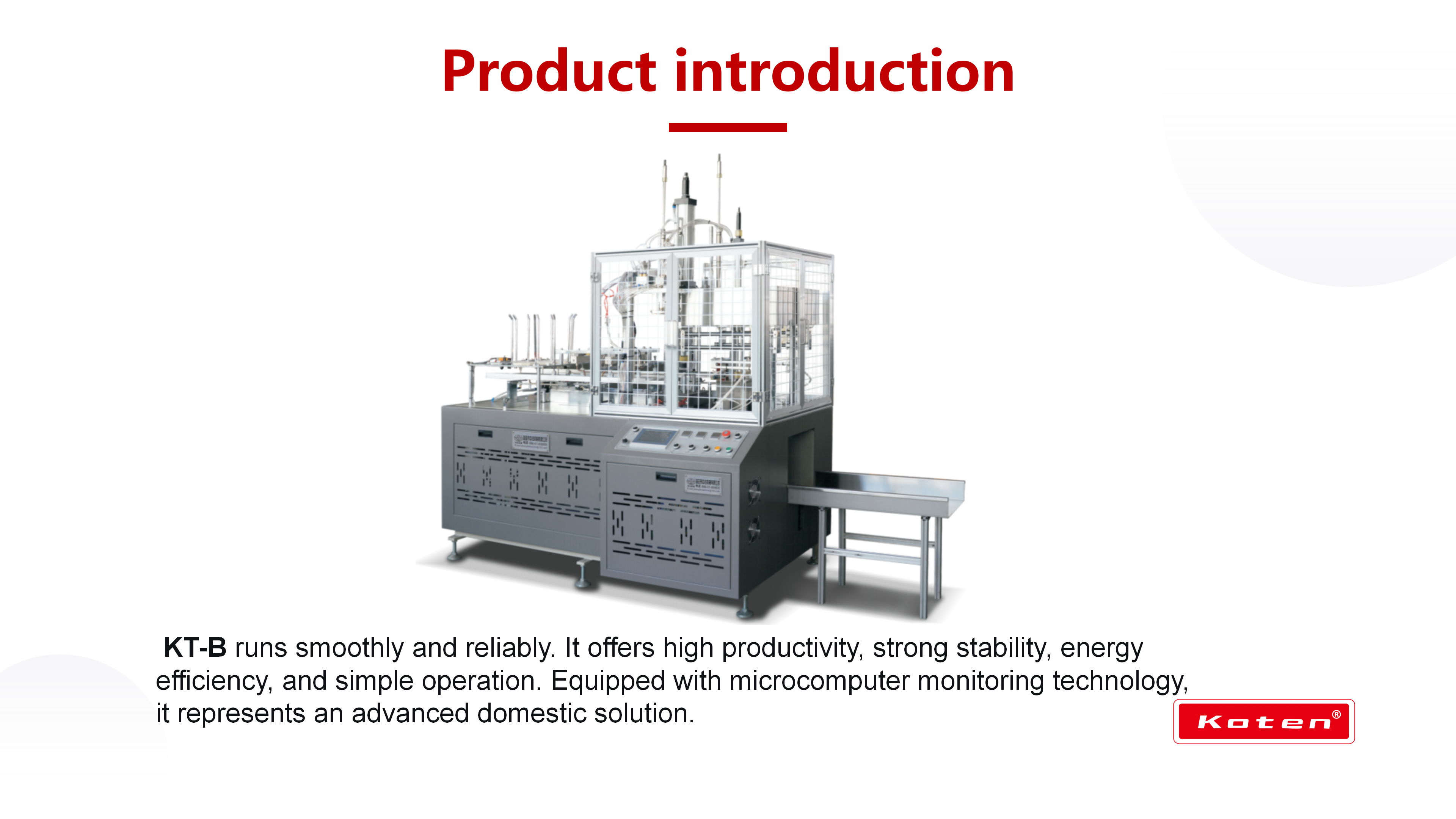

      KT-B runs smoothly and reliably. It offers high productivity, strong stability, energy efficiency, and simple operation. Equipped with microcomputer monitoring technology, it represents an advanced domestic solution.

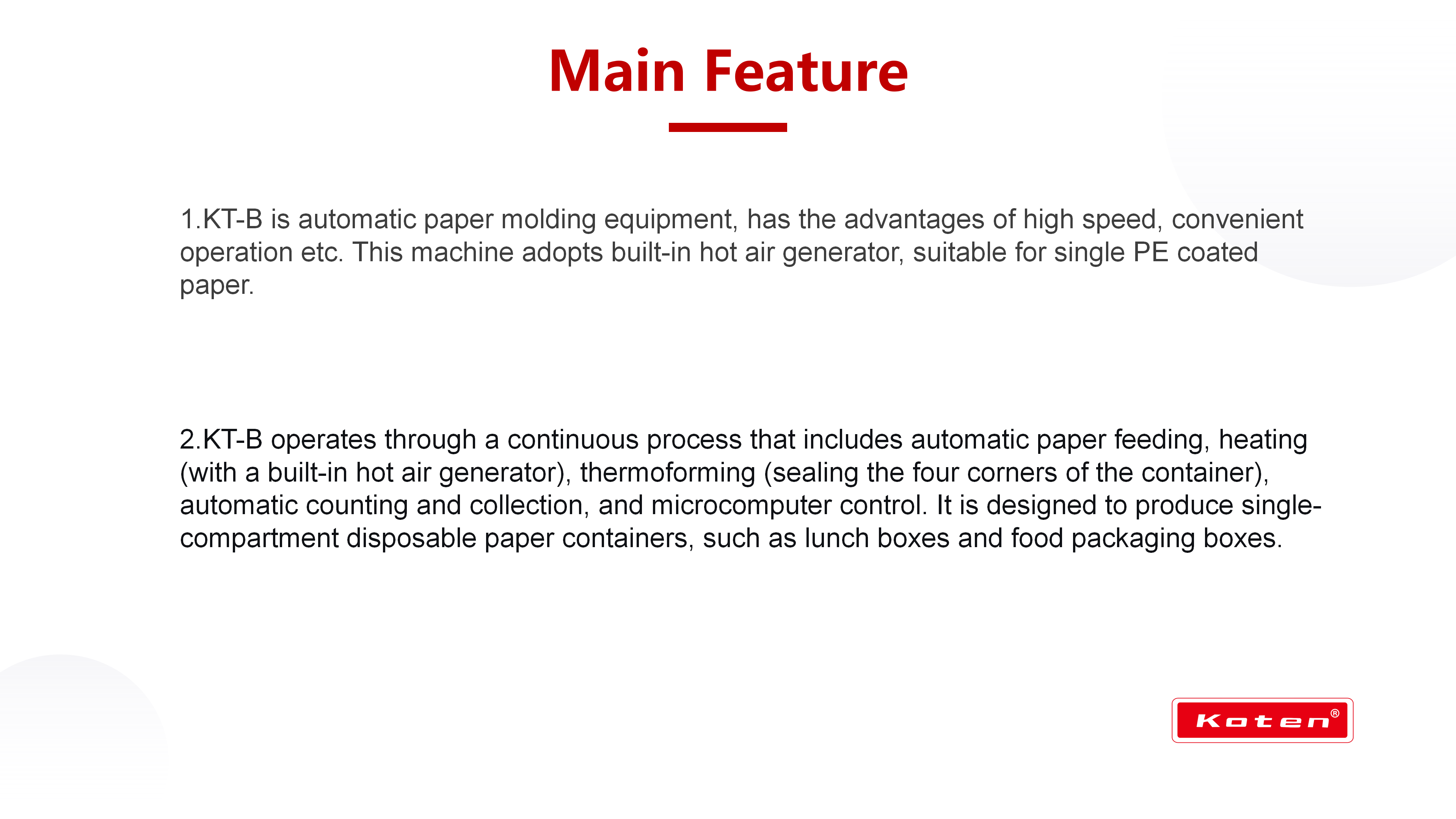

  1. KT-B is automatic paper molding equipment, has the advantages of high speed, convenient operation etc. This machine adopts built-in hot air generator, suitable for single PE coated paper.

  2. KT-B operates through a continuous process that includes automatic paper feeding, heating (with a built-in hot air generator), thermoforming (sealing the four corners of the container), automatic counting and collection, and microcomputer control. It is designed to produce single-compartment disposable paper containers, such as lunch boxes and food packaging boxes.

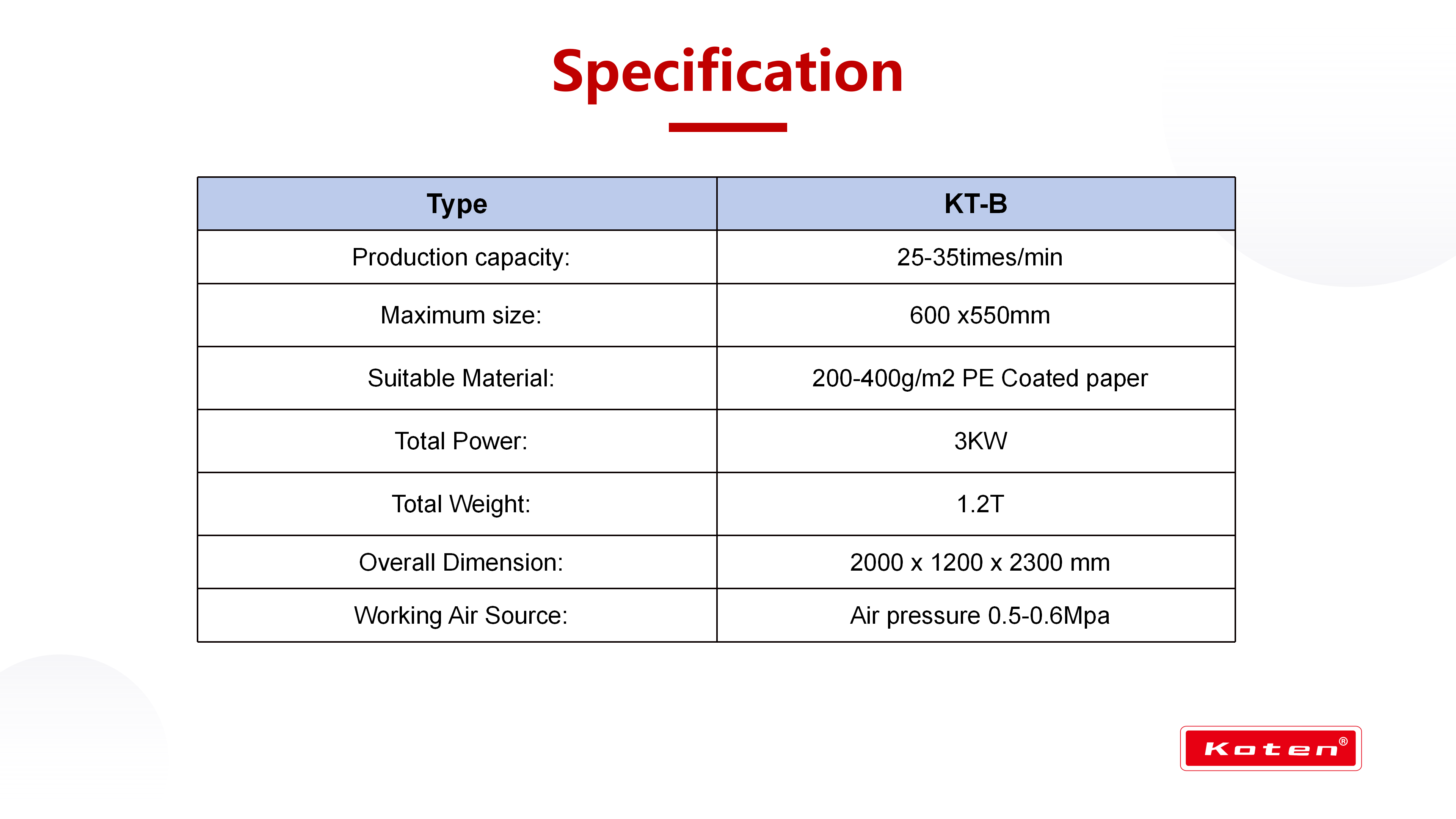

Parameters

Type

KT-B

Production capacity:

25-35times/min

Maximum size:

600 x550mm

Suitable Material:

200-400g/m2 PE Coated paper

Total Power:

3KW

Total Weight:

1.2T

Overall Dimension:

2000 x 1200 x 2300 mm

Working Air Source:

Air pressure 0.5-0.6Mpa

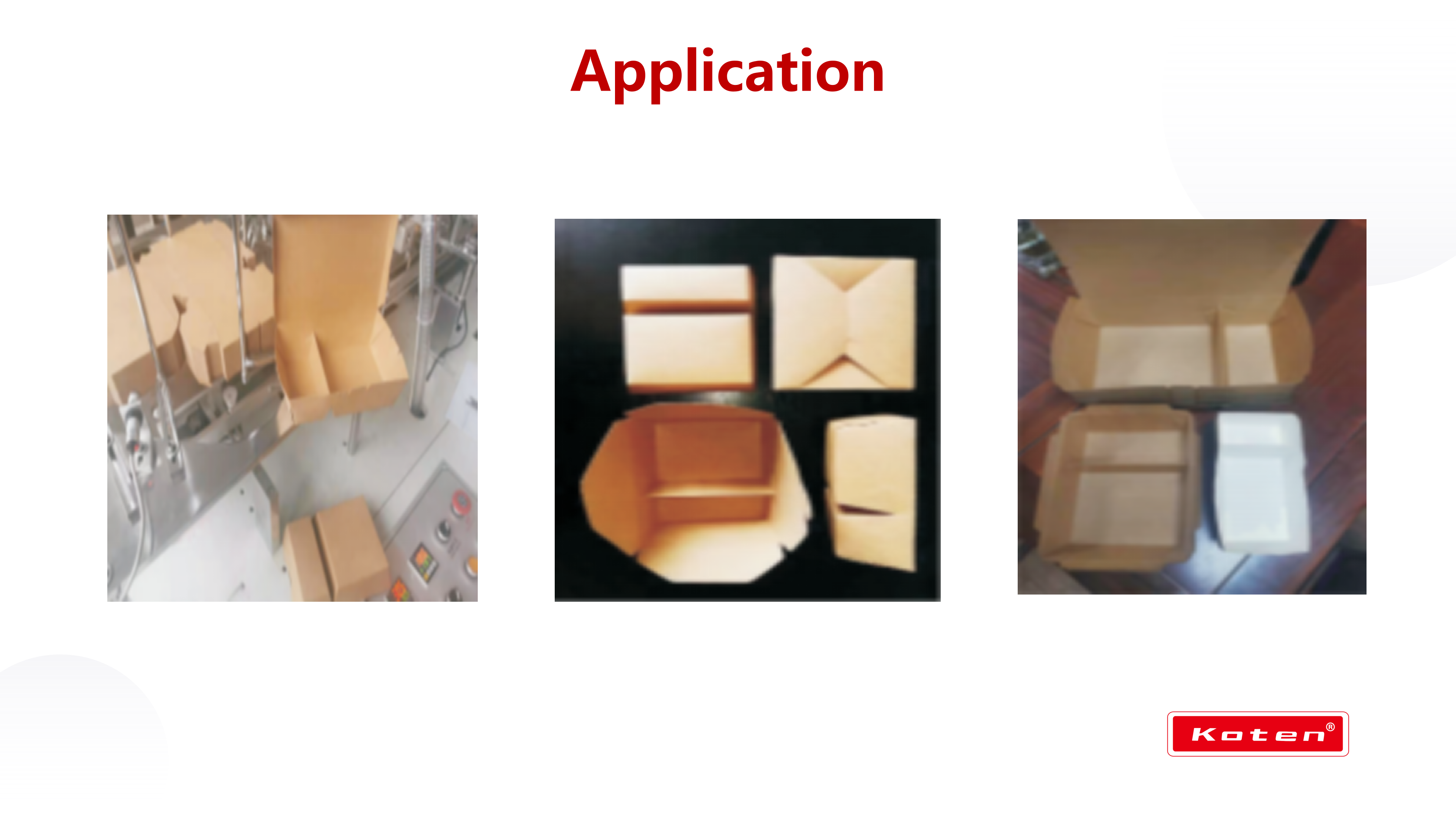

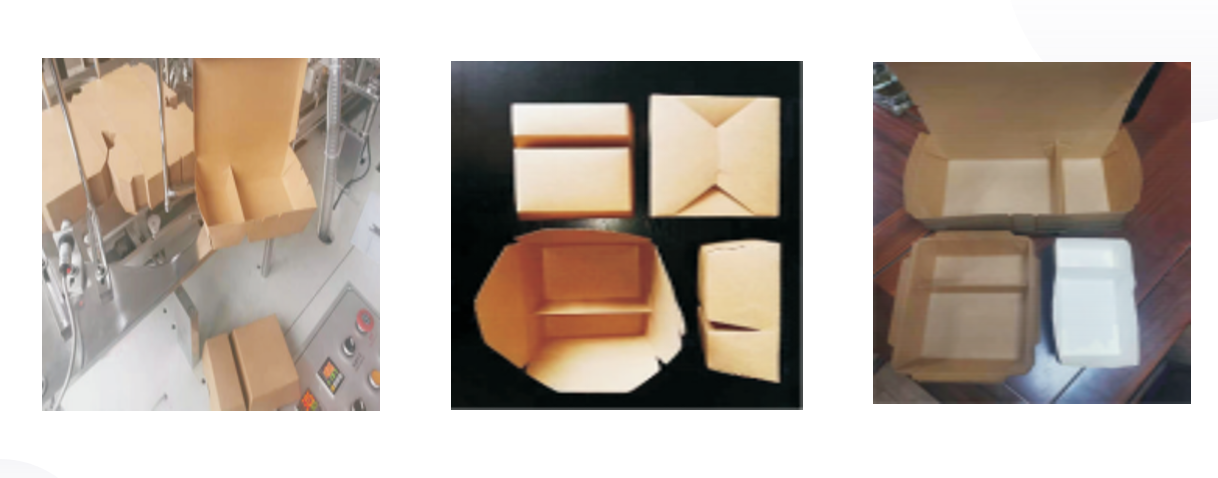

Application

企业微信截图_17835772197320
