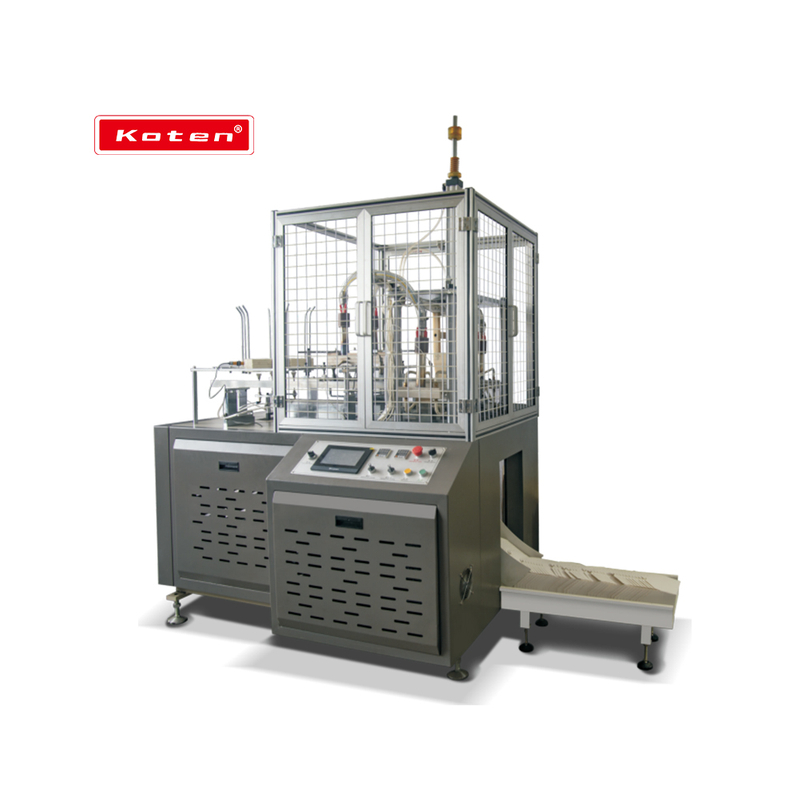

Fully Automatic Paper Lunch Box Machine

KT-A runs smoothly and reliably. It offers high productivity, strong stability, energy efficiency, and simple operation. Equipped with microcomputer monitoring technology, it represents an advanced domestic solution.
KT-A is automatic paper molding equipment, has the advantages of high speed, convenient operation etc.. This machine adopts built-in hot air generator, suitable for single PE coated paper.
KT-A operates through a continuous process that includes automatic paper feeding, heating (with a built-in hot air generator), thermoforming (sealing the four corners of the container), automatic counting and collection, and microcomputer control. It is designed to produce single-compartment disposable paper containers, such as lunch boxes and food packaging boxes.

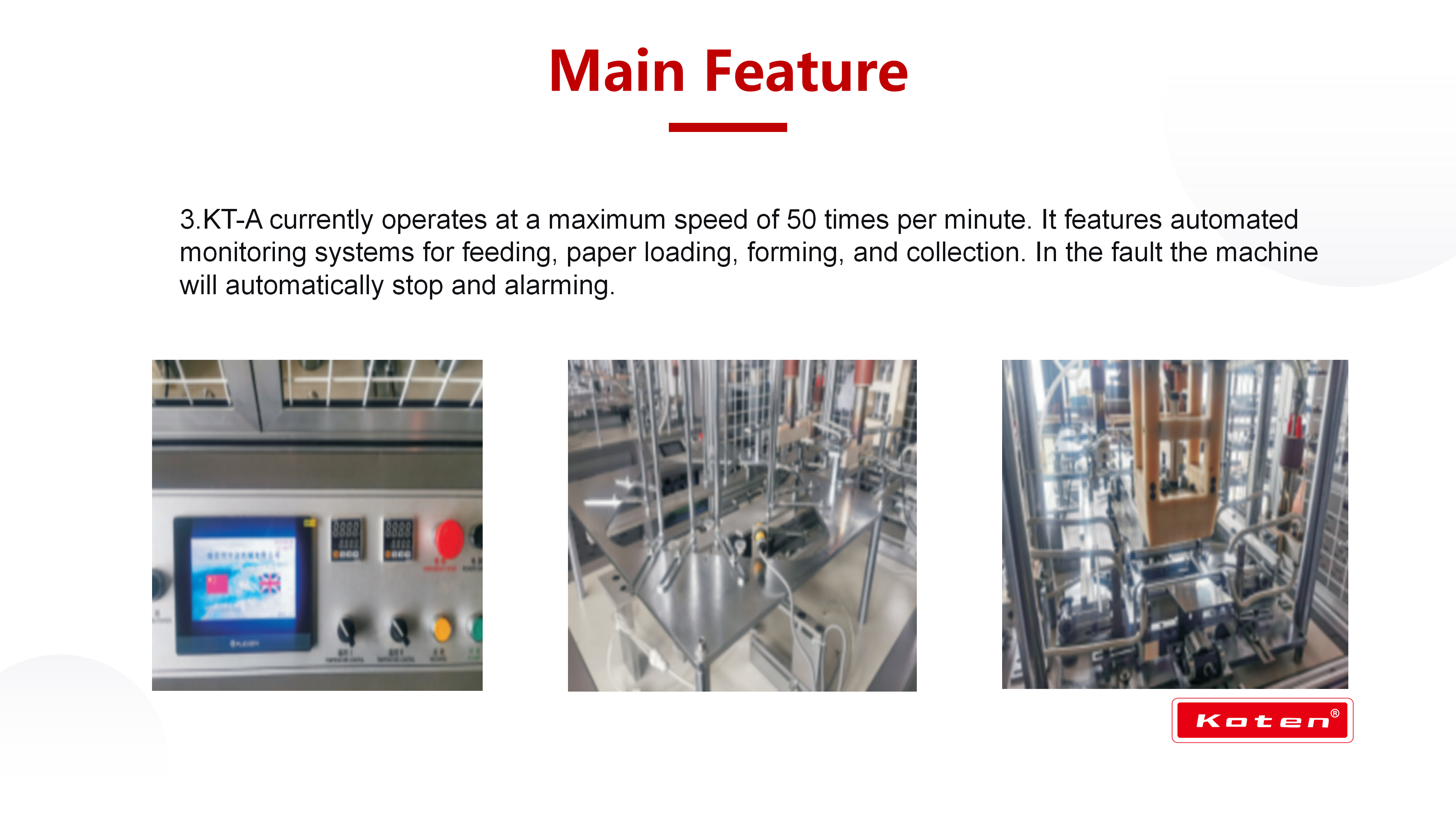

KT-A currently operates at a maximum speed of 50 times per minute. It features automated monitoring systems for feeding, paper loading, forming, and collection. In the fault the machine will automatically stop and alarming.
  • KT-A

  • KOTEN

  • Negotiable

  • One set

  • T/T, L/C at sight.

  • 10sets/month

  • By strong sea worthy package

  • Within 30 days after get the deposit.

  • China

  • 3724

Production capacity:
Working Air Source:
Availability:
Quantity:
sharethis sharing button

Fully Automatic Paper Lunch Box Machine


Products Description

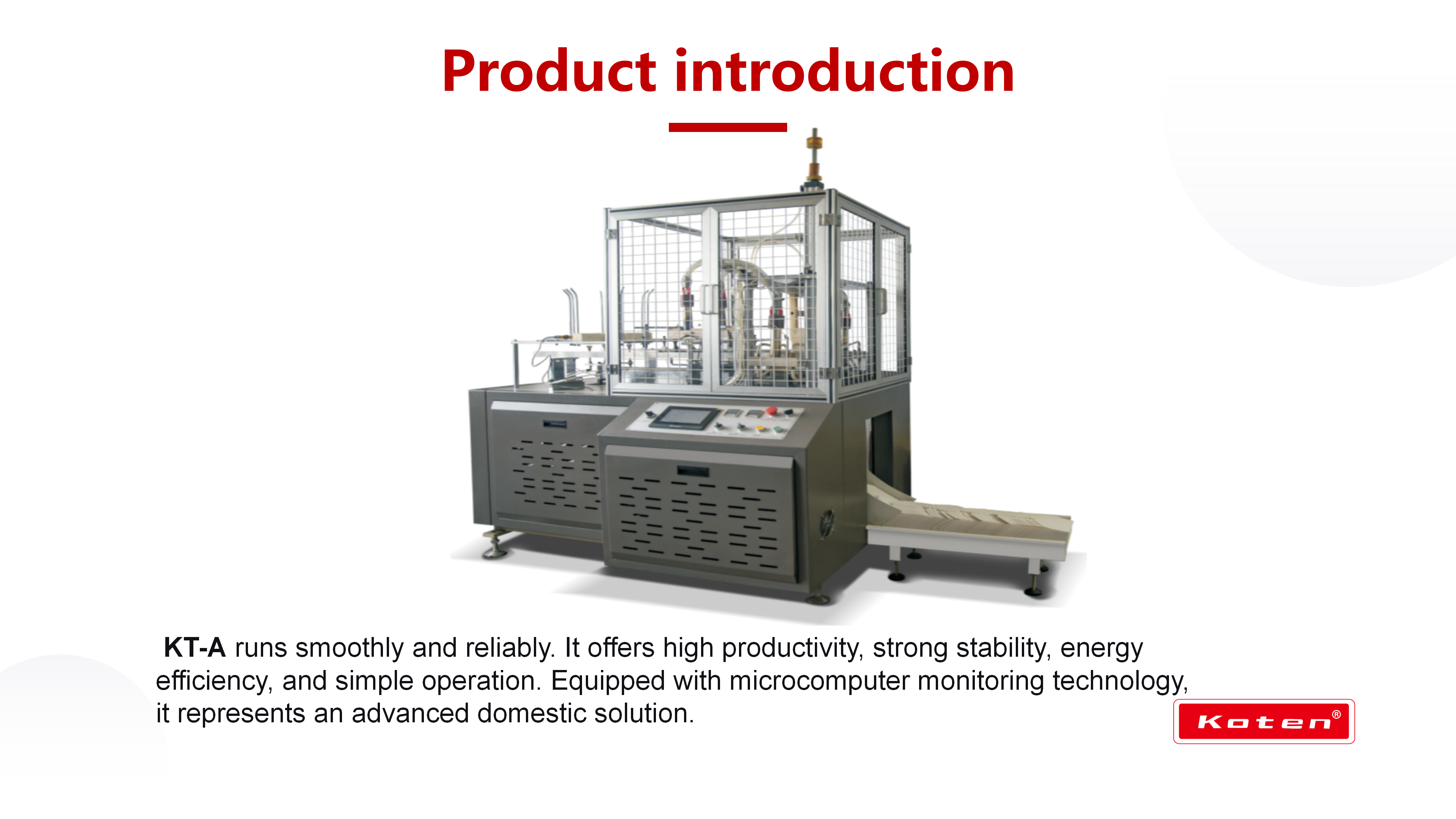

KT-A runs smoothly and reliably. It offers high productivity, strong stability, energy efficiency, and simple operation. Equipped with microcomputer monitoring technology, it represents an advanced domestic solution.

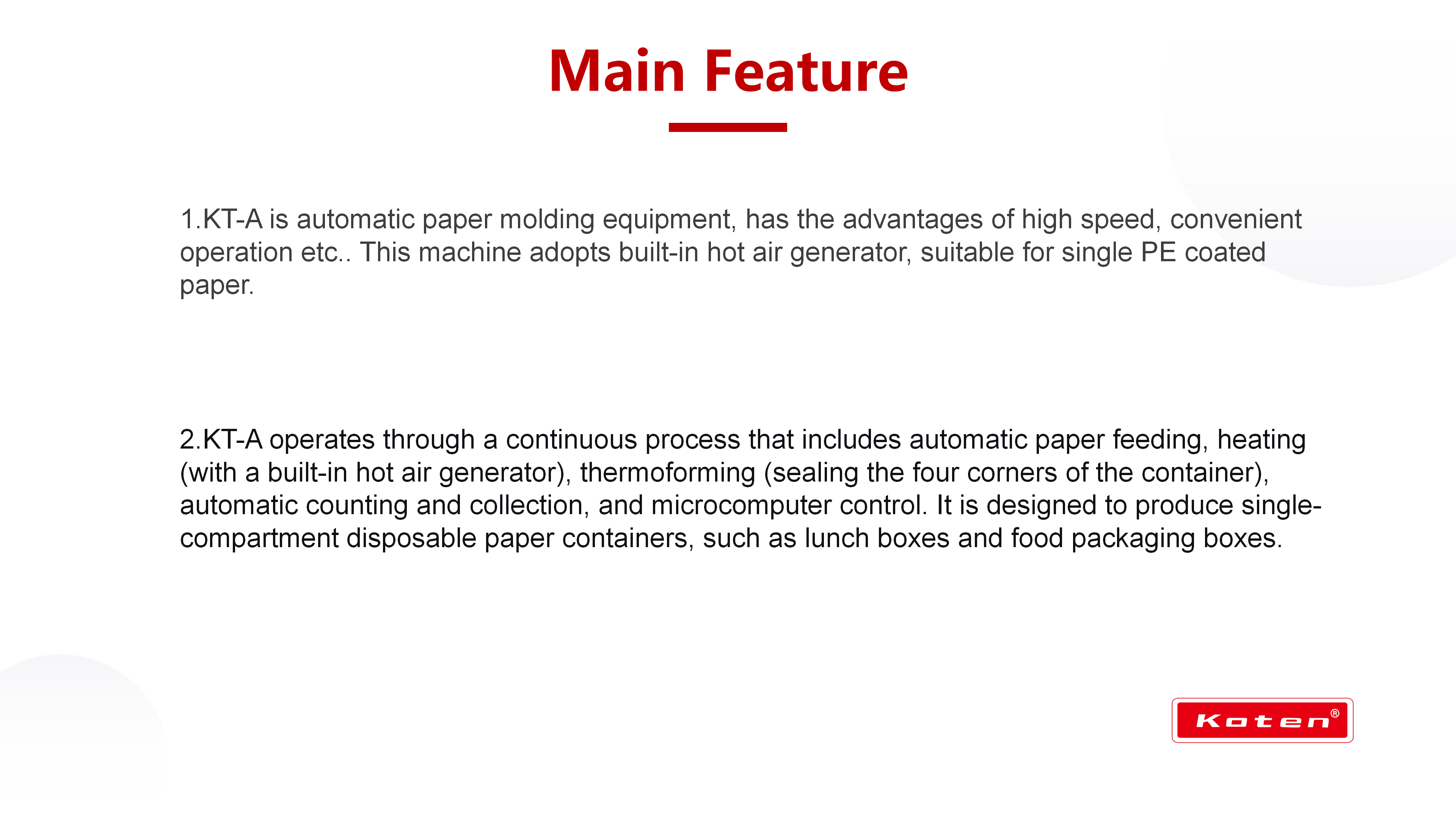

      1.KT-A is automatic paper molding equipment, has the advantages of high speed, convenient operation etc.. This machine adopts built-in hot air generator, suitable for single PE coated paper.

      2.KT-A operates through a continuous process that includes automatic paper feeding, heating (with a built-in hot air generator), thermoforming (sealing the four corners of the container), automatic counting and collection, and microcomputer control. It is designed to produce single-compartment disposable paper containers, such as lunch boxes and food packaging boxes.

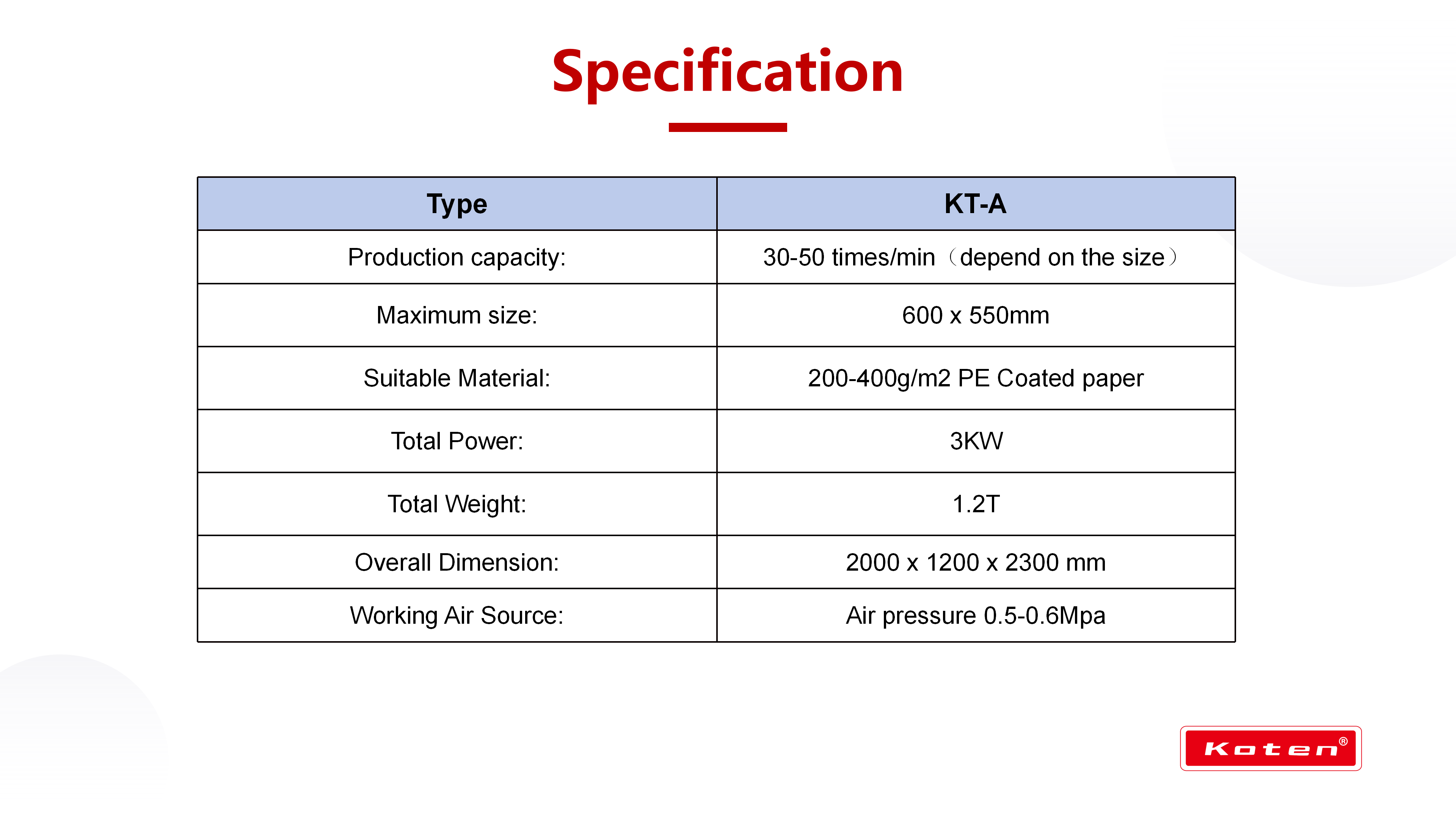

Parameters


Type

KT-A

Production capacity:

30-50 times/min(depend on the size)

Maximum size:

600 x 550mm

Suitable Material:

200-400g/m2 PE Coated paper

Total Power:

3KW

Total Weight:

1.2T

Overall Dimension:

2000x1200x2300mm

Working Air Source:

Air pressure 0.5-0.6Mpa

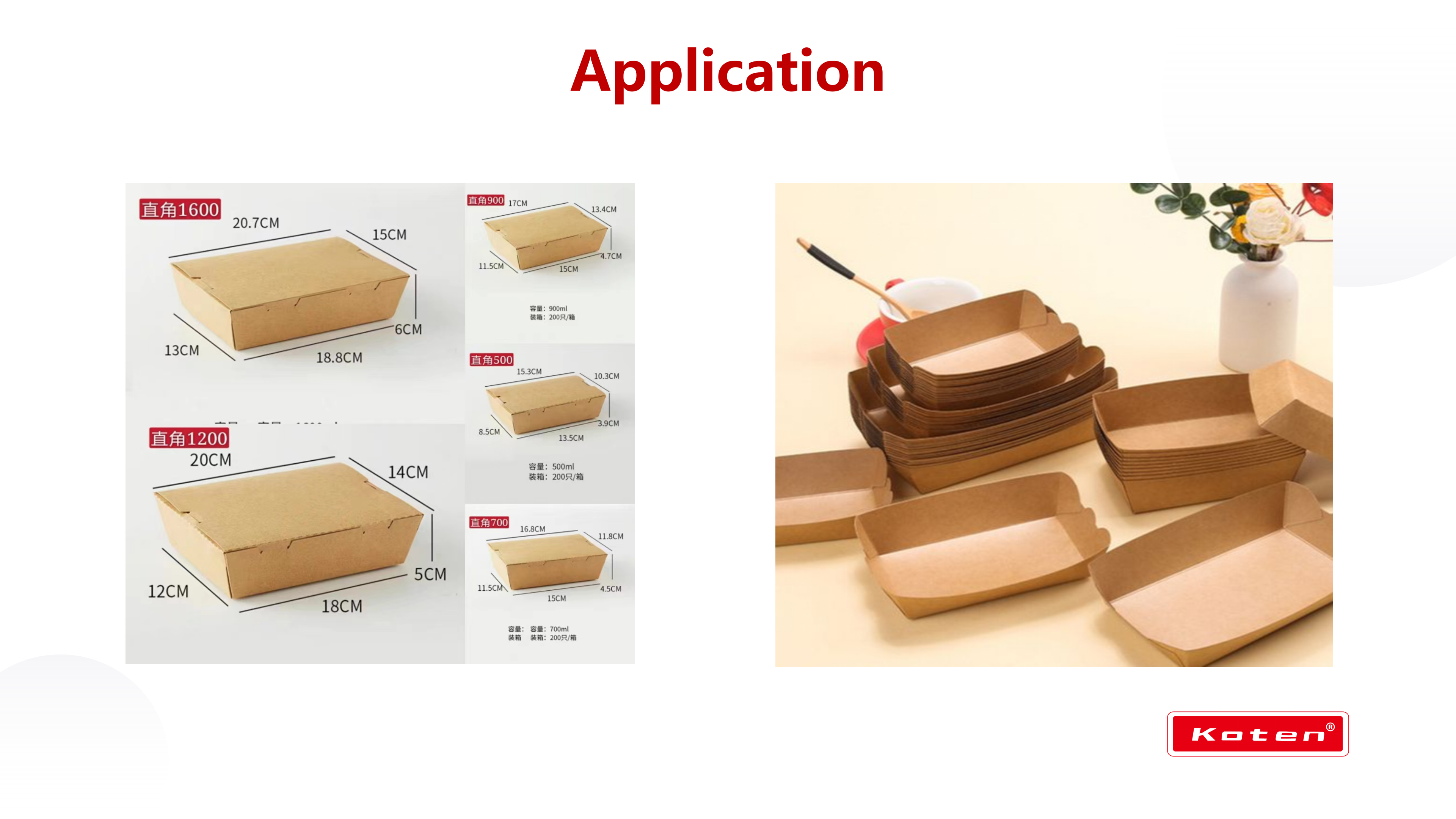

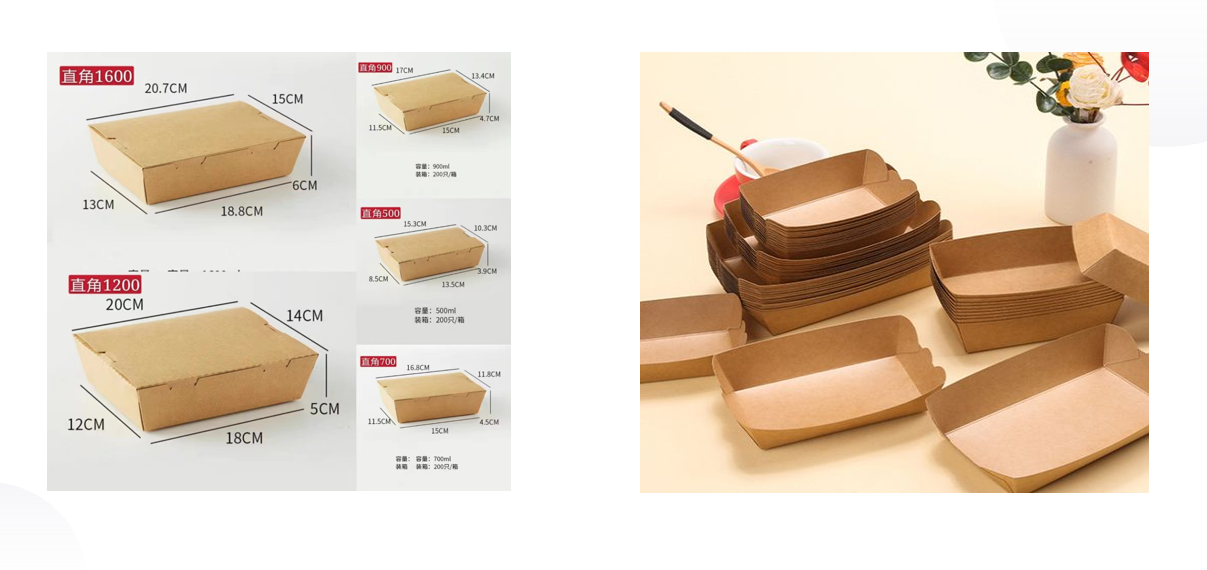

Application

企业微信截图_17835770466830
