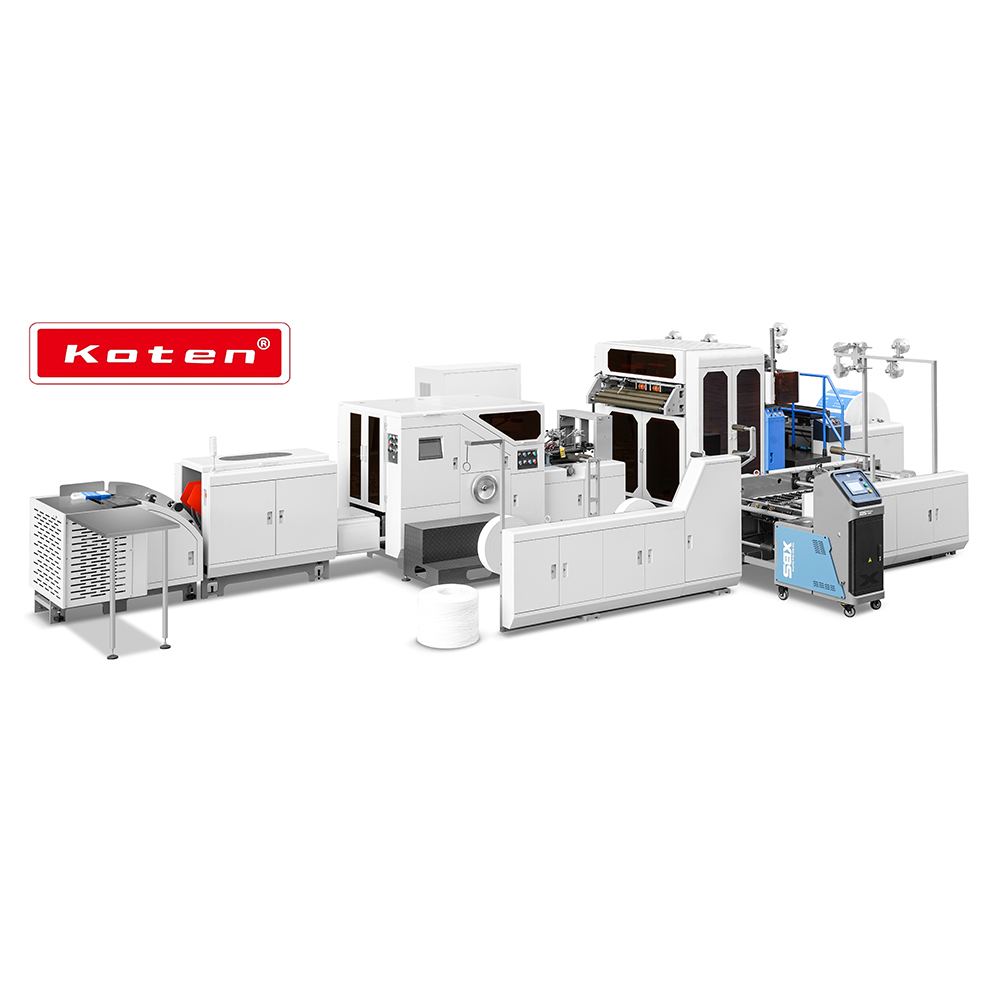

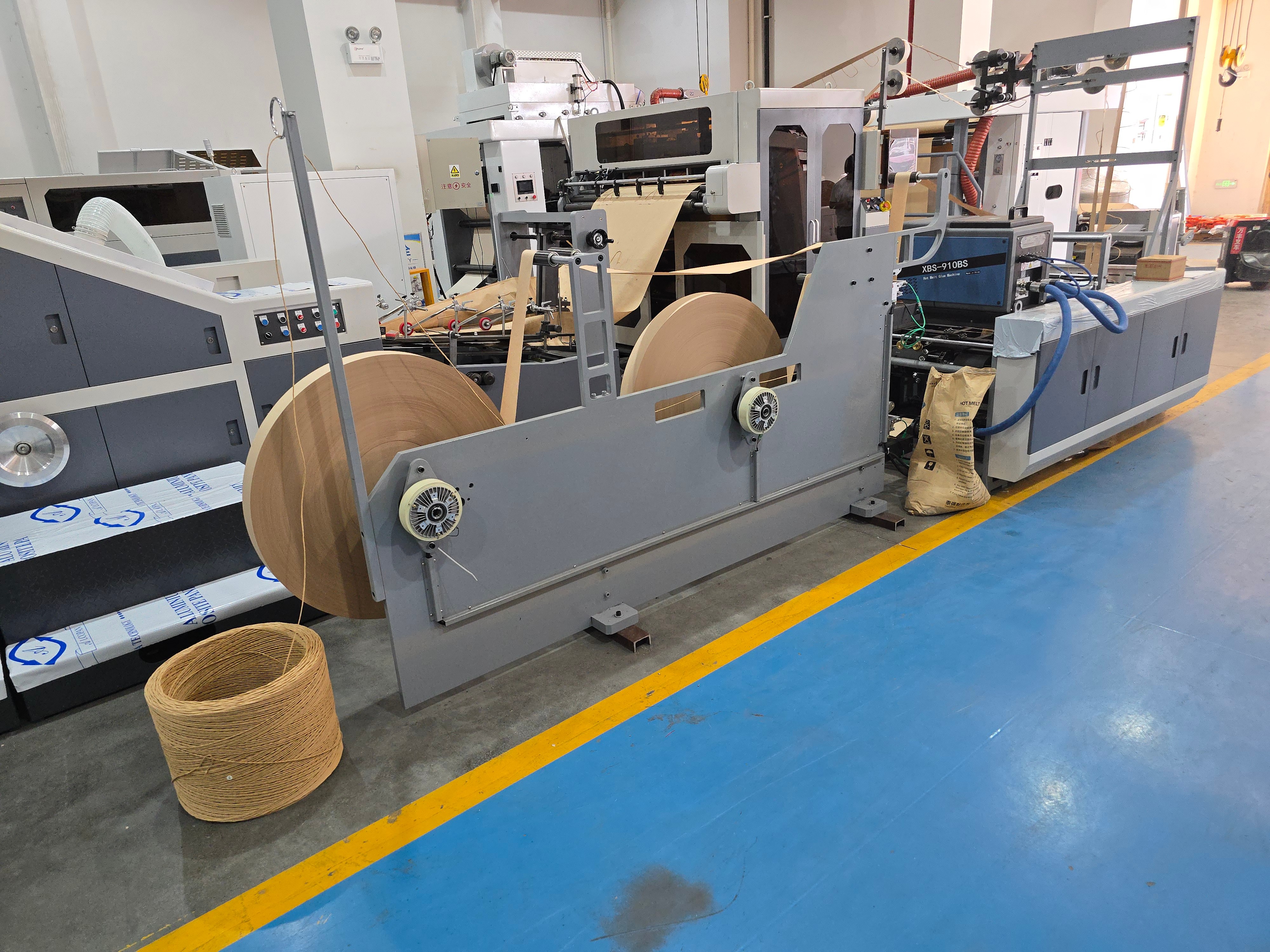

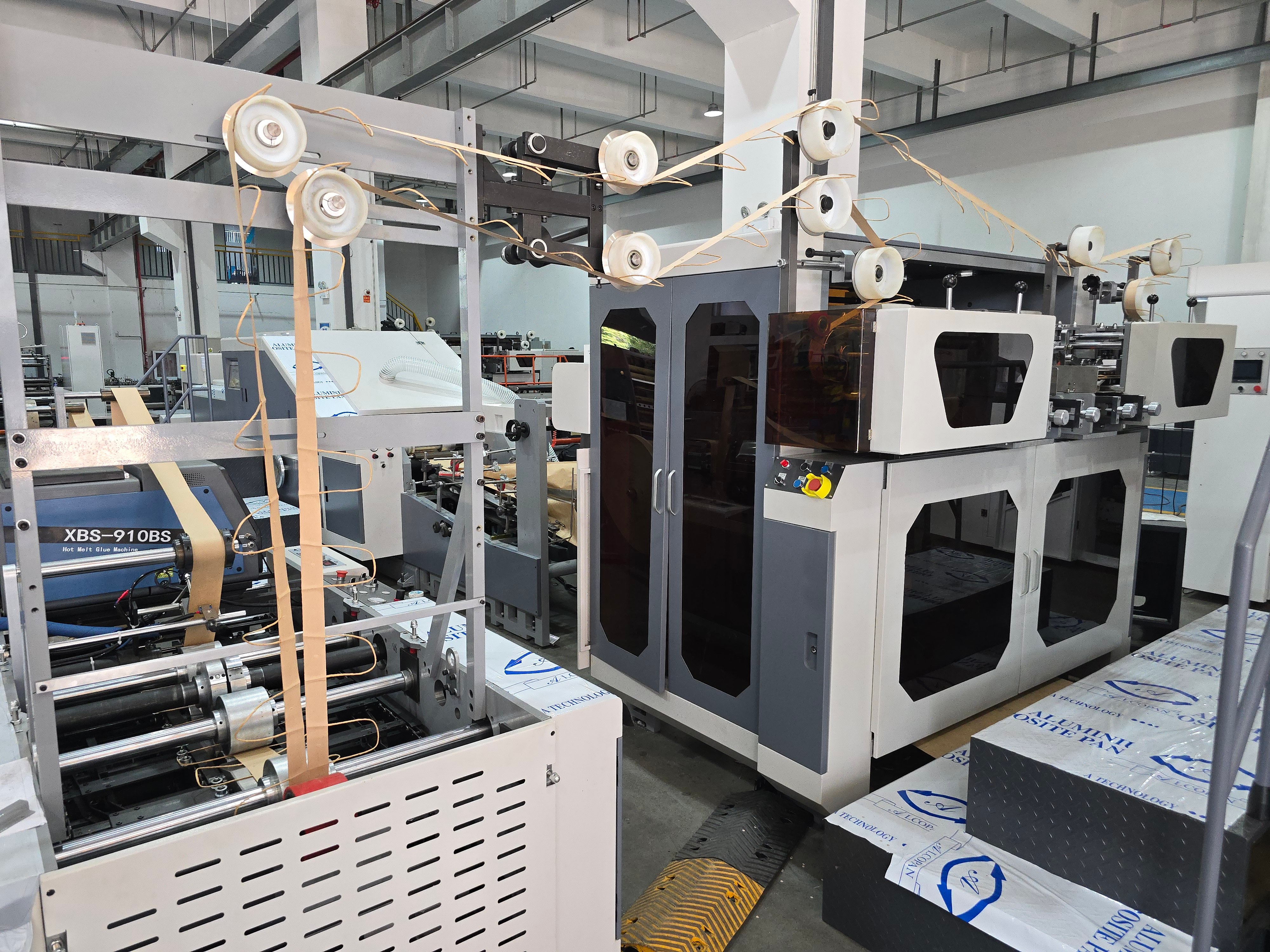

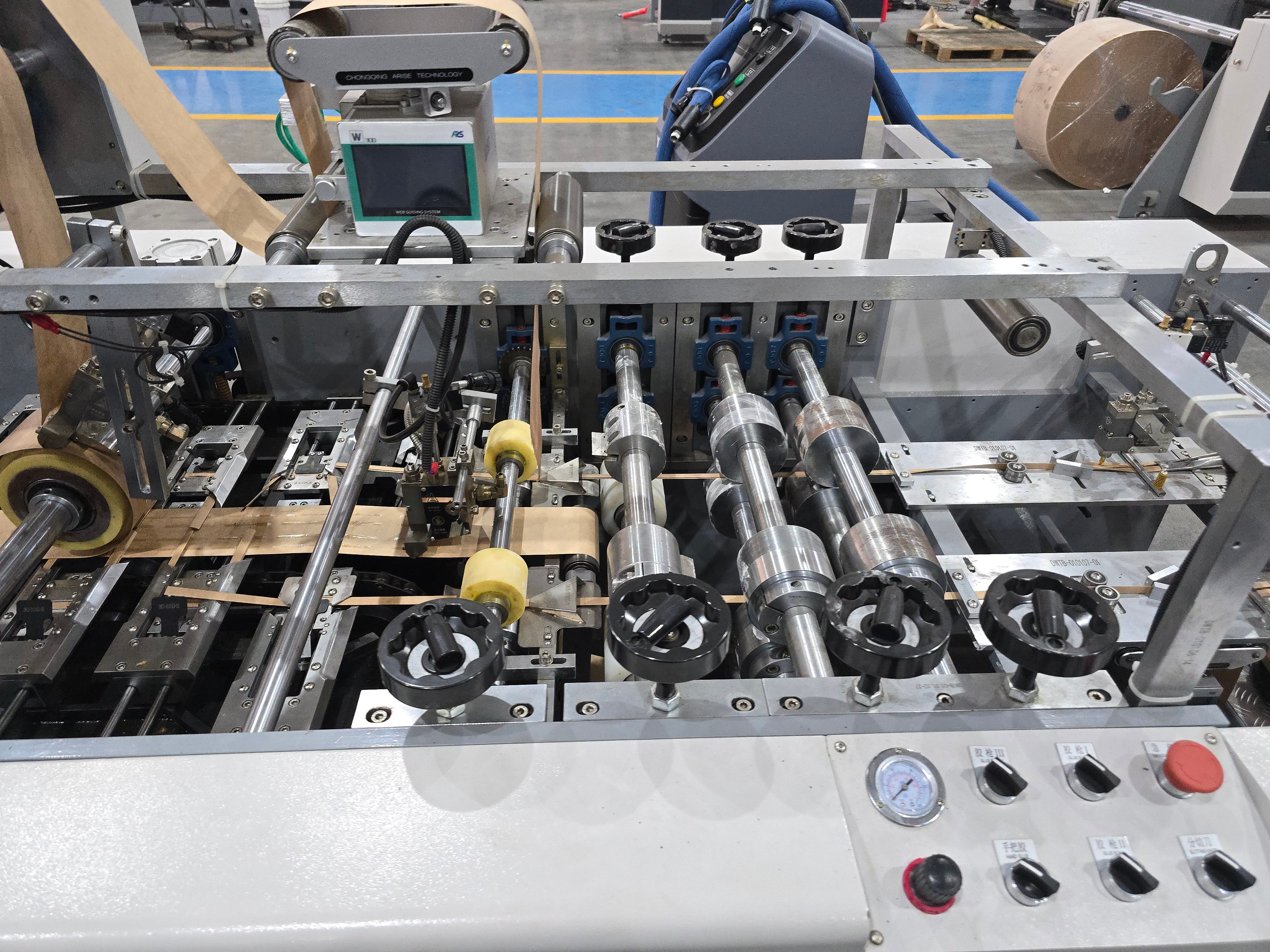

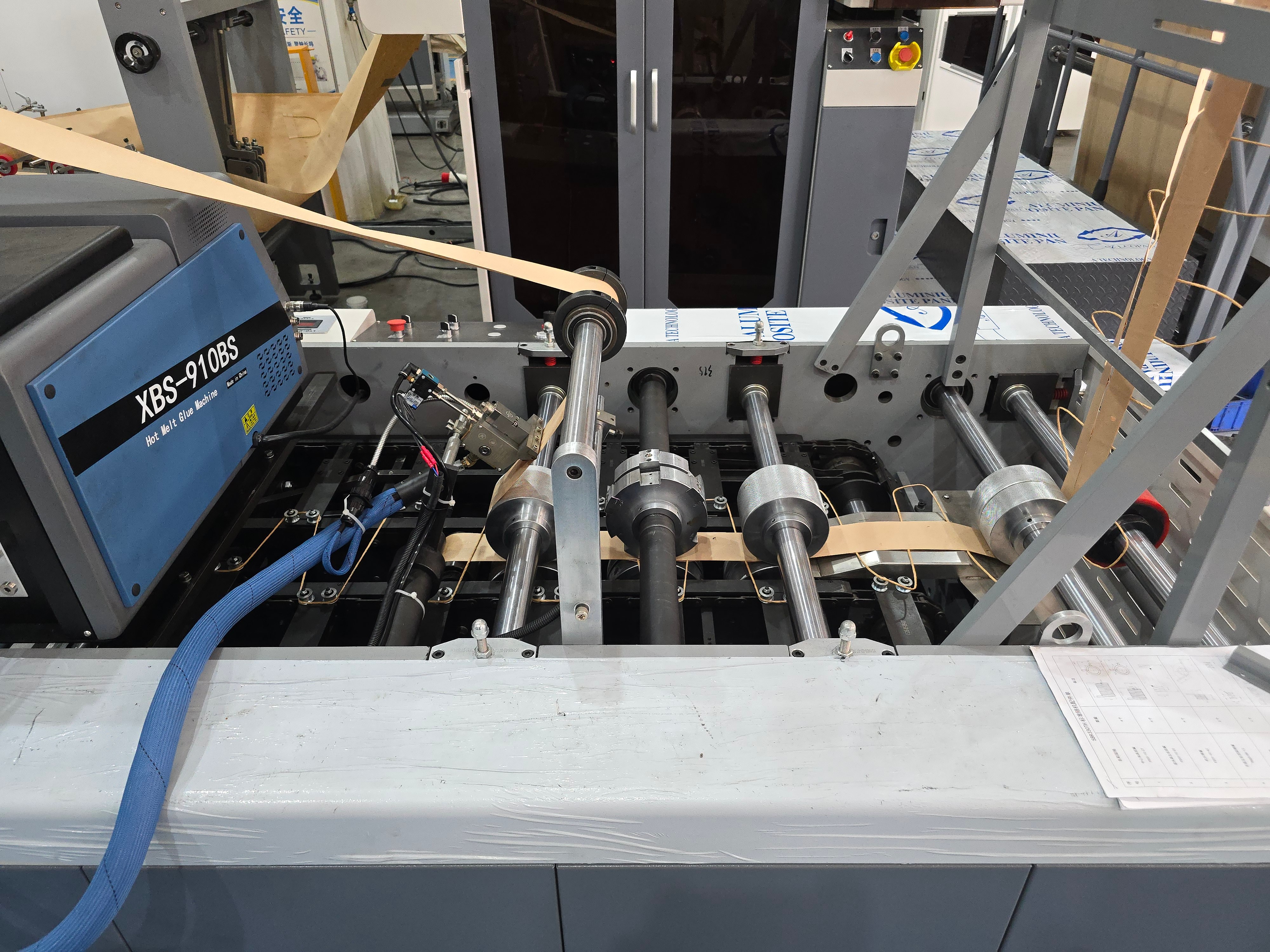

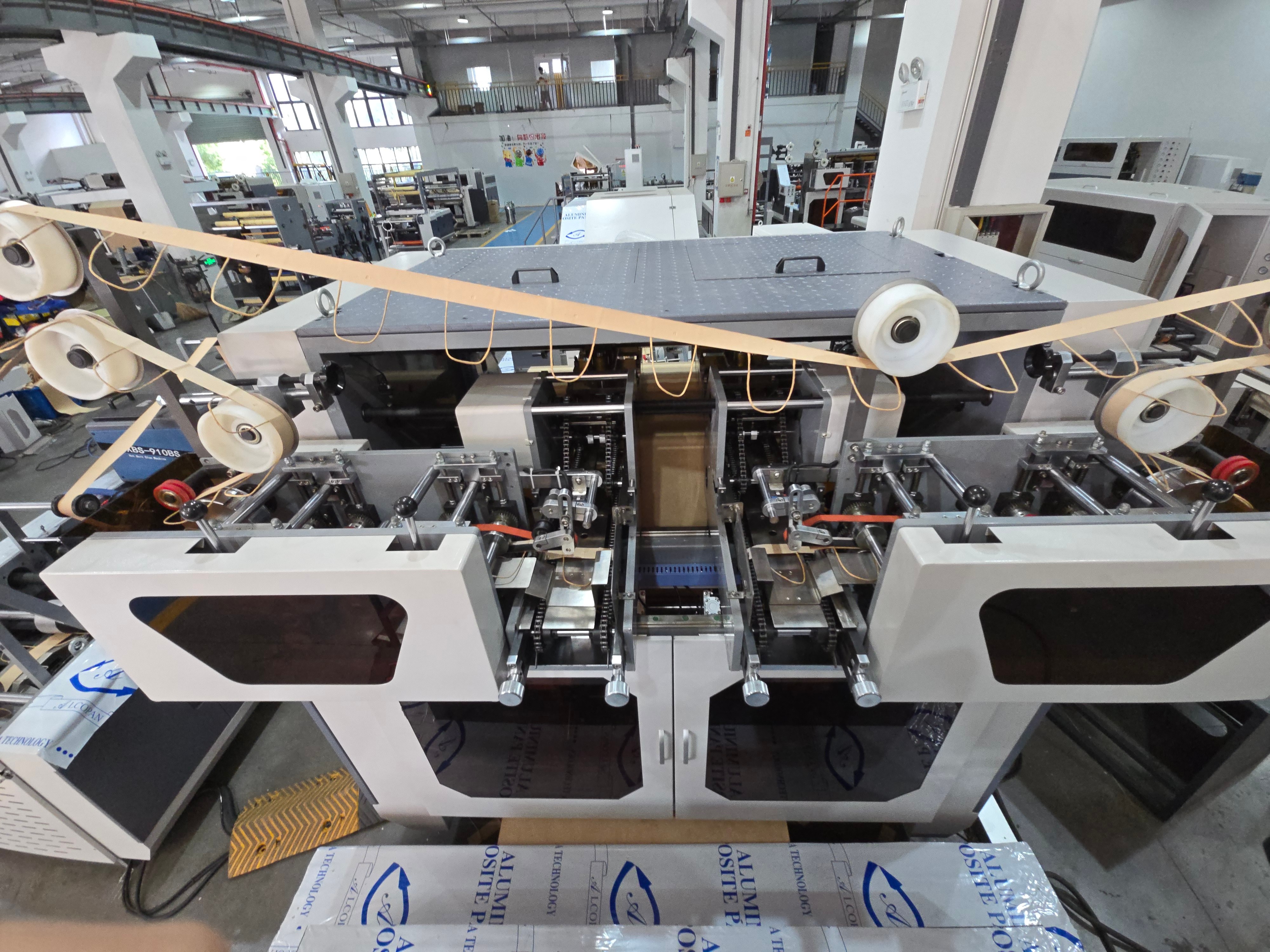

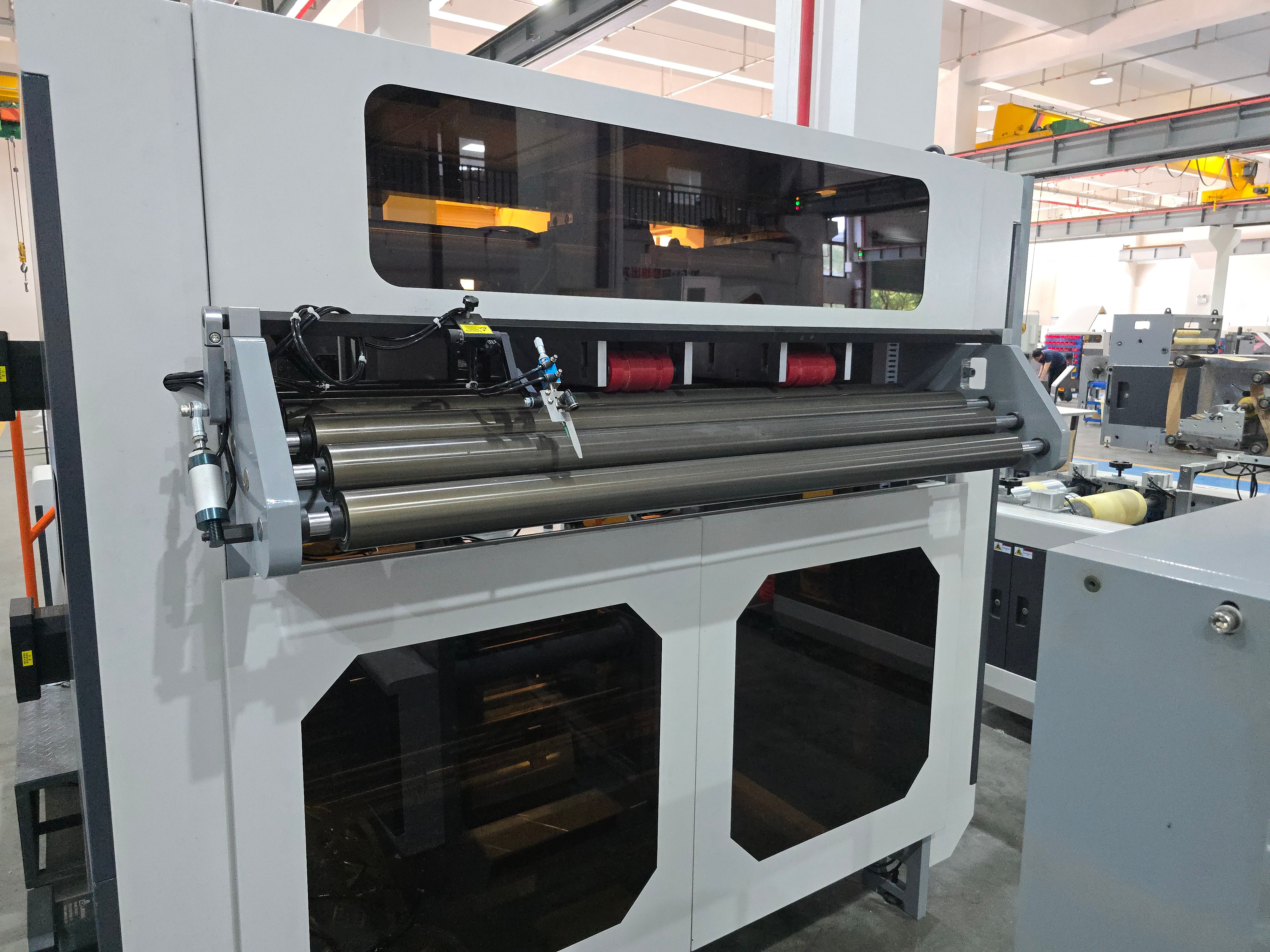

Fully automatic square bottom paper bag machine is designed for the production of paper bags with twisted handles. It is suitable for mass production of shopping bags in industries such as food and clothing. The one-line process consists of twisted handles making from paper rolls and twisted rope, delivery of handles to paste unit, pre-cutting of paper on position of rope, patch position gluing, handle pasting, and paper bag making. The paper bag making process consists of side gluing, tube forming, cutting, creasing, bottom gluing, bottom forming and bag delivery. This machine adopts England imported high-speed motion controller (TRIO), which controls the operation of servo through high-speed bus to ensure stable movement and smooth motion curve. It is the automatic square bottom paper bag equipment with handles inline preferred by the majority of printing and packaging manufacturers.
Model | KTB-330T | |
Cutting length | 270-520mm | |
270-410mm ( with handles) | ||
Bag width | 150-330mm | |
200-330mm (with handles) | ||
Bottom width | 60-180mm | |
Paper Thickness | 60-150g/㎡ | |
80-150g/㎡ (with handles) | ||
Paper roll width | 440-1050mm | |
620-1050mm (with handles) | ||
Roll paper diameter | ф1500mm | |
Paper core | ф76mm | |
Patch length | 152mm | |
Patch width | 45-50mm | |
Handle distance | 72mm | |
Rope diameter | ф4-5mm | |
Patch paper roll width | 90-100mm | |
Patch paper roll diameter | ф1200mm | |
Patch paper thickness | 100-135g/㎡ | |
Machine Speed | 30-200bags/min | |
Production speed | 30-180bags/min (without handles) | |
30-150bags/min (with handles) | ||
Power | 38KW | |
Weight | 14T | |
Machine Dimension | 14000*6000*2700mm | |
Note: the parameters above are not absolute; operator’s skills, temperature, moisture, material and size of paper, categories and quality of glue can affect production speed, rejection rate, and applicable range of machine.
Performance and Features：
1. Use China MCGS touch screen human-computer interface, making the machine easy to operate and control.
2. Adopt England TRIO PC control, integrated with optical fiber. Thus ensure stable and high speed running.
3. Adopt China INOVANCE servo motor and German original SICK photoelectric eye correction, tracking printing bag accurately.

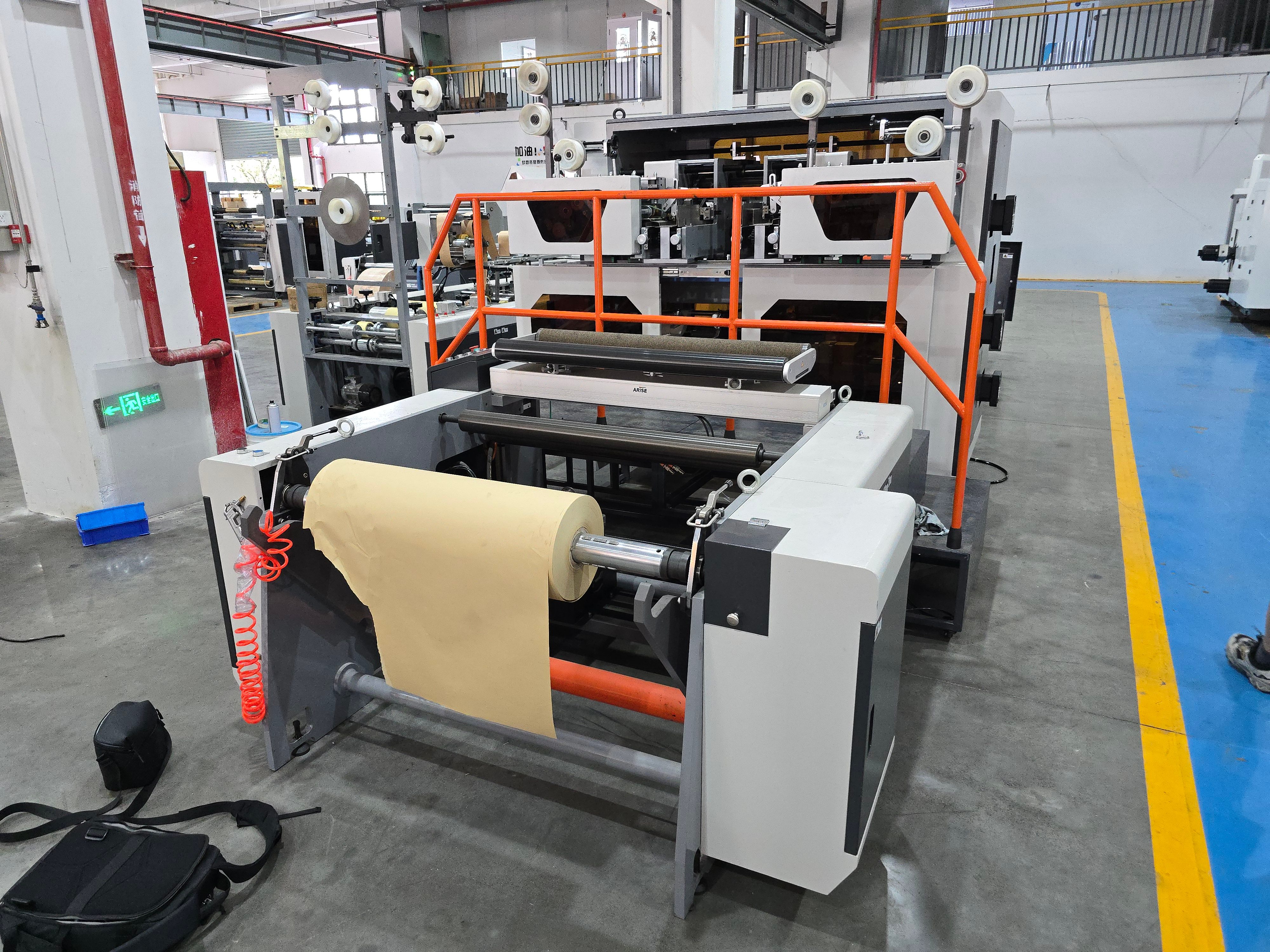

4. Raw material loading adopts hydraulic auto-lifting structure. Unwind unit adopts auto tension control.
Raw material unwinding EPC a
