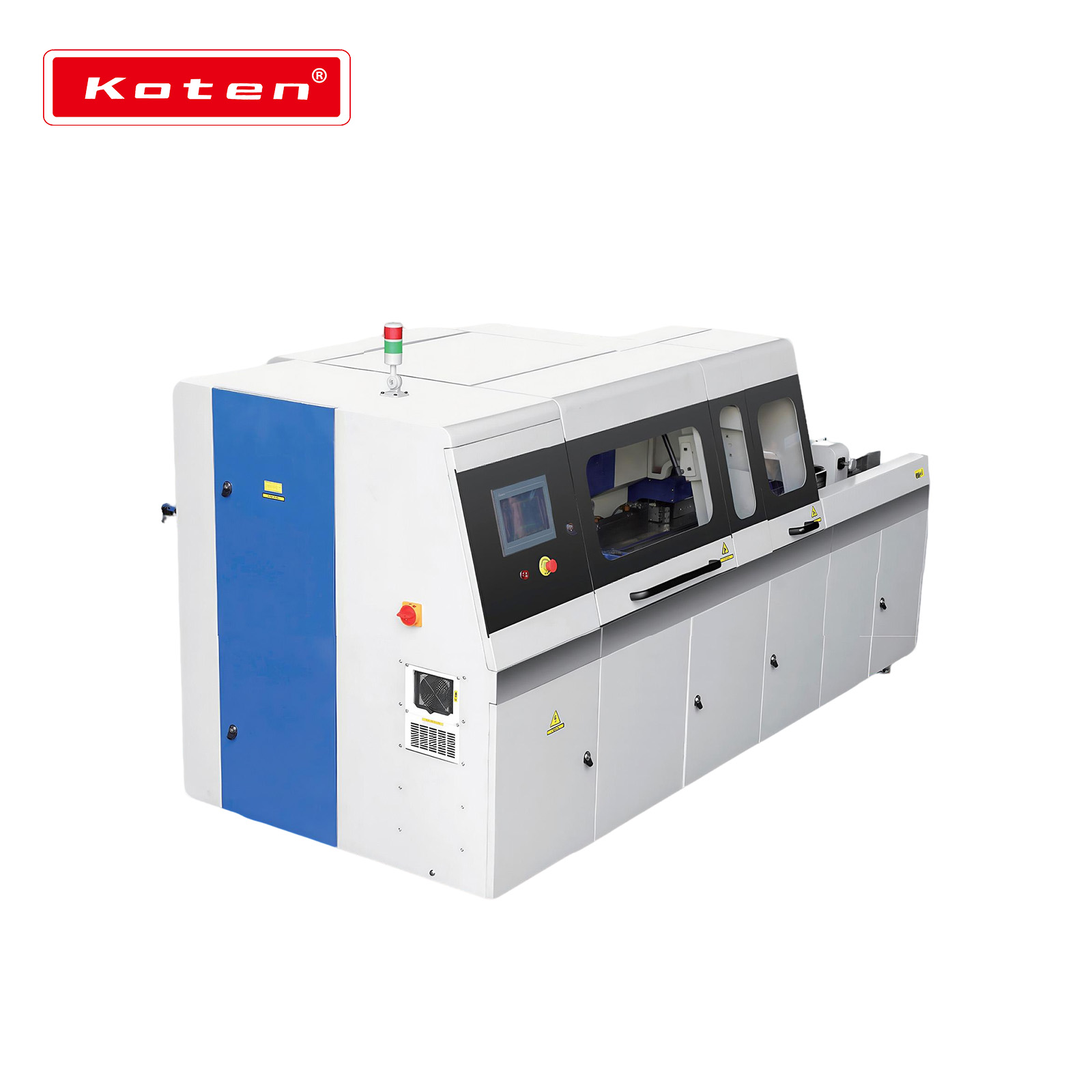

Fully Automatic Three Knife Trimmer

Products Description

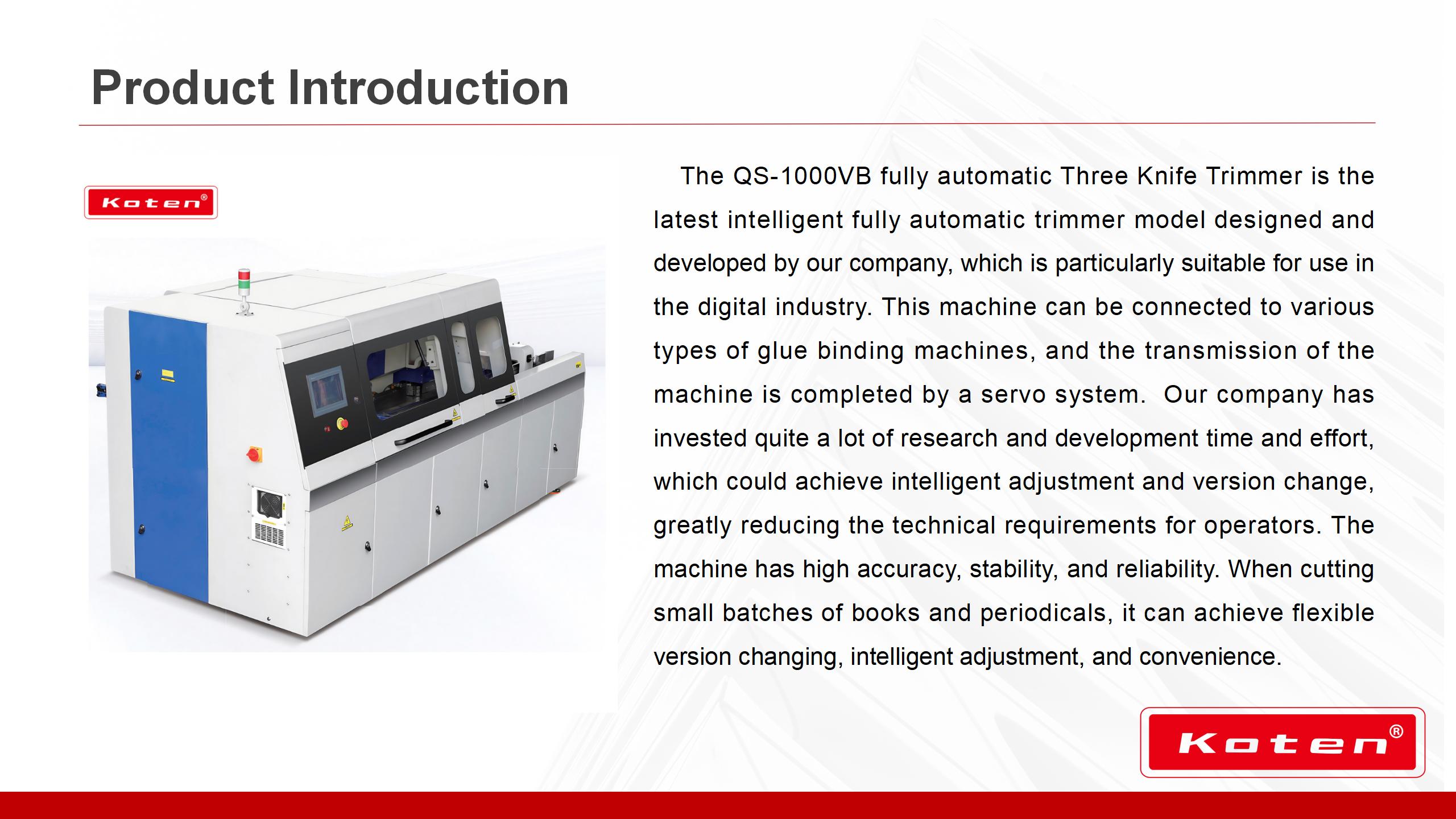

The QS-1000VB fully automatic Three Knife Trimmer is the latest intelligent fully automatic trimmer model designed and developed by our company, which is particularly suitable for use in the digital industry. This machine can be connected to various types of glue binding machines, and the transmission of the machine is completed by a servo system.  Our company has invested quite a lot of research and development time and effort, which could achieve intelligent adjustment and version change, greatly reducing the technical requirements for operators. The machine has high accuracy, stability, and reliability. When cutting small batches of books and periodicals, it can achieve flexible version changing, intelligent adjustment, and convenience.

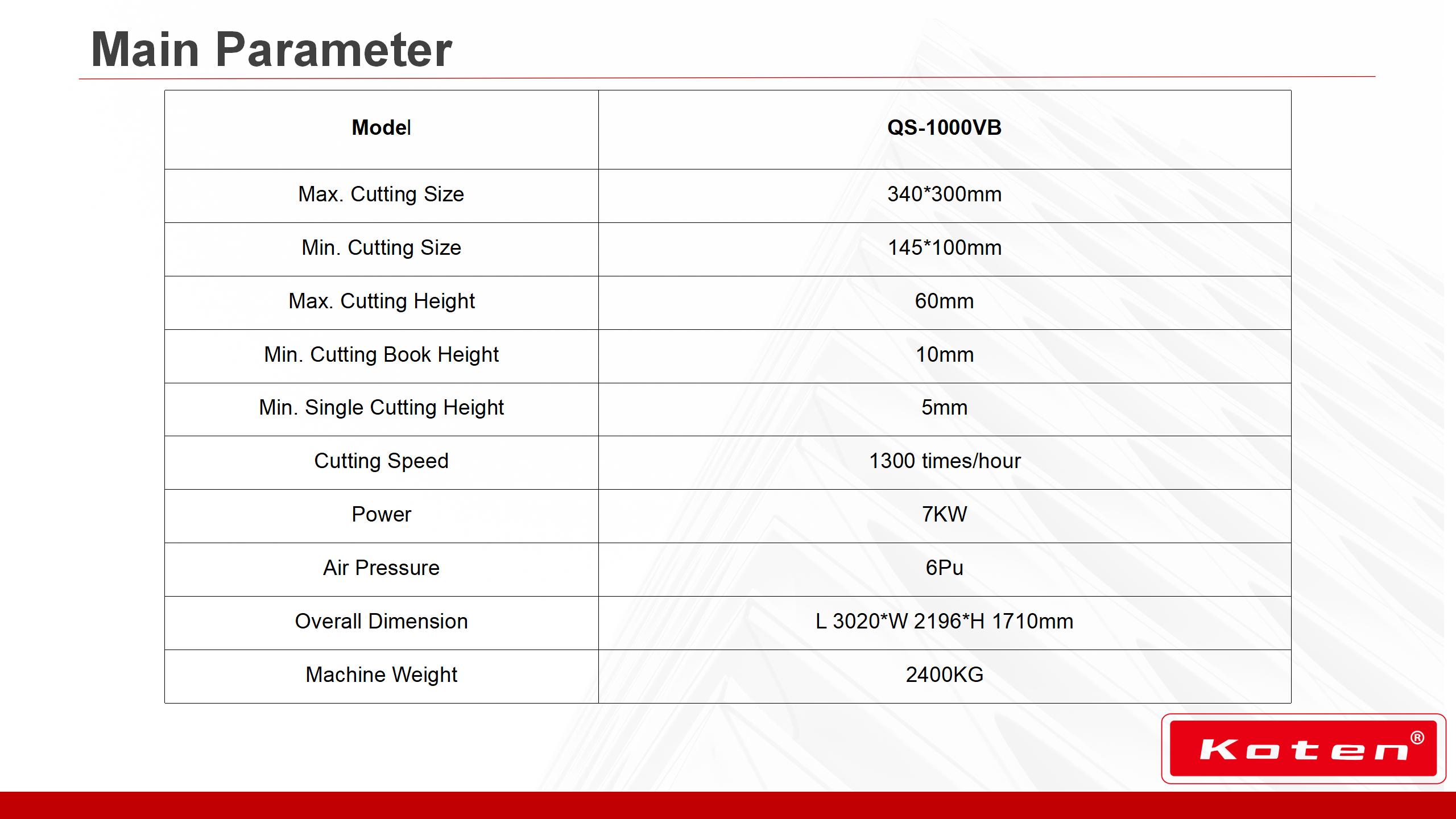

Parameters

Model

QS-1000VB

Max. Cutting Size

340*300mm

Min. Cutting Size

145*100mm

Max. Cutting Height

60mm

Min. Cutting Book Height

10mm

Min. Single Cutting Height

5mm

Cutting Speed

1300 times/hour

Power

7KW

Air Pressure

6Pu

Overall Dimension

L 3020*W 2196*H 1710mm

Machine Weight

2400KG

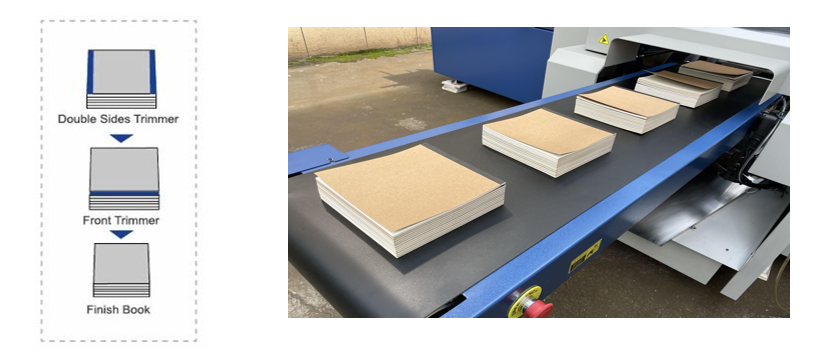

Application
