KT-CH1200
KOTEN
Negotiable
1
T/T, L/C at sight.
10sets/month
By strong seaworthy export packing
after received 30% deposit.
China
7381
| Quantity: | |
|---|---|

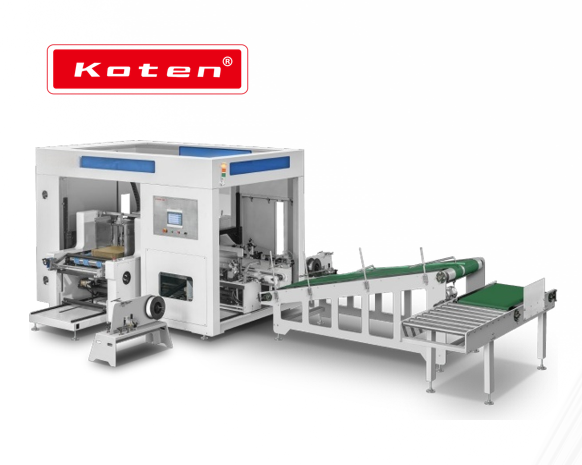

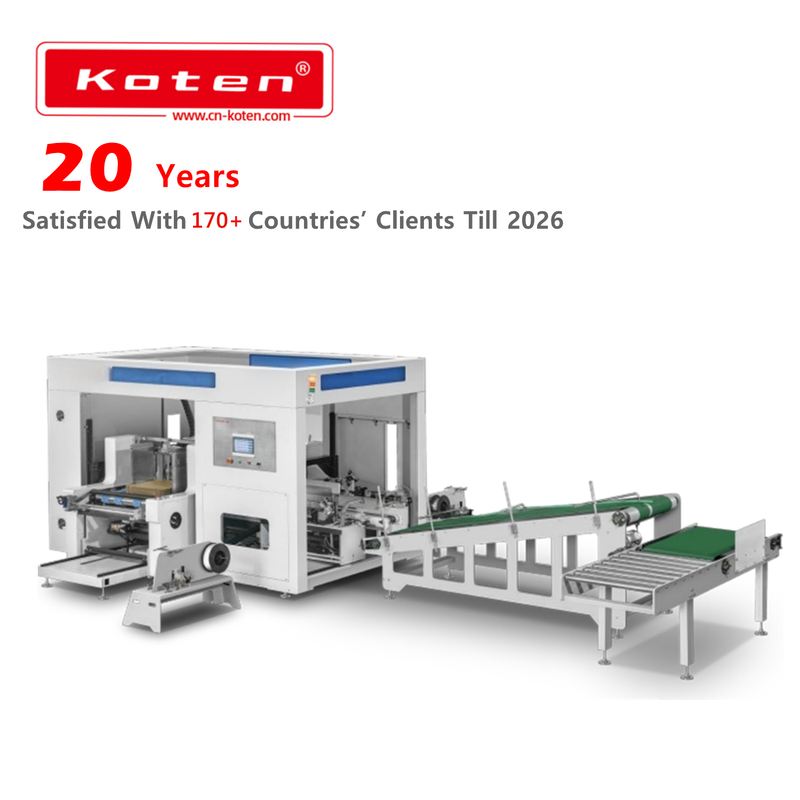

Fully Automatic Two-Piece Box Stitching Machine

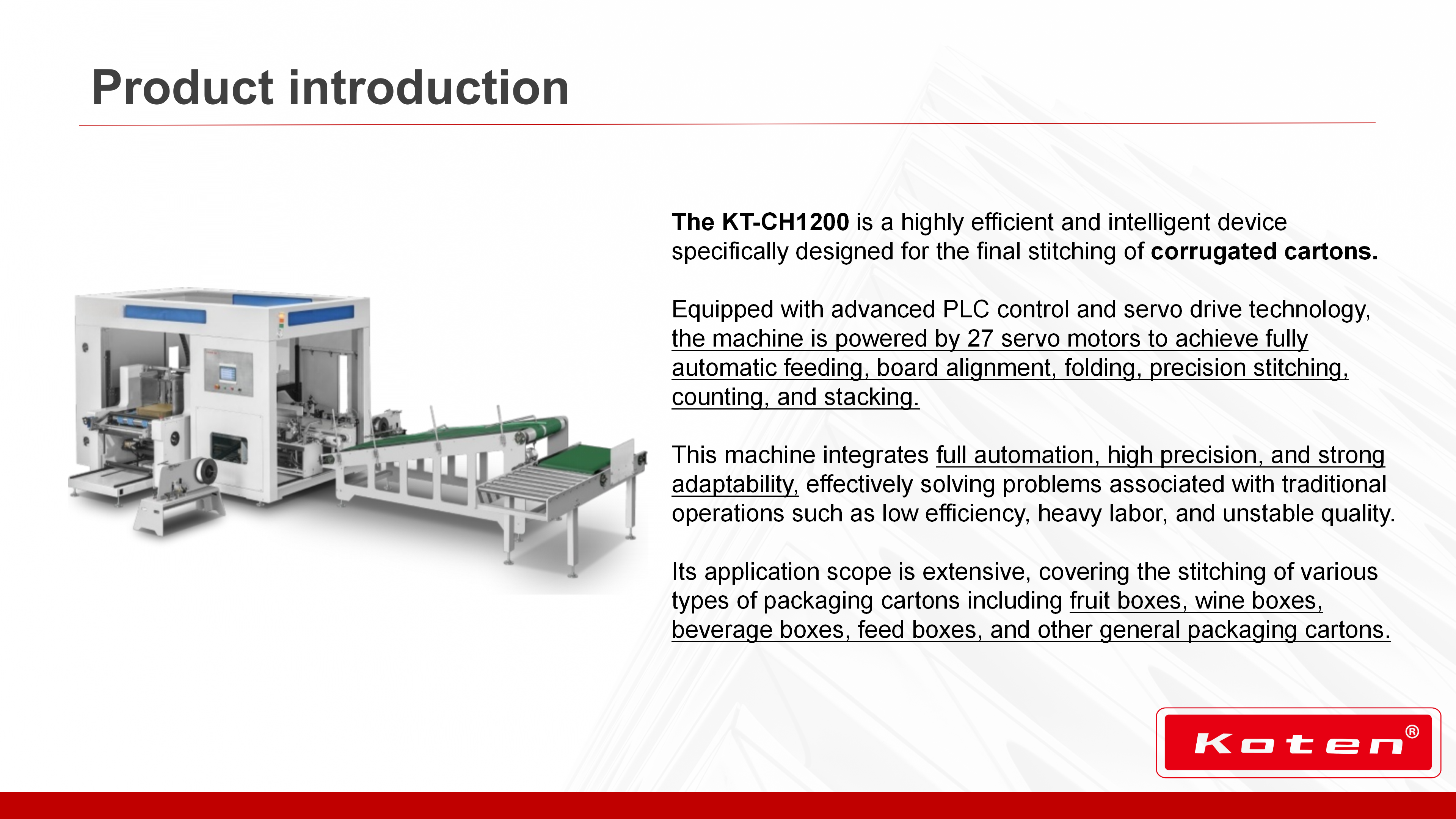

The KT-CH1200 is a highly efficient and intelligent device specifically designed for the final stitching of corrugated cartons.

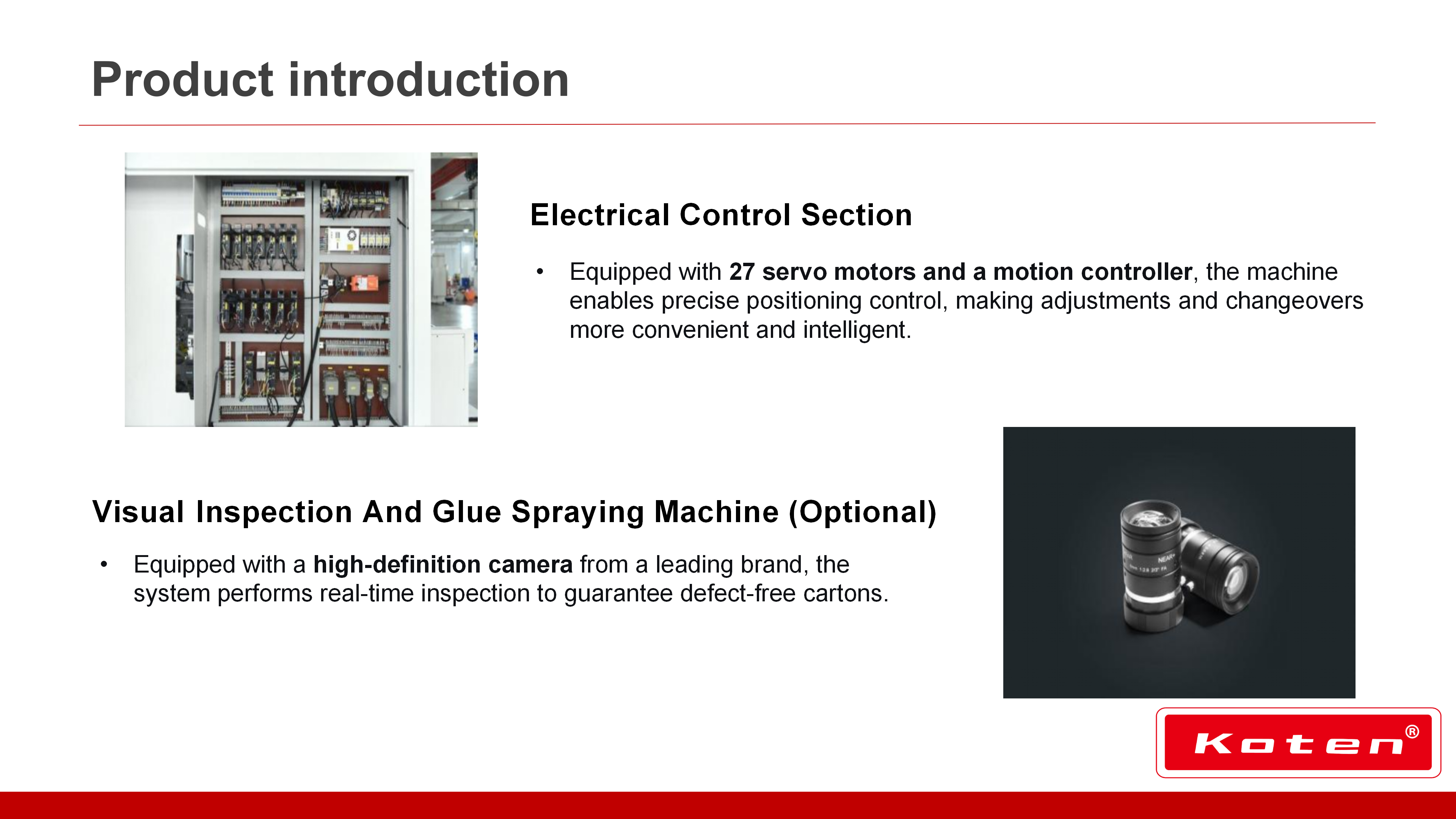

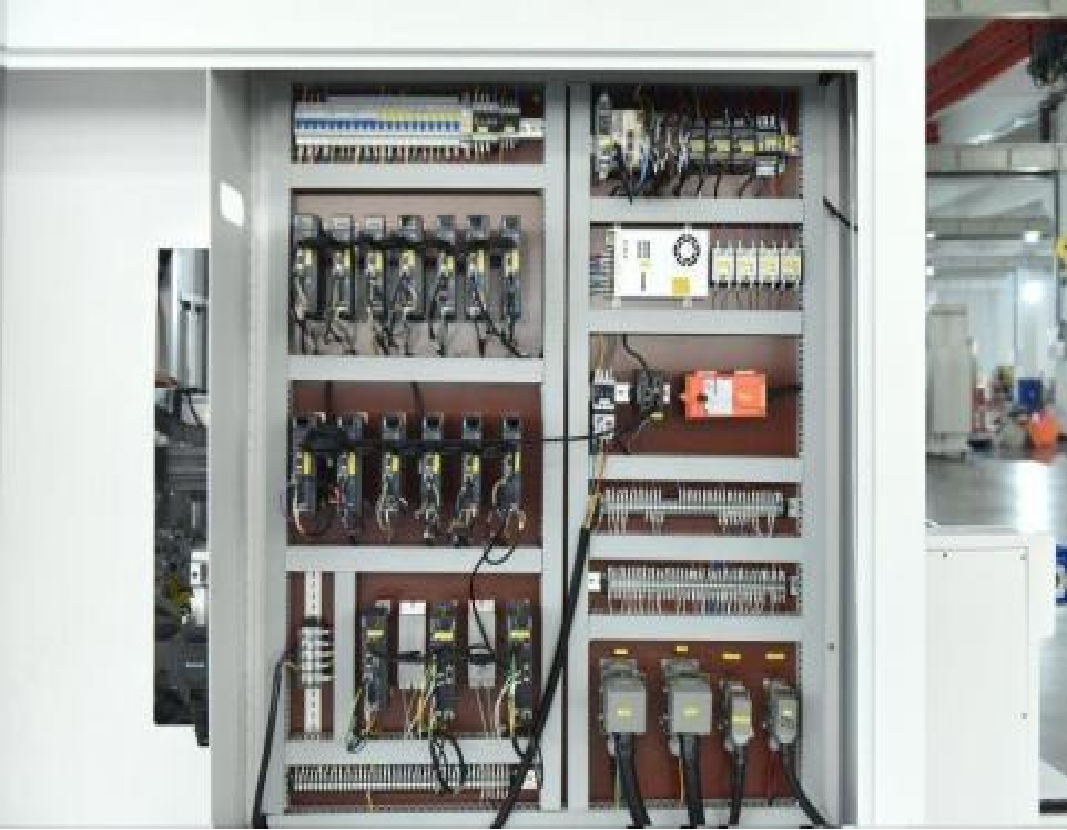

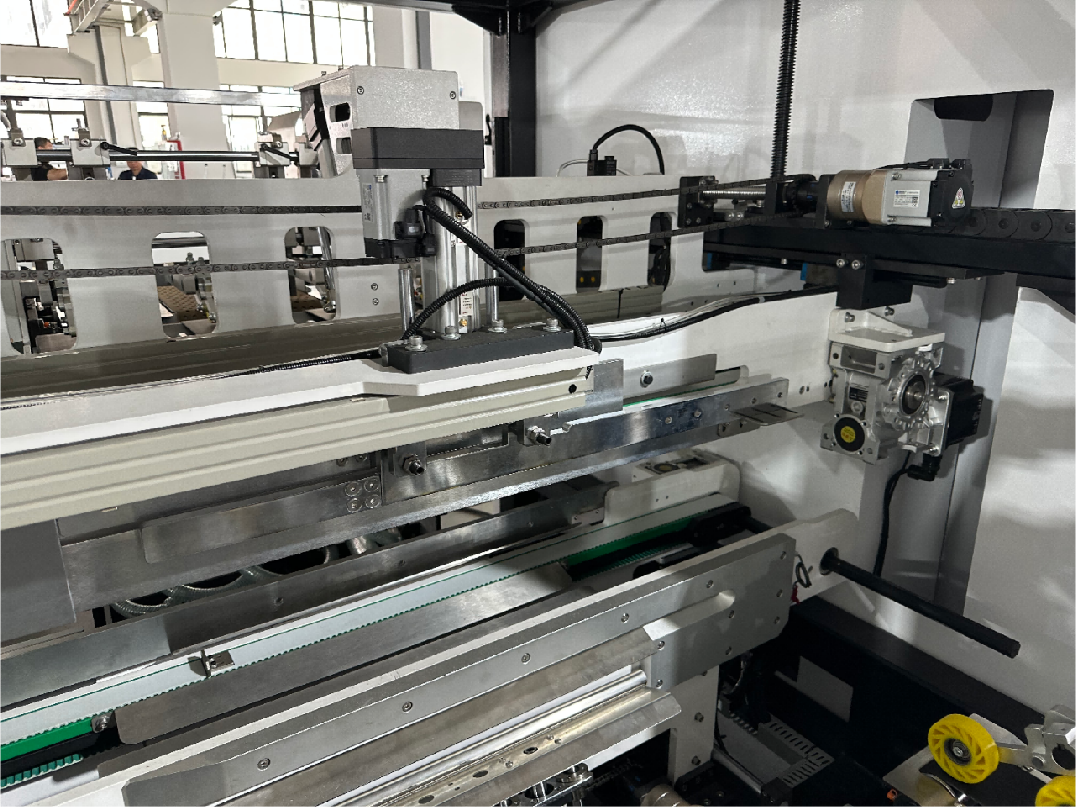

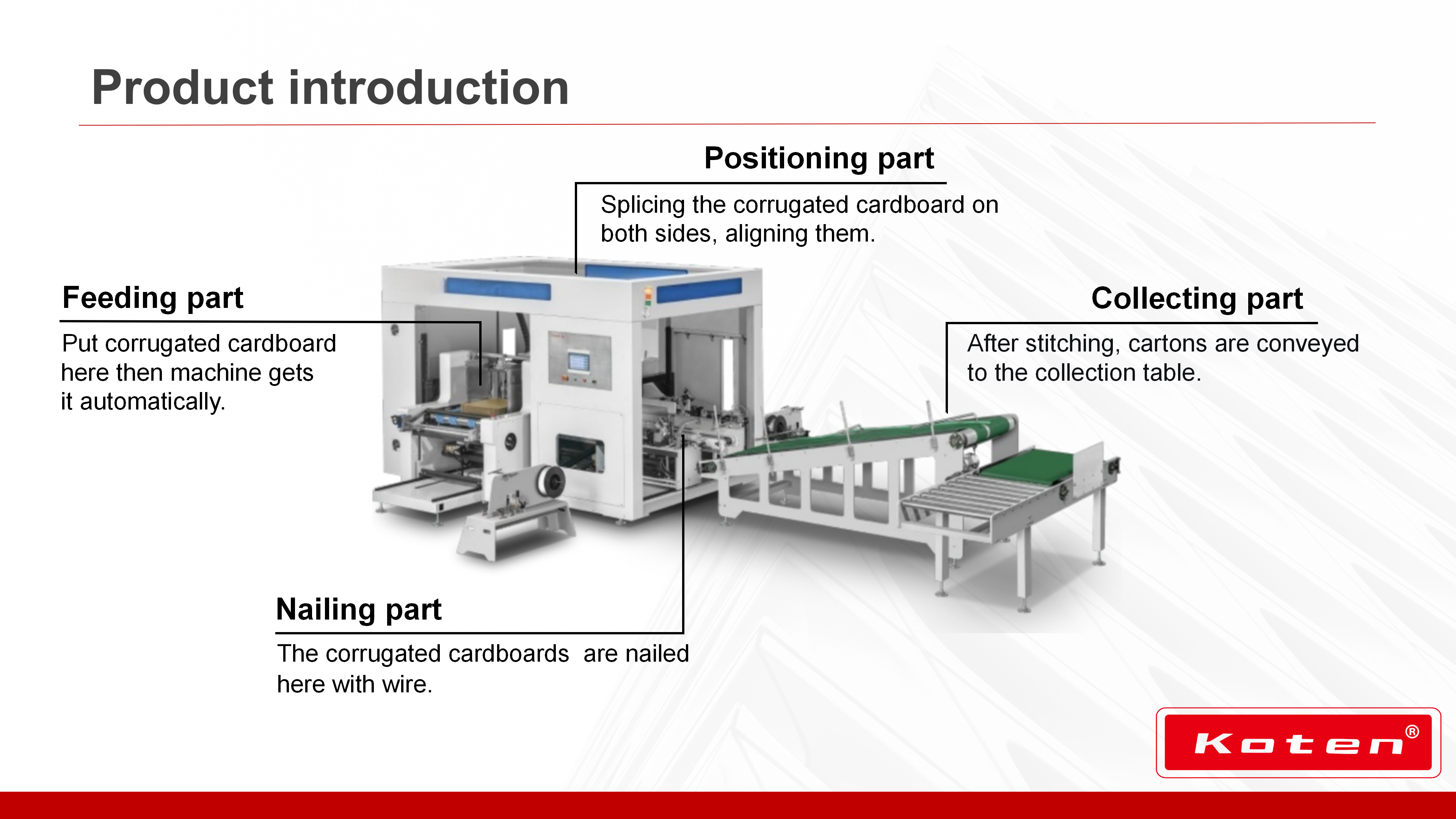

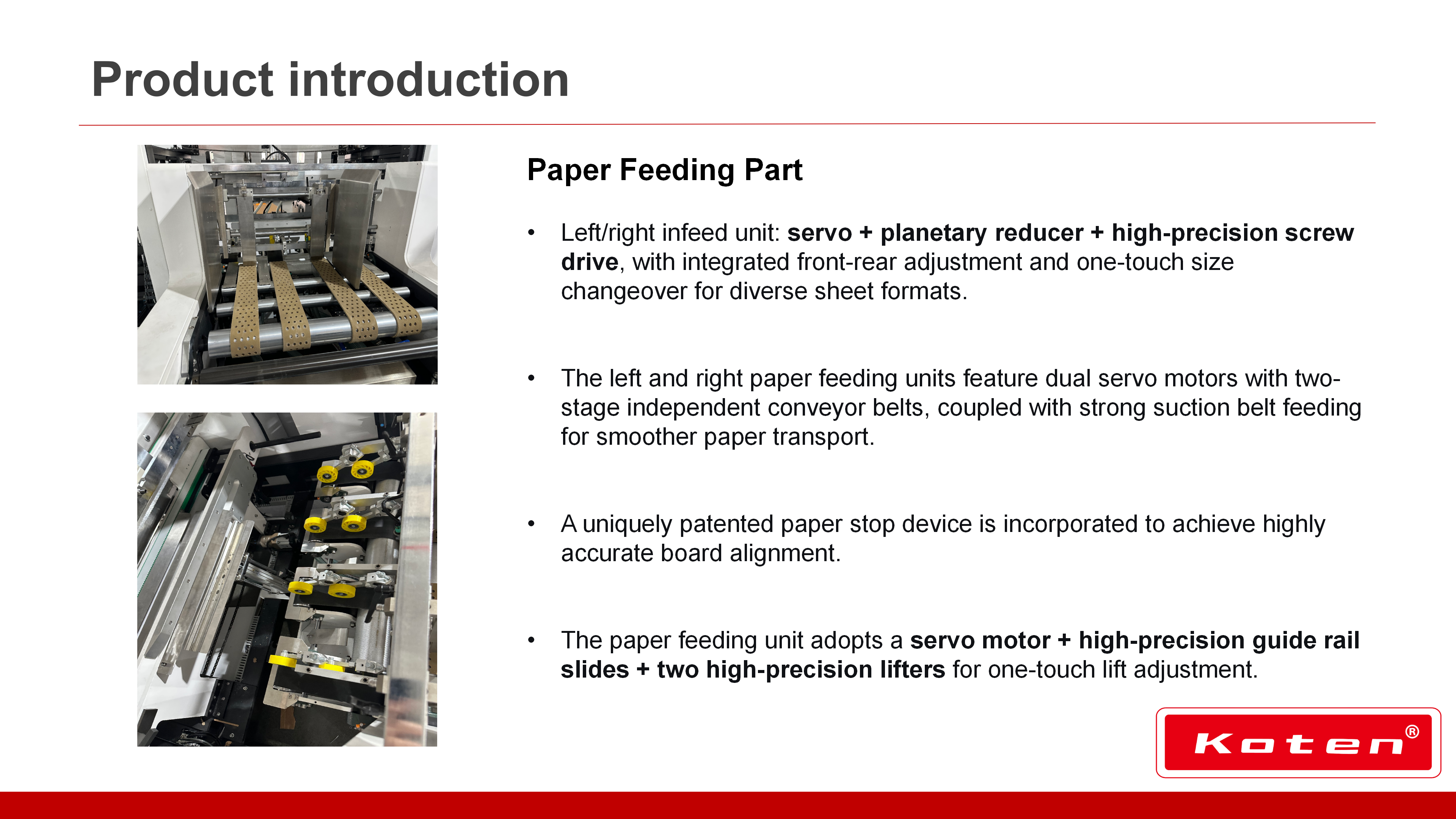

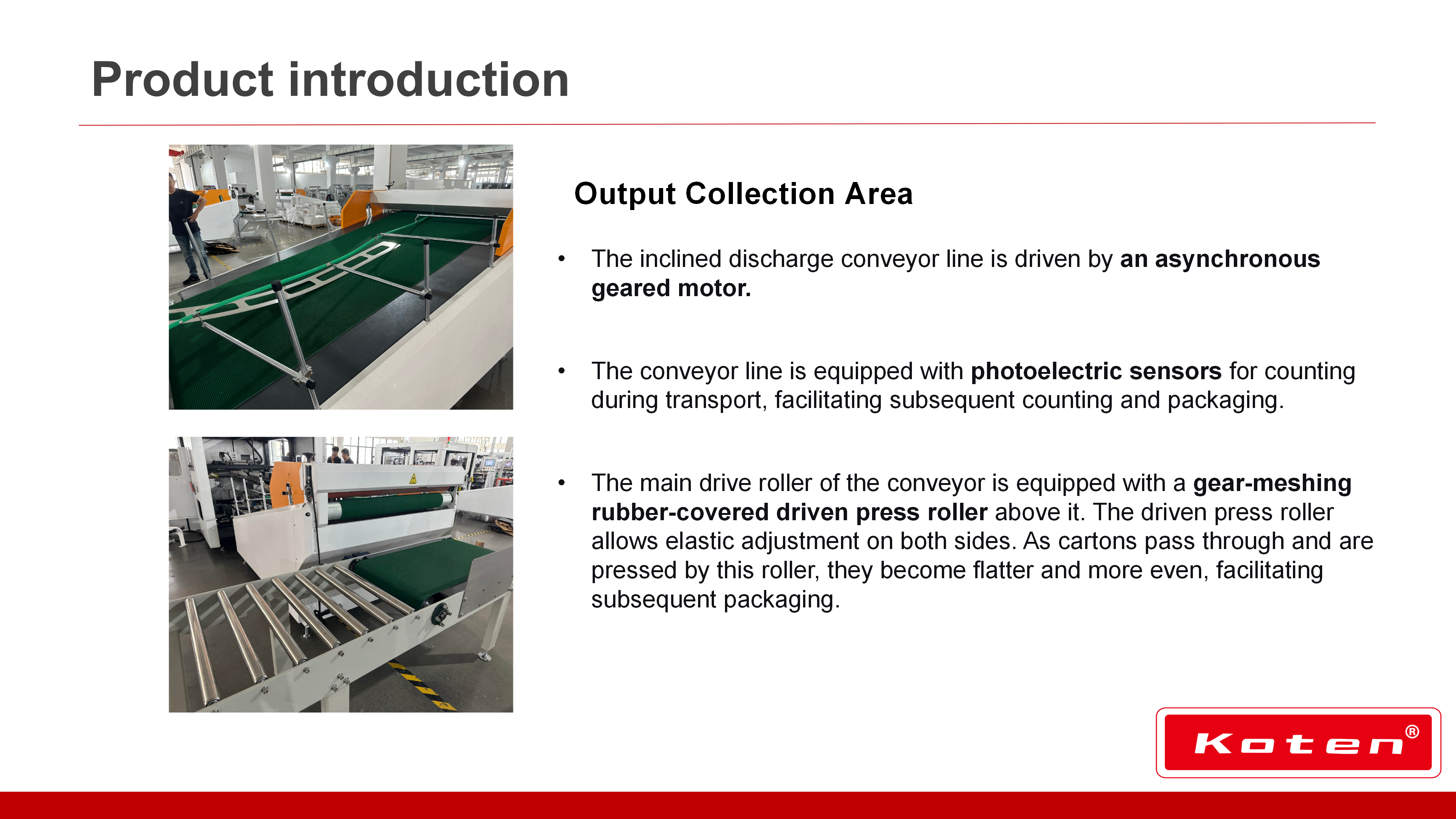

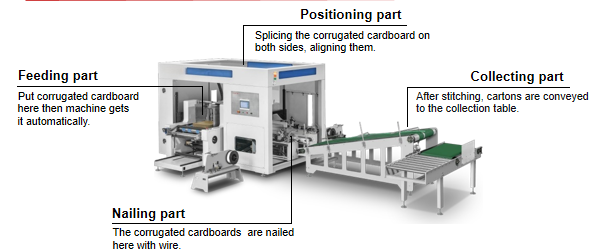

Equipped with advanced PLC control and servo drive technology, the machine is powered by 27 servo motors to achieve fully automatic feeding, board alignment, folding, precision stitching, counting, and stacking.
This machine integrates full automation, high precision, and strong adaptability, effectively solving problems associated with traditional operations such as low efficiency, heavy labor, and unstable quality.
Its application scope is extensive, covering the stitching of various types of packaging cartons including fruit boxes, wine boxes, beverage boxes, feed boxes, and other general packaging cartons.

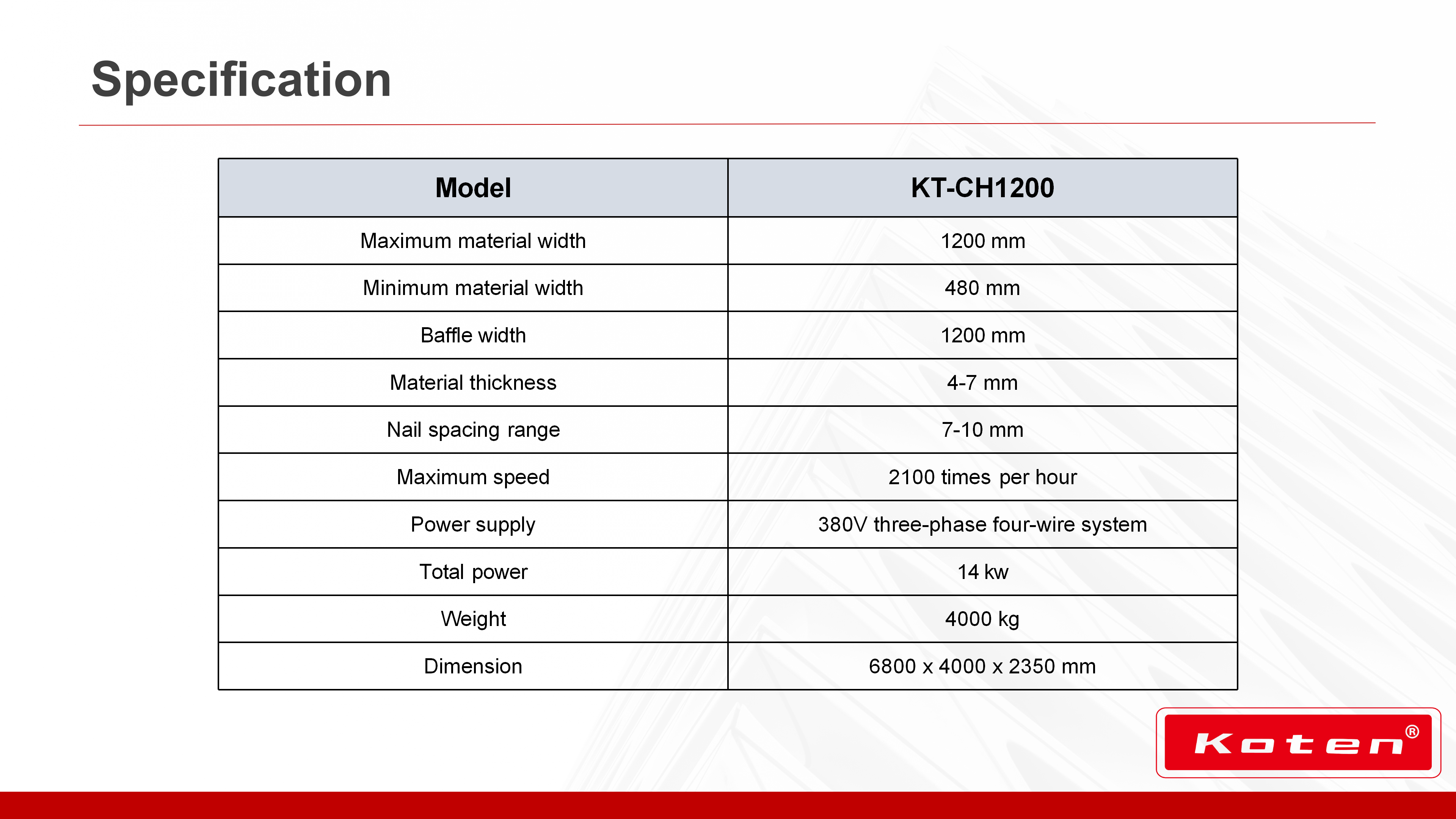

Model | KT-CH1200 |
Maximum material width | 1200 mm |
Minimum material width | 480 mm |
Baffle width | 1200 mm |
Material thickness | 4-7 mm |
Nail spacing range | 7-10 mm |
Maximum speed | 2100 times per hour |
Power supply | 380V three-phase four-wire system |
Total power | 14 kw |
Weight | 4000 kg |
Dimension | 6800 x 4000 x 2350 mm |
