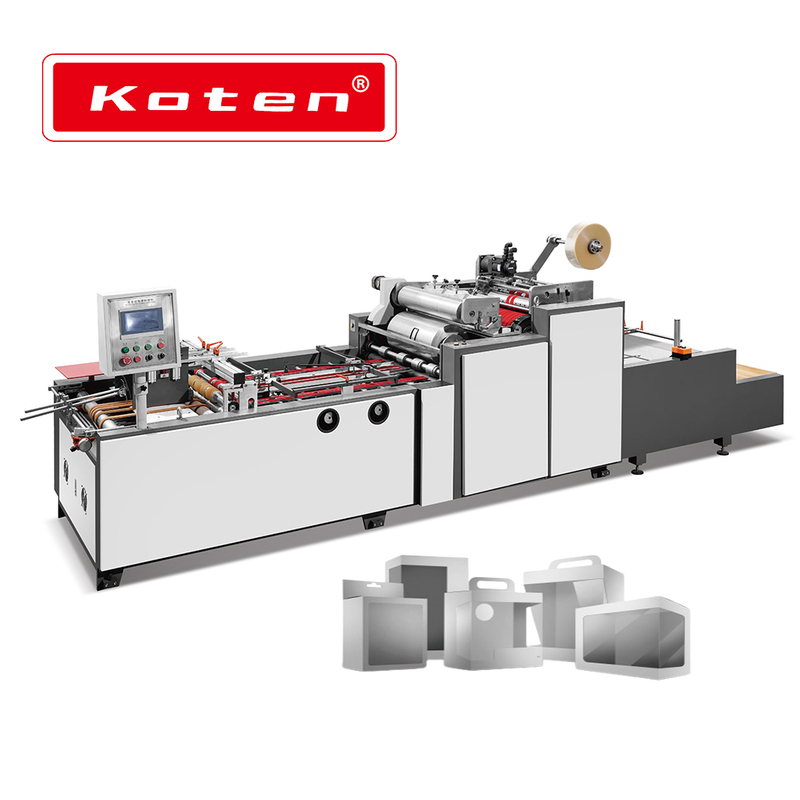

TC-650/880/1080
Koten
TC-650/880/1080
Negotiable
One set
T/T, L/C at sight.
50sets/month
By strong seaworthy wooden cases.
Within 30 days after get the deposit.
China
5263
| Quantity: | |
|---|---|

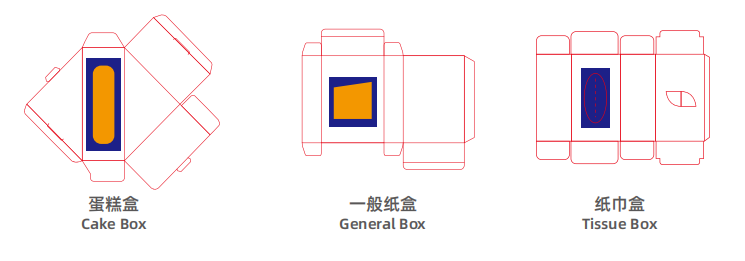

Punch & Crease Window Patching Machine is widely used for patching the window on the liquor box, gift box, cosmetic box, toy box and so on. It has punching and creasing function, special for corner window. It is the best machine for patching corner window.
Feeding part
1. Use servo system and sensor system,Setting the paper length automatic.
2. Use good frictional belt with longer life.
3. Drawing out the paper from bottom,no-stop add papers.
Gluing Part
1. Use sensor system, stop gluing when missing paper.
2. Use center-oriented device, can adjust the thickness of glue.
3. No stopping to adjust the position of glue.
4. Glue holder can be towed out, cleaning easy and corrosion resistant.
Applying film part
1. Use two sets of servo system, Guaranteed stability for high-speed operation , No stopping to adjust the length of the film.
2. Standard with cutting for tissue box function.
3. Patented mechanical structure, No stopping to adjust the position of the film. The accuracy is ±0.5mm
Delivery part
Sandwiching structure with independently adjustable speed to ensure perfect quality
Electrical part
The whole machine adopts PLC program control. All kinds of electrical parts are from famous imported brand.
Model | TC-650 | TC-880 | TC-1080 |
Paper Weight | 200 -1000 g/m² | 200 -1000 g/m² | 200 -1000 g/m² |
Capacity Per hour | 25000 | 25000 | 20000 |
Size range of Paper | Min.150(L) x 160(W)mm | Min.150(L) x 160(W)mm | Min.150(L) x 220(W)mm |
Max.600(L) x 650(W)mm | Max.780(L) x 880(W)mm | Max.780(L) x 1080(W)mm | |
Size Range of Window | Min.30(L) x 50(W)mm | Min.30(L) x 50(W)mm | Min.30(L) x 50(W)mm |
Max.300(L) x 350(W)mm | Max.350(L) x 400(W)mm | Max.350(L) x 450(W)mm | |
Film Thickness | 0.04-0.25mm | 0.04-0.25mm | 0.04-0.25mm |
Machine Power | 6.4 kw | 7.4 kw | 8.4 kw |
Machine Weight | 1800kg | 2200kg | 2700 kg |
Machine Size | 4500(L)x1200(W)x1600(H) mm | 5000(L)x1200(W)x1600(H)mm | 5000(L)x1700(W)x1600(H)mm |
