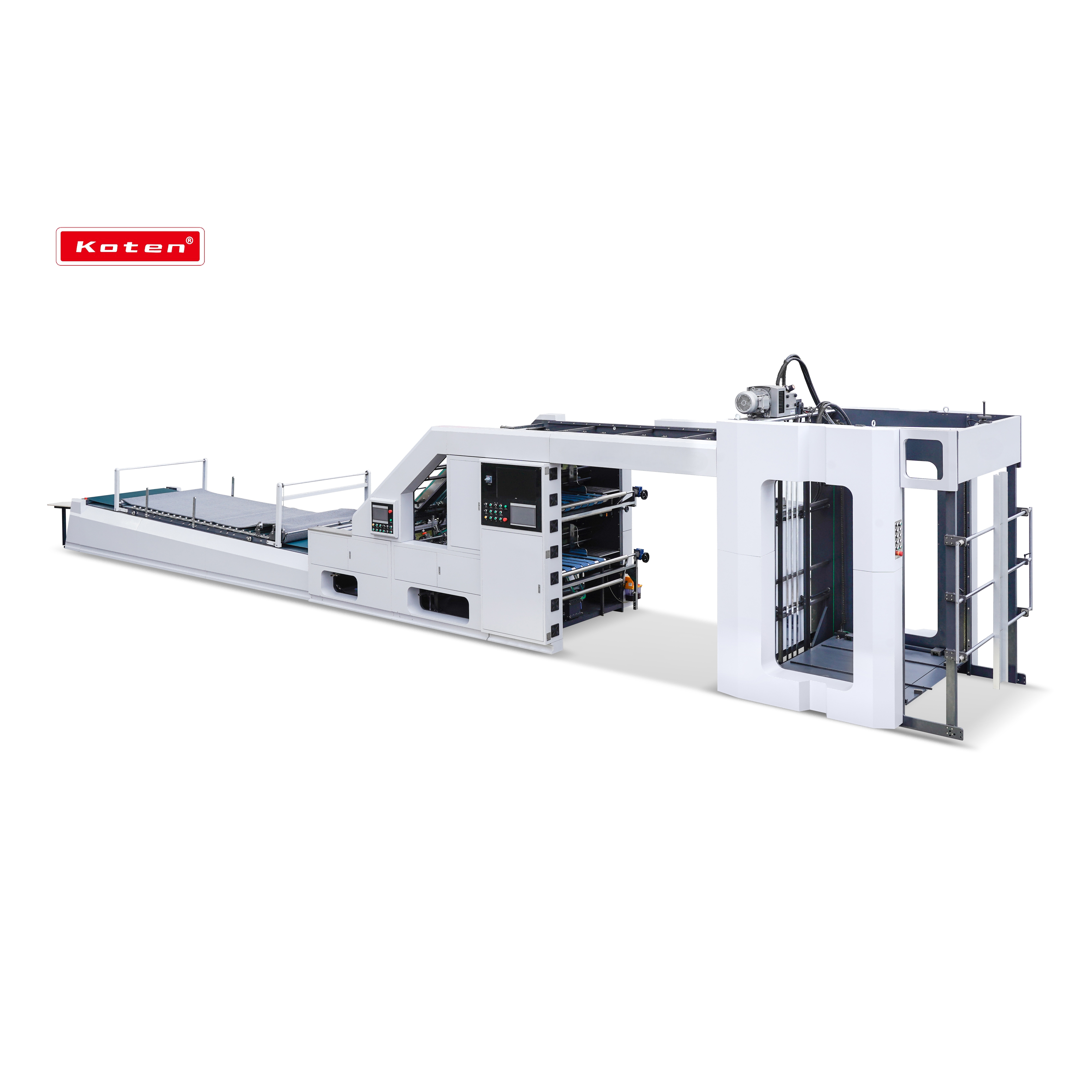

High Speed 5 Ply Flute Laminating Machine Automatic Corrugated Laminating 2+2+1 3+1+1

High Speed 5 Ply Flute Laminating Machine Automatic Corrugated Laminating 2+2+1 3+1+1

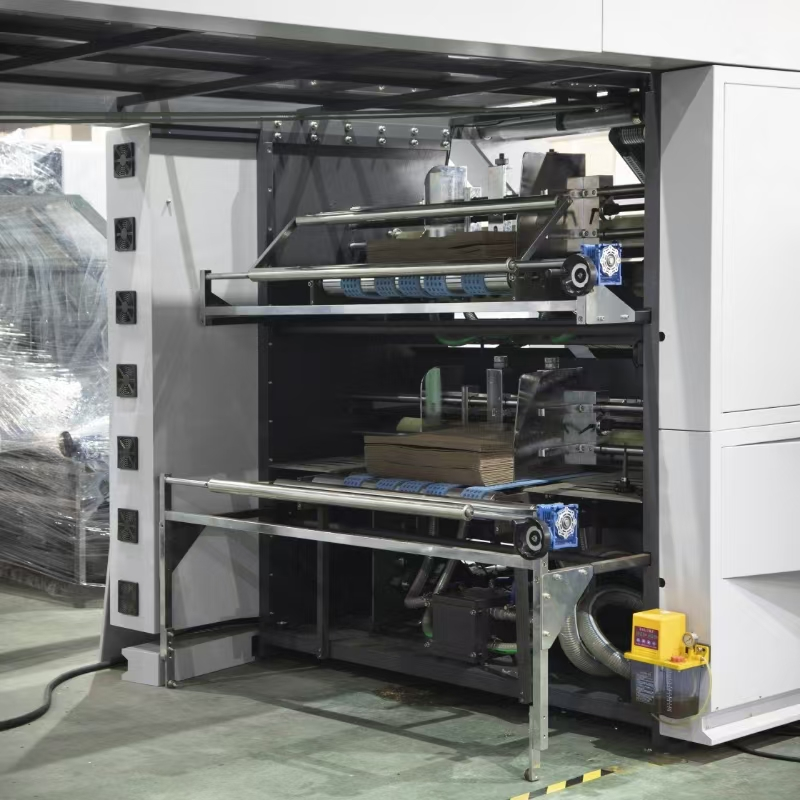

3 feeding unit, can laminating 3 layers and 5 layers of corrugated, fully automatic high speed machine, 1+1+1, 2+2+1, 2+1+1

Model:
NB-1450W
Brand:
Koten
Model:
NB-1450W
FOB Price:
Negotiate
Min.Order Quantity:
1
Payment Terms:
T/T, L/C At Sight
Supply Ability:
30 sets/month
Packaging:
By strong sea worthy package
Delivery Time:
Within 45 days after receipt of the deposit.
Place Of Origin:
China
Views:
3785

Quantity:
Availability:





Inquire Add to Basket

Product Description

Products Description

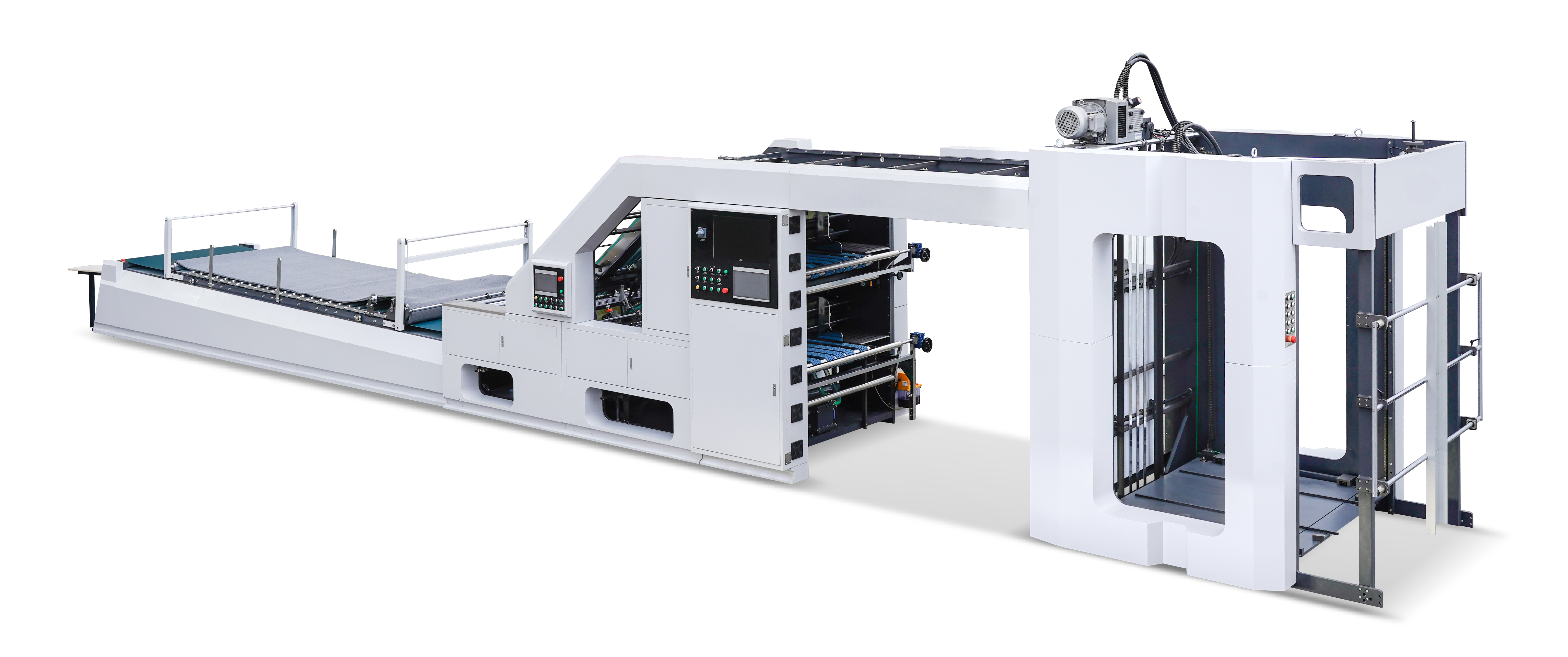

NB-1450W裱纸机

Product Description

5ply High Speed Automatic Flute Laminator is suitable for the lamination of printed cardboard paper with 3 ply and 1 ply corrugated sheet(3+1+1) which is mainly used in food, beverage boxes etc.

The machine adopts chasing registration method with the help of imported low-voltage parts, liquid sensor and motion control system.

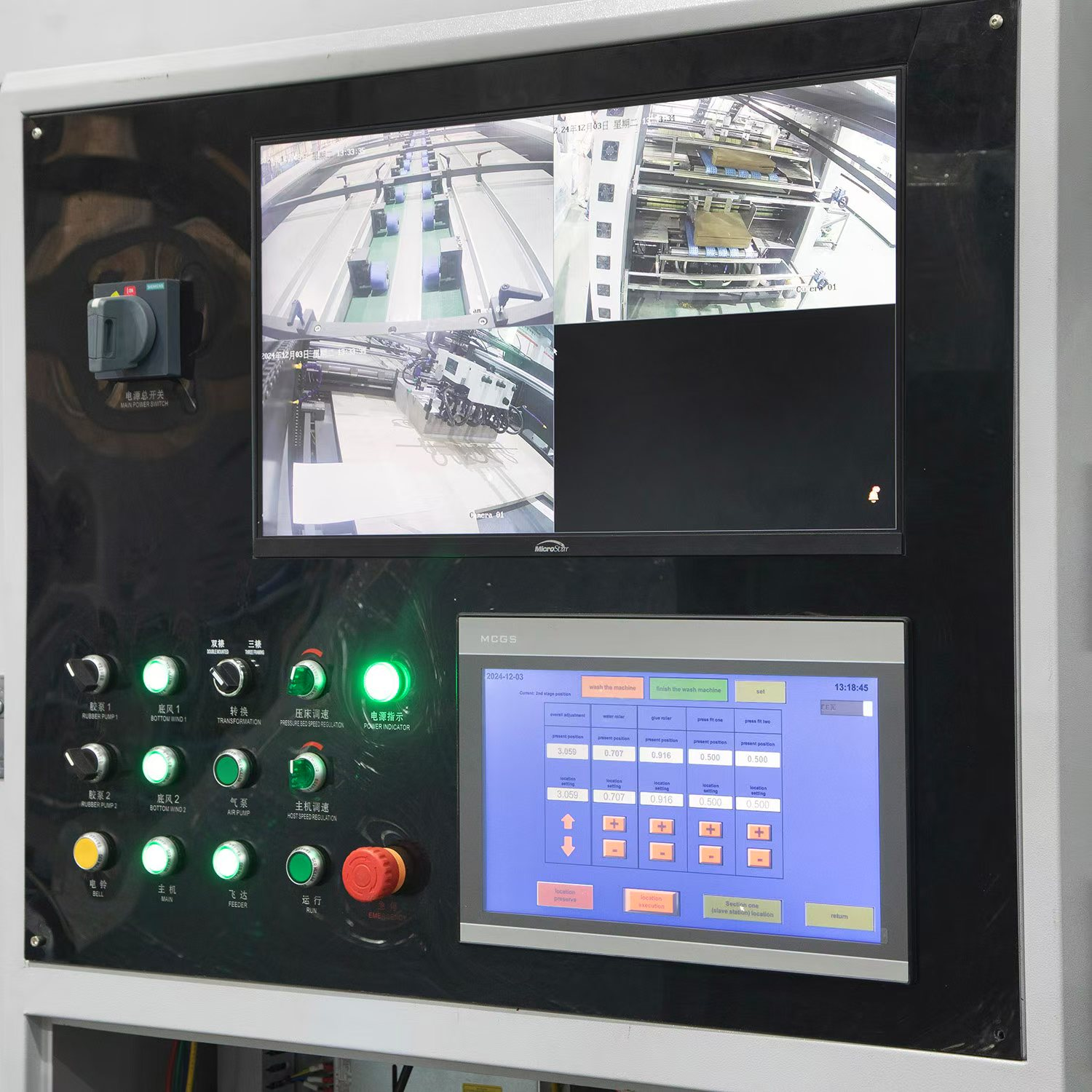

The whole machine adopts international leading motion controller, so this system can adjust the machine automatically after the paper sizes are input.

Compared with traditional model, our high-speed laminating machine can reach a maximum speed of 150m/min(single laminating), 120m/min(Three laminating) to achieve higher work efficiency.

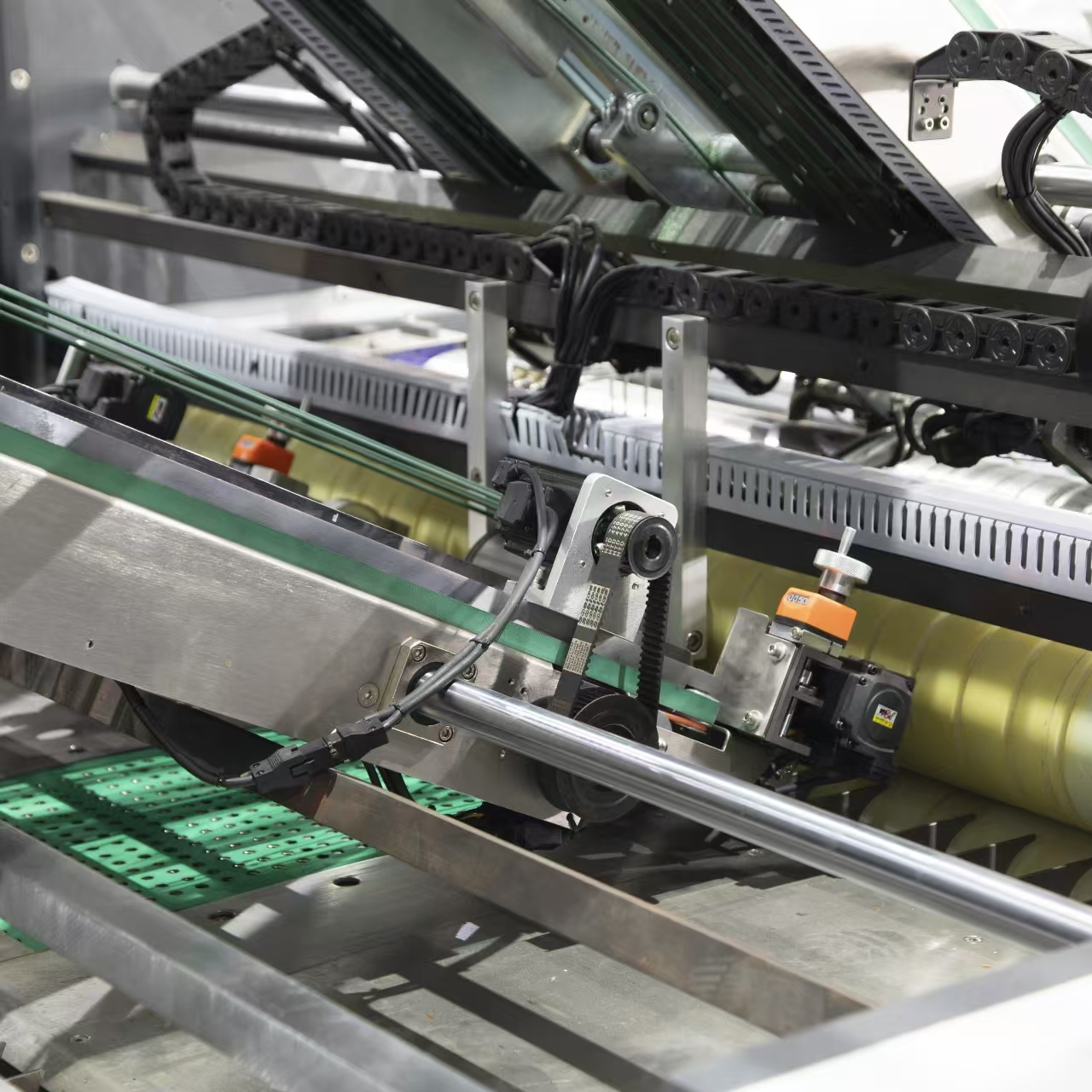

This high-speed laminating machine is equipped with the unique positioning-and-correcting device for the surface-sheet and self-developing side-lay device with the patent to make the machine run smoothly in high-speed.

Meanwhile, the turner for the delivery unit is optional to make the machine deliver sheets in non-stop.

Parameters

Model	NB-1450W	NB-1700W	NB-2100W
Max. Paper Size	1450x1450mm	1650x1650mm	2100x1950mm
Min.Paper Size	400*360mm
Suitable Paper	Top Sheet: 150~600g/m²
	Midsole Sheet: Singe F,E,C,B Bottom Sheet: 0.5-12A,B,C,D,E
Laminating Precision	±1.5mm
Speed Single Laminating	150m/min		150m/min(Only 5 ply)
Speed Three Laminating	120m/min
Main Power	48+8kw	51+8kw	38kw
Machine size	2306525702876 16.3T	2366527702876 19.7T	2536528763850 17T
Height of Bottom Paper	400mm
Height of Top Paper	1800mm

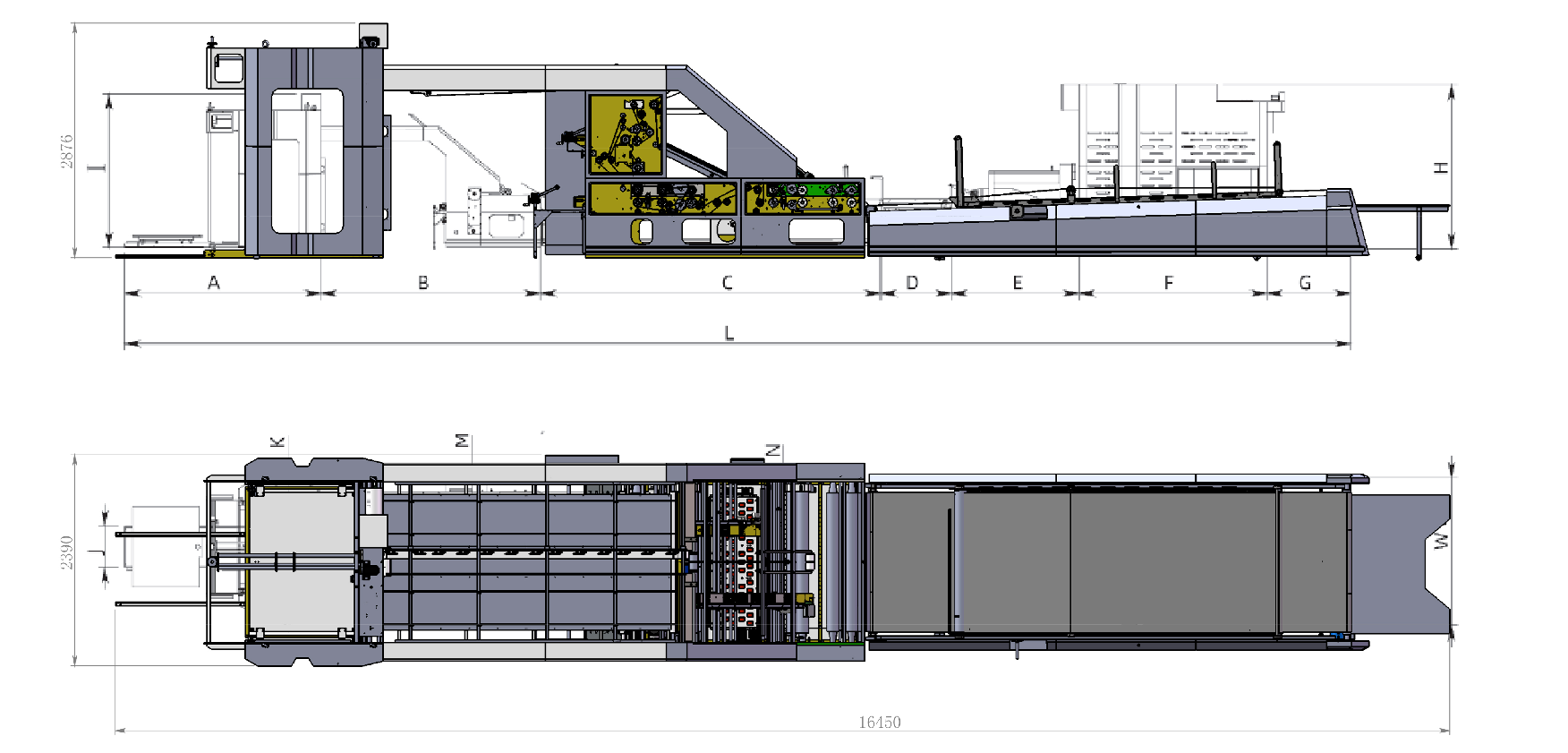

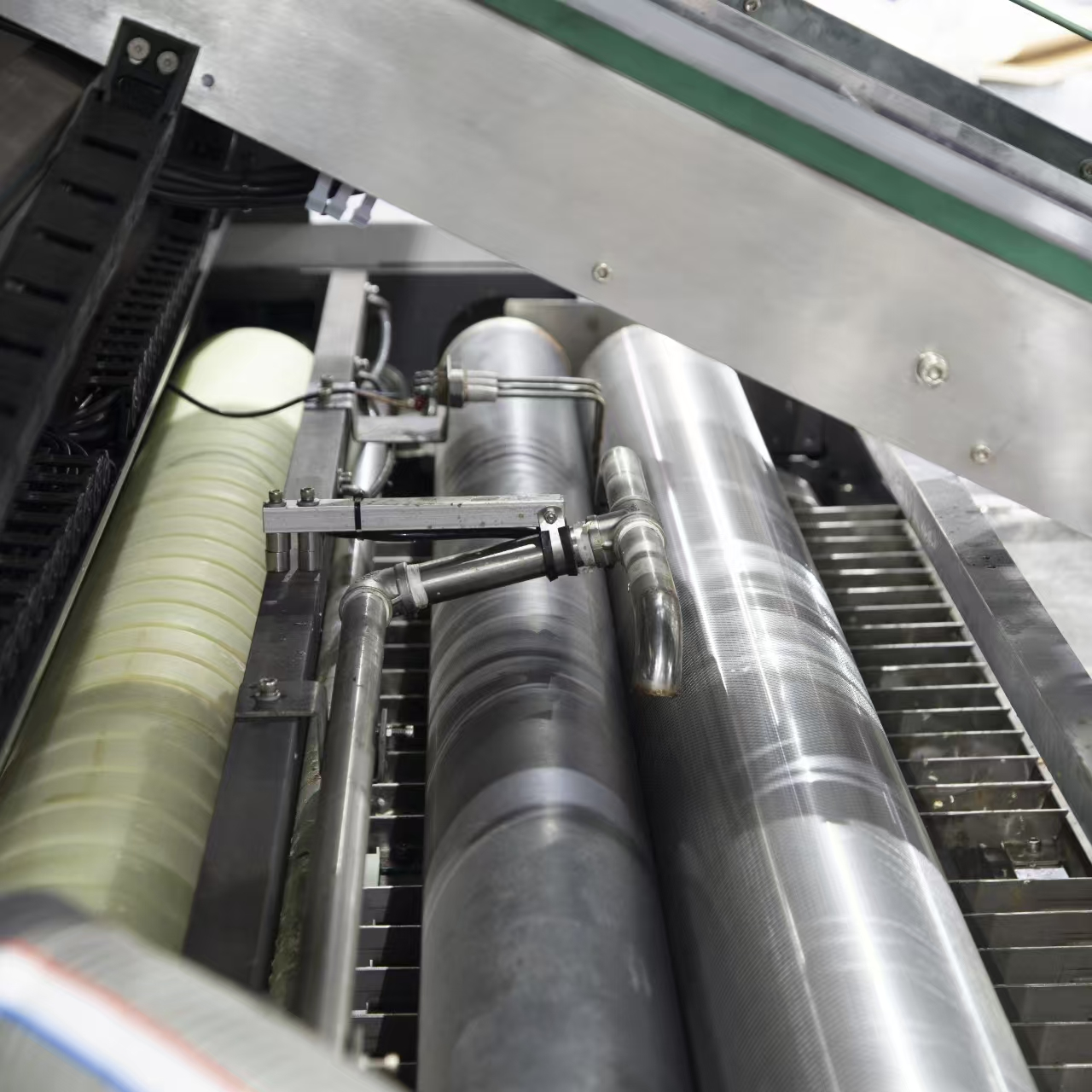

1450W基地图

Configuration

No.	Name	Brand	Origin
1	Air break switch	Schneider	France
2	Button	Muller	Germany
3	Sensor	Omron	Japan
4	Contactor	Schneider	France
5	Rely	Omron	China
6	Encoder	Autonics	Korea
7	Valve	SMC	Japan
8	Bearing	NSK	Japan
9	Synchronous belt	Gates	America
10	Conveying belt	NITTA	Japan
