NB-1200H/1450H/1650H/1700H/1950H
Koten
NB-1200H/1450H/1650H/1700H/1950H
Negotiate
1
T/T
30
By strong wooden cases
Within 30 days after get the deposit.
China
2658
| Quantity: | |
|---|---|

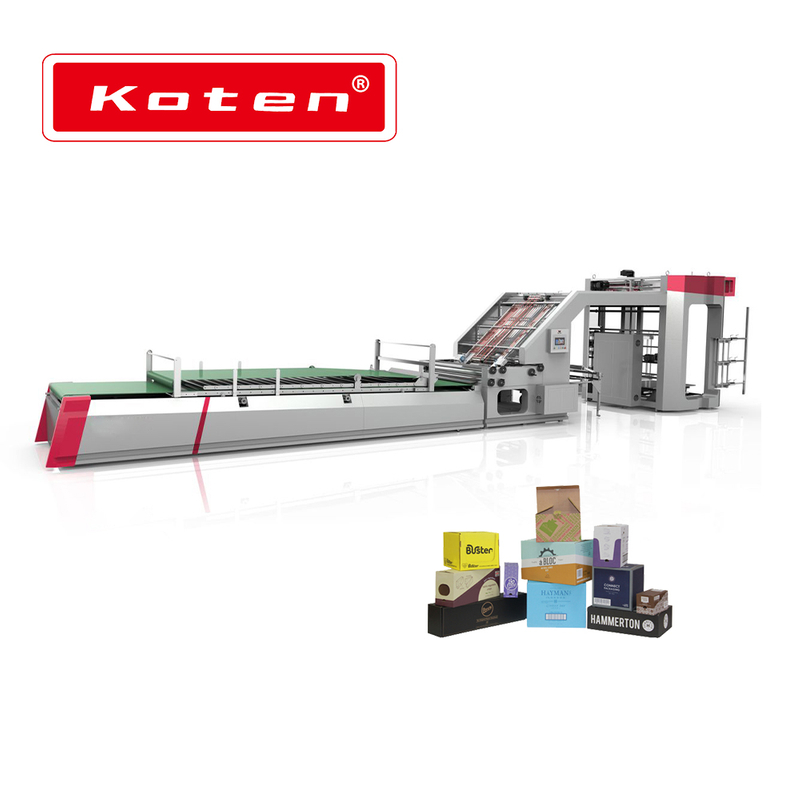

NB-1200H/1450H/1650H/1700H/1950H series flute laminating machine is suitable for the lamination of printed cardboard paper with 3 ply or 5 ply corrugated sheet which is mainly used in food, beverage boxes etc.
★ The top paper can pile up the height of 1m once time ,it makes delivery more easier and efficient.
★ Bottom corrugated sheet auto feeding by vacuum transport, it can continuously track according the feeding speed of top paper .
★ With entire new concept,front gauge registration, the position accuracy can reach1mm precision
| Model | NB-1200H | NB-1450H | NB-1650H | NB-1700H | NB-1950H |
| Max. Paper Size | 1200x1200mm | 1450x1450mm | 1650x1450mm | 1700x1650mm | 1950x1450mm |
| Min.Paper Size | 390x360mm | ||||
| Suitable Paper | Top Paper 128-600gsm | ||||
| Bottom Paper 0.5-12mm(Flute A,B,C,E,F,etc, 4ply corrugated paper, cardboard more than 300gsm) | |||||
| Laminating Accuracy | ±1mm | ||||
Max. Speed | 12000pcs/h. 150m/min. | ||||
| Main Power | 24.5kw | 24.5kw | 26kw | 26kw | 26kw |
| Machine Size | 12.5mx2mx2.5m | 13.5mx2.4mx2.4m | 14.5mx2.6mx2.7m | 14.5m*2.6m*2.4m | 17m*2.9m*2.7m |
| Height of Bottom Paper | 400mm | ||||
| Height of Top Paper | 1800mm | ||||
No. | Item | Brand | Origin |
1 | Air break switch | Schneider | France |
2 | Button | Muller | Germany |
3 | Sensor | Omron | Japan |
4 | Contactor | Schneider | France |
5 | Rely | Omron | Japan |
6 | Encoder | Autonics | Korea |
7 | Valve | SMC | Japan |
8 | Bearing | NSK | Japan |
9 | Synchronous belt | Gates | America |
10 | Conveying belt | NITTA | Japan |
Note: According to the needs of product optimization configuration, the supplier/origin of some components will be adjusted appropriately without prior notice. The seller guarantees that the parts are of the same grade before and after the adjustment, and will not have a negative impact on the goods under the contract. Thank you!
