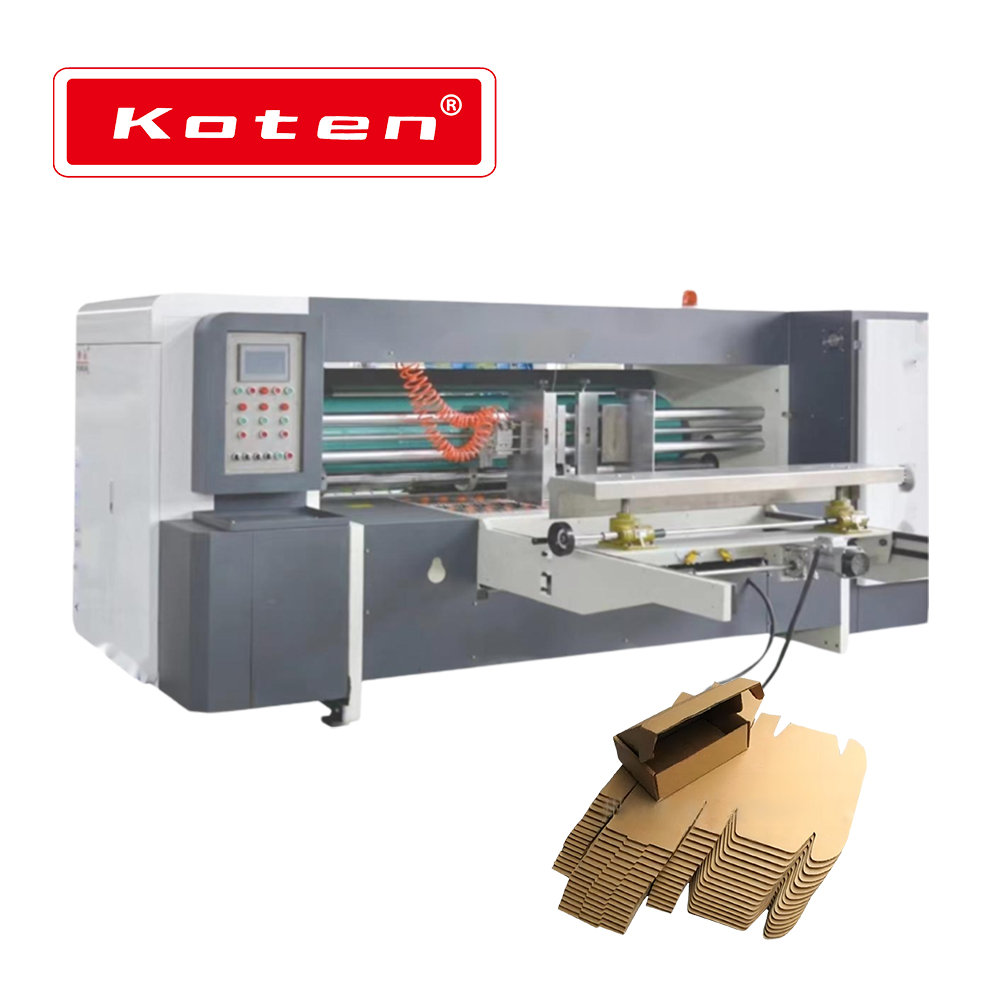

High Speed Circular Press Circular Die Cutting Machine

Function and Features:

•The main electrical appliances of the entire machine are all from well-known domestic brands.

•This machine is equipped with a variable frequency motor and frequency converter.

•The bidirectional self-locking function is convenient and fast for adjustment.

•The gear of this machine adopts 40Cr gear shaving.

•All roller shafts are chrome plated to enhance hardness.

•Automatic version alignment, automatic reset, quick and convenient order adjustment.

•Modular design allows for any combination of multi-color printing units.•Electric adjustment of the side

baffle of the paper feeding section.

•Paper feeding department

Adopting a leading edge paper feeding system.

1) Leading edge paper feeding, increasing fan flow, maintaining accuracy during high-speed and

low-speed paper feeding, with a minimum paper feeding width of 380mm.

2) Segmental adjustment of airflow and cardboard size.

3) By positioning the front baffle, it reduces paper feeding errors and improves the accuracy of

paper feeding, printing, and die-cutting.

4) The left and right side baffle motors control left and right movement.

5) The rear cardboard holder motor controls forward and backward movement.

6) Manually adjust the gap between the front cardboard.

7) Comes with continuous and spaced paper feeding functions. (You can choose continuous or

spaced paper feeding according to your needs).

Paper feeding upper and lower rollers

 1) Upper roller; The outer diameter of the steel pipe is 155mm, and the surface is wrapped with

wear-resistant nitrile rubber.

 2) Lower roller: The surface of the paper feeding roller with an outer diameter of 155mm is

embossed and plated with hard chromium.

 3) The gap adjustment of the paper feeding pressure roller adopts a self-locking structure,

with an adjustment range of 0-12mm.

 4) The power transmission of the pressure roller adopts a rolling cross coupling transmission

to reduce wear and make the transmission more balanced.

Rubber cushion roller

1) Adopting a 1:900 crankshaft rotating and reversing 30mm floating transverse structure.

2) The outer diameter of the rubber cushion roller is φ 389mm.

3) The rubber cushion roller is made of high-quality steel, with a ground surface and hard

chrome plating.

4) Balance correction to increase operational stability.

5) The thickness of the rubber pad is 8mm, and the width is 250mm.

6) The gap adjustment between the rubber cushion roller and the knife mold roller adopts a

self-locking structure, with an adjustment range of 0-16mm.

7) The automatic compensation structure of the rubber cushion roller automatically controls

the speed of the rubber cushion roller.

8) Cut and flatten the structure of the rubber cushion roller, timely trim the surface of the

rubber cushion, and maintain the flatness of the rubber cushion roller.

Knife mold roller φ 360mm

1) The knife mold roller is made of high-quality steel, with a ground surface and hard chromium plating.

2) Dynamic balance correction to increase operational stability.

3) The spacing between the fixed screw holes of the knife mold is 100mm horizontally, 18 evenly

divided radially, and the screw holes are M10.

4) The applicable pressure line height is 22.60mm.

5) The thickness of the wooden template is 13mm, and the height of the blade is 25.4mm

6) The width of the Youli knife is 7mm, and imported Youli knives are used, ensuring both strength

and toughness.

7) The box height is manually adjusted using four synchronous blades.

Die cutting phase adjustment mechanism

1) Planetary gear construction

2) The die-cutting phase is adjusted 360 degrees using computer and electric digital control

(both running and stopping can be adjusted)

3) The knife mold roller is manually adjusted horizontally, with an adjustment range of ± 5mm.

Paper guide roller

1) The gap adjustment adopts a self-locking structure, with an adjustment range of 0-12mm.

2) The power transmission of the paper guide roller adopts a rolling cross coupling transmission

to reduce wear and make the transmission more stable.

Paper receiving arm

1) This machine has manual and automatic operation.

2) The paper receiving arm transmission belt can be adjusted separately for tightness, without

 being limited by the length of the belt.

3) The paper stacking speed can be adjusted arbitrarily within a certain range.

Platform lifting

1) Powerful chain drive.

2) The stacking height is 1600mm.

3) The platform lifting transmission motor is equipped with a braking function, allowing the

platform to maintain a fixed position and not slide down.

Paper receiving baffle

1) The pneumatic action of the paper receiving tray automatically extends to support the

cardboard when it reaches the predetermined height.

2) Manually adjust the position of the tailgate.

3) Flat wrinkled belt to prevent cardboard from slipping.
