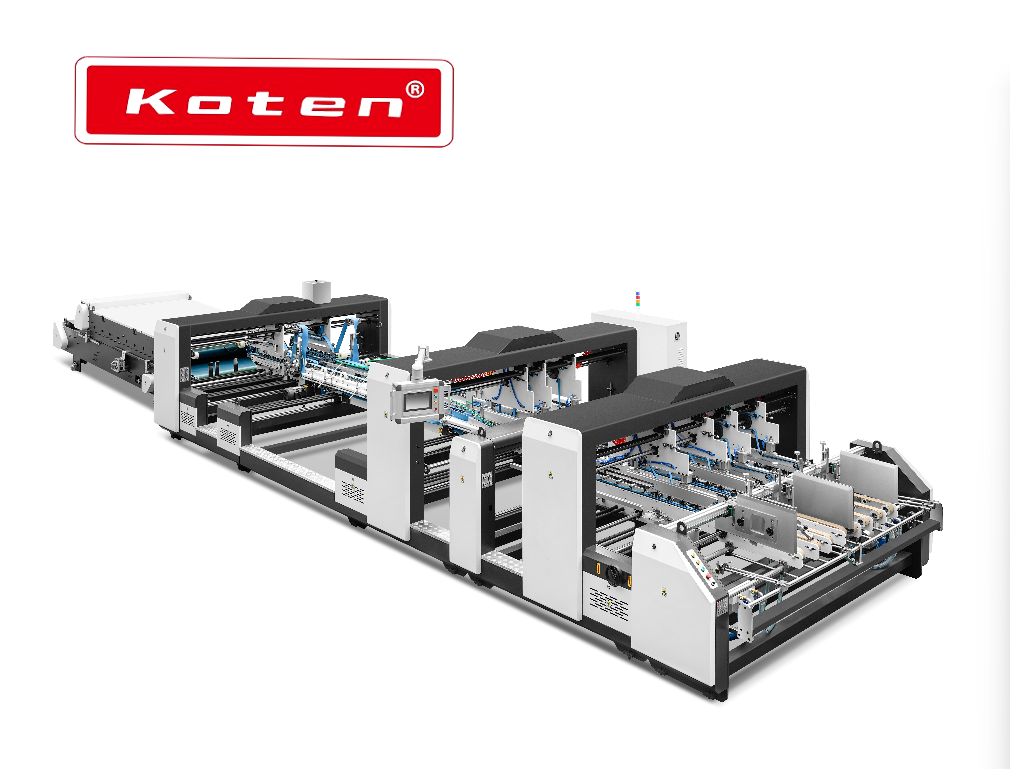

High Speed Double Piece Folder Gluer Machine

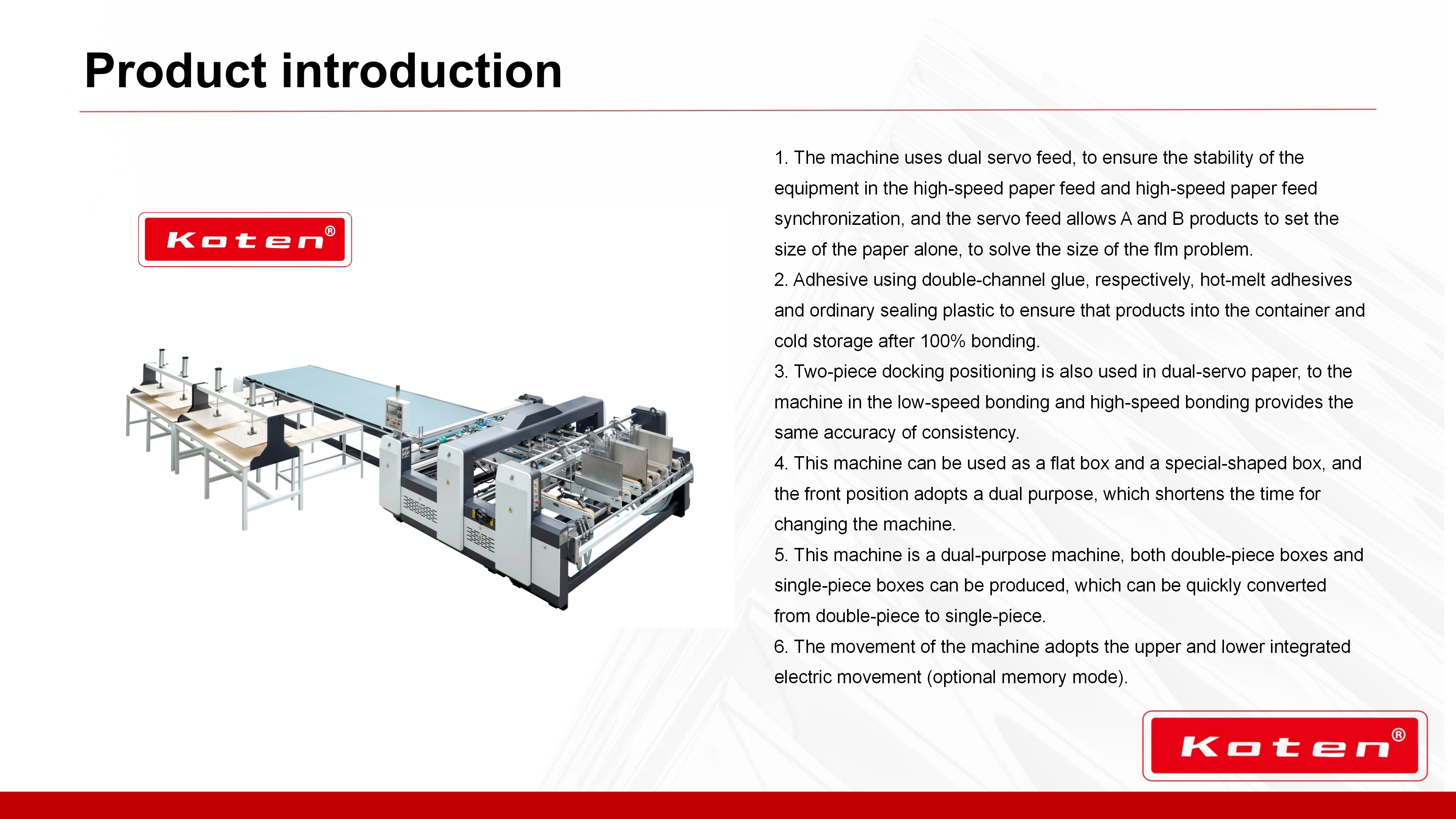

1. The machine uses dual servo feed, to ensure the stability of the equipment in the high-speed paper feed and high-speed paper feed synchronization, and the servo feed allows A and B products to set the size of the paper alone, to solve the size of the flm problem.
2. Adhesive using double-channel glue, respectively, hot-melt adhesives and ordinary sealing plastic to ensure that products into the container and cold storage after 100% bonding.
3. Two-piece docking positioning is also used in dual-servo paper, to the machine in the low-speed bonding and high-speed bonding provides the same accuracy of consistency.
4. This machine can be used as a flat box and a special-shaped box, and the front position adopts a dual purpose, which shortens the time for changing the machine.
5. This machine is a dual-purpose machine, both double-piece boxes and single-piece boxes can be produced, which can be quickly converted from double-piece to single-piece.
6. The movement of the machine adopts the upper and lower integrated electric movement (optional memory mode).
  • LY-2300(Multi-Station)

  • KOTEN

Size:
Availability:
Quantity:
sharethis sharing button

High Speed Double Piece Folder Gluer Machine

Products Description

LY-2300多工位(1)_01LY-2300多工位(1)_04LY-2300多工位(1)_05LY-2300多工位(1)_03LY-2300多工位(1)_02LY-2300多工位(1)_06

Slice 1Slice 2Slice 3Slice 4Slice 5Slice 6Slice 7Slice 8

Slice 9
