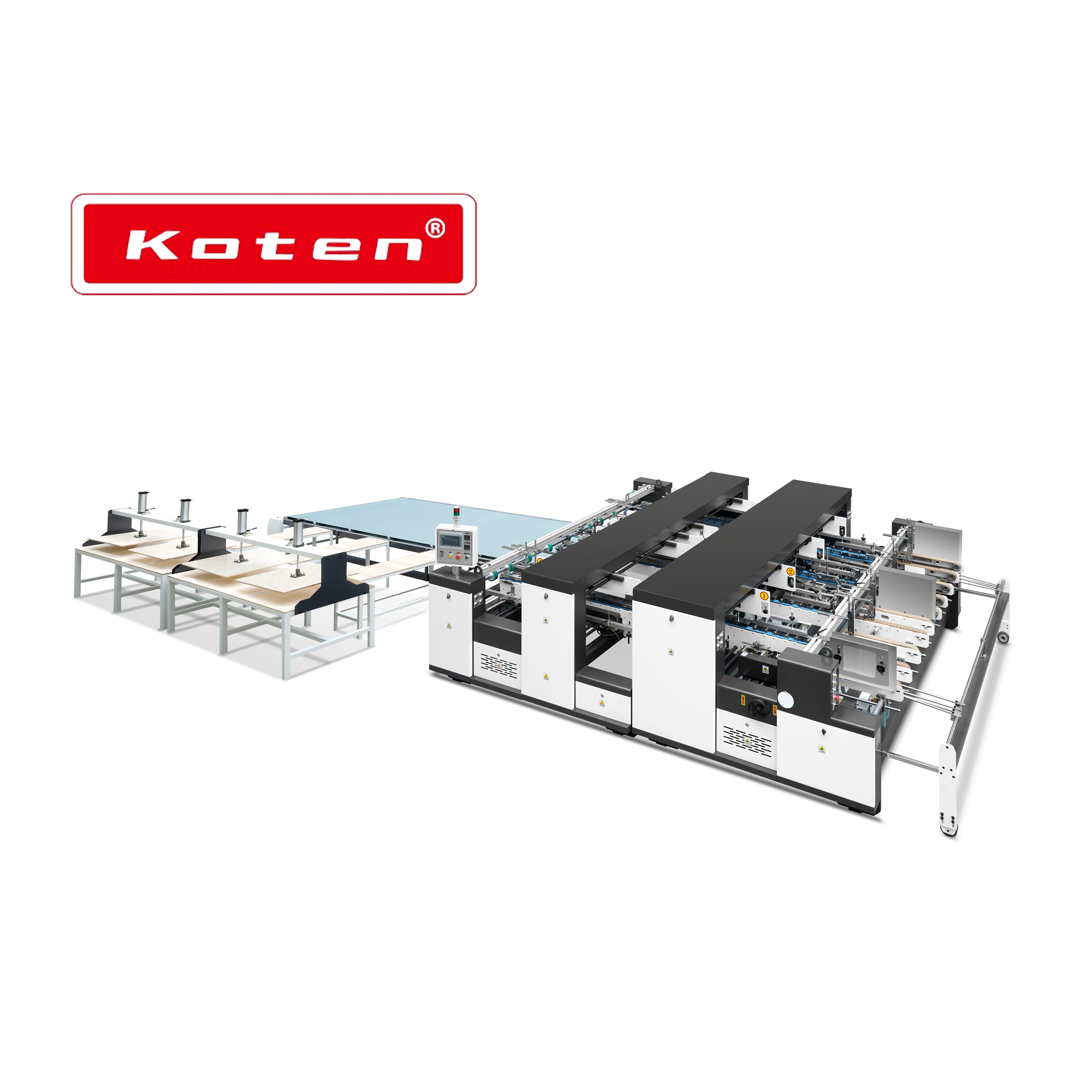

High Speed Double-Sheet Folder Gluer Machine (Multi-Station) LY-3500

1. The machine uses dual servo feed, to ensure the stability of the equipment in the high-speed paper feed and high-speed paper feed synchronization, and the servo feed allows A and B products to set the size of the paper alone, to solve the size of the flm problem.
  • LY-3500(Multi-Station)

  • KOTEN

  • Negotiable

  • 1

  • T/T, L/C at sight.

  • 30sets/month

  • By strong seaworthy packaging.

  • after received 30% deposit.

  • China

  • 7381

Size:
Availability:
Quantity:
sharethis sharing button

High Speed Double-Sheet Folder Gluer Machine (Multi-Station)

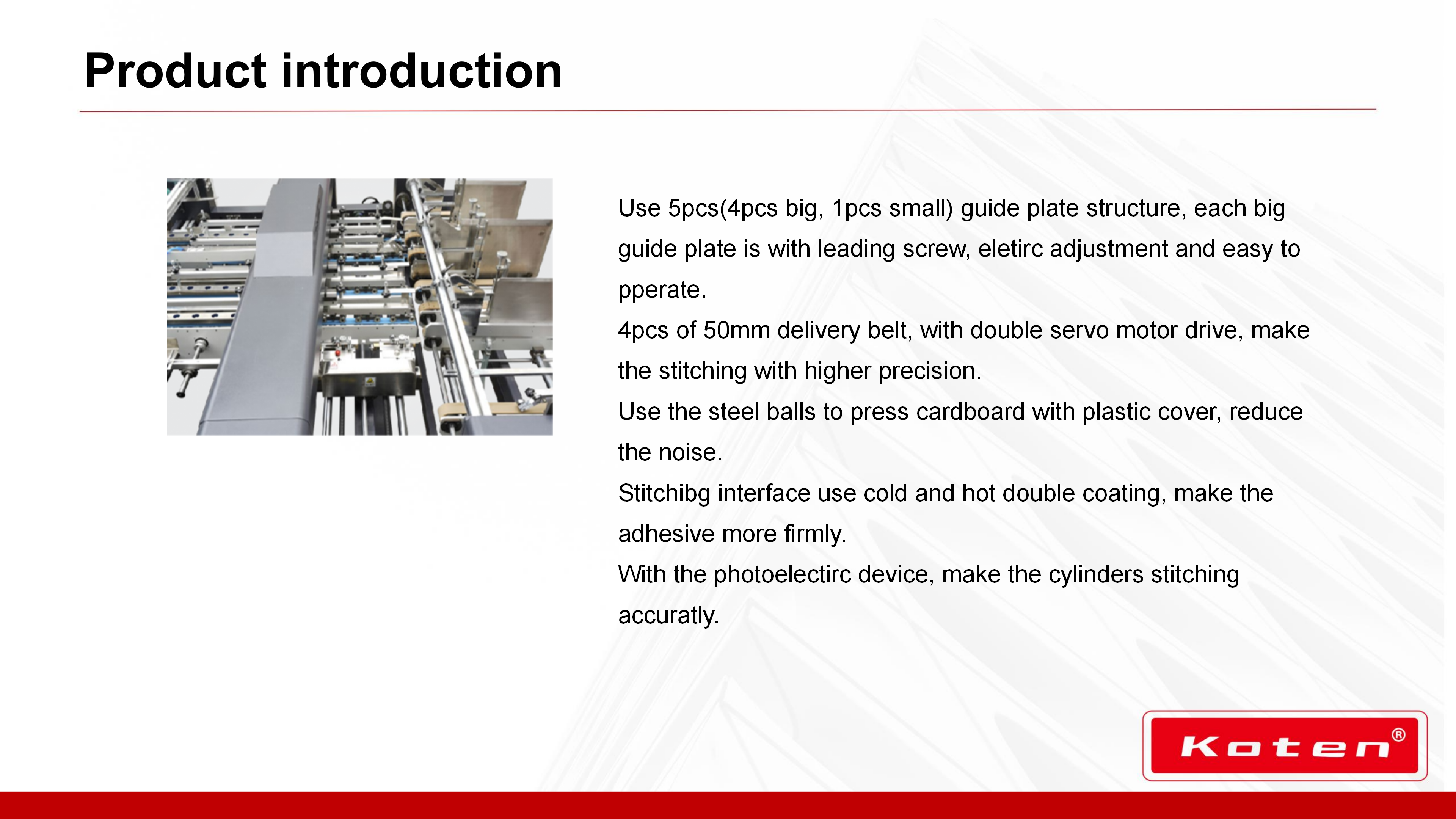

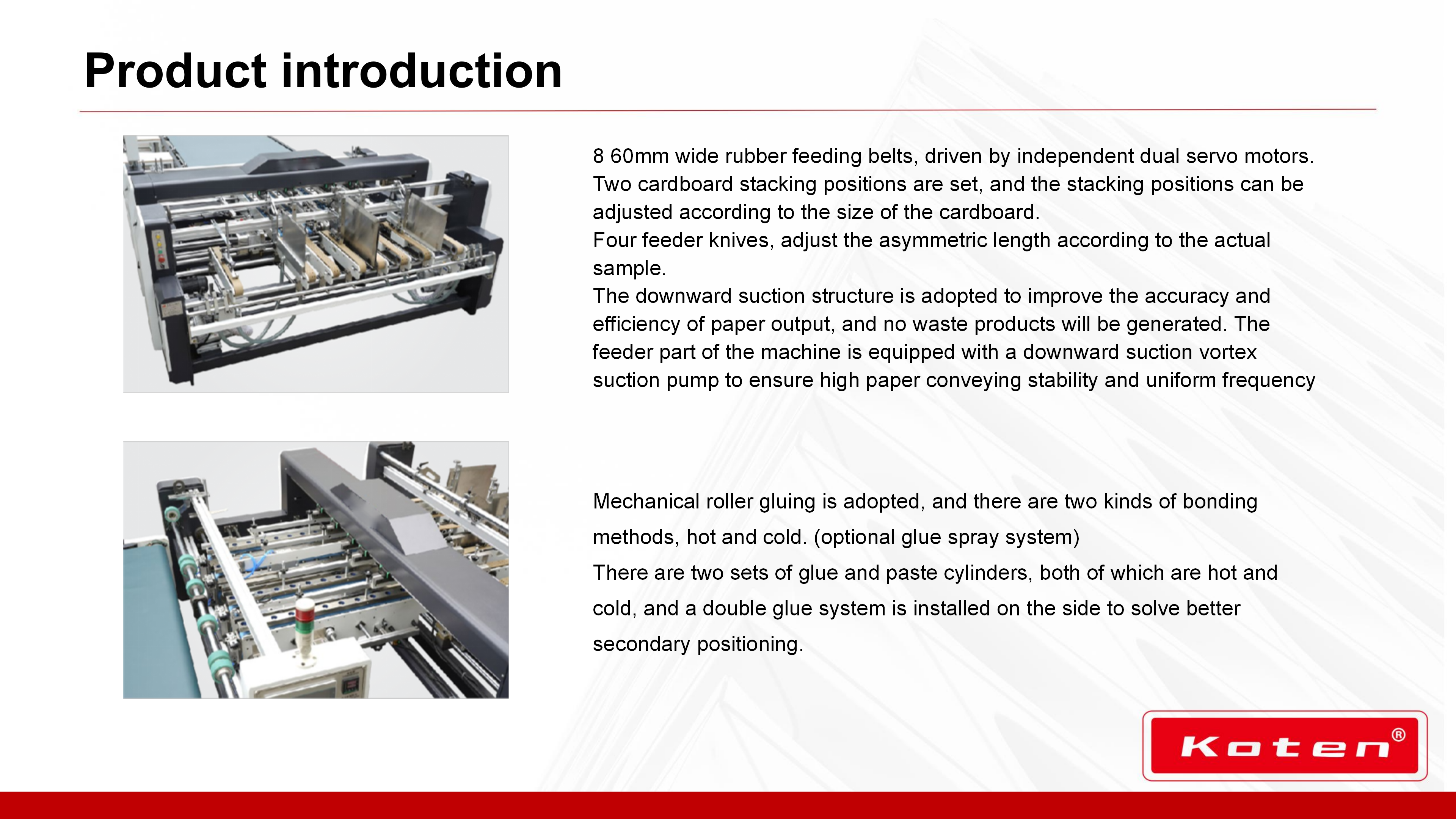

Products Description

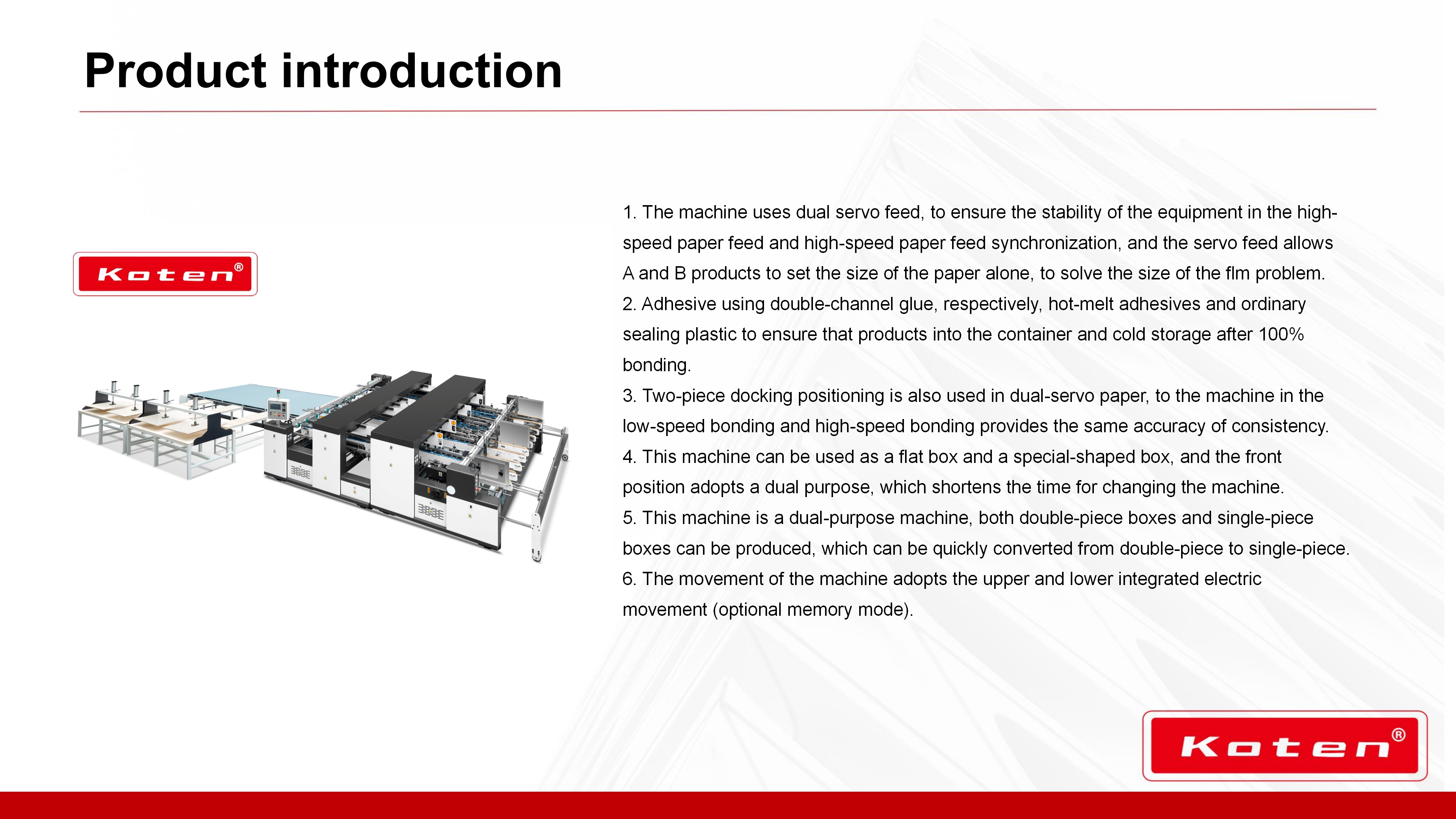

1. The machine uses dual servo feed, to ensure the stability of the equipment in the high- speed paper feed and high-speed paper feed synchronization, and the servo feed allows A and B products to set the size of the paper alone, to solve the size of the flm problem.

2. Adhesive using double-channel glue, respectively, hot-melt adhesives and ordinary sealing plastic to ensure that products into the container and cold storage after 100% bonding.

3. Two-piece docking positioning is also used in dual-servo paper, to the machine in the low-speed bonding and high-speed bonding provides the same accuracy of consistency.

4. This machine can be used as a flat box and a special-shaped box, and the front position adopts a dual purpose, which shortens the time for changing the machine.

5. This machine is a dual-purpose machine, both double-piece boxes and single-piece boxes can be produced, which can be quickly converted from double-piece to single-piece. 6. The movement of the machine adopts the upper and lower integrated electric movement (optional memory mode).

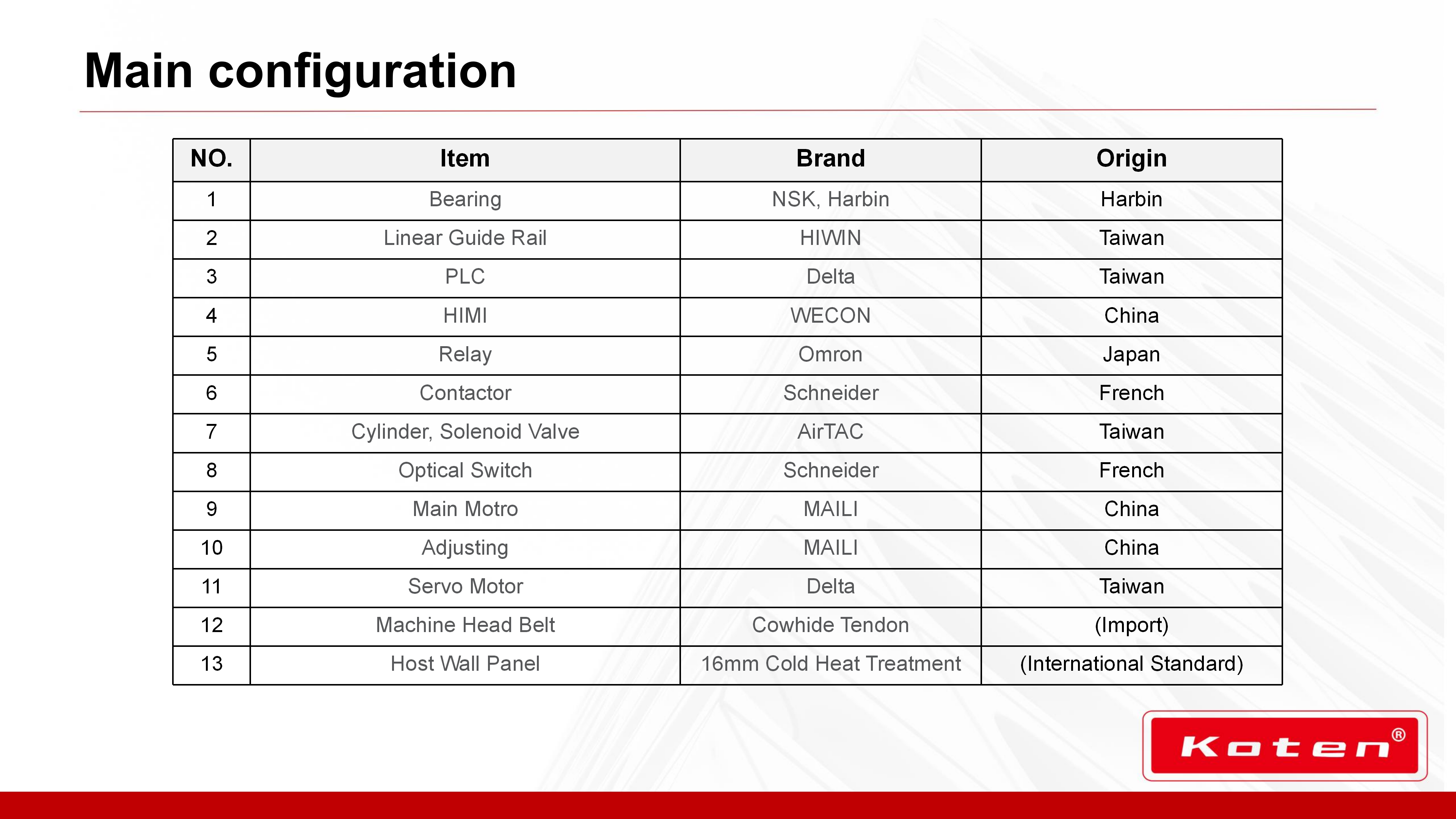

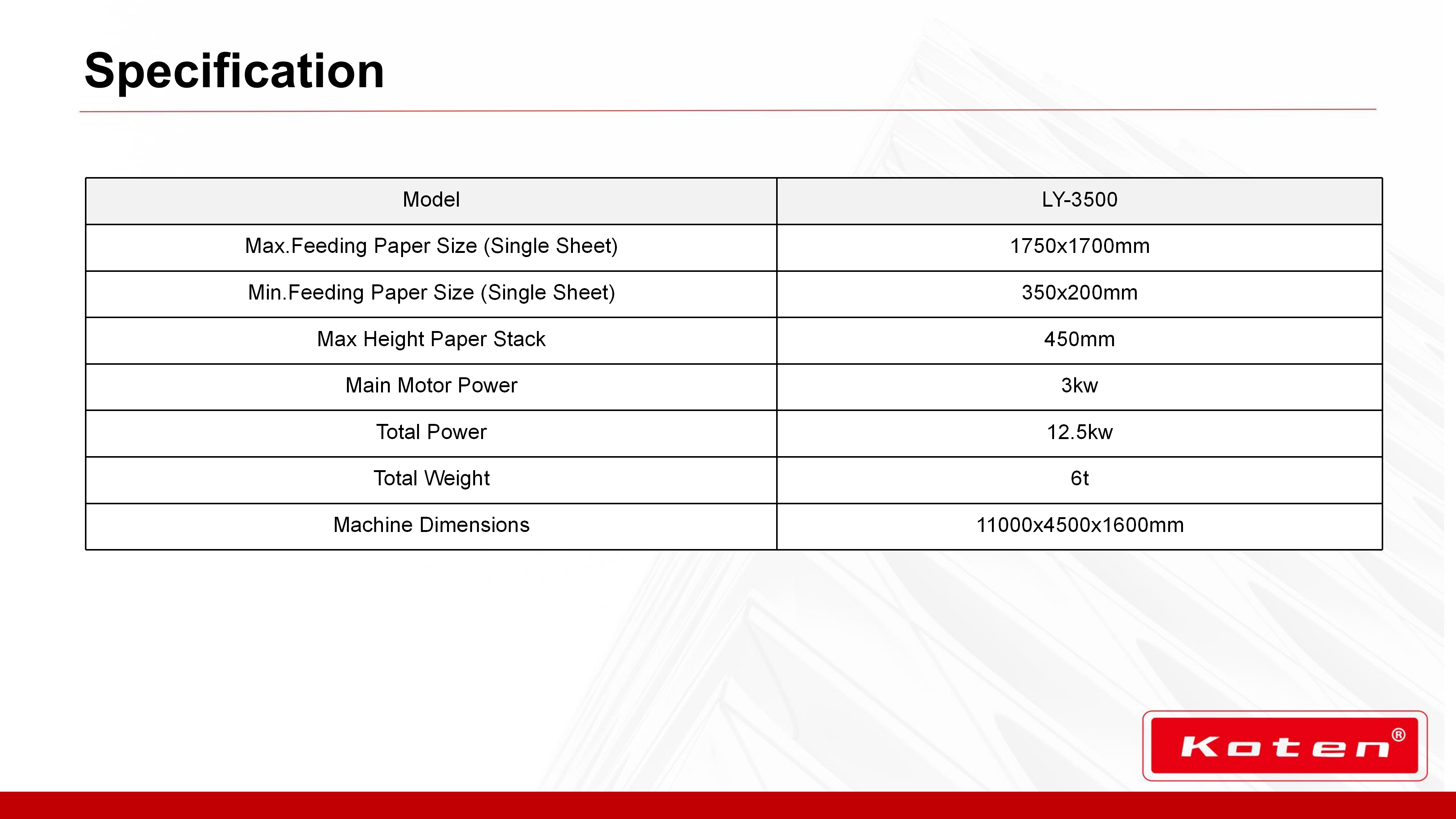

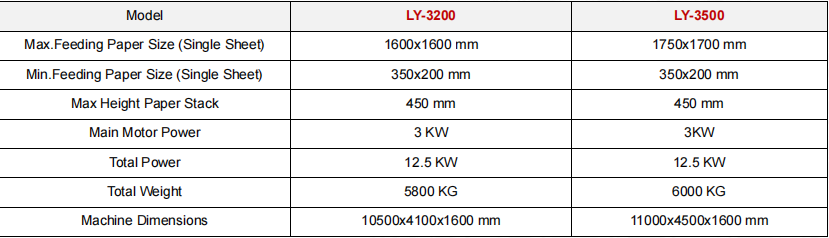

Parameters



7a050cb6-dec0-45d7-baf6-1e2f26ef4af4


Application


微信图片_20260527163620_82_209



Slice 1Slice 2Slice 3

111副本

1版本

Slice 7Slice 8

Slice 9
