SLX-1500/1700/1900-2
Koten
SLX-1500/1700/1900-2
Negotiate
1 set
T/T
50sets/month
By strong seaworthy wooden cases.
Within one month after get the deposit.
China
387
| Quantity: | |
|---|---|
1. servo motor drive cutting machine, the whole machine by CT programmable controller centralized control operation, touch screen operation interface, display all functional data, make the operation more concise.
2. the base paper holder adopts the top cone type shaftless base paper holder hydraulic system, and the hydraulic cylinder drives the clamping arm to open and close, move forward and forward and lift.
3. the whole set of electrical components are imported products, improve the stability of the electrical system, reduce the frequency of maintenance and overhaul.
4. by the CNC "machining center" precision machining of the frame and components to ensure the accuracy of the key parts, to ensure the stability of the machine, long-term high-speed operation.
5. the use of automatic marking, as long as the value of the input device in the human-machine interface, the machine can automatically mark after accurate calculation.

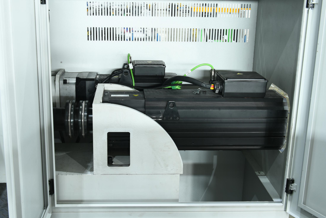

6. high efficiency and energy saving high power British CT servo motor drive screw cutter shaft, improve efficiency, reduce production costs.
Main features:
This machine is suitable for cutting the large coil packaging material, such as the paper, paper plastic complex material and color printing complex material, etc. This machine is widely used for application in the industries of paper processing and printing packaging.
Application range:
The machine is suitable for cutting in longitudinal direction and cross direction the colied materials like paper, trademarks, cigarette labels, wall calendars, spirits boxes, playing cards, paper-plastic compound materials, etc.
Function: Transverse cutting with flat blade, automatic feeding, automatic stowing and photoelectric tracking.
MODEL | SLX-1500/1700/1900-2 |
Cutting Type | Double knife rotary, bottom fixed knife |
Paper weight range | 150-1000gsm |
Maximum web diameter | 1800mm |
Maximum paper format | 1500mm/1700mm/1900mm |
Delivery height(incl. pallet) | 1500mm |
Cut-off length range | 450-1700mm |
Cutting accuracy | ±0.15mm |
Maximum number of cutting knives | 400cuts/min |
Maximum cutting speed | 300m/min |
Total Power | 98kw |
Power supply | AC380V/220Vx50Hz |
Weight | 24T |
