High Speed Paper Box Folding Gluing Machine With 350m/min.

  • 650/800/1100CS
  • Koten
  • 650/800/1100CS
  • Negotiable
  • One Set
  • T/T
  • 30sets/month
  • By strong wooden cases.
  • One month
  • China
  • 4280

Finished Samples.

downLoadImg (6)


Automatic Lock Bottom Folder Gluer has either side glue, both side glue, pre-folded, lock bottom of the basic functions, but also according to numbers of products matching the needs of different configuration to produce all kinds of boxes, such as box-in-box, CD ROM bags and EMS Express seal, etc. With sustained high productivity, this high-speed multi-functional machine also adopts special technical programs to achieve perfect accuracy.

1. This machine is equipped with two groups of gluing tube, upper and lower to make all kinds of boxes;
2. With the optional configuration, this machine can make special boxes, such as CD ROM bags, EMS express seal, paper file and box-in box, etc.
3. Advanced synchronous belt makes tooth connected, drive accurate and stable. It overcomes the peer products worn v-belt drive and chain drive fast, noise, and vibration and other defects.
4. Adopts imported frequency converter and the linkage mechanical governor can control the distance between each of two boxes when feeding. According to the different size, different shapes and paper materials, it can adjust the paper space and speed.
5. Select of high friction, high wear resistance with five vibrating motors feeding belt to ensure the continuous paper feeding.
6. Pressing department can be adjusted by two-way group to further press the folded boxes, and lead them to a smooth transfer. And it kick plate with a mechanical device, you may choose any volume counts.
7. This machine adopts double-screw adjustment and single operation, simple and fast.
8. Use the special equivalent high toughness belts avoid often belt tension. It is soft of the two side and plasticity, will not scratch the surface of paper.
9. With the imported gear motors in the conveying part to ensure the press output torque at low speed, the mouth of glued boxes will not bounce. Conveying belt can be moved front and back to facilitate transfer of long and short boxes.
10. High standards and high requirements of the spare parts are selected to provide a reliable guarantee for the machine.

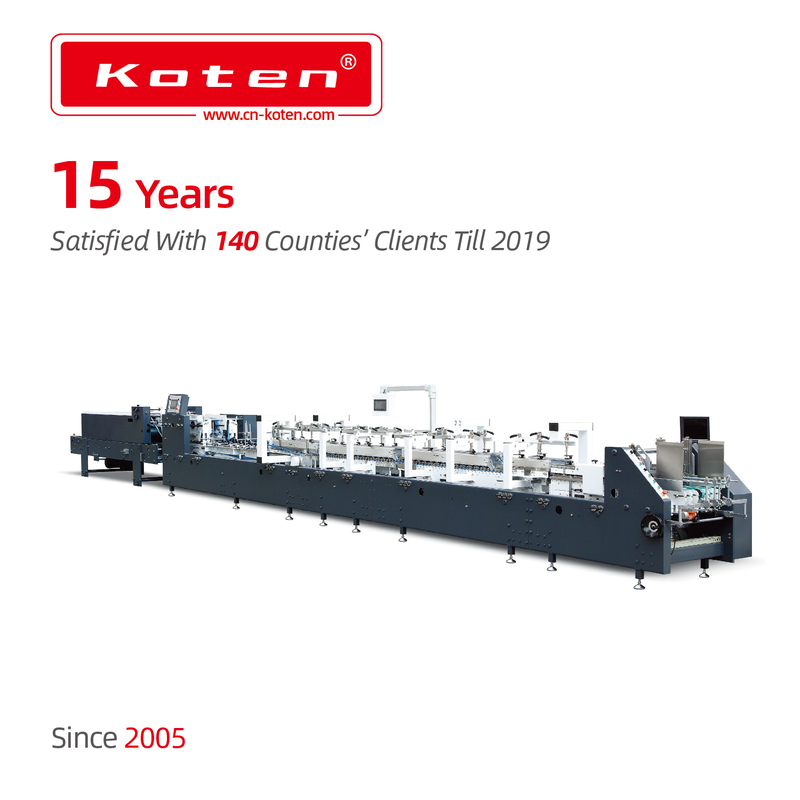

Koten Machines Container Loading.


140 Countries Clients Who Has Koten Brand Machines Till 2019.



1. Why choose us to cooperate?
Factory prices, flexible payment terms and professional quality inspection team which has the guarantee for machines, in time after sales service, and more than 15 years experience for exporting. Reputation and quality is what we are considering all the time.

2. Guarantee.

There is 12 month guarantee of each Koten brand Machines since customer got the machine. Within one year, the damaged spare parts can be changed for free, and we provide lifetime technology support on line.

3. Delivery Time.

Within 7-30 days after get the deposit. Depends on different machines.

4. What is your package?

What the package we use is strong seaworthy wooden cases. Each machine will be protected by anti-rusted oil before put into the case and there are desiccants will be packed into the machine together.

5. Do you have Installation and Training service if we bought the machines from your company?

The training service will be done by our agency dealer in some countries. If customers request us to dispatch our engineer to their country for installation and training, customers should take all necessary cost, like return flight tickets, hotel, food and salary USD100/day. If customer dispatch their engineer to our factory for training, it is free.

6. Have you sold any machines to our country?

We have to say that there are 140 countries' customers who have the "KOTEN" brand machines till 2019. Pls check with the sales manager to get more information if you need the machines' feedback.

7. What is your payment terms?

T/T. If the amount less than USD30,000.00, 30% paid in advance as a deposit, 70% balance paid before shipment.
L/C. If the sales amount above USD30,000.00, 30% paid by T/T as a deposit, 70% balance paid by irrevocable L/C at sight.
By Cash, by western union, credit cards are acceptable.
Special country like Bangladesh or Algeria can be available for 100% by irrevocable L/C at sight.
