HB-800/1200GS
Koten
HB-800/1200GS
Negotiable
One set
T/T, L/C at sight.
100sets/month
By strong seaworthy wooden cases.
Within 30 days after get the deposit.
China
2061
| Quantity: | |
|---|---|

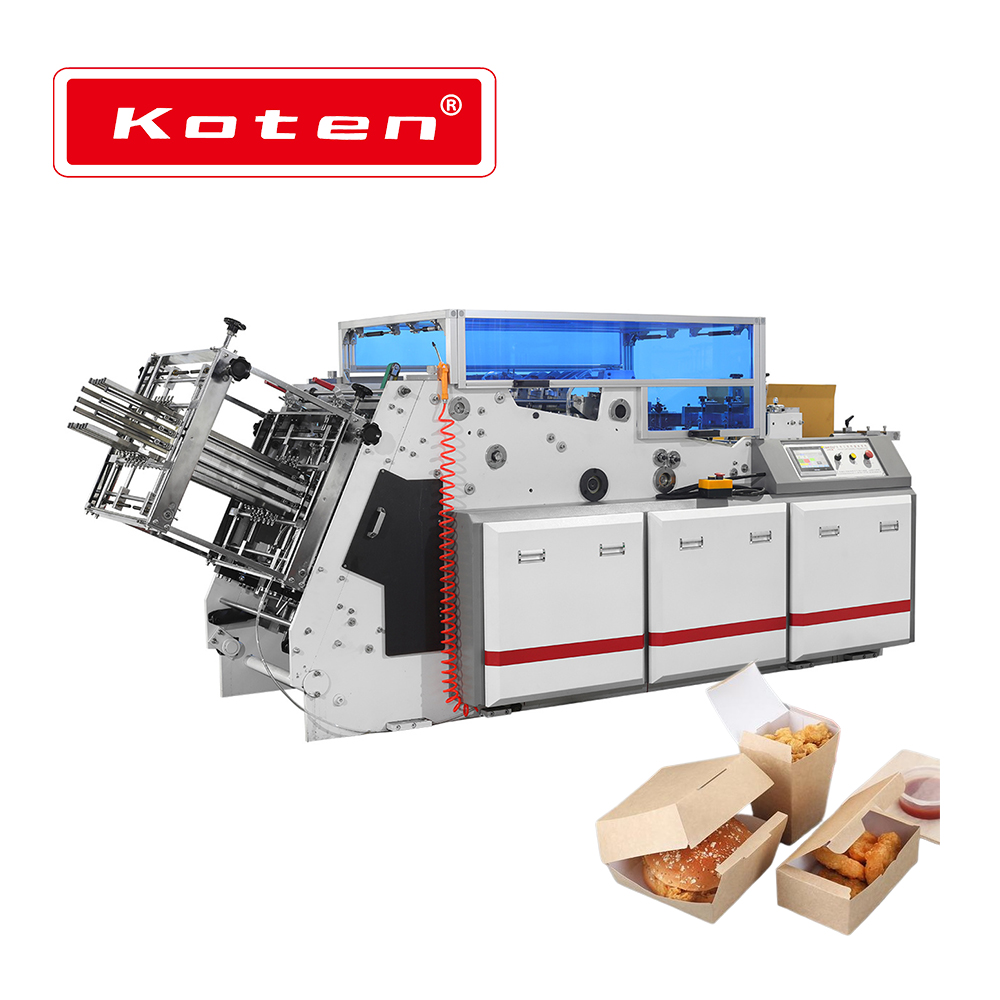

HB-800/1200GS paper carton erecting machine is an ideal choice to produce hamburger boxes,chips boxes,take away box,etc. It adopts micro-computer,PLC,servo feeding,alternating current frequency converter ,the vacuum-sucking,auto gluing,automatic paper tape counting,chain drive.All of these main parts and electric control system adopts famous brand to guarantee steady working,precise positioning,smooth running,safety and reliability operation.
Type | HB-800GS | HB-1200GS | |
Production capacity: | 80-200pcs/min | 160-400pcs/min | |
Suitable Material: | 200-600gsm card paper，PE coated paper, kraft paper, corrugated paper(up to 1.5mm) | ||
Paper open length: | L100-450mm degree:5°-40° W100-600mm Height H15-200mm (for special sizes can be customized) | ||
Total Power: | 5KW | 6.25KW | |
Weight: | 2200KGS | 2600KGS | |
Dimension: | 3600×1400×1700 mm | 3600×1850×1700 mm | |
power source | 380V 50HZ( can be customized)) | ||
Item | Brand | Origin |

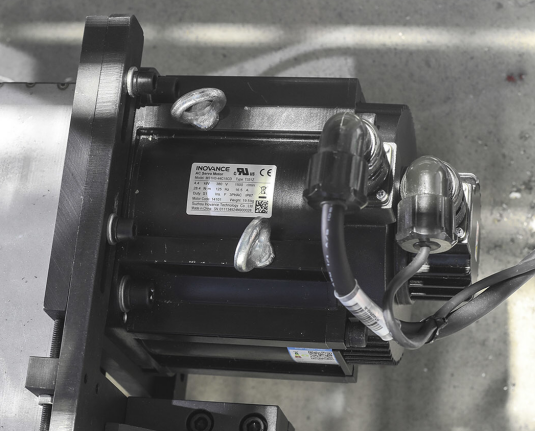

Main motor(servo motor) | Inovance | China |
Servo motor | inovance | China |
Gluing motor | JSCC | China |

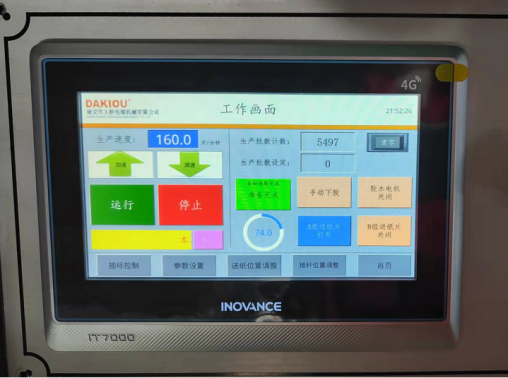

PLC | Inovance | China |
Power switch | Meanwell | China |
Relay | Schneider | French |
Low voltage apparatus | Schneider | French |
Bottom&switch | AUTONICS | Korea |
Main air cylinder | AIRTAC | Taiwan |
Paper feeding bel | TIGER | Italy |
Main Bearing | HRB/BEM | China |
Convey belt | TIGER | Italy |
HB-800/1200GS paper carton erecting machine is an ideal choice to produce hamburger boxes,chips boxes,take away box,etc. It adopts micro-computer,PLC,servo feeding,alternating current frequency converter ,the vacuum-sucking,auto gluing,automatic paper tape counting,chain drive.All of these main parts and electric control system adopts famous brand to guarantee steady working,precise positioning,smooth running,safety and reliability operation.
Type | HB-800GS | HB-1200GS | |
Production capacity: | 80-200pcs/min | 160-400pcs/min | |
Suitable Material: | 200-600gsm card paper，PE coated paper, kraft paper, corrugated paper(up to 1.5mm) | ||
Paper open length: | L100-450mm degree:5°-40° W100-600mm Height H15-200mm (for special sizes can be customized) | ||
Total Power: | 5KW | 6.25KW | |
Weight: | 2200KGS | 2600KGS | |
Dimension: | 3600×1400×1700 mm | 3600×1850×1700 mm | |
power source | 380V 50HZ( can be customized)) | ||
Item | Brand | Origin |
Main motor(servo motor) | Inovance | China |
Servo motor | inovance | China |
Gluing motor | JSCC | China |
PLC | Inovance | China |
Power switch | Meanwell | China |
Relay | Schneider | French |
Low voltage apparatus | Schneider | French |
Bottom&switch | AUTONICS | Korea |
Main air cylinder | AIRTAC | Taiwan |
Paper feeding bel | TIGER | Italy |
Main Bearing | HRB/BEM | China |
Convey belt | TIGER | Italy |
