HS-ZBJ
KOTEN
| Size: | |
|---|---|
| Quantity: | |

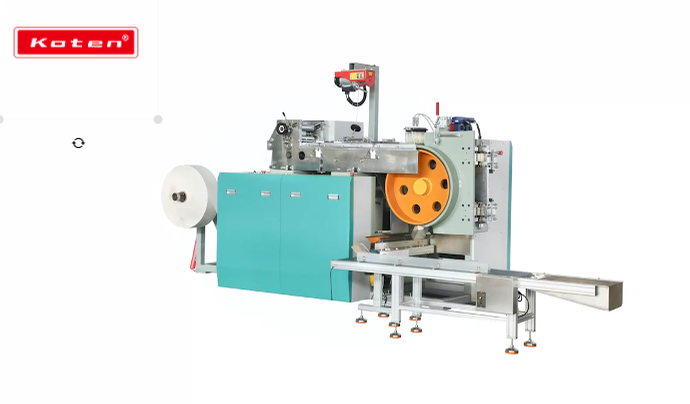

High Speed Paper Stick Forming Machine
1. The paper sticks are used in cotton sticks, perfume sticks, cakes, lollipops, shoe support and other products or industries.
2. Paper stick machine usually produce products more than 2.5mm diameter.
3, Adopt the man-machine interface, intuitive display, simple operation. With multiple sets of memory devices, changing the the product does not need to reset.
4. The parts are treated by welding, finishing and special treatment to ensure good quality. Stable machine performance, and long service life.
5. Change the diameter of the paper stick through servo control.
| Paper rod diameter | 2-4mm 5-6mm two models | ||
| Paper stick length | 50-210mm(length can be customized) | ||
| Productivity | 50-1800pcs/min | ||
| Paper thickness | 60-100g/m² | ||
| Applicable glue | Polyvinyl alcohol glue, starch glue | ||
| Paper requirements | single glossy paper | ||
| Power Supply | 380V 50HZ | ||
| Total Power | 9.25KW | ||
| size | 3370*1720*2200mm | ||
| weight | 1800KG |
| Touch Panel | Siemens:700IE V3 | ||
| PLC | Siemens:ST20 | ||
| Inverter | Siemens:V20，380V 5.5KW | ||
| Circuit Breaker | Eaton:E6-32/3/C | ||
| Contactor | Eaton:XTCG018C00DT+XTCGXFAC20 | ||
| Relay | Phoenix:REL-IR-BL/L-24DC/2X21 SYF08A-E | ||
| Switching Power Source | MEAN WELL:LRS-50-24 | ||
| Proximity Switch | Bedook:BB-M1204N-C11P2 |
